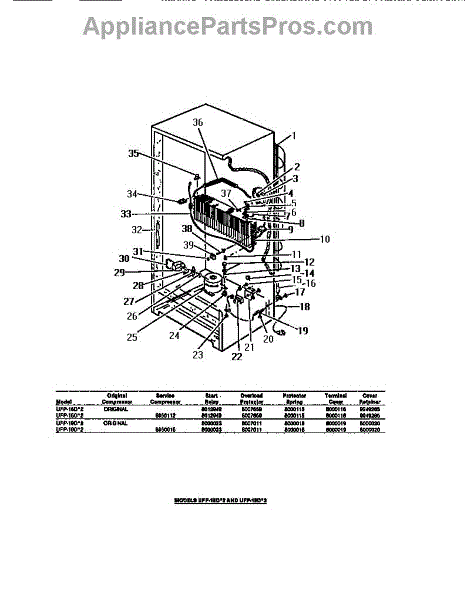

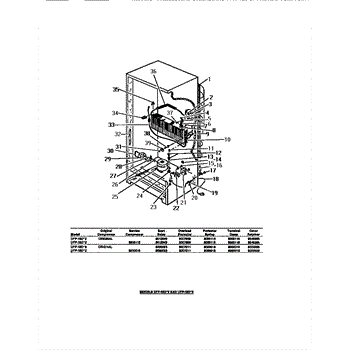

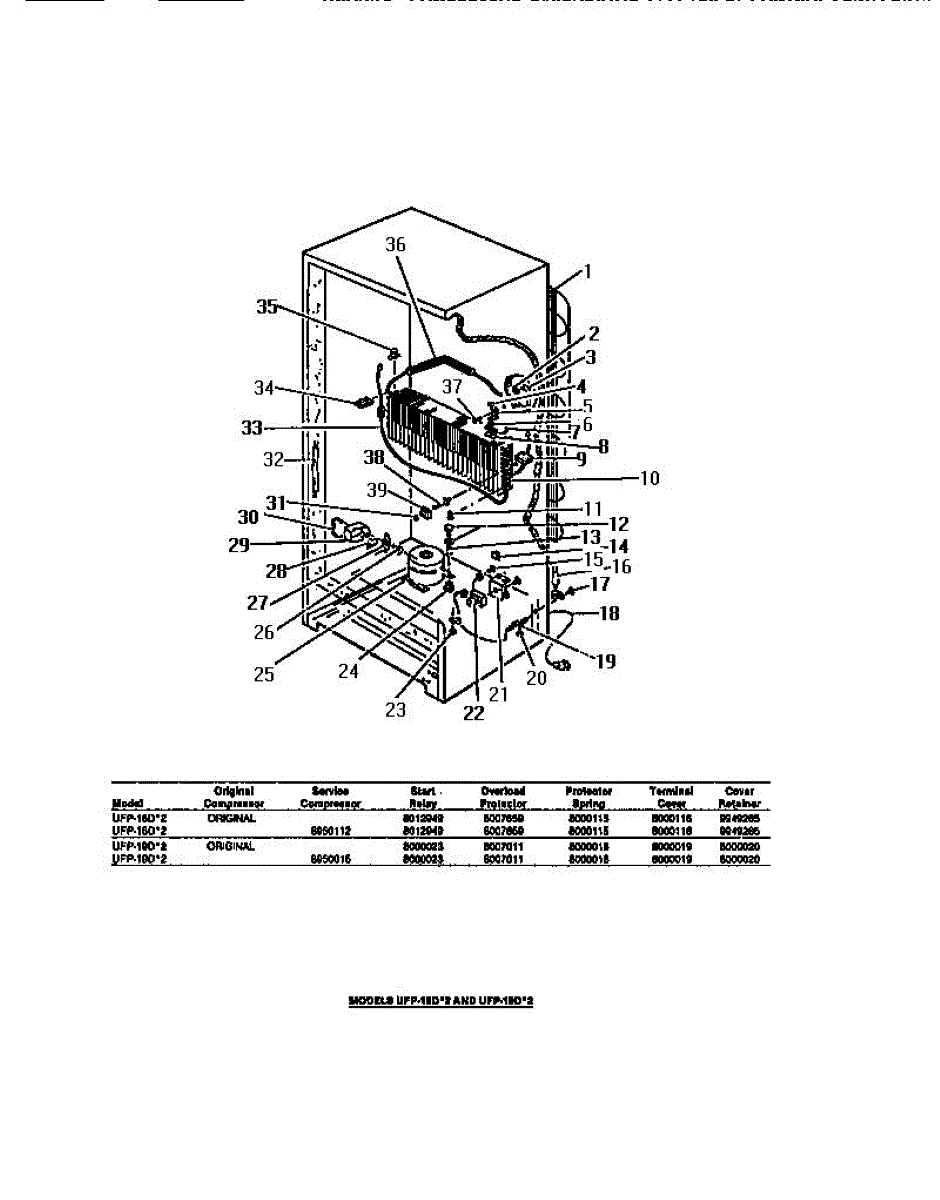

Parts for Frigidaire UF13DL4: 12 - Compressor, Evaporator, Elec. Contr Parts

This replacement tube routes water from the refrigerator's defrost area to the drain pan to help prevent leaks and pooling. A simple, direct-fit part for restoring proper drain flow and reducing water buildup. What it does

• Channels defrost and condensation water to the drain pan to prevent interior pooling.
• Helps maintain normal drainage to avoid ice buildup or water leaks.
• Restores a damaged, cracked or clogged original tube where flow is restricted.
• Works as a service part when inspecting drain path during defrost/drain issues.

• One replacement tube.

• Disconnect power to the appliance before starting any repair.
• Remove access panels as needed and route tube along the factory path; avoid sharp bends or kinks.
• Inspect drain openings and heater components while replacing the tube.

Includes service line.

This part has been discontinued by the manufacturer and is no longer available.

The Defrost Timer is an OEM replacement part for Frigidaire upright freezers. It serves as a crucial component responsible for regulating automatic defrost cycles.

Causes of a faulty defrost timer relate to 20,000+ hours of constant exposure to freezer temperatures as low as -10 degrees Fahrenheit. Such extremes can compromise electrical switching mechanisms over prolonged usage periods.

Symptoms of a failed defrost timer include:

• Inability to initiate automatic defrost modes
• Excessive ice and frost accumulation inside cabinet
• Warm areas detected due to impaired fan circulation
• Diagnostic codes indicating defrosting problems

This genuine Frigidaire replacement part is compatible with Kelvinator and some Kenmore units as well.

This compressor grommet is a rubber mounting isolator that cushions and secures the compressor to the appliance chassis, helping reduce vibration and noise while preventing metal-to-metal contact and premature wear. What it does:

• Cushions compressor movement to reduce vibration transmitted to the cabinet
• Dampens noise and rattling caused by compressor operation
• Prevents direct metal-to-metal contact that can wear mounting points
• Helps keep the compressor positioned and secured under load

• Disconnect power to the appliance before accessing the compressor or base pan
• Replace grommets while supporting the compressor to avoid strain on lines and connections
• Inspect remaining mounting grommets; replace all worn isolators for best performance

The Defrost Thermostat is an OEM part for Frigidaire refrigerators. It monitors the temperature of the evaporator coils and activates the defrost heater when necessary. This process prevents frost buildup on the coils, ensuring the refrigerator maintains optimal cooling efficiency.

You should replace the defrost thermostat if it becomes faulty or damaged. Common causes of a bad defrost thermostat include electrical failures, regular wear and tear, or temperature fluctuations that can degrade the component over time.

Symptoms of a bad defrost thermostat include:

• Excessive frost buildup on the evaporator coils
• Refrigerator not cooling properly
• The defrost cycle not activating
• Increased energy consumption

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.
