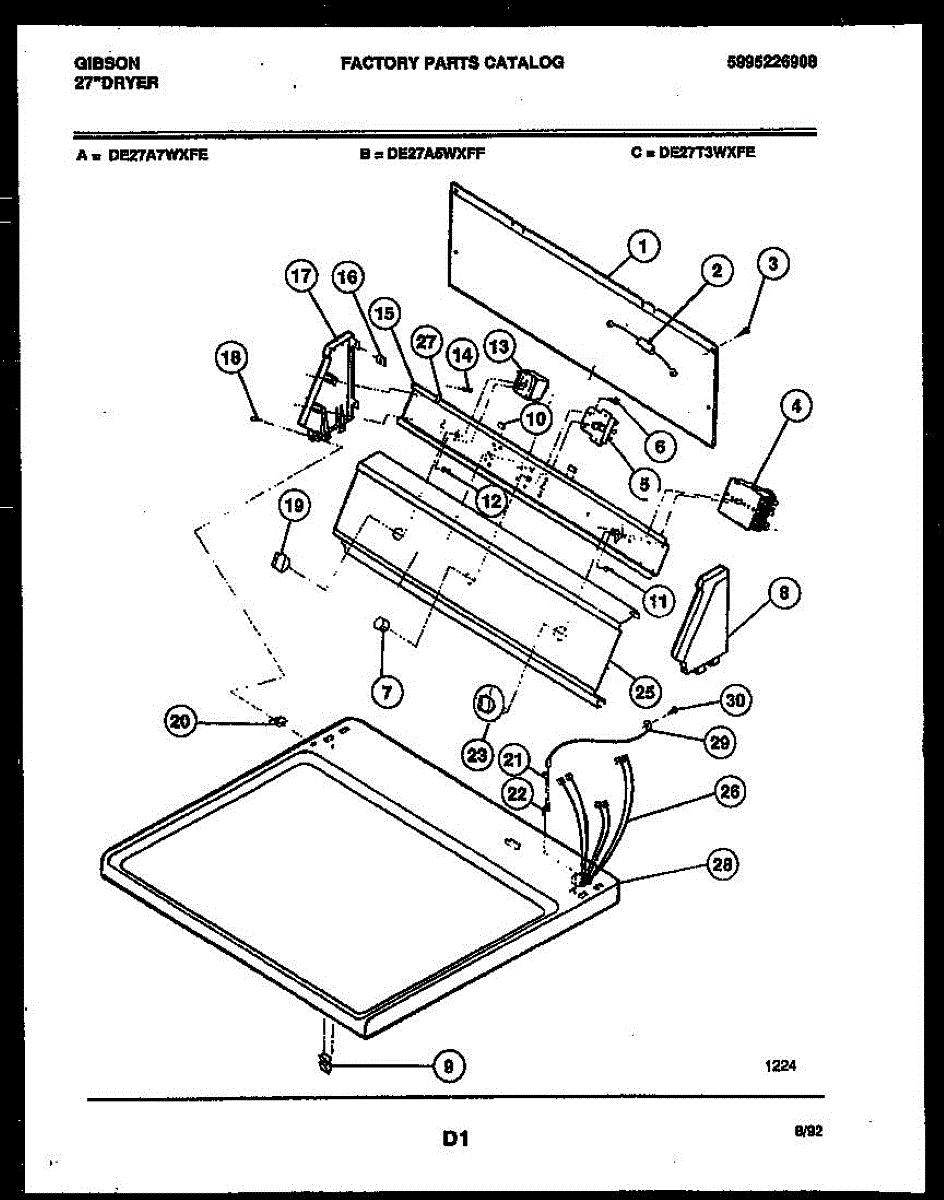

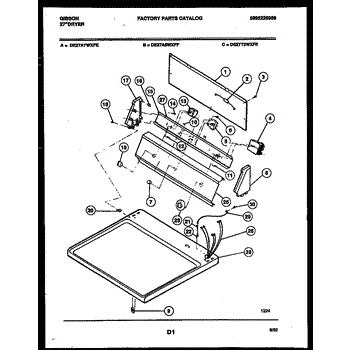

Parts for Frigidaire DE27A7WXFE: 04 - Console And Control Parts

This dryer timer is the cycle control that advances your dryer through Timed and Auto Dry settings. Replacing a failed timer restores proper cycle progression, start/stop, and end-of-cycle shutoff.

• Advances the cam and internal contacts to move the dryer through heat, motor, and cool-down steps
• Governs run time on Timed Dry and Auto Dry cycles
• Routes power to the correct circuits in sequence; a failed timer may not advance or may stop early
• Common symptoms include timer knob not moving, dryer running indefinitely, or not starting on certain settings

• Disconnect power; for gas models, also shut off gas
• Remove knob/dial, open the console, and unmount the timer
• Label or photograph wiring; transfer wires one at a time to the new timer
• Reassemble and test both a Timed Dry and an Auto Dry cycle

This clip is a small plastic retainer designed to secure trim and lightweight panels so they stay in place and reduce rattling or gaps. It restores proper fit and helps keep parts aligned for a finished look. What it does:

• Secures trim pieces, panels, or grill components to the appliance frame
• Prevents loose or rattling parts that can cause noise or misalignment
• Holds components in correct position so doors and panels close properly
• Replaces worn or broken clips that no longer grip reliably

• Remove power or disconnect the appliance before servicing when applicable
• Clip installs by snapping into pre-existing mounting hole or slot; no special tools usually required
• Inspect mating surfaces and replace any additional damaged fasteners for best fit

This factory replacement screw secures panels, brackets, or trim on your appliance so parts stay tight and aligned. Swap in a new screw when one is missing or stripped to restore a solid, rattle-free fit.

• Fastens compatible panels, brackets, handles, or internal hardware
• Helps maintain proper alignment and stability
• Common fix for loose or wobbly handles/trim, rattling noises, or missing hardware
• Replace if threads are stripped, head is damaged, or corrosion is present

• Disconnect power before servicing; wear cut-resistant gloves
• Use the correct screwdriver or nut driver to avoid stripping
• Start threads by hand to prevent cross-threading
• Tighten until snug; do not overtighten

This wiring clip secures a refrigerator's wire harness to the cabinet or components to prevent chafing and keep wires organized. It helps maintain safe routing and reduces strain on electrical connections. What it does

• Holds wiring harness in place to prevent rubbing against sharp edges or moving parts
• Keeps wires organized to reduce the risk of pinching or accidental disconnection
• Helps prevent intermittent electrical faults caused by loose or strained wiring
• Commonly used near compressor, fan, control box, or rear cabinet areas

• Install by snapping the clip onto the cabinet flange or component and routing the harness through the retainer
• Disconnect power before accessing electrical components or wiring
• Inspect surrounding wiring and insulation; replace any damaged wire or harness tape before reinstalling the clip

This is a replacement pan-head, locking screw used to secure the top bracket on compatible Frigidaire appliances. It provides a reliable fastener that helps keep the top bracket and panels held firmly in place. What it does:

• Secures the top bracket to the cabinet or chassis to prevent bracket movement or rattling
• Restores proper alignment of top panels and trim that may be loose or sagging
• Uses a locking feature to resist loosening from vibration
• Pan head design provides a low-profile, finished appearance once installed

• One screw as shown

• Use the matching #8-32 driver or bit and tighten until snug; avoid over-torquing to prevent stripping
• Turn off power and remove panels as needed before accessing the bracket area
• Replace only with the same size and thread type to ensure secure fit
• Replace all related screws for even support

This part has been discontinued by the manufacturer and is no longer available.

This top panel is the painted metal cover that sits on the range's upper surface, restoring a clean appearance and protecting internal components from spills and heat. It replaces worn, dented, or discolored top covers. What it does:

• Covers and protects the range's front/top area and underlying components from spills and debris
• Restores the appliance's finished appearance after dents, chips, or paint wear
• Helps maintain proper spacing for controls and trim pieces
• Stops light cosmetic drafts and prevents direct access to internal wiring

• Disconnect power to the appliance before beginning any work.
• Remove cooktop or control trim as needed to access mounting screws; keep hardware for re-use.
• Support the panel during removal and installation to avoid scratching surrounding surfaces.

This ground wire provides a secure electrical ground connection for your appliance's chassis to help prevent electrical shock and ensure safe operation. It replaces a damaged or missing grounding lead. What it does:

• Connects the appliance chassis to the grounding point to safely dissipate stray current
• Restores proper grounding after corrosion, fraying, or accidental damage
• Helps eliminate intermittent electrical faults caused by a poor ground
• Works where a single grounding lead is required for the component or cabinet

• One ground wire

• Turn off and unplug the appliance (or disconnect power at the breaker) before starting any work
• Verify the original grounding point and wire routing before removal to match reinstallation
• Use appropriate tools to remove and reinstall fasteners; ensure tight, clean metal-to-metal contact
