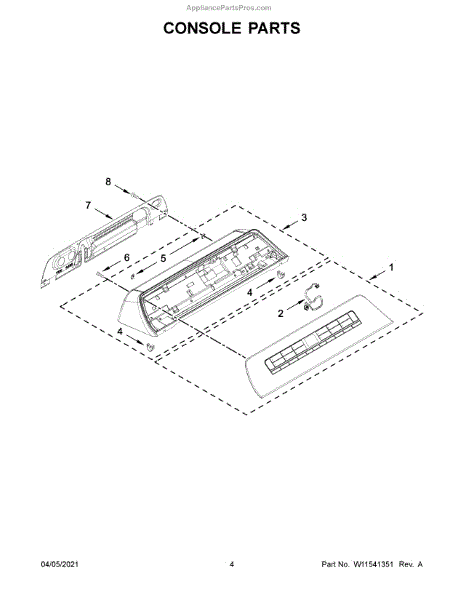

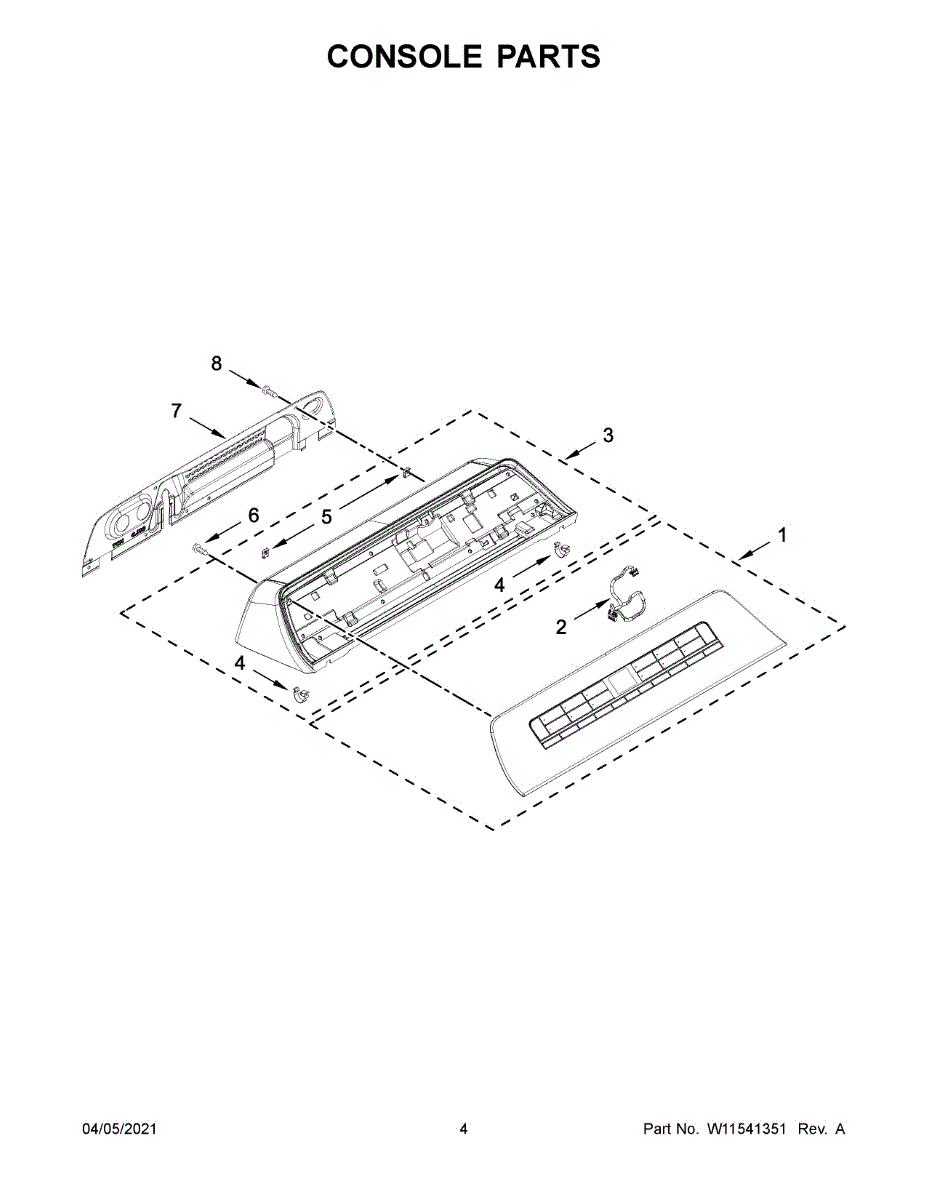

Parts for Whirlpool WTW5100HC2: Console Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This user interface wiring harness connects the control board to the VMax 2.0 touch/display module so the console responds correctly. It restores reliable signal and power routing between the control and the front panel. What it does:

• Carries power and signal lines between the main control board and the VMax 2.0 user interface
• Enables touchpad/LED display responsiveness and proper button input detection
• Can cause unresponsive controls, blank display, or intermittent console behavior when damaged
• Replaces worn, frayed, or corroded connectors that interrupt communication

• Disconnect power to the appliance before beginning any repair
• Handle connector ends carefully; align and seat connectors fully to avoid bent pins
• Inspect mating connectors on the control and UI for damage before installation

The Console Clip is an OEM part compatible with Whirlpool dryers. This clip secures the control console assembly to the top panel, ensuring it is firmly mounted during operation. Properly functioning clips are necessary to maintain the correct alignment of controls and prevent detachment.

Causes of a bad clip can include wear and fatigue from repeated opening and closing of the dryer door. Excessive force or impact could also bend or break the clip over time.

Symptoms of a bad clip include:

• Loose console assembly that is not securely fastened
• Misaligned or dangling controls that do not sit flush
• Dislodged console at risk of detaching from housing
• Missing clip leaving an open mounting point

This OEM Whirlpool replacement clip is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement nut secures appliance parts and hardware to keep assemblies stable and prevent loose connections. It's a simple, direct replacement for worn or missing fastening hardware to restore proper fit and reduce vibration. What it does:

• Fastens mounting studs, brackets or panels to hold components in place
• Restores secure mechanical connections that can loosen over time
• Helps eliminate rattling, vibration and misaligned panels caused by missing or stripped hardware
• Provides a straightforward, durable replacement for corroded or damaged nuts

• Disconnect power to the appliance before beginning any repair
• Use the correct-size wrench or socket; ensure threads engage smoothly before tightening
• Tighten until snug—avoid overtightening that can strip threads or damage components
• Inspect mating threads and replace any damaged studs or hardware for a reliable repair

This rear cabinet panel replaces a damaged or missing rear section on the appliance cabinet to restore enclosure protection and support. It provides a clean, secure back surface that helps keep internal components covered and protected. What it does:

• Replaces a dented, rusted, cracked, or missing rear cabinet panel
• Restores protection for internal components from dust, debris and accidental contact
• Helps maintain proper airflow routing and cabinet stability
• Returns the appliance to a finished appearance at the back

• Disconnect power (and gas if applicable) before starting service.
• Remove necessary access panels and controls to reach rear fasteners; keep track of all screws.
• Use caution for sharp sheet-metal edges and wear gloves.
• Verify fit and orientation before final fastening; do not overtighten fasteners.

The Screw is an OEM component compatible with Whirlpool washing machines. This screw secures the rear panel onto the cabinet frame, ensuring a sturdy connection between housing components.  Proper installation is critical for the washer's structural integrity.

Causes of a bad screw include corrosion from repeated water exposure or stresses from years of use. Loosening can occur from vibrations weakening the threads over time.

Symptoms of a bad screw include:

• Rear panel detaching from frame opening gaps
• Increased noise and vibrations from a compromised seal
• Stress on other connections from improper mounting points
• Potential leak paths from openings near hoses or tub areas

This OEM Whirlpool replacement screw helps maintain a tight panel closure. It is compatible with additional brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
