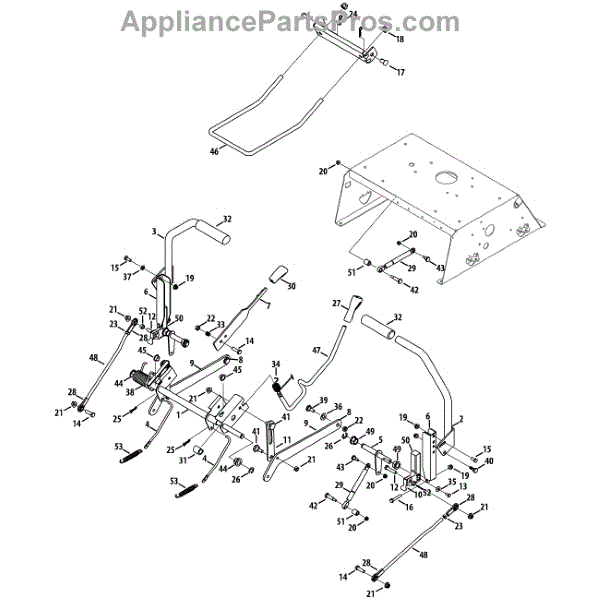

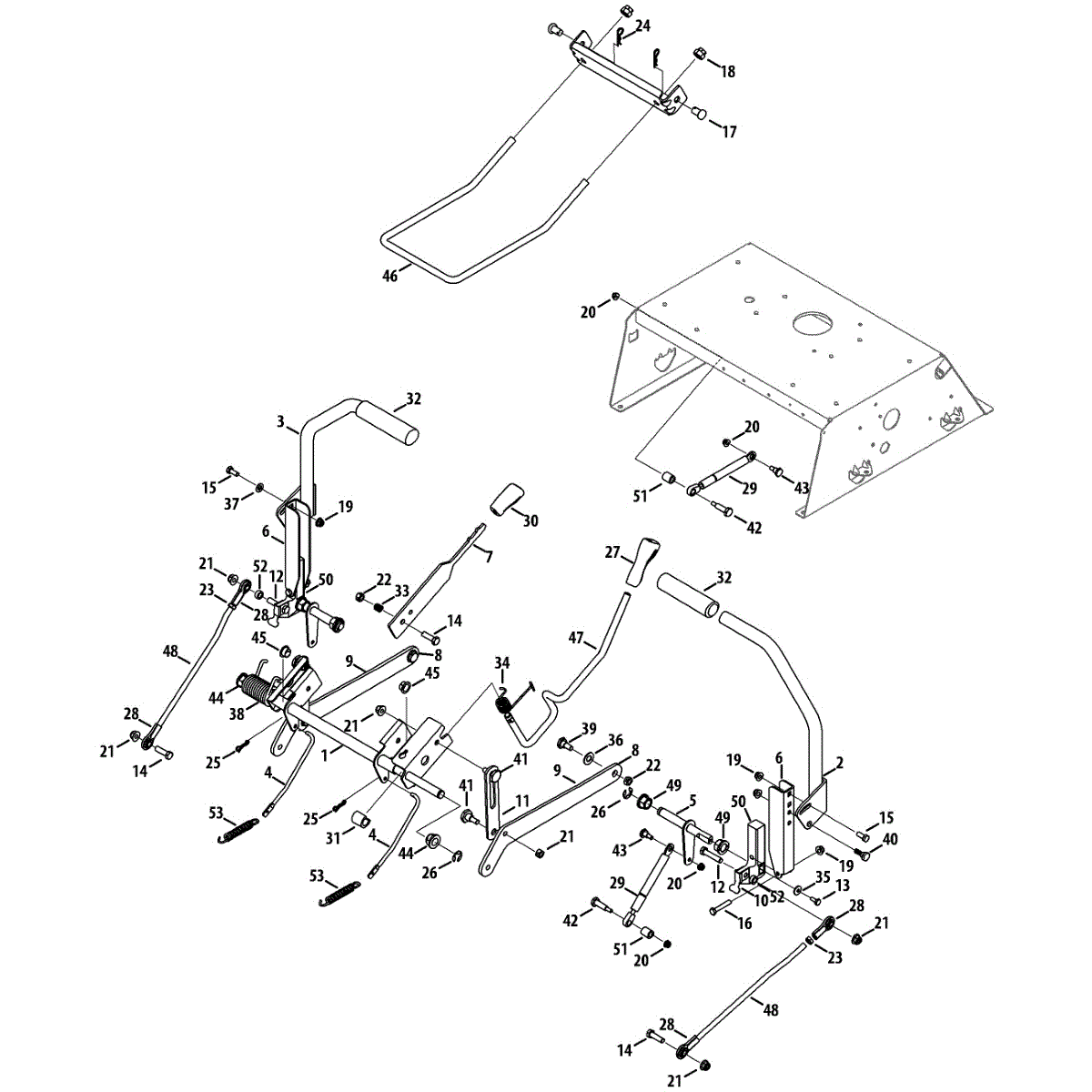

Parts for Craftsman 247.25061 / 2014: Control Assembly Parts

This screw is used on a variety of lawn and garden equipment from many manufacturers. This hex screw is a large bolt that has a six-sided head that can be used to fasten metal to wood or wood to wood. This type of screw is unique from traditional screws because the bolt head needs to be held with a socket while a second wrench is used to tighten or loosen the part. The bolts have a smooth shank and small threads. These screws can break or become damaged and no longer do their job. When that happens, they will need to be replaced. A hex key wrench can be placed into the slot of the screw and turned counterclockwise to loosen up the bolt. The replacement hex screw can then be placed in the original hole to adhere parts together on lawn equipment. This is a genuine replacement OEM screw that is commonly used on Craftsman, Toro, Murray, MTD, Yard Machines, Troy-Bilt, Bolens, Yard-Man, MasterCut, Cub Cadet, and Huskee lawn mowers, log splitters, snowblowers, chainsaws, tillers, and string trimmers. The screw is sold individually and made of durable metal.

This hex screw is an authentic OEM replacement part sourced directly from the manufacturer. It is used in many different applications in lawn and garden equipment and can be used on many different machines. If the hex screw is missing or loose due to deterioration, a new hex screw should be installed. Hex head screws are removed and replaced using a hex wrench. Screws are used to secure one part of a machine to another part. This hex head screw is not self-tapping, it is designed for pre-drilled holes. Most applications will require a washer and bolt to secure the screw, but there are applications where the screw is inserted into parts that do not have an opening on the other side and so the screw does not need to bolt. Wear gloves when working with screws and outdoor equipment. This hex head screw is made of hardened metal and is sold as an individual unit. This hex head screw can be used on many different model machines manufactured by MTD, Ryobi, Murray, YardMan, Bolens, Cub Cadet, and Husky.

This is a hex screw used on a variety of types of lawn and garden equipment. On large machinery, it is often used to mount the gas tank. On smaller items, it tends to be used to clamp the housing together. It can secure items like plastic, metal, brick, and wood together. It measures 5/16-18 x .75 inches and is made of durable metal. In some cases, the screw can become damaged, broken, or stripped, which means it needs to be replaced.A visual inspection will indicate whether the screw is damaged. If it needs to be replaced, a hex wrench can be used to remove it from the equipment. Afterward, the replacement hex screw can be installed with the wrench before being tightened to ensure materials hold together well.This hex screw is a genuine OEM part that is sold individually. It is sourced directly from the manufacturer. The hex screw is compatible with lawnmowers, wood chippers, log splitters, snowblowers, chainsaws, edgers, tillers, leaf blowers, and string trimmers by Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Broan, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Turf King, Yard-Man, and MasterCut.

This hex bolt is a necessary component used in a variety of small to medium sized gasoline powered engines used primarily in yard work, gardening, and landscaping. The primary use of this hex bolt is to secure the idler pulley assembly to the body of the machine. The idler pulley functions to engage the turning mechanism of the yard tool when engaged. The power yard tools that require an idler pulley which would use this screw are tillers, riding mowers, yard tractors, tillers, snow blowers and chippers. Engaging the rotating part of the yard tool places a great deal of resistance on the idler pulley, which may eventually result in it needing to be replaced. When replacing the idler pulley assembly, it's important to remember that the attaching hardware, such as the hex bolt, has also experienced a great deal of wear and should be replaced as well. This hex bolt attaches the idler pulley assembly directly to the machine housing and can be removed with a 9/16 wrench. Make sure when replacing the bolt to use a genuine OEM manufactured part that is identical to the manufacturer's original piece. This bolt is compatible with the following brands: Yard-Man, Bolens, Craftsman, Yard Machines, Troy-Bilt, Cub Cadet, Huskee, Ryobi, Murray, MTD, MasterCut, and Montgomery Wards.

This clevis pin is a metal fastener without threads like most screws. It has similarities to a bolt and is often inserted into a pre-drilled hole to secure two or several items together in yard and garden equipment. Clevis pins will have a hold through the end where cotter pins can be attached to secure the pins into place. Sometimes these pins can become corroded or experience damage which will require them to be replaced.If the clevis pin is falling out, broken, or damaged, it needs to be removed. Spraying it with penetrating oil and letting it sit for a few hours before pulling the cotter pin away from the clevis pin is the best technique. A pry bar can be used to take the pressure away from the clevis pin before hammering against the clevis pin to take it out. At that point, the new clevis pin can be installed.Created for use in chainsaws, lawnmowers, and snowblowers, this clevis pin fits lawn and garden equipment by MasterCut, Craftsman, Yard-Man, Toro, Yard Machines, Cub Cadet, MTD, and Murray. This is a genuine OEM product directly sourced from the manufacturer that comes as an individual component.

This part is a replacement nut. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. It is intended to replace a defective or lost nut in outdoor power equipment.Nuts help to secure different equipment components together properly. They will need to be replaced if corroded, stripped, lost, or unable to properly fasten together parts. Wear work gloves to protect the hands and check that equipment is powered off and cooled down before starting the repair process. For more accurate information on how and where to use this nut, the appropriate owner's manual and equipment diagrams should be referred to. This nut is a genuine OEM part made of durable metal and is sold individually. It is suitable for use with outdoor power equipment that have been manufactured by MTD, Craftsman, Troy-Bilt, and other brands.

A flange nut's unique wide flange design distributes the nut's pressure over the part it is securing. In return, it creates an even fastening surface, which reduces part damage and nut loosening. This one-piece all-metal fastener has a lock nut version that features a protruding circular flange. This drastically increases bearing surface, compatibility either for irregular or oversized holes, and surface tension reduction. Flange lock nuts are the preferred type of fastener for many lawnmower models because it can provide better fastening than regular screws, which are known to loosen under extreme vibration. However, it’s important to know that flange lock nuts are susceptible to wear and tear due to constant vibration exposure. It is essential to replace the broken flange lock nut immediately to prevent serious damage to the lawnmower. The MTD 712-04063 Flange Lock Nut OEM replacement can be used with Craftsman, White Outdoor, Yard Machines, MTD, or Columbia lawnmowers. It is a genuine or OEM MTD replacement part that measures 5/16-18. It is threaded and requires the use of a wrench. This replacement flange lock nut is sold individually. An MTD bolt carriage may also be needed and is sold separately.

A flange lock nut, also known as a flange lock or a lock nut, is created to be used in various types of lawn and garden equipment. This flange lock nut holds other parts in place and, when properly threaded, will resist loosening. Over time, a flange lock nut may begin to weaken and may become loose or break. If it appears to be broken or weak, a replacement is required. Flange locks can be adjusted and uninstalled after use. When replacement is required, you may need a socket set, screwdriver, hacksaw, and butane torch. The socket wrench will loosen the bolt it is connected to, while the torch is used to heat the lock nut. A socket wrench may remove the nut, but sometimes cutting it with a hacksaw is required. This flange lock nut is a genuine OEM component directly from the manufacturer and comes in an individual unit. It is made of metal, a gold color, and can be found in various areas of lawn equipment. It works with lawnmowers, trimmers, snowblowers, cultivators, tillers, and leaf blowers by Poulan, MTD, Toro, Cub Cadet, Murray, Troy-Bilt, Bolens, Yard Machines, Craftsman, and Yard-Man.

This is a flanged lock nut. It’s designed to apply tension, typically on a joint that needs to have a certain amount of flex. As such, it’s mostly used on snowblower chutes and lawnmower handles. They can remain in place, but with a forgiving connection that can take a beating. The nut size is 3/8, with a thread size of 16. A lock nut will generally last for many years. However, the silicone ring inside will wear down if it’s frequently tightened and loosened. It needs to be replaced when it will no longer reliably remain in place. Generally, this begins as a symptom of slight slippage and worsens as time goes on. Thankfully, whether it’s being used on a snowblower or a lawnmower, this nut is generally straightforward to access. Simply unscrew the old nut, then screw the new nut on until it’s nice and tight. Our flanged lock nuts are genuine OEM MTD nuts, and they are sold individually.

This replacement part is a cotter pin. This is a genuine replacement part made by MTD. This part is small but important to the overall workings of different equipment. Cotter pins are able to secure certain parts in place so that they are safe and effective during use. A new cotter pin might be needed if the current one has become logged in place or is missing altogether. If the pin has been bent, it is possible that it is no longer working effectively. It is also possible that the pin can become lodged into place over time due to normal wear and tear. Wear work gloves when working with small parts. This part is sold individually and is sourced directly from the manufacturer. This is a genuine OEM replacement part.

A cotter pin, also known as a hitch pin, is used to secure pins and shafts in place. Meant for snowblowers, riding lawnmowers, and lawn tractors, this bow-tie shaped cotter pin has a double-end design making it easy to pull or push through either side of a pre-drilled hole. This pin snaps into a locked position without tension, keeping it secure during operation. Designed for lawn and garden maintenance equipment, this part ensures secure fastening. If the power equipment is used frequently, cotter pins may have to be replaced regularly so it would be practical to keep extra bow tie cotter pins on hand. It is highly recommended that work gloves be worn during the installation of this part. This part is compatible with Craftsman, Cub Cadet, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Bolens, Yard-Man, and MasterCut brands of lawn mower, snowblower, and log splitters. This is a genuine OEM replacement part that is sold individually.

This replacement part is a grip handle. It is a genuine replacement part made by MTD. This part is responsible for helping the user control the machine or appliance. The grip handle is important to allow for total control over the appliance so that the user may operate it properly. A new grip handle might be needed if the current one is damaged in any way including being dented, cracked, chipped, or stripped. This can be due to normal wear and tear or a single incident. If the user is unable to hold the appliance using the grip handle, it might be time to replace it. Refer to the owner's manual before replacing this part. This is a genuine OEM replacement part to ensure long-lasting use. This part is sold individually and is sourced directly from the manufacturer to ensure a proper fit.

This part is a replacement cylinder damper. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. The intended use for this part is to properly replace a broken or defective cylinder damper on lawn tractors. The cylinder damper prevents the equipment operator from oversteering by limiting the movement of the steering lever. If the cylinder damper is broken it may be unsafe to operate the lawn tractor, thus this part should be replaced. Always ensure that the equipment is completely powered off and is cooled down before attempting to start the repair process. For more accurate information on the stallation of this cylinder damper, reference the owner's manual or equipment diagrams for specific instructions and part location. This is an authentic OEM part and as such is sold individually and made from durable and high-quality materials. This cylinder damper can be used with a variety of lawn tractor models manufactured by MTD, Craftsman, and Cub Cadet.

This handle grip part is used on many kinds of lawn and garden equipment that is pushed or otherwise moved around a yard. The handle grips are made out of flexible rubber and are used on the two handles. The purpose of the handle grip is to offer a more secure grip on the power tool and lessen the feel of vibrations.Over time, one or both of the handle grips can start to experience wear. Sometimes, the grips will become damaged or broken. If the grips are very damaged, they may come off of the machinery. There is no need to use tools to replace the handle grip on yard equipment. The old part just needs to be removed from the tool so that the new component can be slipped on. Wear a pair of work gloves to make the process easier.This is a genuine OEM handle grip replacement that is sourced directly from the manufacturer. It is sold individually. The part is compatible with lawnmowers, snowblowers, tillers, and chainsaws created by MasterCut, Yard-Man, Bolens, Montgomery Wards, Huskee, MTD, Yard Machines, Murray, Troy-Bilt, Ryobi, Cub Cadet, and Craftsman.

This spring washer has a conical shape with an open center. It has a shape like a traditional washer but is smaller than a typical coiled spring. These washers can handle a larger load than a coiled spring and are used in lawn and garden equipment to cushion heavy loads. Over time, these washers can experience wear and tear which will lead to damage or breakage. When this occurs, the spring washer will need to be replaced.Visually inspect the spring washer for damage like scratches, breaks, and dents. If these occur or the washer is warped, it needs to be replaced. The process involves removing the nut or screw above the washer with a screwdriver or other tool. After accessing the spring washer, it can be removed and a replacement part can be added to the equipment. Reassemble the parts and the equipment should work again.This is a genuine OEM spring washer replacement part that is sold individually. It's sourced directly from the manufacturer. It is compatible with lawnmowers, wood chippers, snowblowers, log splitters, tillers, chainsaws, string trimmers, and edgers by Craftsman, MasterCut, Toro, Turf King, Cub Cadet, Yard-Man, Ryobi, Bolens, Husky, Montgomery Wards, Murray, Huskee, Yard Machines, and MTD.

Shoulder screws are a type of fastener used in many types of lawn and garden equipment. Also called stripper bolts or shoulder bolts, they have a head, threads, and an unthreaded shoulder. These screws are used in areas where items need to be held together in a specific location. They can be used with bearings, bushings, and machinery support. Shoulder screws are made of durable metal but can still experience breakage or damage. When this occurs, the screws will need to be replaced. A wrench can be used to remove the damaged shoulder screw. First, visually inspect the shoulder screw to look for damage or corrosion. Sometimes, the screw will be entirely broken. If any of these things are present, a wrench can be used to remove the old shoulder screw. The same tool can be used to insert a new shoulder screw before reassembling the equipment.Designed for lawnmowers, lawn tractors, tillers, leaf blowers, chainsaws, log splitters, chipper shredders, and snowblowers, this part is compatible with items from Yard Machines, MTD, Cub Cadet, Craftsman, Toro, Huskee, Montgomery Wards, Yard-Man, MasterCut, and Troy-Bilt. The locknut is sold separately.

This is a replacement part for select riding mowers designed to ensure smooth rotation for years of use. This part is circular and tapers off into a hexagonal shape to support rotating shafts that create friction inside of machinery. Rotating parts are almost a given in most machinery like riding mowers, so the hex flange bearing provides support in multiple ways to parts such as wheels, rotors, and gears.The hex flange bearing serves two fundamental roles to make machinery run efficiently. For starters, friction will inevitably occur in rotating shafts, so bearings reduce the amount of friction and related wear and tear. The second function of this part is protecting the rotating from damage due to pressure created during operation.This genuine OEM sourced replacement part is intended to be used for lawn tractors from MTD and other yard machines. This part is compatible with manufacturers including Yard Machines, Bolens, Yard Man, Troy-Bilt, Cub Cadet, and Husky. A wrench may be used for an easier replacement installation. This item is available for purchase individually.

This part is a deck lift rod that is used on lawn tractors and lawnmowers. This component is manufactured out of a high-quality metal material and is used to lift the deck.A new deck lift rod will be needed if the original is cracked, broken, or damaged in any way. This component may become worn or break after regular use over a period of time due to normal wear and tear. If this is the case, it will need to be replaced. Remember to wear gloves when operating or performing care and maintenance on any outdoor power equipment. Never perform care and maintenance on outdoor power equipment that is powered on.This deck lift rod is a genuine MTD part. It is sold individually. This particular deck lift rod is compatible with lawn tractors and lawnmowers that are manufactured by MTD, Troy-Bilt, Yard-Man, White Outdoor, Craftsman, Columbia, and Murray.

This replacement part is a control rod. This is a genuine replacement part made by MTD. This part is often found on lawn mowers and is responsible for allowing the user to control certain settings during use. A new control rod might be needed if the current one is visibly damaged. This can include being dented, cracked, chipped, or bent in any way. If the control rod is no longer able to stay connected to the machine, it is recommended that it be replaced. It is possible that this part can become stripped over time due to normal wear and tear. Be sure the engine is completely turned off before attempting to replace this part.This is a genuine OEM replacement part. This part is sold individually and is sourced directly from the manufacturer.

This part is a replacement hex flange bearing. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part can be used to replace a detached, defective, or damaged hex flange bearing in a variety of lawn tractor models. This part provides support for the lawn tractor shaft and also enables it to rotate without creating too much friction. This is a high wear and tear part and may require replacement with age or regular equipment use. A wrench set and screwdriver will be needed to replace this part. It is always recommended that the appropriate safety precautions are adhered to when attempting to fix any power tools or machinery. For more accurate information on how and where to install this hex flange bearing, the appropriate owner's manual and included diagrams should be referenced.As an authentic replacement part, this hex flange bearing is suitable for use on several different models of lawn tractors manufactured by MTD, Troy-Bilt, Yard Man, and Cub Cadet. This is a genuine part made of high-quality, durable metal and is sold individually.

This is a brake rod extension spring designed for lawn mowers and lawn tractors. The extension spring is a mechanical component crucial to braking. The spring applies tension between the brake rod and the deck brake bracket and holds the brake bracket in place when the brake is off. Extension springs are simple mechanical devices and are subject to wear and tear over time. Repeated stress exerted on the spring may cause it to weaken or to break entirely. If the brakes do not engage when depressed, a broken or deformed tension spring may be the culprit. Replacing the extension spring is a simple job requiring a set of wrenches and pliers. Installing a new spring will require the removal of the rear tire on the same side that the brakes are located. First, take off the two bolts fastening the brake caliper, and disengage the cotter pin and washers from their lever. Next, remove the old spring and replace it with the new one, making sure to refasten the cotter pin and washers after exchanging the springs. Lastly, reaffix the caliper and wheel.This is an OEM part sourced directly from the manufacturer. It is sold individually. The extension spring is compatible with Cub Cadet, MTD, Troy-Bilt, and Yard Man Models.
