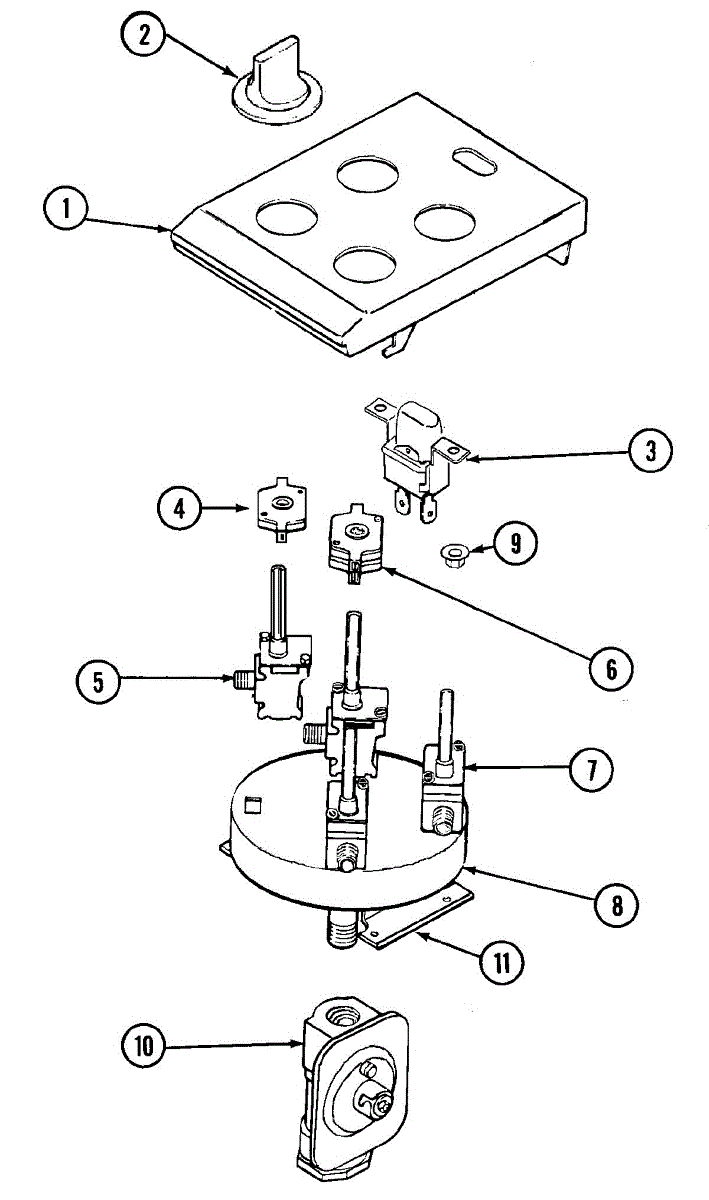

Parts for Jenn-Air CG206B-E: 04 - Control Assembly Parts

This part has been discontinued and is no longer available.

The Top Burner Control Knob is an OEM part for Whirlpool ranges. It is used to regulate the heat output of the stovetop burners, allowing you to adjust the flame intensity for cooking. This control knob fits securely on the control shaft and provides a reliable way to control burner settings.

Over time, the top burner control knob can become worn out or damaged from frequent use, exposure to high heat, or accidental impact. A faulty knob can compromise your ability to control the burner effectively, impacting your cooking experience.

Symptoms of a bad top burner control knob include:

• Difficulty turning the knob
• The knob slipping or not staying in place
• Inaccurate heat settings
• The knob not engaging properly with the control shaft

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This surface-burner igniter switch mounts on the gas valve stem and signals the spark module when you turn the knob. Replacing a worn switch restores reliable top-burner ignition and helps eliminate intermittent or continuous clicking.

• Mounts on the surface burner gas valve and closes the circuit to the spark module as the knob is turned
• Triggers the igniter electrodes to spark so the burner lights
• Helps address: no spark when turning the knob, intermittent or delayed ignition, or continuous clicking/sparking
• Typical failure signs include needing to jiggle the knob to spark or sparking that won't stop after the flame is lit

• Disconnect electrical power; shut off gas supply if working near gas fittings; allow the appliance to cool
• Pull off the burner knob and remove the panel/top as needed to access the valve switch
• Move wires to the new switch one at a time to maintain correct connections; ensure the actuator aligns on the valve stem
• Reassemble, restore power, and test burner ignition

This gas burner valve controls delivery of natural gas to a single surface burner, restoring safe, consistent burner operation. It replaces a worn or leaking valve to help burners ignite and maintain an even flame. What it does:

• Regulates gas flow to one surface burner so the flame can be adjusted from low to high
• Helps correct symptoms such as weak or no flame, burners that won't light, or intermittent gas flow
• Works with the range's valve manifold and burner orifices to maintain proper combustion behavior
• Replaces a damaged, corroded, or leaking valve that can cause uneven heating or gas odor

• One gas burner valve

• Turn off gas supply and electrical power before starting any repair; test for leaks after installation
• Use appropriate tools and thread sealant if required by OEM guidelines; do not overtighten fittings
• Verify correct valve orientation and secure mounting to prevent gas line strain

This top burner valve switch mounts to a surface burner gas valve and closes the ignition circuit when you turn the knob to Lite. Replacing a worn switch restores dependable sparking and stops intermittent or nonstop clicking at the burners.

• Mounts on the surface burner valve and closes the ignition circuit at the Lite position
• Signals the spark module to fire the igniters so the burner lights
• Helps ensure quick, consistent burner ignition
• Common symptoms: no spark at a burner, intermittent ignition, or continuous clicking with knobs in Off

• Disconnect power and shut off the gas supply before servicing
• Pull off the burner knob and remove the control/manifold panel to access the valve switch
• Transfer wires one at a time and align the switch correctly on the valve stem; avoid overtightening
• Reassemble, restore power, test for spark with gas off, then relight and check for leaks

Left-side gas valve that controls gas flow to the burner assembly, restoring reliable ignition and stable flame control when a faulty valve causes burners to fail to light, sputter, or produce an inconsistent flame. What it does:

• Regulates gas flow to the left burner assembly for proper ignition and steady flame control.
• Replaces a stuck, damaged, or failed valve often associated with burners that won't light, have weak flames, or flame fluctuation.
• Acts as the control point between the appliance gas supply and the burner; proper operation is required for safe ignition.
• Use the appliance's parts diagram to determine left/right valve location and fit before ordering.

• Turn off the appliance power and shut off the gas supply before starting any service.
• Only install on appliances designed for this left-side valve; follow the service diagram and manufacturer instructions for proper fitment.
• Inspect all fittings and connections for leaks after installation; test using approved leak-detection methods per local codes.
