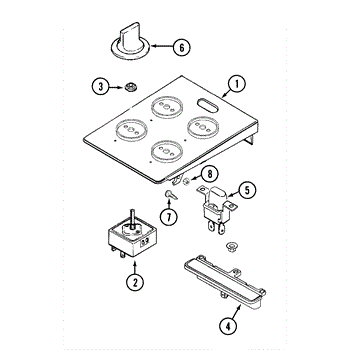

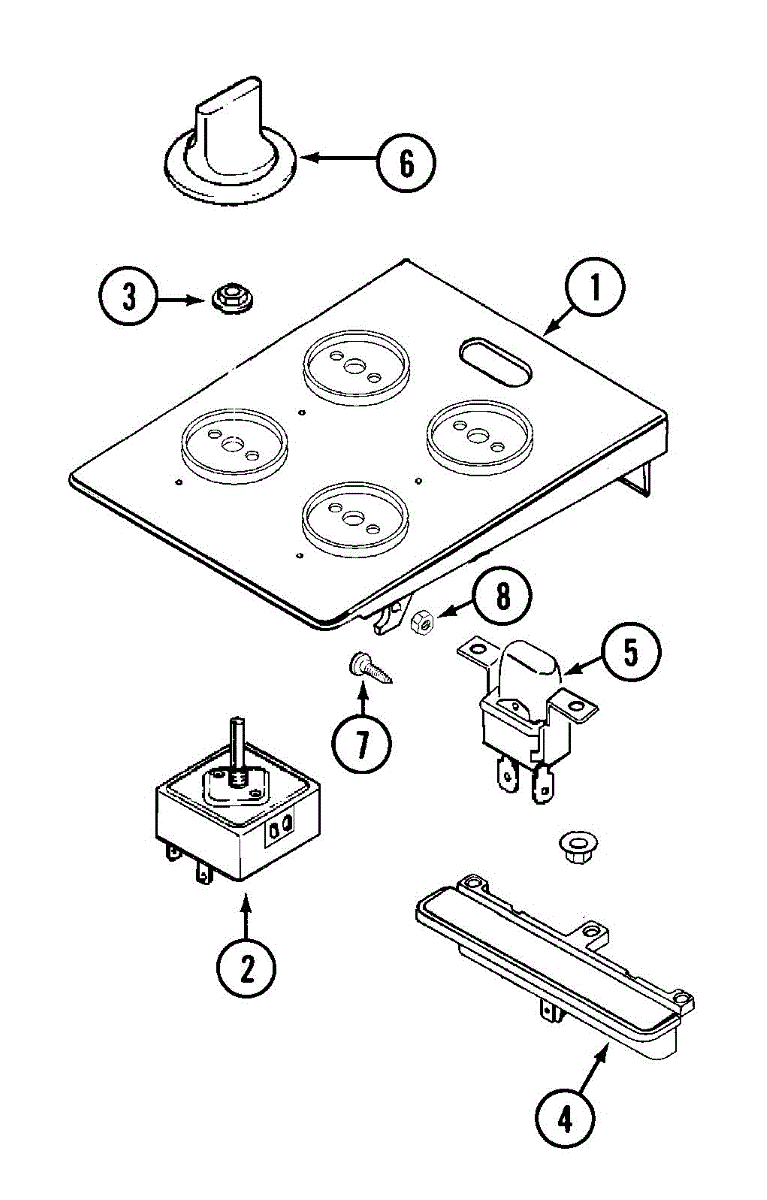

Parts for Jenn-Air CVE4180B: 03 - Control Assembly Parts

The infinite switch is an OEM replacement part for Whirlpool cooktops. Located inside the panel it helps monitor temperature and functions through sensing heating elements and bake cycles. Precise cooking depends on its calibrated feedback.

Causes of a faulty cooktop interface switch include wire damage from heat exposure, excess baked-on residue insulating contacts, or repeated temperature fluctuations degrading components.

Symptoms include:

• Inability to preheat or maintain set cooking temperatures
• Failure to advance cycles or randomly turning off
• Error messages flashing on the control panel

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This fan switch restores dependable control of your appliance's ventilation fan. It routes power to the blower motor so you can turn the fan on and off from the control panel when the original switch becomes worn or fails.

• Controls electrical power to the blower motor
• Restores reliable on/off fan operation from the user interface
• Typical symptoms: fan won't start, won't shut off, runs intermittently, or the switch/rocker feels loose or broken
• Contacts can wear or arc over time from repeated use

• Disconnect power at the breaker or unplug the appliance before servicing
• Access the switch from the control panel; note wire positions and take a photo for reference
• Move wires one at a time to the matching terminals on the new switch; replace any heat-damaged connectors
• Reassemble, restore power, and test fan operation

The Burner Knob is an OEM part for Whirlpool ranges and cooktops. This knob allows users to control the intensity of the stove's burner, offering a seamless interface for adjusting from a gentle simmer to a rolling boil.

Over time, burner knobs can wear out or become damaged due to frequent use, exposure to heat, or accidental impacts.

Symptoms of a bad Burner Knob include:

• Difficulty in adjusting the burner's flame or heat level
• The knob is loose or does not turn smoothly
• Visible cracks or damage to the knob
• The knob does not align properly with the burner settings

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This is a genuine replacement screw used to secure appliance panels and components, restoring proper fit and reducing vibration or rattling. Simple, low-cost fastener that helps keep parts aligned and stable. What it does:

• Fastens panels, brackets, or trim to the appliance frame
• Restores secure connections that can cause buzzing, rattling, or loose trim
• Replaces missing or stripped hardware to prevent further movement or wear
• Works where the original OEM screw was specified for fit and compatibility

• Disconnect power before working on electrical appliances to avoid shock
• Use the correct size driver to avoid stripping the head
• Install by hand initially to ensure proper threading, then snug—do not overtighten
• Retain removed hardware and compare to the new screw for correct fit before final assembly

This is a genuine lock nut replacement. This is a general piece of hardware that is often used on several types of lawn and garden equipment, including in engines, housing, and other areas. The exact application of this part will vary based on the unit. The lock nut is used to create a more secure seal than a standard nut. When properly secured, the lock nut tightens to a bolt and uses an extra locking washer with teeth to ensure a snug fit.If lock washers do get damaged or lost, they need to be replaced immediately with a genuine OEM replacement. This model is compatible with all types of machines and units since it is a generic part. The washer is sold as an individual part and manufactured by Whirlpool. Lock nuts will need to be installed using a socket wrench or adjustable wrench. Pliers, a screwdriver, or another socket wrench will be needed to hold the bolt while the lock nut is being secured in place. Be sure to thread the lock nut carefully to ensure a strong seal and avoid stripping the bolt or the nut.

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.
