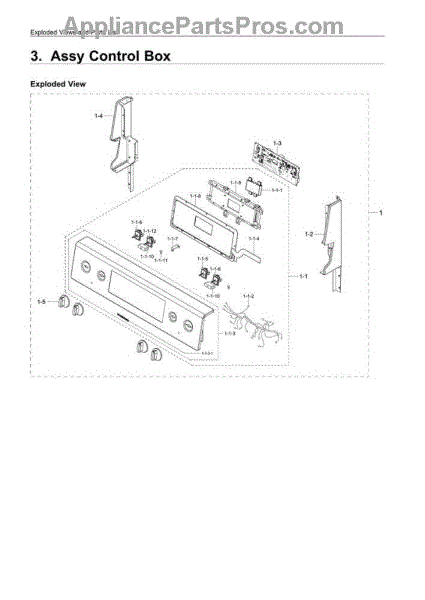

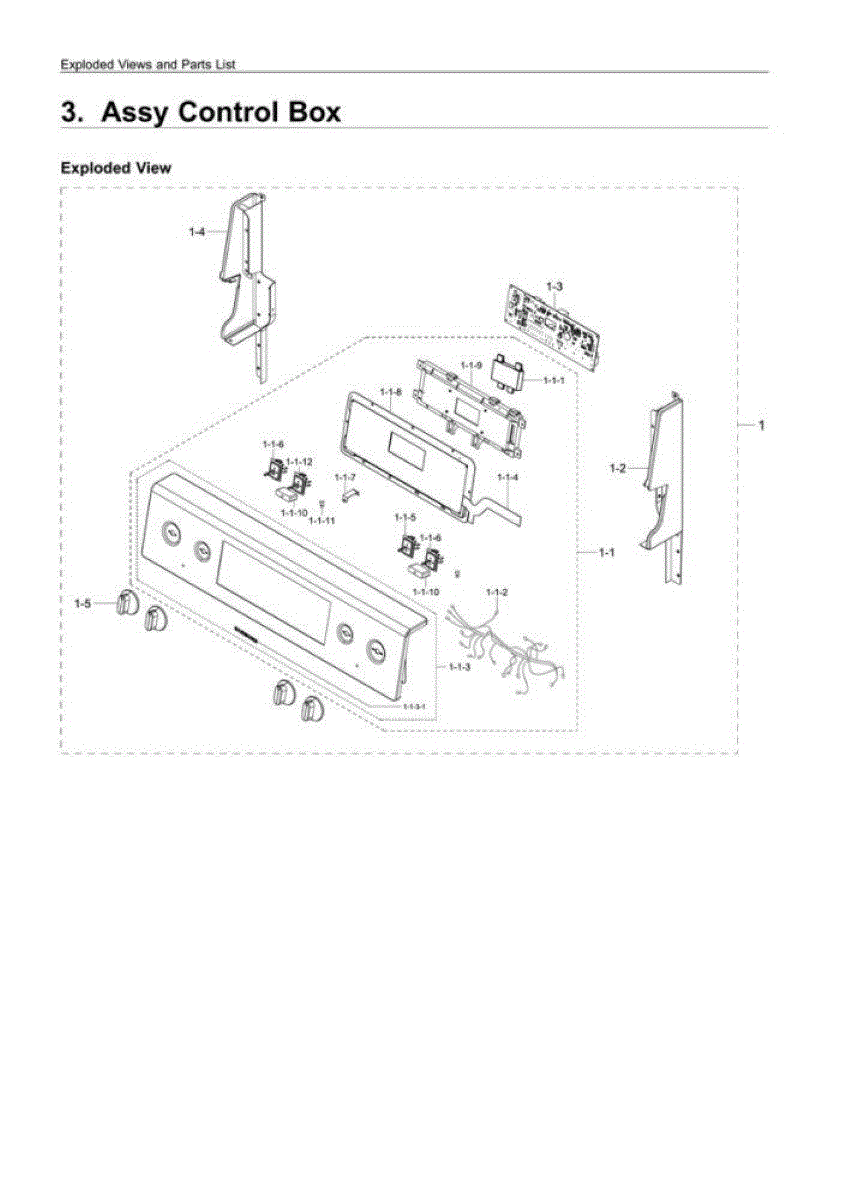

Parts for Samsung NE59T7511SS: Control Box Assembly Parts

Secures and supports the chassis panel assembly on your range. Replace if the original bracket is cracked, broken, bent, or missing for proper fit.

Replace your electric range's control knob dial assembly. Installs on the control panel to operate burners and oven settings. Order a new knob if yours is cracked, broken, or missing.

Structural support assembly that secures the back guard to your electric range. Replace if bent, broken, or damaged to restore proper alignment and stability.

Structural assembly that secures the back guard to your range. Replace if cracked, bent, or broken to restore proper back guard mounting and stability.

This main control board (PCB assembly) manages the oven's electronic controls and user interface so the appliance responds correctly to buttons, timers and cooking commands. It restores control functionality when the existing board fails. What it does:

• Receives input from the control panel and runs oven functions such as timers, power selection and cooking cycles
• Sends signals to relays, display and other modules so the oven operates as commanded
• Common symptom: oven is unresponsive to button presses or touch controls
• Common symptom: display errors, scrambled or blank display, or intermittent operation
• Common symptom: oven does not start or stops mid-cycle due to control faults

• One main control board (PCB) assembly as shown

• Disconnect power at the breaker before servicing to avoid shock hazard
• Handle the board by its edges and avoid static discharge; use an anti-static strap if available
• Installation typically requires removing the control panel and unplugging wire harnesses; note connector locations before removal

Secures the display panel on your electric range. Replace if the holder is cracked, broken, or no longer holds the display firmly in position.

Decorative badge logo inlet that displays branding on your microwave door or control panel. Replace if cracked, faded, peeling, or missing to restore appearance.

If your range display is blank or unresponsive, this wire harness connects the control board to the display panel. Addresses burnt or damaged wiring issues.

Structural bracket that secures the chassis panel in your range. Replace if the original bracket is cracked, bent, broken, or missing to maintain stability.

Restores clear lighting on your range. Replace if cracked, discolored, or broken to improve visibility while cooking. Verify fit with your model.

Signals active burners or heating elements on your electric range. Replace when dim, flickering, or burnt out for clear visibility and safety monitoring.

Fix a range burner that won't cycle off, stays on high, or pulses constantly. This surface burner energy regulator controls heat levels. Basic repair.

Oven controls unresponsive or buttons not working? This range control assembly restores functionality to your control panel. Moderate difficulty repair.

Fix burners that won't turn off, stay on high, or turn on by themselves. This surface element switch restores safe temperature control. 15-minute DIY fix.

Burner stuck on high heat or won't adjust temperature? This dual surface element switch restores precise heat control. DIY repair in about 30 minutes.
