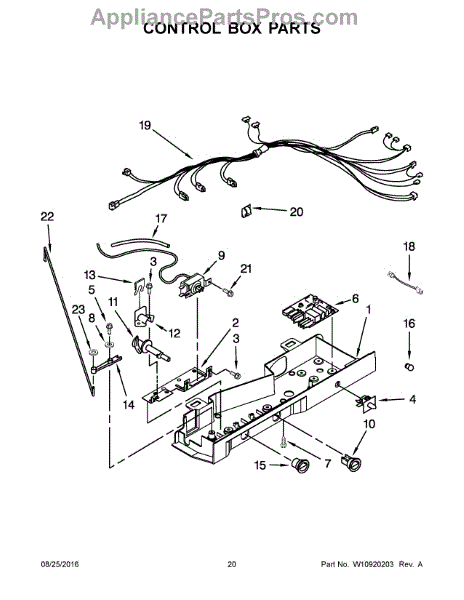

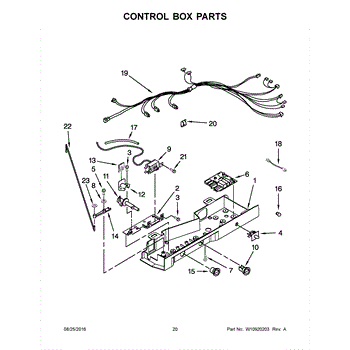

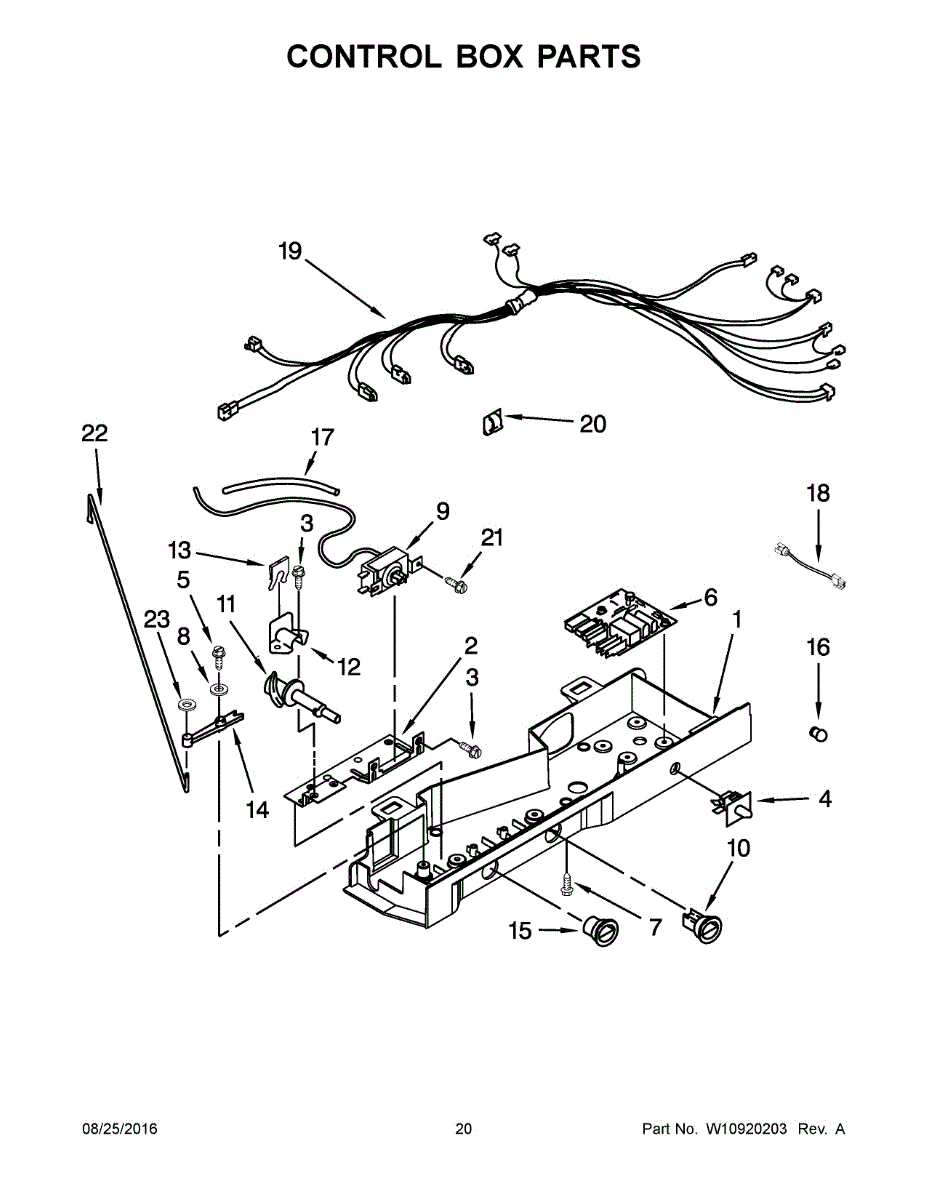

Parts for Whirlpool WRS331FDDM01: 11 - Control Box Parts

This replacement mounting bracket secures and supports appliance components to restore proper alignment and reduce vibration. It's a simple, durable metal bracket used where a stable mounting point is required. What it does:

• Provides a secure attachment point to hold panels, assemblies, or hardware in place
• Prevents movement that can cause rattling, noise, or misaligned panels
• Restores factory fit to reduce wear on adjoining parts
• Helps maintain safe, stable operation by keeping components properly positioned

• One mounting bracket

• Disconnect power to the appliance before starting any repair
• Verify bracket orientation and match to existing mounting holes before fastening
• Use the original screws or manufacturer-recommended fasteners; do not overtighten

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

The Light Switch is an OEM part for Whirlpool refrigerators. This switch is responsible for controlling the refrigerator's interior light, turning it on when the door is opened and off when it is closed.

Symptoms of a failing refrigerator light switch include:

• The interior light staying on when the refrigerator door is closed
• The light not activating when the refrigerator door is opened
• Intermittent or flickering light due to a loose connection or faulty switch

Causes of light switch failure typically involve mechanical wear from repeated use, accumulation of dirt or debris that can interfere with the switch mechanism, or electrical issues such as short circuits.

This OEM part is also compatible with other brands manufactured by Whirlpool, including Maytag, KitchenAid, Jenn-Air, Amana, and others.

The Defrost Control Board is an OEM replacement part for Whirlpool refrigerators. This circuit board coordinates defrost heating cycles to remove built-up frost from evaporator coils.

Causes relate to water damage following leaks, component failure due to power surges loosening connectors, or general component wear over time.

Symptoms of issues include:

• Frost accumulation on interior freezer walls reducing capacity
• Food freezing underneath heavy buildup layers
• Inoperable heating element failing to restore airflow

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This is a small replacement screw used to fasten appliance panels and internal components, restoring secure connections and reducing rattles or loose parts. Ideal when original screws are missing or damaged. What it does:

• Secures access panels, mounting brackets, or internal assemblies to prevent vibration and movement
• Helps maintain electrical and mechanical connections by keeping components properly aligned
• Common fix for loose control panels, trim pieces, or internal module attachments

• One replacement screw as shown

• Use the matching driver (Phillips, hex, or Torx) and hand-start the screw to avoid cross-threading
• Tighten until snug; do not over-torque to prevent stripping or cracking surrounding material
• Disconnect power to the appliance before accessing internal parts to avoid injury
• If the original screw is corroded or broken, replace with the same type and length for best fit

This thermostat is a temperature-sensitive switch that controls or limits heat inside the appliance. Replacing a failed unit restores proper temperature control and helps prevent overheating or underheating during operation. What it does:

• Senses internal temperature and opens/closes the circuit as designed
• Regulates heating or serves as a safety high-limit cutoff (application-dependent)
• Helps protect components from damage caused by excessive heat
• Common symptoms: no heat or weak heat, overheating/shutting off, inconsistent temperature

• 1 thermostat

• Disconnect power and allow the appliance to cool completely before servicing
• Note wire locations or take a photo; transfer any brackets/insulation from the original if applicable
• Use a multimeter to verify thermostat continuity per service guidelines
• Ensure terminals are fully seated; avoid bending the sensing surface or mounting tab

This temperature control knob replaces a worn or broken thermostat knob so you can set and adjust oven or range temperatures reliably. It restores a secure grip and clear temperature selection for safe, consistent cooking. What it does:

• Rotates smoothly to select oven/range temperature settings and engages the control shaft
• Replaces cracked, stripped, faded, or loose knobs that won't stay set
• Restores tactile feedback and accurate alignment with temperature markings
• Helps resolve symptoms like a spinning or wobbly knob, difficulty selecting temperatures, or missing knob grip

• Disconnect power to the appliance before starting any repairs
• Most installations are simple—pull the old knob straight off the control shaft and push the replacement onto the splined shaft until seated
• Make sure the knob aligns with the control indicator and turns correctly before restoring power
• If the knob does not fit or the control shaft is damaged, do not force it; inspect the control shaft and replace the control if needed

The Thermostat Tube Shield is an OEM part for Whirlpool refrigerators. It functions as a barrier that covers and insulates the temperature control thermostat capillary tube. This shield ensures accurate temperature sensing and regulation by protecting the capillary tube from physical damage and external temperature influences.

Over time, the thermostat tube shield can become worn out or damaged due to factors like regular wear and tear, accidental impact, or environmental conditions such as humidity and temperature fluctuations.

Symptoms of a bad thermostat tube shield include:

• Inconsistent or inaccurate refrigerator temperatures
• The refrigerator running continuously or cycling on and off frequently
• Visible damage or wear to the shield
• Difficulty in maintaining the desired temperature settings

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This is a genuine replacement screw used to secure panels, brackets, and components on compatible Whirlpool appliances. It restores proper fastening so loose parts stop rattling and panels stay aligned. What it does

• Fastens trim, panels, brackets, or mounting hardware to appliance chassis
• Helps stop vibration and rattling caused by missing or stripped fasteners
• Restores secure connections after repair or part replacement
• Matches OEM thread specification to fit intended mounting holes

• Disconnect power to the appliance before beginning any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Start threads by hand and tighten until snug; do not overtighten
• Inspect mating threads and replace if damaged
