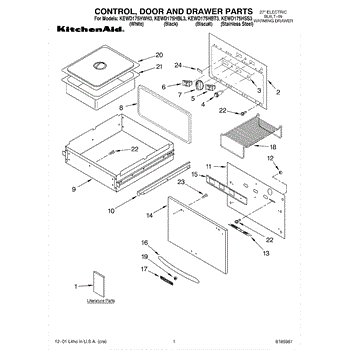

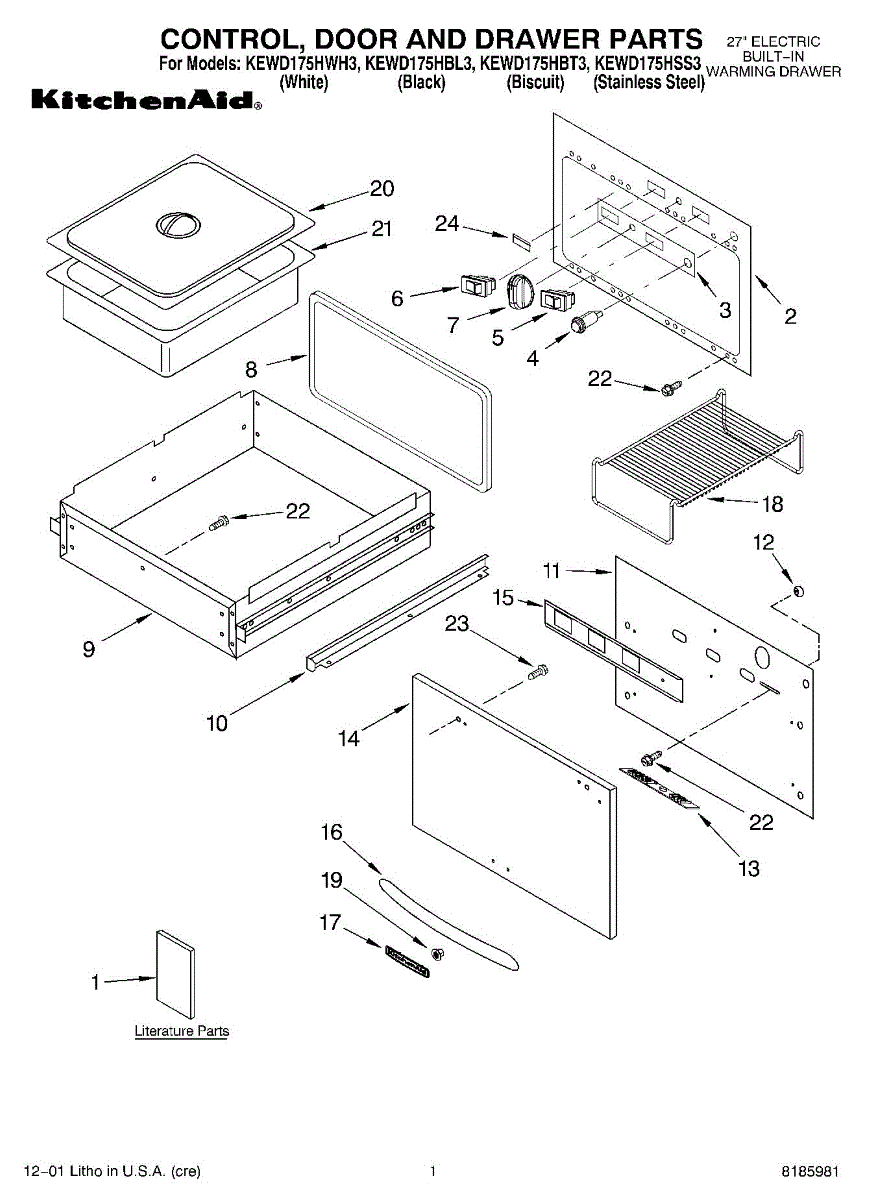

Parts for Kitchenaid KEWD175HSS3: 01 - Section Parts

This single-pole, single-throw rocker switch provides simple on/off control for a component in your appliance. Replacing a worn or sticking switch restores dependable operation and a positive, consistent toggle feel.

• Provides maintained on/off control for one circuit (SPST)
• Opens/closes the circuit to send or cut power to a specific feature (e.g., light or fan)
• Common failure signs: feature won't turn on/off, intermittent operation, rocker feels loose or sticks
• May show heat discoloration or arcing marks when failing

• Disconnect power at the breaker or unplug the appliance before servicing
• Access typically requires removing a control panel or trim; use appropriate hand tools
• Tag/photograph wire locations and transfer them to the same terminals on the new switch
• Seat the switch fully in the panel and ensure wires are not pinched; restore power and test

This control knob replaces a cracked or missing knob on your appliance's control panel. It restores positive engagement with the underlying control so you can select settings reliably and keep the front of the unit looking complete.

• Attaches to a keyed or D-flat shaft to operate the switch, valve, or timer underneath
• Allows you to choose cycles, temperatures, or burner levels as designed
• Common symptoms: knob cracked, stripped, loose/spins without engaging, falls off, or missing pointer
• Helps restore normal operation and a finished, uniform appearance

• Disconnect power; for gas appliances, also shut off the gas supply
• Pull the old knob straight off the shaft—do not pry against the bezel or panel
• Align the new knob's opening with the shaft and press firmly until fully seated
• Test the control to confirm proper engagement and function

Color: Biscuit. Other colors: For stainless steel use 9760540, for black use 9760541, for white use 9760542.

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

A factory screw with 8-32 machine threads used to secure brackets, panels, and internal components where specified. Restores a solid, factory fit when the original fastener is missing, stripped, or corroded. What it does:

• Provides the specified 8-32 machine-thread fastening for OEM components
• Helps prevent looseness, vibration, or rattling from a missing/damaged screw
• Replaces screws with worn heads or stripped threads to enable proper tightening
• Supports correct reassembly during part replacement or service

• 1 screw

• Disconnect power; shut off water and/or gas before servicing
• Match the new screw to the original for thread and length before installing
• Start threads by hand to avoid cross-threading; tighten until snug
• Do not overtighten into plastic or thin metal; replace damaged inserts/clips if found

• Thread size: 8-32 (machine)
