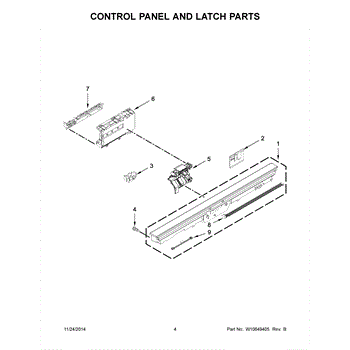

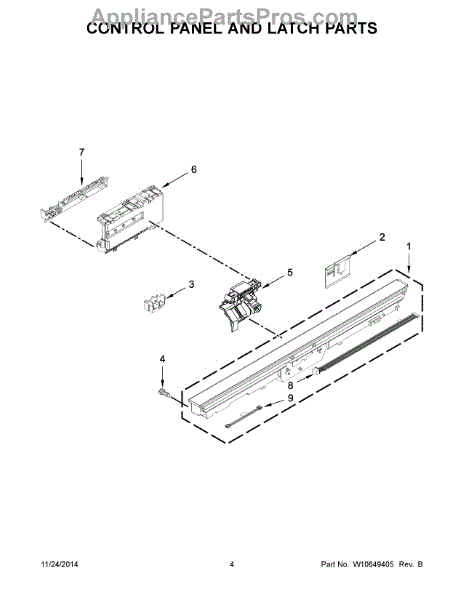

Parts for Kitchenaid KDTE504DSS0: 03 - Control Panel And Latch Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

The Touchpad Control Panel is an OEM part for KitchenAid dishwashers. It allows the user to select different wash cycles, adjust settings, and activate specific features of your dishwasher. It measures approximately 24” in length and is black in color.

Causes of a faulty touchpad control panel can include wear and tear over time, accidental spills or damage, or electrical component failure. These factors can result in unresponsive buttons, erratic behavior, or the inability to select or adjust settings properly.

Symptoms of a bad touchpad control panel may include:

• Unresponsive or non-functioning buttons
• Erratic or inconsistent response to touch inputs
• Incorrect or missing display information
• No LED display

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Secures trim and panels in dishwasher assemblies. Replace if clip is broken, missing, or worn. Prevents loose parts and rattling during operation.

Replace a faulty dishwasher wire connector if your unit won't start, powers off randomly, or shows electrical issues. Simple 15-minute repair.

This replacement screw secures panels, brackets, and other components inside your appliance. Replacing missing or stripped hardware restores a tight, rattle-free fit and keeps parts anchored as designed.

• Fastens metal or plastic panels, brackets, and internal components
• Replaces missing, damaged, or stripped screws
• Helps resolve vibration, rattling, or loose-fitting parts
• Maintains proper alignment and secure mounting points

• Disconnect power and shut off water/gas supplies before service
• Match the screw to its original location; your model's diagram to placement
• Start threads by hand and use the correct driver to avoid stripping
• Do not overtighten, especially into plastic or thin sheet metal

If your dishwasher door won't stay closed or latch properly, this door latch assembly is the likely fix. Easy DIY repair takes about 1 hour to complete.

Structural mounting brace for dishwashers. Secures dishwasher to cabinetry. Replace if bent, cracked, or missing to restore proper installation.

Fix unresponsive or frozen dishwasher controls with this jumper wire. Restores control panel circuit connections in about 30 minutes. Simple DIY repair.

This jumper is an OEM-style electrical wire connector used to bridge terminals in a Whirlpool appliance to restore circuit continuity and proper component operation. It's a simple replacement part that helps return power or signal paths when the original jumper is damaged. What it does

• Provides a secure electrical connection between two terminals to complete a circuit.
• Restores power or signal routing to components that lose function due to a broken or corroded jumper.
• Common symptom: component or control doesn't receive power or the appliance won't complete a specific cycle.
• Works with control boards and wiring harness assemblies where a factory jumper is used.

• One jumper electrical connector.

• Disconnect power (unplug appliance or shut off breaker) before service to avoid shock or damage.
• Use insulated tools as needed and make secure, tight terminal connections to prevent arcing.
