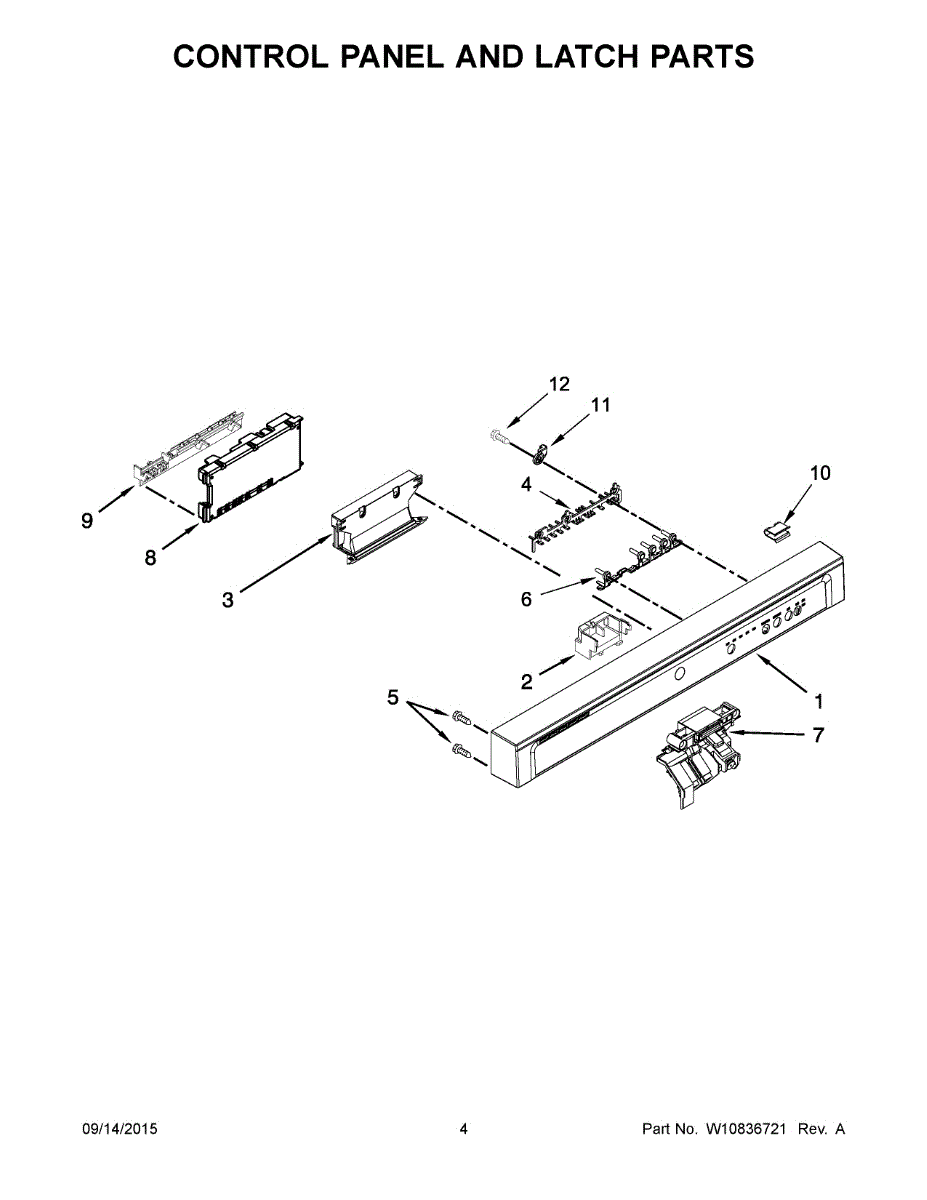

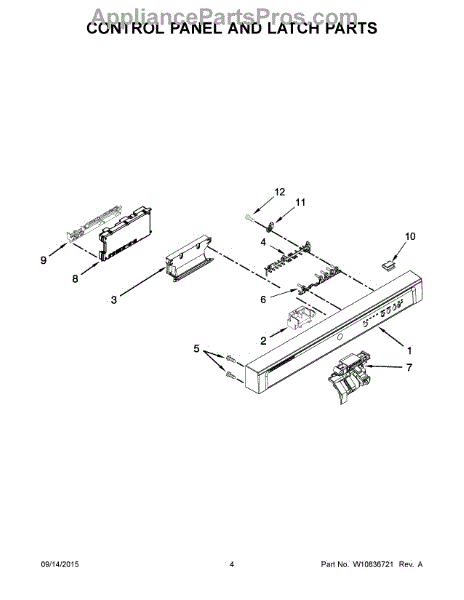

Parts for Whirlpool WDF540PADW2: 03 - Control Panel And Latch Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The CONSOLE (WHT) is an OEM part for Whirlpool dishwashers. It makes up the outer door panel surrounding the control panel area. Made of white plastic, this console protects internal components from external damage.

Symptoms of a damaged or outdated console include:

• Dents, cracks or breaks in the plastic surface
• Discoloration or wear that has diminished aesthetics
• A console that no longer aligns or mounts properly on the door

Causes may involve general wear over time from normal use or accidental impacts. Environmental factors like heat and cleaning chemicals could impact surface appearance as well.

This Whirlpool CONSOLE (WHT) is also compatible for use in Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore dishwashers.

This connector links mating components within the appliance to create a secure, reliable connection. Replacing a cracked or loose connector helps restore consistent operation and prevent intermittent issues caused by poor contact or separation. What it does:

• Creates a stable connection between mating parts or harnesses in the appliance
• Helps prevent looseness or separation that can disrupt performance
• Direct replacement for broken, brittle, or deformed connectors
• Can resolve intermittent operation traced to a poor connection at this junction

• 1 connector

• Disconnect power and, if applicable, shut off water before servicing
• Note orientation and positions before removal to ensure correct reassembly
• Seat the connector fully until any locking features engage; do not force
• Inspect mating parts for wear or damage and replace if necessary

This replacement handle restores a solid, comfortable grip so you can operate your appliance as intended. It replaces a damaged, loose, or missing handle to bring back clean looks and everyday usability. What it does

• Provides a secure grip for opening and closing the appliance
• Restores normal operation when the original handle is cracked, broken, or missing
• Helps prevent wobbling or rattling caused by a loose handle
• Maintains proper user access to the door or drawer

• Handle

• Disconnect power to the appliance before starting; allow hot surfaces to cool
• Support the door or drawer if removal is required to access fasteners
• Transfer and reuse original screws/end caps if applicable; tighten evenly and do not overtighten
• After installation, verify the handle is secure and the door/drawer operates smoothly

This guide is a replacement drawer guide that secures and aligns a refrigerator or freezer drawer for smooth opening and closing. It restores proper drawer tracking and helps prevent the drawer from binding or coming off the slide. What it does:

• Replaces a worn or broken drawer guide to restore smooth drawer movement
• Keeps the drawer aligned so it opens and closes without sticking or catching
• Helps prevent the drawer from falling forward or detaching from the track
• Useful when the original guide is cracked, bent, or missing mounting tabs

• One replacement guide as shown

• Remove power to the appliance and empty the drawer before starting
• Installation typically involves removing the drawer, unplugging retainers, and snapping or screwing the guide into place
• Keep mounting screws or clips from the original guide if reusable; replace if damaged

A general-purpose replacement screw used to secure panels, trim or components on compatible Whirlpool appliances. This genuine-style fastener restores proper assembly and prevents loose or rattling parts for a safe, reliable fit. What it does

• Secures control panels, trim pieces, brackets or internal components to hold assemblies in place
• Restores lost or stripped fasteners that cause loose panels or vibration noise
• Helps maintain alignment of connected parts for correct operation and a finished appearance
• Compatible with applications that require the OEM W11232015 screw specification

• One replacement screw

• Use correct driver bit and gentle torque to avoid stripping the head or threads
• Replace only when the original fastener is missing or damaged; confirm length/thread before installation
• Disconnect power and follow appliance safety procedures when accessing internal components

This push button replaces a worn or broken control-panel button so you can restore reliable cycle selection and user input on the appliance. Fits into the console and provides the tactile contact needed for electronic controls. What it does

• Replaces a damaged or missing control-panel push button
• Restores tactile feedback so selections register properly
• Helps resolve symptoms like a loose, cracked, stuck, or non-responsive button
• Works with the existing button bezel and switch assembly to send user commands

• Disconnect power to the appliance before beginning any repair.
• Access typically requires removing the console or control panel—keep track of screws and small parts.
• Press-fit design; may snap into place or require gentle prying to remove the old button.

The Door Latch is an OEM replacement part for Whirlpool dishwashers. It is a crucial component that ensures the dishwasher door remains securely closed during wash cycles, preventing water leaks and maintaining the proper pressure and temperature within the tub.

Symptoms of a bad dishwasher door latch include:

• The door not closing properly or securely
• Water leaking from the dishwasher during cycles
• Error codes or fault indicators related to the door latch mechanism
• Difficulty opening the door after a cycle has completed

Causes of a bad door latch can range from physical damage or obstruction preventing proper closure to wear and tear on the latch components over time.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This electronic control board manages the appliance's user controls and cycle logic so commands run correctly and settings are saved. It restores responsive buttons, accurate cycle selection, and normal timed operations when the original board has failed. What it does:

• Processes inputs from the control panel and runs selected cycles
• Controls timers, relays, and display/status indicators
• Helps prevent erratic or stopped cycles caused by a failed control board
• Common symptom: unresponsive buttons, incorrect cycle behavior, or error codes related to control faults

• Disconnect power to the appliance before servicing to avoid shock or damage
• Handle the board carefully and avoid static discharge; ground yourself if possible
• Match connector locations and secure all wiring harnesses during reassembly

This brace connector is a small structural support that secures and stabilizes appliance components, helping maintain proper alignment and reduce vibration. It restores firm attachment where a worn or broken connector causes movement. What it does:

• Secures joining points between panels or assemblies to prevent looseness and rattling
• Restores proper alignment of connected parts so doors, panels, or controls operate smoothly
• Helps reduce vibration and noise caused by a failed or missing connector
• Works as the replacement structural fastener specified by the manufacturer

• Disconnect power (and water if applicable) before beginning any repair
• Basic hand tools (screwdriver, socket) typically required; inspect mounting hardware and replace if damaged
• Verify correct orientation and tightness during installation to avoid stressing adjacent parts

This clip secures the dishwasher dispenser fill hose in place to prevent leaks and ensure proper routing during wash cycles. A worn or missing clip can allow the hose to shift, leading to leaks, poor dispensing, or error codes.

• Holds the dispenser hose securely to its mounting point
• Helps prevent leaks, kinks, and misrouting of the hose
• Restores stable hose positioning for reliable wash performance

• Disconnect power and shut off water supply before service
• Remove the outer door panel to access the dispenser area
• Note hose routing and clip orientation before removal
• Ensure the hose is fully seated and the clip is fully engaged to its bracket

This is a genuine replacement mounting screw that secures appliance components and panels so parts stay aligned and stable. Installing the correct screw restores proper fit and helps eliminate vibration or loose panels. What it does:

• Fastens panels, brackets, or small components in place
• Replaces missing, stripped, or damaged screws that cause loose parts
• Helps stop rattling, vibration, or misaligned panels
• Restores secure connections after repairs or part replacement

• One mounting screw

• Unplug the appliance or disconnect power before starting work
• Use the correct screwdriver bit to avoid stripping the head
• Tighten until snug; avoid over-tightening which can strip threads or crack plastic
• Keep removed hardware organized so you can reuse existing screws when applicable
