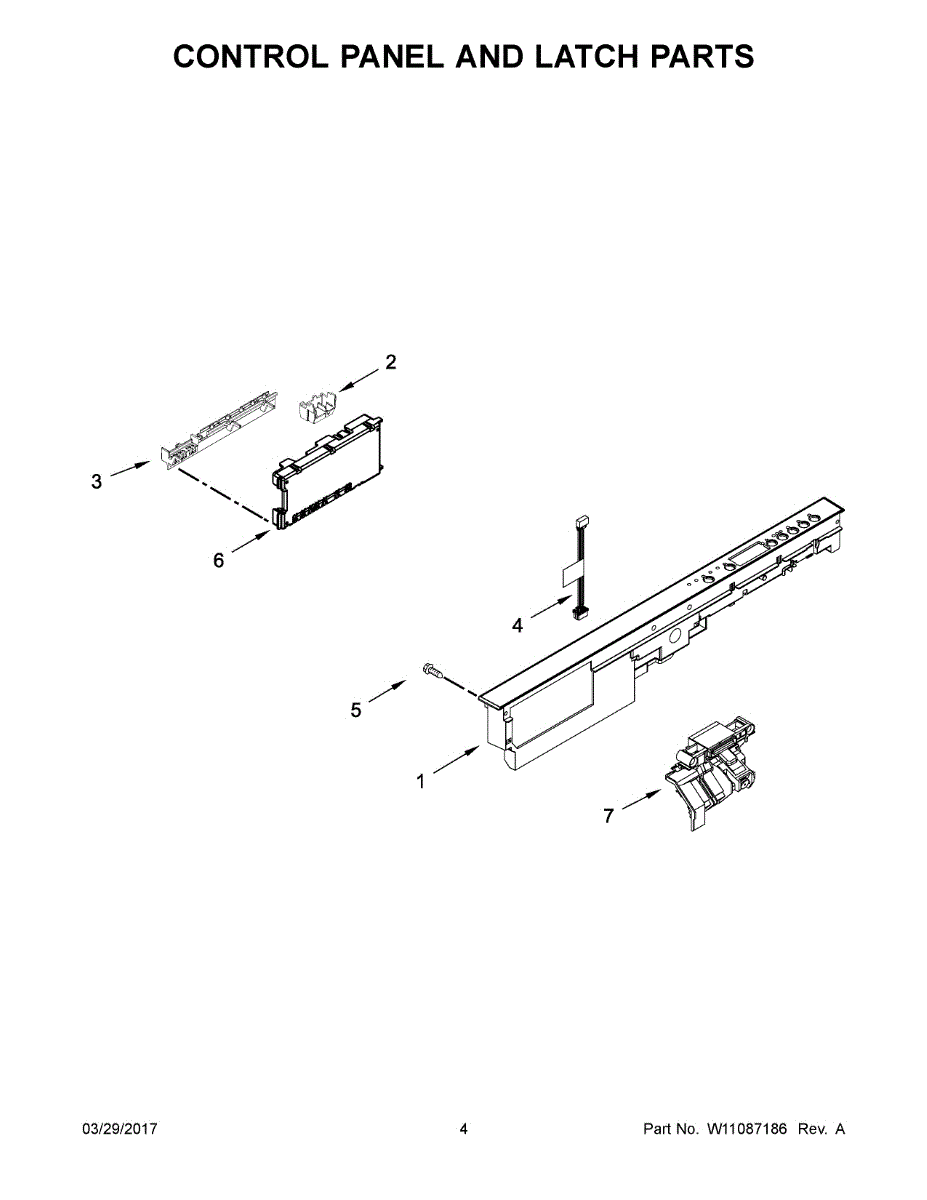

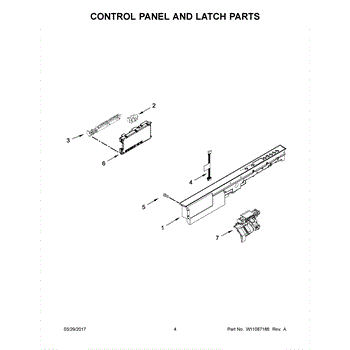

Parts for Whirlpool WDT970SAHV0: 03 - Control Panel And Latch Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Console is an OEM replacement part for Whirlpool dishwashers. It houses the control buttons and display, allowing you to conveniently select and monitor various settings during the dishwashing cycle. The overlay features clear labeling and intuitive icons, while the control panel ensures responsive and reliable functionality.

Causes of a bad control panel and overlay can include wear and tear over time, accidental spills or impacts, or electrical issues. If you notice symptoms such as unresponsive buttons, a flickering or non-functioning display, or error codes appearing on the panel, it may be time to replace the control panel and overlay.

Symptoms of a bad control panel and overlay include:

• Unresponsive buttons or a non-functioning display
• Flickering or distorted display
• Error codes appearing on the panel

Improve the performance and aesthetic of your Whirlpool dishwasher by replacing the damaged or worn-out control panel and overlay with this genuine OEM part.

This Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


The Jumper Wire is an OEM part for Whirlpool built-in dishwashers. Located internally throughout the frame, jumper wires provide electrical connectivity between control circuit boards to power critical functions.

Symptoms of a bad jumper wire include:

• Intermittent or incomplete wash cycles
• Error codes displayed related to control systems
• Buzzing noises emanating from internal components
• Inoperable features like heating or water valves

Causes of jumper wire failure are often fraying, cracking or breakage of fragile conductive strands from continuous vibrational motion over many usage cycles. Physical kinks or pinches during repairs can also impair connectivity.

Compatible models also include those by Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and Kenmore.

This replacement screw secures panels, brackets, and other components inside your appliance. Replacing missing or stripped hardware restores a tight, rattle-free fit and keeps parts anchored as designed.

• Fastens metal or plastic panels, brackets, and internal components
• Replaces missing, damaged, or stripped screws
• Helps resolve vibration, rattling, or loose-fitting parts
• Maintains proper alignment and secure mounting points

• Disconnect power and shut off water/gas supplies before service
• Match the screw to its original location; your model's diagram to placement
• Start threads by hand and use the correct driver to avoid stripping
• Do not overtighten, especially into plastic or thin sheet metal

This electronic control board is the main control assembly that manages your appliance's cycles, timing and user interface so the unit runs as commanded. Replaces a failed control to restore normal electronic operation. What it does

• Receives input from the user interface and sensors to control cycle selection and timing
• Controls power delivery to motors, valves and heaters based on selected cycle
• Can cause symptoms such as a blank or unresponsive display, cycles that won't start or complete, or incorrect cycle behavior
• Helps resolve intermittent or consistent electronic faults when the board is diagnosed as the failed component

• One electronic control board (main control board)

• Disconnect power to the appliance before starting any work
• Handle the board by its edges and avoid static discharge; keep connectors aligned and fully seated
• Refer to the appliance's service manual or wiring diagram for correct installation and safety procedures

The Door Latch is an OEM replacement part for Whirlpool dishwashers. It is a crucial component that ensures the dishwasher door remains securely closed during wash cycles, preventing water leaks and maintaining the proper pressure and temperature within the tub.

Symptoms of a bad dishwasher door latch include:

• The door not closing properly or securely
• Water leaking from the dishwasher during cycles
• Error codes or fault indicators related to the door latch mechanism
• Difficulty opening the door after a cycle has completed

Causes of a bad door latch can range from physical damage or obstruction preventing proper closure to wear and tear on the latch components over time.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
