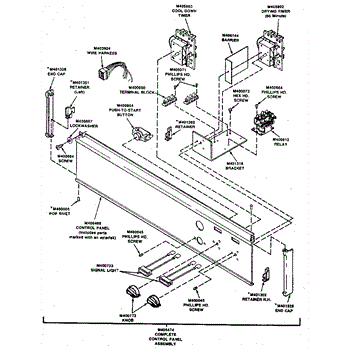

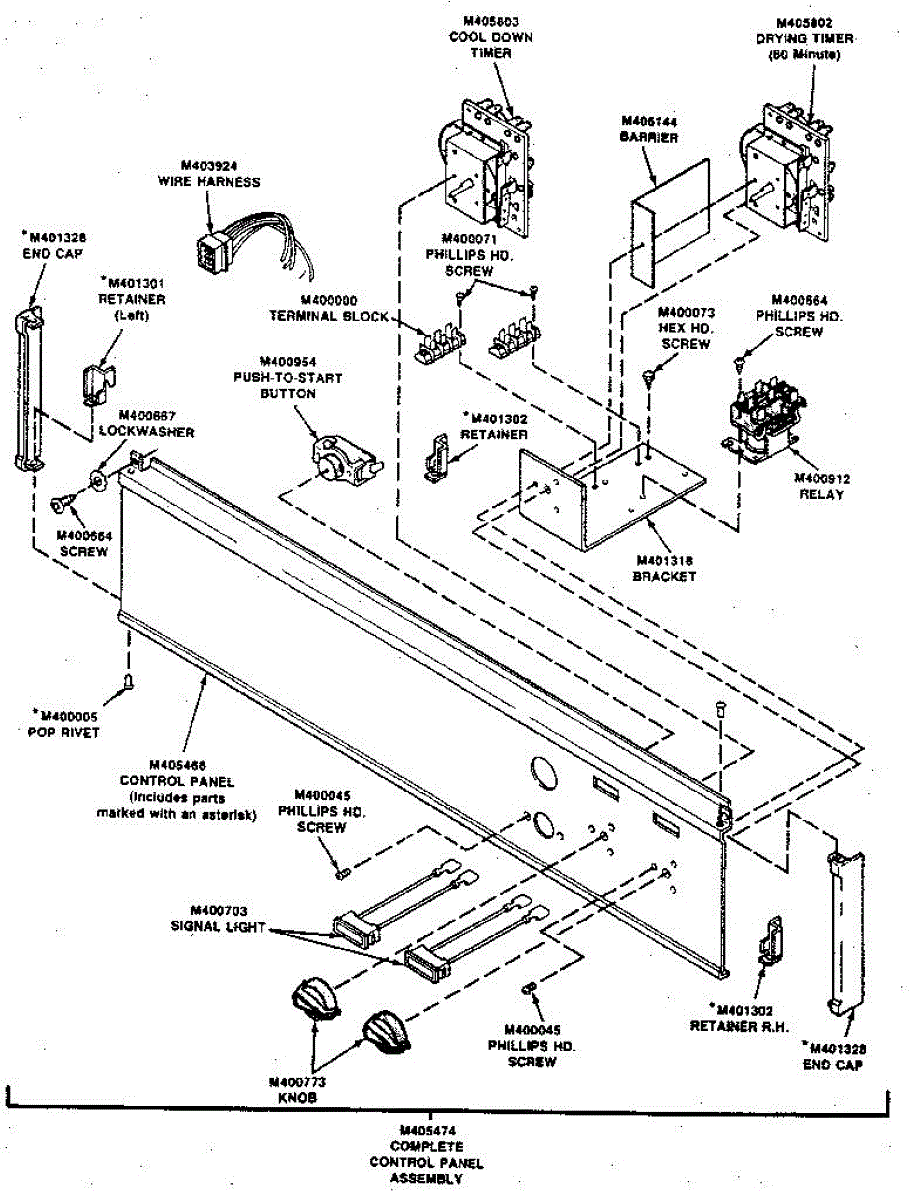

Parts for Huebsch 30XG: Control Panel Assembly (Manual) Parts

This Mallory 15-minute timer kit controls cycle timing for top-load commercial laundry timers, restoring proper cycle advance and timing for affected machines. It replaces a worn or failed timer assembly to return timed cycle control. What it does:

• Advances wash or spin cycles for mechanically timed controls
• Regulates the length of a 15-minute timed operation
• Stops erratic or non-advancing cycles caused by a failed timer
• Helps resolve symptoms like cycles that won't advance, no timed operation, or an unresponsive timer knob

• Disconnect power before starting and verify the machine is de-energized.
• Basic hand tools needed; retain mounting hardware and note wire positions before removal.
• Align the timer shaft and ensure proper seating of connectors during reassembly.

If your dryer won't advance cycles or stops mid-cycle, the timer may need replacement. This 60-minute timer kit restores automatic cycle progression.

Control panel retainer for dryers. Secures the control panel assembly in place. Replace if cracked, broken, or missing to properly mount the panel.

This round-head bolt with a square neck secures sheet-metal panels and mounted components on laundry equipment. It provides a durable, low-profile fastener that resists turning once seated for reliable assemblies. What it does:

• Fastens panels, brackets or components where a square-neck bolt prevents rotation in a slotted or keyed hole.
• Keeps covers and assemblies tight to reduce vibration and rattling.
• Use when a low-profile, round head is required for clearance or cosmetic fit.
• Replacement for worn, stripped, or missing bolts that cause loose parts or intermittent noise.

• One round-head bolt with square neck, 3/8" diameter x 1" length.

• Replace with the same size and square-neck style to ensure proper fit and anti-rotation function.
• Hand-start the bolt, then tighten with the appropriate wrench; avoid over-tightening which can strip threads or deform parts.
• Disconnect power and follow appliance-specific safety steps before servicing panels or internal components.
• Wear eye protection and use proper hand tools; secure adjacent parts to prevent injury during reassembly.

Retainer secures the control panel to your dryer's front panel. Replace if the original is cracked, broken, or missing to properly mount the control panel.

Control knob for dryer cycle or temperature selection. Replaces worn, cracked, broken, or missing knobs on control panel. Direct replacement part.
