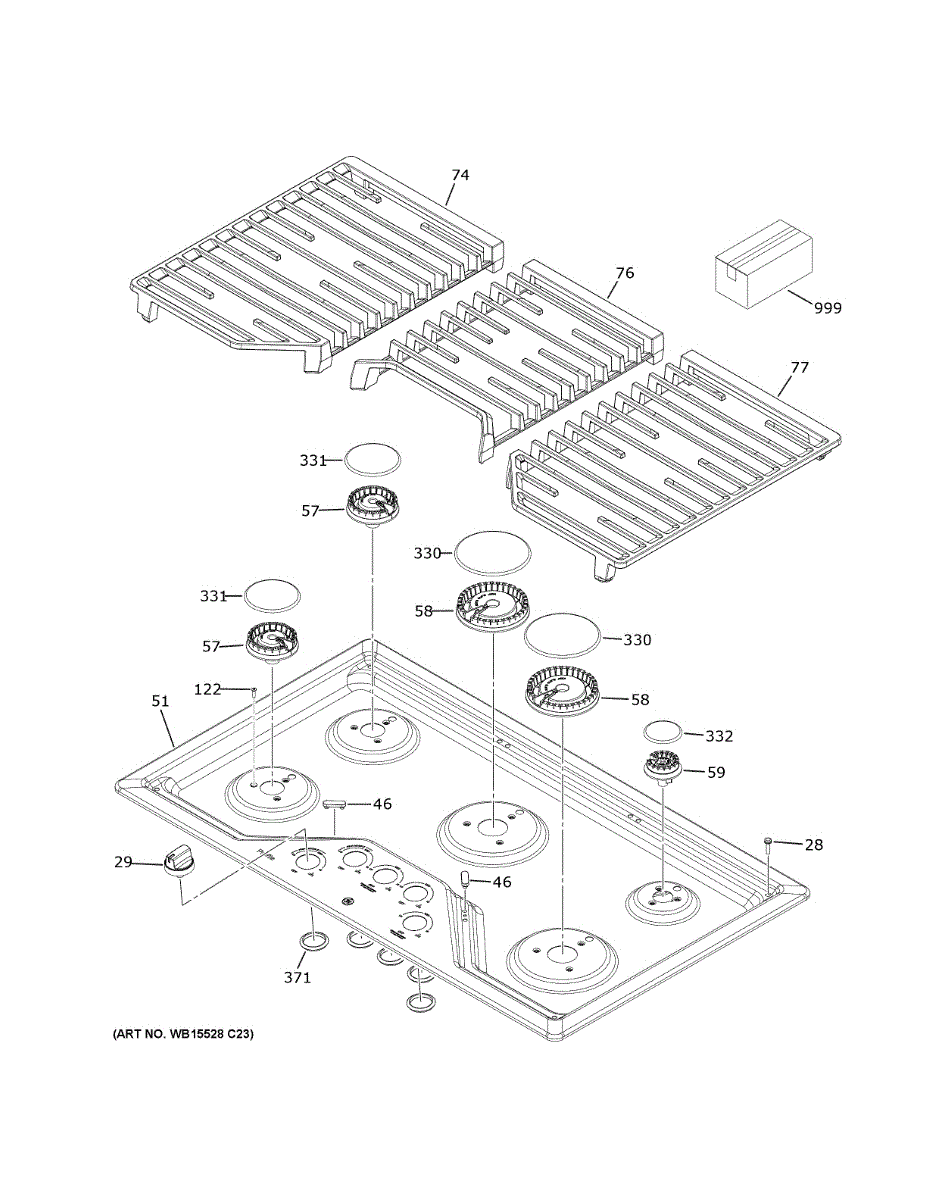

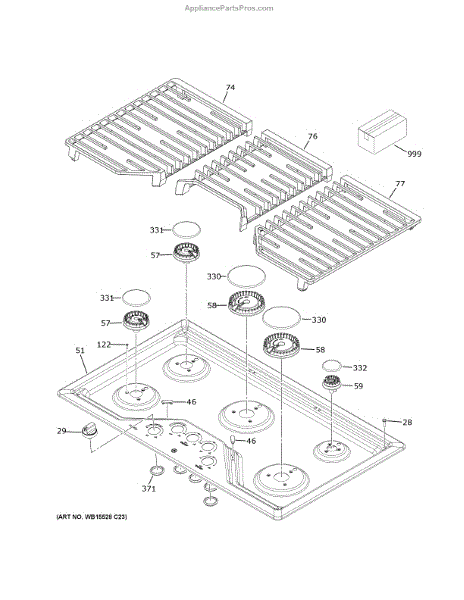

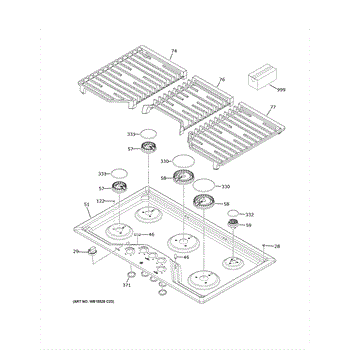

Parts for Ge PGP7036DL2BB: Control Panel & Cooktop Parts

The Range Surface Burner Grate Bumper is an OEM replacement part for GE ranges. The bumper protects the burner grate from scratching or denting the cooktop surface below when lowered into position.

Symptoms of a damaged or missing bumper include:

• Scuff marks or abrasions on the cooktop under the burner grate area
• Noise or rubbing sensations when operating burners
• Loose or detached fit of the burner grate on the range surface

Causes stem from regular use of the burner grates over many cooking cycles. Natural wear and repeated contact with surfaces can degrade bumpers over time.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore ranges and cooktops.

The Bridge Bumper is an OEM part for GE electric cooktops. It is a protective bumper located at the bridge that connects the front control panel area to the cooking surface. The bumper acts as a safeguard, cushioning any potential impact to the underside of the control panel.

Causes of a bad bridge bumper include normal wear and tear, exposure to heat or moisture during cooking, or tears from impact.

Symptoms of a bad bridge bumper include:

• Visible damage or deterioration of the bumper material
• Exposure of raw edges that were previously covered
• Increased risk of scratches or damage to the control panel surface

This GE replacement part is also compatible with some Hotpoint, General Electric, and Kenmore electric cooktop models. Protect your appliance with this genuine OEM bridge bumper to safeguard the control panel from accidental impact.


The Medium Burner is an OEM part for GE ranges and cooktops. This medium-sized burner part provides a balanced heat source for cooking. The medium burner is often used for everyday cooking tasks, offering a versatile option for boiling, sautéing, and simmering.

Causes of damage or malfunction in a burner can stem from regular use, spills and buildup of cooking materials that clog the burner ports, or corrosion over time affecting the burner's efficiency.

Symptoms of a bad medium burner include:

• Inability to achieve a consistent flame
• The burner not lighting at all
• An irregular flame pattern or color (e.g., yellow flames instead of blue)

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Range Burner is an OEM replacement part for GE ranges. It is responsible for safely producing gas flames to heat the range surface. Whether baking, broiling, or simmering, the range burner must provide precise flame control and heat distribution.

Causes of a bad range burner can include cracked or rusted burner heads that improperly direct the flame, clogged or restricted gas ports that disrupt fuel flow or wear to ignition components that affect lighting.

Symptoms of a bad range burner include:

• Irregular or uneven heating of the range surface
• Difficulty controlling burner flame heights
• Burners that will not light or stay lit
• Singed, scorched, or burnt foods
• Gas leaks around burners

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner, Small V2 is an OEM part for GE ranges and cooktops. This part provides a controlled and efficient flame for cooking, specifically tailored for applications requiring a smaller, more precise heat source. Perfect for simmering sauces, melting chocolate, or any cooking task that necessitates a gentle heat, this burner ensures consistent performance and reliability.

Causes of deterioration can include clogging from food spills or cleaning products, wear and tear from regular use, and corrosion or damage to the burner assembly itself.

Symptoms of a bad Burner, Small V2 include:

• The burner fails to light or has an uneven flame.
• Reduced heat output, affecting cooking times and food quality.
• The presence of a yellow or orange flame, indicating incomplete combustion.
• Noisy operation or popping sounds when ignited.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Left hand Grate is an OEM part for GE gas ranges. Located directly above the left burner, this small grate performs an important role.

Causes of a bad left grate can include cracks or nicks developing over many uses. Scratches from metal pots and pans scraping the surface also worsen with time and harsh cleaning.

Symptoms of a bad range left grate are:

• Sections appearing fragile or loose from their mount
• Open holes allow small items to contact the open burner
• Visible damage detracting from aesthetics of the cooktop

This genuine GE replacement grate is compatible with Hotpoint, RCA and select Kenmore models.

The Center Grate is an OEM part for GE gas cooktops. Located directly above the center burner, this small grate performs an important role.

Causes of a bad center grate can include cracks or nicks developing over many uses. Scratches from metal pots and pans scraping the surface also worsen with time and harsh cleaning.

Symptoms of a bad center grate are:

• Sections appearing fragile or loose from their mount
• Open holes allow small items to contact the open burner
• Visible damage detracting from aesthetics of the cooktop

This genuine GE replacement grate is compatible with Hotpoint, RCA and select Kenmore models.

The GRATE (Right) is an OEM component specifically designed for GE gas cooktops. This grate sits over one of the cooktop burners and serves as a durable, heat-resistant surface for cooking pots and pans.

Symptoms of a bad grate include:

• Uneven or inefficient heating of cookware
• Hot spots under pans that cause food to burn
• Difficulty moving cookware smoothly across the surface
• The appearance of cracks, holes, or imperfections on the grate itself

Causes of a bad grate can include warping or discoloration from continued heat exposure, as well as scratches or defects that degrade its heat distribution properties.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE cooktops and ranges. It is designed to cover the burner head, ensuring even flame distribution for efficient and effective cooking. The cap also protects the burner head from spills and debris, which can interfere with burner performance and cause clogs.

You should replace the burner cap assembly if it becomes damaged or worn out. Causes of a bad burner cap assembly can include regular exposure to high heat, food residue buildup, or accidental impacts that cause cracks or warping. A compromised burner cap can lead to uneven flames and inefficient cooking.

Symptoms of a bad burner cap assembly include:

• Uneven or yellow flames
• Difficulty igniting the burner
• Visible cracks, chips, or warping in the burner cap
• Poor cooking performance with hotspots on cookware

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It sits atop the gas burner to help distribute the flame evenly for better cooking performance. This cap is crucial for achieving precise temperature control and consistent heating, ensuring that food cooks evenly across the cookware.

Symptoms of a bad Burner Cap Assembly include:

• Uneven flame distribution, leading to uneven cooking or heating.
• Difficulty igniting the burner, or the flame going out unexpectedly.
• Visible signs of wear, such as warping, discoloration, or chipping of the burner cap.

Causes of a bad burner cap can include accumulation of food particles or cleaning products that clog the ports, physical damage from impact or dropping, or general deterioration from regular exposure to high temperatures.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap is an OEM part for GE ranges. It covers the burner head, helping to distribute the flame evenly for optimal cooking performance and protecting the burner head from spills and debris.

Common causes of a bad burner cap include exposure to high heat, which can cause warping or discoloration, physical damage from dropping or mishandling, and buildup of food residue that can degrade the material over time.

Symptoms of a bad burner cap include:

• Uneven or weak flame
• Difficulty in lighting the burner
• Visible cracks, chips, or discoloration on the cap
• Burner not performing efficiently

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
