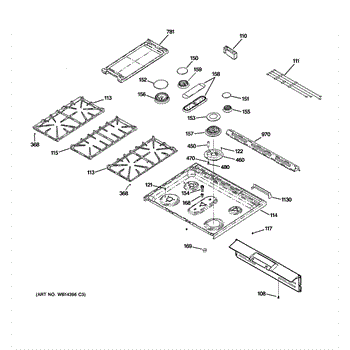

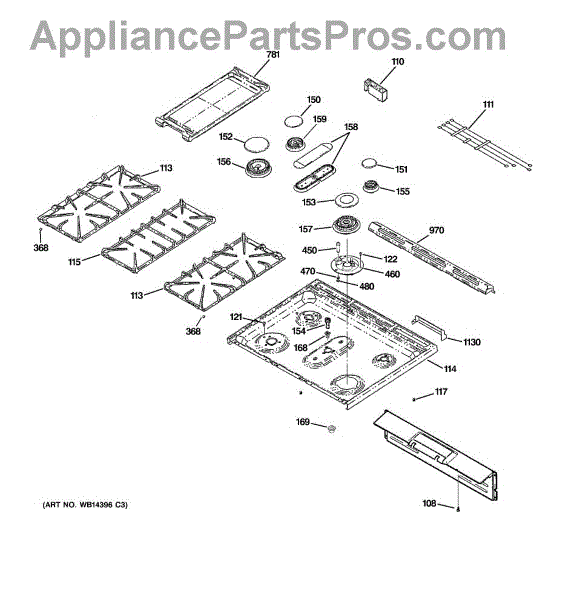

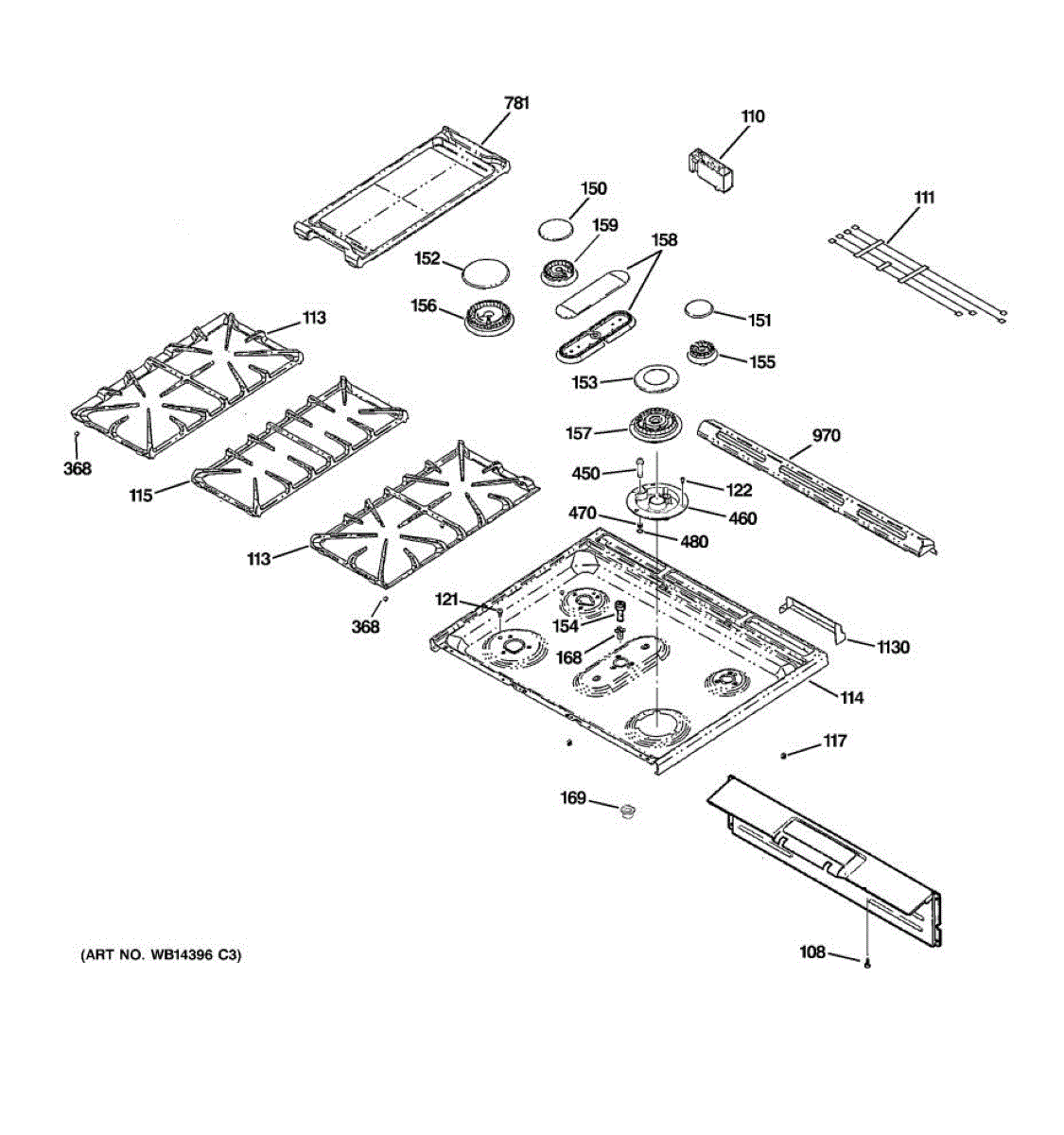

Parts for Ge CGS980SEM6SS: 02 - Control Panel & Cooktop Parts

This mounting screw secures appliance components to the chassis for a tight, rattle-free fit. Replacing a missing, stripped, or corroded fastener helps keep panels, brackets, or burner assemblies properly aligned and secure.

• Fastens designated parts to the appliance frame or mounting points
• Helps maintain proper alignment of panels, trim, brackets, or burner assemblies
• Restores hold when the original screw is worn, rusted, or lost
• Symptoms include loose or wobbly components, rattling/vibration, or visible gaps

• Disconnect power; allow all surfaces to cool. For gas units, also shut off the gas supply.
• Use the correct driver/bit; avoid cross-threading.
• If mating threads or clip/nut are damaged, repair or replace them before installing.
• Tighten until secure; do not overtighten to prevent stripping.

The GE spark module kit is an OEM replacement part for GE stoves and ranges. It generates the spark needed to ignite the gas burners. The kit includes the spark module and associated wiring harness. When the burner control knob is turned to the "ignite" position, the spark module receives a signal and activates. It then produces an electrical spark that ignites the gas as it flows from the burner orifice, allowing the burner to light.

Over time, spark modules can fail due to electrical issues, wear and tear from frequent use, or exposure to moisture. A malfunctioning spark module can disrupt the ignition process, making it difficult to light the burners.

Symptoms of a bad spark module include:

• Burners not igniting
• No clicking sound when turning the burner knob
• Intermittent sparking
• Only some burners igniting

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This cast side grate provides a sturdy, heat-resistant cooking surface for a gas range burner, helping support cookware and maintain proper flame contact for even cooking. Ideal when an original grate is cracked, warped, or missing. What it does:

• Replaces a damaged or missing side grate to restore proper cookware support and burner clearance
• Maintains correct distance between cookware and flame for consistent heating
• Resists high heat and surface wear typical of everyday stovetop use
• Helps prevent pans from tipping or sliding on the cooktop

• Install on a cooled, unlit cooktop; ensure the grate sits flat and stable over the burner
• No special tools required; lift out the old grate and position the replacement
• Verify burner head components are correctly seated before use
• If burner operation or flame shape changes after installation, turn off the appliance and inspect

This rangetop is the OEM top surface that covers and supports the burner area on a freestanding rangetop. It restores the cooktop's appearance and helps protect internal components from spills and heat damage. What it does:

• Replaces a cracked, warped, or badly scratched cooktop surface
• Provides a stable mounting surface for burners and grates
• Helps contain spills and directs liquids away from internal parts
• Restores a uniform cooking surface for safer, consistent use

• One rangetop (single cooktop surface)

• Disconnect power and gas supply and the appliance is cool before starting
• Use proper tools and follow the appliance disassembly steps in the service manual
• Handle edges carefully — metal or glass tops can be sharp or heavy

This cast center grate replaces a damaged or missing mid grate on compatible gas cooktops, restoring stable support for cookware and even heat distribution at the cooktop center. Durable cast construction matches OEM fit and appearance. What it does:

• Supports pots and pans over the center burner for steady, level cooking
• Restores proper burner-to-grate alignment to help prevent wobbling or tipping
• Replaces cracked, chipped or worn center grate surfaces that can catch spills
• Helps maintain safe cookware contact so burners perform as intended

• One (1) cast center grate

• Only replace when cooktop and burners are completely cool and gas is off
• Lift out the old grate and set the new grate in place—no special tools typically required
• Avoid harsh abrasives; clean with non-abrasive soap and water to preserve finish
• Inspect surrounding porcelain/enamel and burner caps for proper seating after installation

This factory screw secures components on GE cooking appliances. Replacing a lost or stripped fastener helps keep parts tight and aligned for safer, rattle-free operation.

• Fastens brackets, panels, trim, or burner components on a range, cooktop, or wall oven
• Replaces missing, corroded, or stripped hardware
• Helps reduce looseness, vibration, or rattling noises
• Restores proper alignment after service or cleaning

• Disconnect power and shut off gas supply. Allow the appliance to cool completely.
• Match this screw to the original and install in the same location.
• Use the correct driver; hand-tighten and avoid overtightening to prevent stripped threads or cracked parts.
• If mating threads are damaged, repair or replace the affected component before reassembly.

This cooktop mounting screw secures the cooktop to its frame or mounting brackets, keeping the surface stable and properly aligned. Replace stripped, missing, or rusty hardware to eliminate wobble, rattling, or lifted corners.

• Secures the cooktop to the chassis or brackets to prevent movement during use
• Helps maintain a flush, stable installation and proper alignment
• Replacing damaged or missing screws can reduce vibration, rattling, and gaps
• Supports safe, consistent operation of the cooking surface

• Disconnect power at the breaker; for gas models, also shut off the gas supply
• Support the cooktop while loosening/tightening hardware to avoid stressing the top
• Start all screws before tightening; do not overtighten

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It sits atop the gas burner to help distribute the flame evenly for better cooking performance. This cap is crucial for achieving precise temperature control and consistent heating, ensuring that food cooks evenly across the cookware.

Symptoms of a bad Burner Cap Assembly include:

• Uneven flame distribution, leading to uneven cooking or heating.
• Difficulty igniting the burner, or the flame going out unexpectedly.
• Visible signs of wear, such as warping, discoloration, or chipping of the burner cap.

Causes of a bad burner cap can include accumulation of food particles or cleaning products that clog the ports, physical damage from impact or dropping, or general deterioration from regular exposure to high temperatures.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It is designed to sit atop the burner base, helping to distribute the flame evenly across the cooking surface. The cap also serves to protect the burner head from spills and debris, which can clog the gas outlets.

Symptoms of a bad Burner Cap Assembly include:

• Uneven flame distribution, which can cause uneven cooking or take longer to heat food.
• Difficulty lighting the burner, or the flame going out unexpectedly.
• Visible signs of wear like chipping, warping, or discoloration.

Causes of a bad burner cap can include accumulation of spilled foods or cleaning chemicals, which might block the gas flow, and normal wear and tear from high-temperature exposure that can alter the shape or integrity of the cap.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE cooktops and ranges. It is designed to cover the burner head, ensuring even flame distribution for efficient and effective cooking. The cap also protects the burner head from spills and debris, which can interfere with burner performance and cause clogs.

You should replace the burner cap assembly if it becomes damaged or worn out. Causes of a bad burner cap assembly can include regular exposure to high heat, food residue buildup, or accidental impacts that cause cracks or warping. A compromised burner cap can lead to uneven flames and inefficient cooking.

Symptoms of a bad burner cap assembly include:

• Uneven or yellow flames
• Difficulty igniting the burner
• Visible cracks, chips, or warping in the burner cap
• Poor cooking performance with hotspots on cookware

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This burner cap fits the 18K high-output burner on your gas cooktop or range. It sits on the burner head to shape the flame and protect it from spills, helping restore an even flame pattern and clean, finished look.

• Sits atop the burner head to distribute the flame evenly across the 18K burner
• Helps maintain stable simmer and full, consistent heat
• Shields the burner head from spills and debris that can affect ignition
• Typical signs it's needed: uneven or yellow flames, delayed ignition, rattling/warped cap, visible chips or cracks

• Turn off gas and power; allow the surface to cool completely
• Lift off the old cap; clean and dry the burner head seating area
• Center the new cap on the burner head; ensure it sits flat and fully seated
• Test ignition and flame; reseat the cap if the flame is uneven

The Top Burner Spark Electrode is an OEM replacement part for GE brand appliances. Compatible with select GE gas ranges, this spark electrode ensures a reliable ignition for your burners. It features a white ceramic base and a metal electrode tip.

Symptoms of a bad igniter:

• Burners not lighting
• Igniter sparking erratically

The causes of a bad part can include physical damage or wear and tear over time.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Small Surface Burner is an OEM part for GE ranges and cooktops. It provides a consistent heat source for cooking, designed for use with smaller cookware, making it ideal for simmering and precise heating tasks.

You should replace the small surface burner if it becomes damaged or worn out. Causes of a bad surface burner can include regular wear and tear, spills, and exposure to high temperatures. A defective burner can lead to uneven heating or failure to ignite properly.

Symptoms of a bad Small Surface Burner include:

• The burner not igniting or taking a long time to ignite
• Uneven flame distribution
• The burner not producing heat at the expected levels

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Vision Burner XL is an OEM part for GE ranges. It is a large burner designed to provide high heat output for tasks that require intense cooking temperatures, such as boiling large pots of water or rapid heating. This burner ensures efficient and powerful cooking performance.

Causes of a bad Vision Burner XL can include wear and tear from frequent use, exposure to high temperatures, or damage due to impact or spills. Electrical issues can also lead to malfunctioning.

Symptoms of a bad Vision Burner XL include:

• The burner not igniting
• Uneven flame or weak flame
• The burner not maintaining a steady flame
• Visible damage or corrosion on the burner

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This head burner main is the primary gas burner head used on compatible gas ranges to direct and distribute the flame for proper cooking. It replaces a damaged or corroded burner head to restore even heating performance. What it does:

• Directs gas to the cooktop for ignition and controlled flame distribution
• Helps maintain even heat across the cooking surface for consistent results
• Can resolve symptoms like uneven flame, visible damage, or poor ignition at the burner
• Works with the burner cap and valve assembly as part of the burner system

• Turn off gas supply and power to the appliance before starting any work
• Remove grates and burner caps to access the burner; follow OEM disassembly guidance
• Replace only with the exact part number to ensure proper fit and function

The Oval Burner Assembly is an OEM part for GE ranges. This part provides an even heat distribution across the cooktop, facilitating efficient cooking with its distinctive oval shape.

Common causes of a bad burner assembly include normal wear and tear, clogging due to food debris, or damage from overheating or impact.

Symptoms of a bad Oval Burner Assembly include:

• Inconsistent flame or uneven heating
• Burner not igniting or maintaining a flame
• Visible damage or deformities on the burner
• Unusual odors or gas leaks when the burner is in use

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Medium Surface Burner is an OEM part for GE ranges and cooktops. This burner is essential for a wide range of cooking tasks, from simmering sauces to sautéing vegetables. The medium surface burner ensures even heat distribution and efficient fuel consumption, contributing to the overall cooking performance of your appliance.

Causes of a bad Medium Surface Burner can range from clogged burner ports, which impede gas flow and affect flame consistency, to wear and tear on the igniter or the burner assembly that prevents proper operation.

Symptoms of a malfunctioning Medium Surface Burner include:

• Inconsistent flame size or failure to ignite
• Uneven heating or hot spots on the cookware
• Visible damage or corrosion on the burner itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Electrode Clip is an OEM part for GE gas ranges. This part secures the electrode, which provides the ignition spark that lights the burners.

Causes of a bad Electrode Clip can include corrosion, physical damage from impact or mishandling, or loosening over time due to heat exposure and repeated use.

Symptoms of a bad Electrode Clip include:

• Failure of the burners or oven to ignite
• Intermittent or inconsistent ignition
• Visible damage or deterioration of the clip itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Bumper is an OEM replacement part for GE ovens and ranges. It is designed to cushion and protect the oven door or cooktop when it is opened or closed, preventing direct contact between components. This small yet crucial part helps reduce noise and wear by absorbing impact during regular use.

Over time, bumpers can wear out, deteriorate, or become dislodged due to frequent use or exposure to heat and cleaning agents. A damaged or missing bumper can lead to increased noise and potential wear on adjoining parts.

Symptoms of a bad or missing bumper include:

• Increased noise when the oven door or cooktop is opened or closed
• Visible wear or marks on the surfaces that contact the bumper
• The door or cooktop not aligning properly during use
• Missing or deformed bumper

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Bumper is an OEM part for GE ranges. It is located on the sides of the oven drawer and serves as a cushion to prevent noise, vibration, and wear. As time goes on, regular use of the appliance can cause it to become damaged or worn out.

Causes of a bad bumper can include wear and tear from regular use, deterioration of the material over time, or damage from excessive force when closing the door.

Symptoms of a bad Bumper include:

• Excessive noise
• Difficulty in sliding the drawer
• Misalignment
• Wear, and increased friction

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Electrode Top is an OEM part for GE gas ranges. It is designed to produce the spark necessary to ignite the gas burner, ensuring the burner lights up quickly and efficiently.

You should replace the electrode top if it becomes worn out, damaged, or fails to produce a spark. Common causes of a bad electrode top include buildup of food debris, exposure to moisture, or physical damage to the electrode or its connections.

Symptoms of a bad Electrode Top include:

• The burner not igniting or taking a long time to ignite
• A weak or absent spark
• Clicking sounds without ignition

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

18K Simmer

This igniter spring secures the appliance's igniter in its bracket, keeping the component properly positioned for reliable ignition. Replacing a tired spring restores stable alignment and helps resolve intermittent light-off issues.

• Holds the igniter securely in its mounting bracket or burner base
• Maintains proper gap and positioning for consistent ignition performance
• Helps address symptoms such as a loose or misaligned igniter and delayed or inconsistent lighting
• Replaces springs that are stretched, corroded, or broken

• Disconnect power and shut off gas supply before servicing; allow the appliance to cool fully.
• Access the igniter by removing burner components or the access panel as required by your model.
• Support the fragile ceramic igniter while removing/installing the spring; avoid bending the electrode or over-stretching the spring.
• Test operation after installation.

This igniter washer is a small retaining piece for gas ranges/cooktops that holds the surface burner spark igniter securely in place. Replacing a worn washer keeps the electrode aligned for a consistent spark and reliable burner ignition.

• Secures the surface burner igniter to the burner base
• Maintains correct igniter alignment and gap for consistent sparking
• Helps prevent arcing or misfires caused by a loose/missing retainer
• Common signs include a wobbly/misaligned igniter, intermittent spark, or that burner not lighting

• Disconnect power and shut off gas; allow the cooktop to cool
• Remove the burner cap and head to access the igniter
• Handle the ceramic electrode carefully; install the washer to secure the igniter in its original orientation
• Reassemble, restore power/gas, and test burner ignition

This replacement cooktop griddle restores a flat, stable cooking surface over the designated burner(s) on your range. Replace a warped, cracked, or missing griddle to maintain proper fit, safe handling, and consistent results.

• Provides a level, wide cooking surface for griddling on the cooktop
• Rests on the cooktop supports over the appropriate burner(s)
• Replace if the original is warped, cracked, chipped, or will not sit flat
• Helps restore even contact with heat and stable placement

What's included: 1 griddle

• Allow the cooktop and griddle to cool completely; wear gloves when handling
• Remove grates or the old griddle and clean the support area before placement
• Position the griddle on the designated location; align feet/tabs so it sits flush and does not rock
• Verify stability before heating; follow your range's use and care manual
