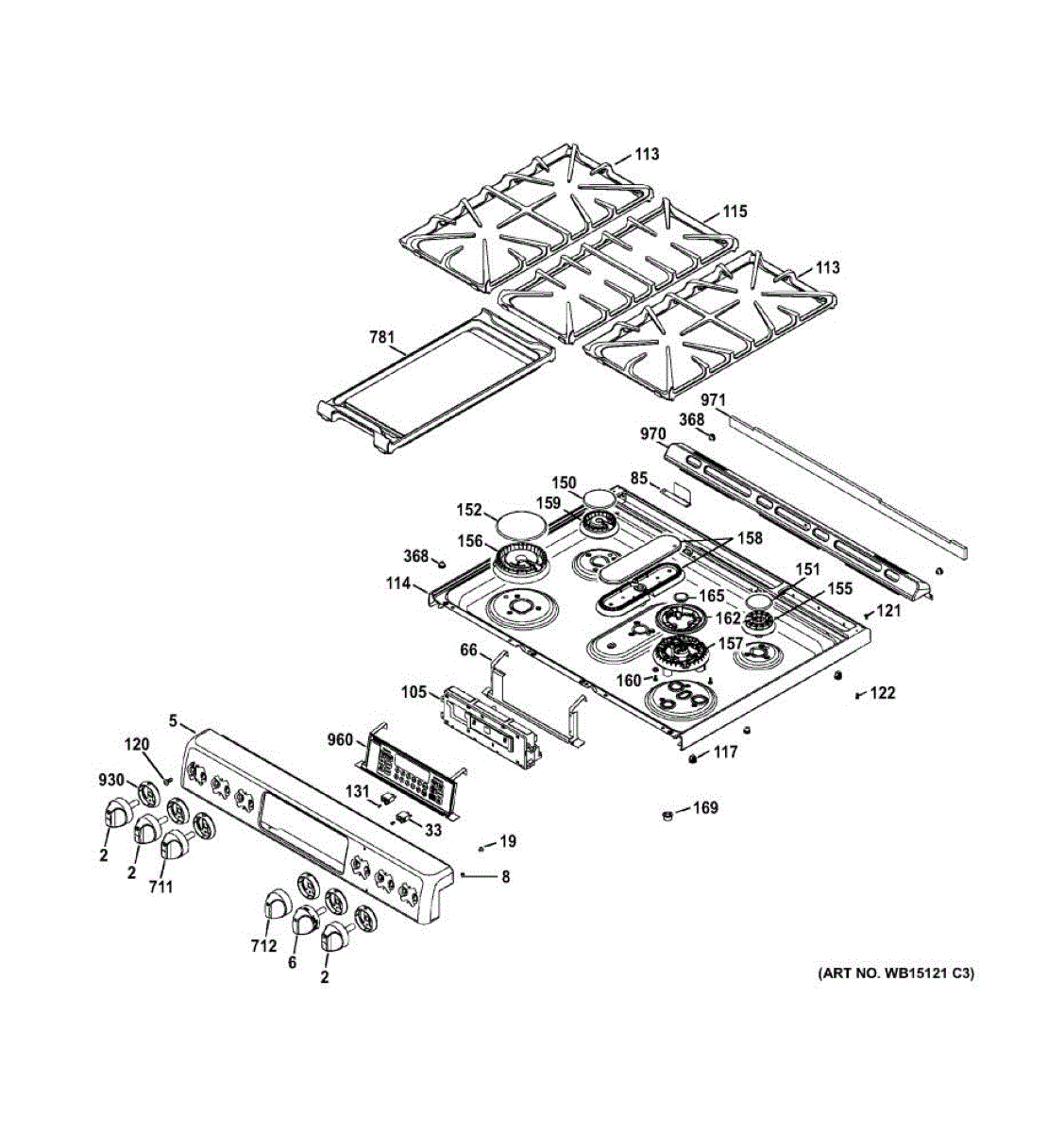

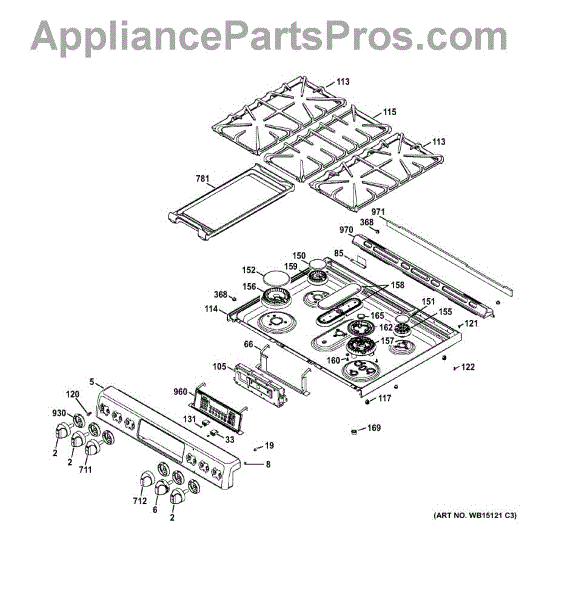

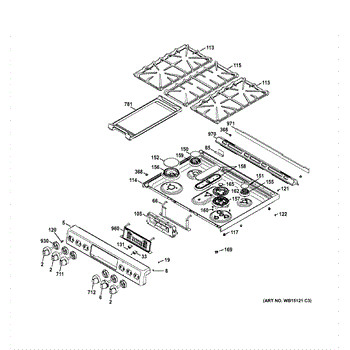

Parts for Ge CGS990SET2SS: 02 - Control Panel & Cooktop Parts

The Knob Assembly is an OEM part for GE gas ranges. The knob regulates cooktop burner temperatures. Color: metallic. It measures about 2 inches in diameter.

Causes relate to unavoidable heat stress and abrasion from everyday cooking tasks gradually wearing down plastic and metal interface points over 10+ years. Regular cleaning chemicals may also degrade markings prematurely.

Symptoms of a bad knob assembly include:

• Loose, wobbly or detached knob disconnecting from valve stem
• Knob difficult to rotate between settings or accidentally changing positions
• Faded or damaged markings inhibiting visual confirmation of settings
• Non-responsive rotation failing to adequately valve gas flow

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement knob assembly restores user control of a range or stove control. It provides a durable, easy-to-use interface for setting burner or oven settings so you can operate your appliance safely and accurately. What it does:

• Replaces a cracked, faded, loose, or missing control knob to restore normal control feel
• Engages the control shaft so temperature or power settings can be selected precisely
• Helps eliminate slipping or sticking that prevents proper burner or oven adjustment
• Matches original fit and user interface for straightforward operation

• Disconnect power to the appliance before attempting any service
• Push onto the control shaft until fully seated; some models may use a retaining clip or require gentle alignment

Size: 8 - 32 inch.

This is a replacement mounting screw for the refrigerator/freezer thermostat assembly. It secures the thermostat to the cabinet so temperature sensing and control remain stable and reliable. What it does:

• Secures the thermostat housing or bracket to the appliance cabinet
• Keeps the thermostat properly positioned for accurate temperature sensing
• Common fix when a loose, missing, or stripped thermostat fastener causes rattling or poor contact
• Small hardware part used during thermostat replacement or reassembly

• One thermostat mounting screw

• Turn off power to the appliance before starting any repair
• Use appropriate screwdriver and do not overtighten to avoid stripping the housing or threads
• If original hole or threads are damaged, inspect bracket or cabinet and replace as needed

This pilot indicator light mounts in the control panel and illuminates to show when a surface element or another heating circuit is powered. Replace a burned-out or stuck-on light to restore a clear, reliable power-on warning.

• Lights when the corresponding heating circuit is energized
• Alerts users that heating components are active
• Common symptoms: light does not turn on, stays on constantly, flickers, or is very dim
• Shows physical damage to the lens or terminals when failed

• Disconnect power at the breaker before servicing
• Remove the backguard or control panel cover to access the indicator light from behind
• Note wire positions; move connectors to the new light one at a time and secure the light in the panel
• Restore power and test operation before reassembly

This cast side grate provides a sturdy, heat-resistant cooking surface for a gas range burner, helping support cookware and maintain proper flame contact for even cooking. Ideal when an original grate is cracked, warped, or missing. What it does:

• Replaces a damaged or missing side grate to restore proper cookware support and burner clearance
• Maintains correct distance between cookware and flame for consistent heating
• Resists high heat and surface wear typical of everyday stovetop use
• Helps prevent pans from tipping or sliding on the cooktop

• Install on a cooled, unlit cooktop; ensure the grate sits flat and stable over the burner
• No special tools required; lift out the old grate and position the replacement
• Verify burner head components are correctly seated before use
• If burner operation or flame shape changes after installation, turn off the appliance and inspect

This cast center grate replaces a damaged or missing mid grate on compatible gas cooktops, restoring stable support for cookware and even heat distribution at the cooktop center. Durable cast construction matches OEM fit and appearance. What it does:

• Supports pots and pans over the center burner for steady, level cooking
• Restores proper burner-to-grate alignment to help prevent wobbling or tipping
• Replaces cracked, chipped or worn center grate surfaces that can catch spills
• Helps maintain safe cookware contact so burners perform as intended

• One (1) cast center grate

• Only replace when cooktop and burners are completely cool and gas is off
• Lift out the old grate and set the new grate in place—no special tools typically required
• Avoid harsh abrasives; clean with non-abrasive soap and water to preserve finish
• Inspect surrounding porcelain/enamel and burner caps for proper seating after installation

This factory screw secures components on GE cooking appliances. Replacing a lost or stripped fastener helps keep parts tight and aligned for safer, rattle-free operation.

• Fastens brackets, panels, trim, or burner components on a range, cooktop, or wall oven
• Replaces missing, corroded, or stripped hardware
• Helps reduce looseness, vibration, or rattling noises
• Restores proper alignment after service or cleaning

• Disconnect power and shut off gas supply. Allow the appliance to cool completely.
• Match this screw to the original and install in the same location.
• Use the correct driver; hand-tighten and avoid overtightening to prevent stripped threads or cracked parts.
• If mating threads are damaged, repair or replace the affected component before reassembly.

This factory screw secures components in your appliance for a tight, reliable fit. Replacing a missing or damaged screw helps stop rattles, restore alignment, and keep panels or brackets firmly attached. What it does:

• Acts as a mounting fastener for appliance components such as panels, brackets, or assemblies
• Maintains proper alignment and stability of secured parts
• Helps reduce vibration, rattling, or looseness caused by worn or missing hardware
• Replaces stripped, rusted, or lost screws to restore secure attachment

• One screw

• Disconnect power; shut off gas supply before servicing
• Replace screws one at a time to match length and location
• Start threads by hand to avoid cross-threading; use the correct driver/bit
• Tighten snugly—do not overtighten; inspect mating clip or bracket if threads are damaged

This replacement indicator light lens covers the lamp opening on the control panel, protecting the opening while keeping the ON indicator easy to see. Replacing a cracked or missing lens restores visibility and a finished look.

• Covers and protects the indicator lamp opening in the panel
• Diffuses light so the appliance's ON status is easy to see
• Helps keep dust, grease, and moisture out of the control area
• Common signs to replace: lens cracked, missing, cloudy/discolored, or won't stay seated

• Disconnect power by unplugging the appliance or switching off the circuit breaker
• Access the panel area; release the old lens tabs or retainer from the back side and remove
• Align and press the new lens fully into the opening until it sits flush
• Restore power and verify the indicator illuminates correctly

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It sits atop the gas burner to help distribute the flame evenly for better cooking performance. This cap is crucial for achieving precise temperature control and consistent heating, ensuring that food cooks evenly across the cookware.

Symptoms of a bad Burner Cap Assembly include:

• Uneven flame distribution, leading to uneven cooking or heating.
• Difficulty igniting the burner, or the flame going out unexpectedly.
• Visible signs of wear, such as warping, discoloration, or chipping of the burner cap.

Causes of a bad burner cap can include accumulation of food particles or cleaning products that clog the ports, physical damage from impact or dropping, or general deterioration from regular exposure to high temperatures.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It is designed to sit atop the burner base, helping to distribute the flame evenly across the cooking surface. The cap also serves to protect the burner head from spills and debris, which can clog the gas outlets.

Symptoms of a bad Burner Cap Assembly include:

• Uneven flame distribution, which can cause uneven cooking or take longer to heat food.
• Difficulty lighting the burner, or the flame going out unexpectedly.
• Visible signs of wear like chipping, warping, or discoloration.

Causes of a bad burner cap can include accumulation of spilled foods or cleaning chemicals, which might block the gas flow, and normal wear and tear from high-temperature exposure that can alter the shape or integrity of the cap.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE cooktops and ranges. It is designed to cover the burner head, ensuring even flame distribution for efficient and effective cooking. The cap also protects the burner head from spills and debris, which can interfere with burner performance and cause clogs.

You should replace the burner cap assembly if it becomes damaged or worn out. Causes of a bad burner cap assembly can include regular exposure to high heat, food residue buildup, or accidental impacts that cause cracks or warping. A compromised burner cap can lead to uneven flames and inefficient cooking.

Symptoms of a bad burner cap assembly include:

• Uneven or yellow flames
• Difficulty igniting the burner
• Visible cracks, chips, or warping in the burner cap
• Poor cooking performance with hotspots on cookware

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Small Surface Burner is an OEM part for GE ranges and cooktops. It provides a consistent heat source for cooking, designed for use with smaller cookware, making it ideal for simmering and precise heating tasks.

You should replace the small surface burner if it becomes damaged or worn out. Causes of a bad surface burner can include regular wear and tear, spills, and exposure to high temperatures. A defective burner can lead to uneven heating or failure to ignite properly.

Symptoms of a bad Small Surface Burner include:

• The burner not igniting or taking a long time to ignite
• Uneven flame distribution
• The burner not producing heat at the expected levels

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Vision Burner XL is an OEM part for GE ranges. It is a large burner designed to provide high heat output for tasks that require intense cooking temperatures, such as boiling large pots of water or rapid heating. This burner ensures efficient and powerful cooking performance.

Causes of a bad Vision Burner XL can include wear and tear from frequent use, exposure to high temperatures, or damage due to impact or spills. Electrical issues can also lead to malfunctioning.

Symptoms of a bad Vision Burner XL include:

• The burner not igniting
• Uneven flame or weak flame
• The burner not maintaining a steady flame
• Visible damage or corrosion on the burner

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Tri-Ring Burner Assembly is an OEM part for GE gas cooktops and ranges. It contains the three front right burners, grates, and supporting brackets.

Causes of a bad burner assembly can include cracked or warped burner heads from prolonged heat exposure. Deterioration of internal gas pipes and orifices may also diminish flame and heating performance.

Symptoms of a bad Tri-Ring Assembly include:

• Unstable, yellowish, or excessively large flames that cannot be adjusted
• Burners that cannot be ignited or controlled independently
• Improper alignment causing imbalanced pans or spills
• Leakage or gas smells detected around the burner cavities

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore branded appliances.

The Oval Burner Assembly is an OEM part for GE ranges. This part provides an even heat distribution across the cooktop, facilitating efficient cooking with its distinctive oval shape.

Common causes of a bad burner assembly include normal wear and tear, clogging due to food debris, or damage from overheating or impact.

Symptoms of a bad Oval Burner Assembly include:

• Inconsistent flame or uneven heating
• Burner not igniting or maintaining a flame
• Visible damage or deformities on the burner
• Unusual odors or gas leaks when the burner is in use

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Medium Surface Burner is an OEM part for GE ranges and cooktops. This burner is essential for a wide range of cooking tasks, from simmering sauces to sautéing vegetables. The medium surface burner ensures even heat distribution and efficient fuel consumption, contributing to the overall cooking performance of your appliance.

Causes of a bad Medium Surface Burner can range from clogged burner ports, which impede gas flow and affect flame consistency, to wear and tear on the igniter or the burner assembly that prevents proper operation.

Symptoms of a malfunctioning Medium Surface Burner include:

• Inconsistent flame size or failure to ignite
• Uneven heating or hot spots on the cookware
• Visible damage or corrosion on the burner itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is the outer burner cap for a sealed gas burner. It covers the burner's outer ring to shape a steady flame, protect the burner head from spills, and help ensure consistent ignition and even cooking results.

• Shapes and distributes the flame around the outer ring for balanced heating
• Promotes reliable ignition when properly centered and seated
• Shields burner head and ports from spills and debris that can affect performance
• Replace if the cap is chipped, warped, or missing; symptoms can include yellow/uneven flames, sooting, or repeated clicking/delayed ignition

• Disconnect power and allow the cooktop/range to cool before servicing
• Lift off the old cap; clean the burner head and seating surface
• Position the new cap flat and centered; it should sit level and not rock
• Light the burner to verify a steady, blue flame; reposition if needed

This central burner cap covers the center of a gas burner to shape the flame and protect the burner head. Replacing a worn or missing cap restores proper ignition, even flame, and clean cooktop performance.

• Directs the center flame for more even heat distribution
• Shields the burner head/igniter area from spills and drafts
• Helps ensure consistent ignition when properly seated
• Common symptoms: uneven or yellow flames, delayed ignition, sooting, or a chipped/warped cap

• Turn all burner controls off and let the surface cool completely
• Lift off the old cap; clean and dry the burner head surface
• Center the new cap on the burner head so it sits flat with no rocking or gaps
• Test the burner; if the flame is uneven or lifting, re-seat the cap until level

This venturi directs and mixes propane (LP) gas with air for proper burner combustion on compatible gas ranges and cooktops. It helps restore consistent flame shape and burner performance when the venturi is damaged or clogged. What it does:

• Channels LP gas to the burner for correct air/gas mixing
• Helps maintain stable, even burner flames during operation
• Commonly replaced if the venturi is cracked, clogged, or warped
• Can resolve weak or uneven flames and ignition difficulties

• One venturi (15K LP) as shown

• Turn off gas supply and power before servicing; follow local codes
• Install only on compatible LP-configured appliances and use correct orifice sizes
• Inspect surrounding seals and connections; replace any damaged hardware

The Bumper is an OEM part for GE ranges. It is located on the sides of the oven drawer and serves as a cushion to prevent noise, vibration, and wear. As time goes on, regular use of the appliance can cause it to become damaged or worn out.

Causes of a bad bumper can include wear and tear from regular use, deterioration of the material over time, or damage from excessive force when closing the door.

Symptoms of a bad Bumper include:

• Excessive noise
• Difficulty in sliding the drawer
• Misalignment
• Wear, and increased friction

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: stainless steel. It measures about 2 inches in diameter.

This replacement cooktop griddle restores a flat, stable cooking surface over the designated burner(s) on your range. Replace a warped, cracked, or missing griddle to maintain proper fit, safe handling, and consistent results.

• Provides a level, wide cooking surface for griddling on the cooktop
• Rests on the cooktop supports over the appropriate burner(s)
• Replace if the original is warped, cracked, chipped, or will not sit flat
• Helps restore even contact with heat and stable placement

What's included: 1 griddle

• Allow the cooktop and griddle to cool completely; wear gloves when handling
• Remove grates or the old griddle and clean the support area before placement
• Position the griddle on the designated location; align feet/tabs so it sits flush and does not rock
• Verify stability before heating; follow your range's use and care manual

The Skirt is an OEM replacement part for GE cooktops and ranges. It is a trim piece designed to enhance the aesthetic appearance of the appliance and provide a secure fit around the cooktop or burner area. This part also helps protect internal components by covering gaps and exposed areas.

Causes of a damaged skirt can include accidental impact, heat-related wear, or improper cleaning methods. Over time, the material may warp, crack, or become discolored, detracting from the appliance’s appearance and functionality.

Symptoms of a bad skirt include:

• Visible cracks, chips, or warping
• Loose or detached trim around the cooktop
• Gaps exposing internal components
• Difficulty securing the skirt in place

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This glass and touch board assembly restores a cracked or unresponsive cooktop/oven control surface so you can safely select settings and see display feedback. It replaces the glass panel and integrated touch-switch circuit in one unit. What it does:

• Replaces the front glass and capacitive/resistive touch switch board that registers user inputs
• Restores unresponsive, intermittent, or non-working touch buttons and keypad controls
• Fixes visible damage such as cracked or shattered control glass that can allow dirt or moisture inside
• Helps resolve erratic or missing on-screen indicators tied to the control surface

• One glass and touch board assembly (control panel) as shown

• Disconnect power at the breaker before starting to avoid shock or damage
• Handle the glass carefully to avoid cuts; use a soft, static-free surface to set parts on
• Verify connector alignment and seating; do not force connectors—note orientation before removal
