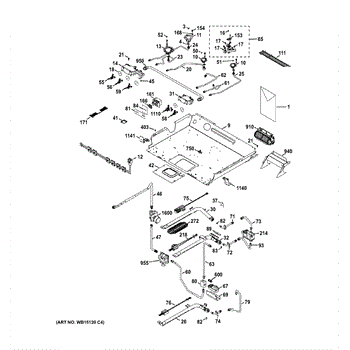

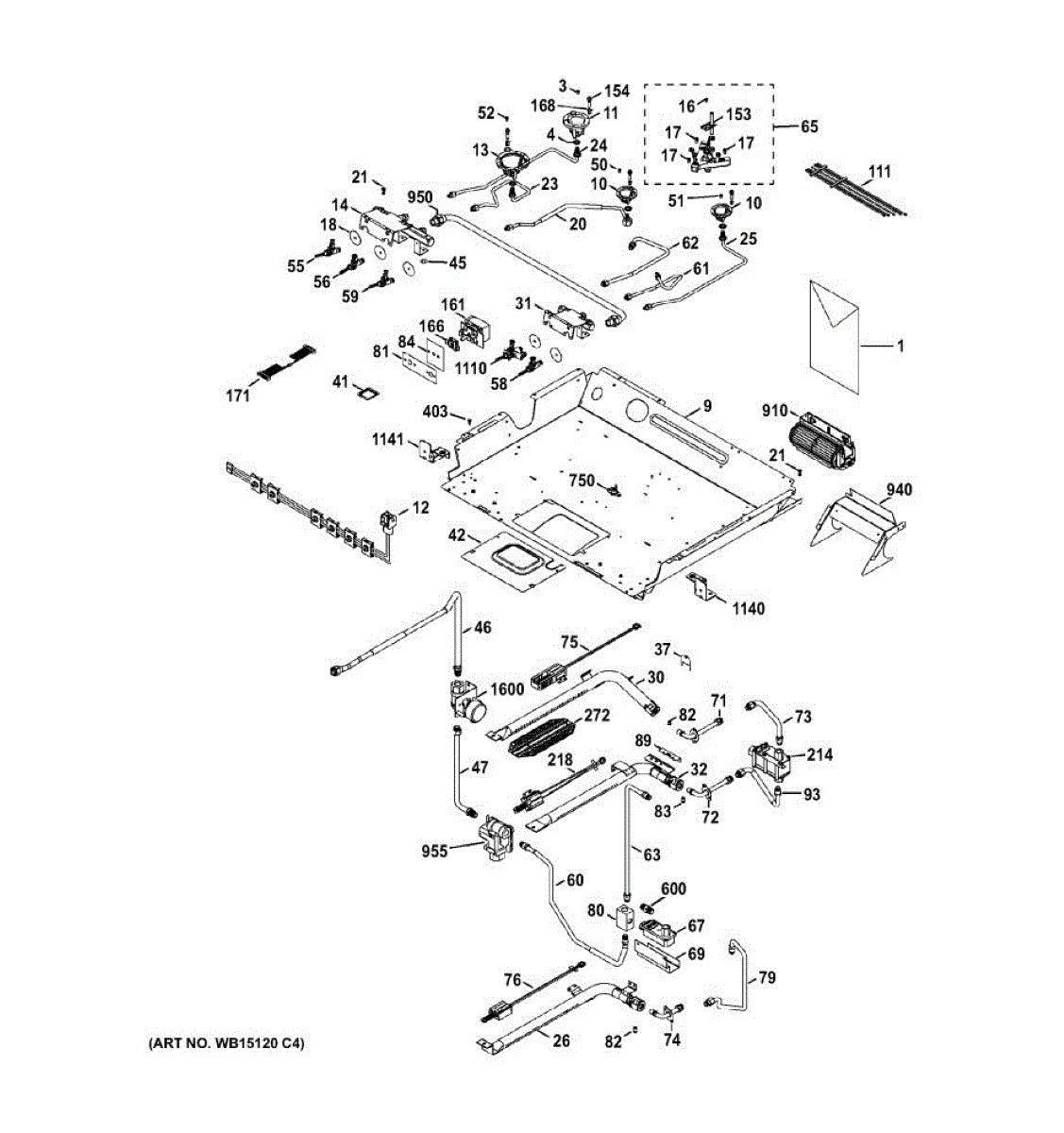

Parts for Ge CGS990SET2SS: 01 - Gas & Burner Parts

This LP conversion kit adapts your compatible gas appliance from natural gas to liquid propane. It provides model-specific components to size the fuel delivery for LP, helping ensure proper flame characteristics and consistent heating performance. What it does:

• Converts the appliance for use with LP (propane) fuel
• Configures orifice sizing and regulator settings for LP on compatible models
• Helps correct oversized yellow flames, weak heat, or sooting when operating on propane without proper conversion
• Commonly needed when relocating to a home with propane service

• One LP conversion kit

• Disconnect electrical power and shut off the gas supply; allow the appliance to cool before starting.
• Follow the model-specific conversion procedure to change orifice spuds and convert the pressure regulator; perform a leak check and verify flame appearance.
• After conversion, test all burners and the oven for proper operation across settings.

The Orifice Spud is an OEM part for GE ranges and cooktops. It is a small, precise component responsible for regulating the flow of gas to the burner, ensuring a controlled and efficient flame for cooking. This spud is essential for maintaining the correct gas pressure and flame size.

Over time, orifice spuds can become clogged or damaged due to residue buildup, corrosion, or improper cleaning. These issues can lead to inefficient burner performance or safety hazards.

Symptoms of a bad orifice spud include:

• Uneven or weak burner flames
• Difficulty in igniting the burner
• Yellow or flickering flames
• Gas odors near the burner area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This economic nut is a small replacement fastening nut that restores secure connections for appliance components. It replaces worn or missing hardware so panels and internal parts stay firmly seated and reduce vibration. What it does:

• Secures components and panels by threading onto the matching stud or bolt to hold assemblies in place
• Prevents loose or rattling panels and hardware caused by a missing or damaged nut
• Restores proper fit for user-accessible panels and internal brackets where this nut is specified
• Simple hardware replacement to regain stable mechanical connections

• Disconnect power and water (if applicable) and follow basic electrical safety before servicing the appliance
• Use the matching size wrench or socket; thread-on by hand first to avoid cross-threading, then snug—do not overtighten
• Inspect mating stud or bolt for damage; replace hardware that is stripped, corroded, or deformed

This small cooktop bracket secures designated components beneath the cooktop surface, keeping them properly positioned and stable. Replace a damaged or missing bracket to restore alignment and reduce movement or rattling during use.

• Provides mounting support for specific under-top components, per model design
• Helps maintain proper alignment and stability of cooktop parts
• Replace when visibly bent, cracked, or corroded

• Disconnect power; for gas models, also shut off gas and allow the unit to cool
• Remove surface components as required (grates/caps/heads for gas; elements/panels for electric) to access under the top
• Lift or remove the cooktop as directed in your model's service information and secure the new bracket with existing hardware
• Reassemble, verify alignment, and for gas units check for leaks if any gas connections were disturbed

This circuit board mounting bracket secures an electronic board or module inside the appliance. It prevents movement, vibration damage, and wiring interference so the component stays correctly positioned for reliable operation.

• Mounts and supports a small circuit board or module within the chassis
• Maintains proper spacing and alignment to reduce chafing or electrical short risks
• Replace if bent, cracked, or missing tabs, or if it no longer holds the board securely
• Common signs include a loose/rattling board, visible bracket damage, or intermittent operation when the panel is bumped

• Disconnect power at the breaker; shut off gas supply if applicable
• Remove the necessary access panel(s) to reach the board and bracket; note orientation and wiring
• Transfer the board/module to the new bracket and reinstall using existing hardware
• Watch for sharp metal edges; route wires to avoid pinching and verify clearances before restoring power

This cooktop bracket secures the cooktop to the range frame, helping keep the surface stable and aligned for safe use. It replaces a worn or damaged support bracket to restore a snug, even fit. What it does:

• Anchors the cooktop to the range cabinet/frame to prevent shifting or rocking
• Helps maintain a flush, even cooktop surface for proper operation
• Can stop gaps that let debris fall between the cooktop and counter
• Useful when a loose, wobbly, or uneven cooktop is observed

• One cooktop mounting bracket

• Turn off power at the breaker and disconnect the appliance before starting work
• Access may require lifting the cooktop or removing trim—use proper support and a helper if needed
• Tighten mounting fasteners securely but avoid over-torquing to prevent damage

LP orifice spud that meters propane to a single burner for correct flame size and efficient combustion after converting a cooktop or oven to LP. Restores proper burner performance and safer operation. What it does:

• Meters propane flow to one burner to establish the correct flame for LP fuel.
• Used when converting a range or oven from natural gas to propane (LP).
• Helps correct flames that are too large, yellow, uneven, or won't stay lit.
• Replaces a worn, damaged, or incorrect LP orifice spud for improved burner control.

• Shut off the gas supply at the appliance and service valve before servicing.
• Follow OEM conversion instructions.
• After installation, check all gas connections for leaks with an approved method; do not operate the appliance if you detect a gas leak.
• Use only the exact orifice specified for LP conversion—do not substitute unverified parts.

This LP orifice spud meters propane to a burner on compatible gas ranges/cooktops. Replacing a clogged, damaged, or incorrect spud helps restore proper flame size and consistent burner performance after conversion or service. What it does:

• Threads into the gas system to control LP gas flow to the burner
• Corrects flame characteristics after LP conversion when the proper size is used
• Common symptoms of a wrong/failed spud: yellow-tipped flames, flames too high/low, uneven heating, poor simmering
• Helps maintain stable blue flames for efficient combustion on LP

• 1 LP orifice spud

• For LP (propane) use only; do not use with natural gas
• Turn off gas supply and power before servicing; allow the appliance to cool
• Match each burner position to the specified orifice per your model's conversion chart; tighten snugly without overtightening
• After installation, leak-check with a soap solution and verify flame characteristics per the manual

A replacement burner valve cover that protects and conceals the gas valve assembly on compatible ranges, helping keep valve components clear of spills and debris for more reliable burner operation. What it does:

• Covers and protects the gas valve area from food, moisture and spills.
• Helps prevent debris from interfering with valve knobs and internal valve parts.
• Can reduce intermittent ignition or burner performance issues caused by contamination.
• Restores the finished appearance around the valve for safer, cleaner operation.

• Always shut off the gas supply and unplug the appliance before servicing.
• Use basic hand tools; handle the valve area gently to avoid disturbing fittings or tubing.
• After installation, check for gas leaks with a soapy-water solution or a proper leak detector—do not use an open flame.

This 1/4-20 screw secures panels, brackets, and other assemblies in your appliance. It restores a tight, reliable hold when an original fastener is missing, stripped, or corroded.

• Fastens components that require a 1/4-20 threaded screw
• Helps keep panels and assemblies aligned and rattle-free
• Direct replacement for worn, rusted, or lost hardware
• Common symptoms: loose or vibrating parts, misaligned brackets, missing fastener

• Disconnect power; turn off gas supply before servicing
• Allow the appliance to cool; wear gloves and eye protection
• Start threads by hand to avoid cross-threading; use the correct driver/tool
• Tighten snugly—do not overtighten to prevent stripping or damage

This orifice holder secures the gas orifice at a cooktop burner and positions the orifice for correct gas flow and ignition. It restores stable burner operation and helps ensure an even, controllable flame at the front-left burner. What it does:

• Holds the burner orifice in place and aligns it with the burner tube
• Helps maintain proper gas flow to the front-left cooktop burner
• Used when the orifice holder is cracked, warped, or no longer seats the orifice correctly

• One orifice holder for the front-left cooktop burner

• Turn off the gas supply and unplug the appliance before servicing
• Remove burner grates and burner cap to access the orifice area; use basic hand tools
• Inspect the orifice and burner tube for debris or damage while replacing the holder

This orifice holder secures the burner orifice for the right-rear gas burner so the burner ignites and maintains a steady flame. It fits into the burner head assembly to position the fuel orifice precisely. What it does:

• Holds the burner orifice in the right-rear burner assembly for correct gas flow
• Helps ensure a consistent, even flame at the right-rear cooking location
• Commonly replaced when the burner won't light or the flame is weak/irregular
• Works with the burner head and orifice to keep the fuel jet aligned

• One orifice holder

• Shut off the gas supply and unplug the appliance before starting work
• Remove burner cap/head as needed to access the orifice holder
• Handle gas fittings gently; do not force or cross-thread parts
• After installation, follow manufacturer guidance for leak testing and safe startup

This igniter cover is a replacement protective shield that helps protect the oven igniter from food spills and debris, extending the igniter's service life and helping the burner ignite reliably. What it does:

• Shields the oven igniter from direct contact with spills, drips and falling debris
• Helps prevent premature igniter damage that can lead to ignition problems
• Can reduce the chance of shorting or erratic ignition caused by contamination
• Matches original shape to ensure proper fit and clearance around the igniter

• Disconnect power to the appliance (and shut off gas if applicable) before servicing
• Allow the oven to cool completely and wear gloves to avoid cuts from sheet metal
• Handle the igniter and cover carefully; avoid touching the igniter surface directly
• Test appliance operation after reinstall

Medium LP orifice

This orifice spud meters gas to a burner in your range or cooktop. Replacing a clogged or damaged spud helps restore correct flame size and reliable ignition for consistent cooking performance.

• Regulates gas flow from the valve to the burner head for proper combustion
• Helps restore consistent flame height and even heating on the burner
• Sized for the burner rating and fuel type specified by your model; always match the correct part

• Disconnect power and shut off gas supply; allow the appliance to cool completely before servicing.
• Access the burner orifice and replace with the correct, model-specified spud using an appropriate wrench; do not overtighten.
• Restore gas and check all connections for leaks with a soap-and-water solution.
• Use only the spud specified for your fuel type (NG or LP); do not attempt conversion without the approved kit and instructions.

This orifice spud supplies the correct fuel opening for a range or oven burner when using LP (liquid propane). It restores proper gas flow at the burner to help achieve a steady, consistent flame. What it does:

• Replaces the LP burner orifice/spud that meters propane to the burner
• Helps correct weak, uneven, or yellow flames caused by a worn or clogged orifice
• Used when servicing or converting burner assemblies to LP fuel
• Prevents improper gas flow that can cause poor ignition or unstable flame

• One LP orifice spud

• Turn off gas supply and electrical power before servicing; follow all safety precautions
• Only experienced DIYers comfortable with gas appliances should install this part
• After installation, test for proper flame and check all fittings for leaks using a soap solution

This surface burner valve regulates gas flow to a high-output burner, restoring smooth flame control and dependable lighting. Replacing a worn valve helps ensure safe operation and precise adjustment across the full flame range.

• Controls and shuts off gas to a surface burner for safe, reliable operation
• 270° Hi-Cap configuration specified for high-output burner positions
• Restores smooth knob action and consistent flame adjustment
• A failing valve may cause no flame or weak flame, poor flame control, a hard-to-turn/spinning knob, or gas leakage at the valve

• Disconnect power and shut off the gas supply before servicing
• Note and match all manifold/tubing connections during removal and installation
• Use an approved gas-rated thread sealant where specified and tighten fittings to manufacturer guidelines
• After installation, leak-test all connections with a soap solution; verify ignition and full flame adjustment before use

A replacement burner valve that controls gas flow to a single cooktop burner, restoring reliable ignition and stable flame performance. Fits compatible GE gas ranges and cooktops where the original burner valve has failed. What it does:

• Regulates gas supply to a single burner so the flame ignites and holds steady
• Helps correct symptoms like a burner that won't light, has a weak flame, or won't respond to control knob changes
• Works as the direct replacement for the OEM burner valve assembly used on affected gas burners

• One valve burner 270 assembly (single valve)

• Turn off gas supply and electrical power before starting any service
• Check all fittings for leaks after installation and follow local codes for gas appliance service
• Do not modify the part; use only with compatible appliance models

This burner valve 270 is the gas control valve used on compatible ranges and ovens to restore regulated gas flow to a single burner assembly, helping the burner light and maintain a steady flame for reliable cooking. What it does:

• Regulates gas flow to the burner so the burner can ignite and hold a steady flame.
• Replaces the worn or leaking valve assembly that controls gas delivery to the burner.
• Interfaces with the range's ignition and gas supply lines; correct orientation and sealing are required.

• Always shut off both the appliance power and the gas supply before beginning service.
• Use proper fittings and replace any damaged tubing, gaskets, or seals; test all connections for leaks with an approved leak-detection method after installation.

This top burner injector assembly delivers gas from the manifold to a range's top burner for controlled ignition and stable flame. It restores proper fuel flow so burners light reliably and maintain even heat for cooking. What it does:

• Directs gas to the top burner so the burner can ignite and produce a steady flame
• Helps correct low or uneven flame at a single top burner
• Replaces a clogged, damaged, or worn injector that can prevent ignition or proper burner performance
• Works as the burner-side metering piece in the gas delivery path

• One top burner injector assembly

• Turn off the gas supply and power to the appliance before servicing
• Only install the exact replacement part for your model; tighten fittings per manufacturer guidance
• Check all seals and connections for leaks after installation; use soapy water or a gas leak detector

This valve control assembly routes gas to the surface burners and regulates flow as you turn the knobs. Replacing a worn manifold restores smooth flame adjustment and consistent burner performance on your gas range or cooktop.

• Directs incoming gas through the manifold to each surface burner valve
• Opens and closes with the control knobs to set flame height
• Works with the ignition system for steady lighting and operation
• Typical symptoms: burner won't receive gas, flame won't adjust, or a stiff/hard-to-turn valve

• Disconnect power and shut off the gas supply before service; allow the appliance to cool
• Label and disconnect gas tubing and any wiring from the old assembly; transfer mounting hardware as needed
• After installation, restore gas and check all joints with an approved leak-detection solution (never an open flame)
• Verify each burner lights and adjusts smoothly; recheck for leaks

The Igniter Glow Bar is an OEM part for GE gas ovens and ranges. It is responsible for igniting the gas by heating up to a high temperature, which then lights the gas burner to start the cooking process.

You should replace the igniter glow bar if it becomes faulty or fails to ignite the gas. Common causes of a bad igniter glow bar include wear and tear from frequent use, electrical issues, or physical damage to the igniter element.

Symptoms of a bad igniter glow bar include:

• The oven not heating up
• The gas burners not igniting
• A clicking sound without ignition
• Visible cracks or damage to the igniter

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Top Burner Spark Electrode is an OEM replacement part for GE brand appliances. Compatible with select GE gas ranges, this spark electrode ensures a reliable ignition for your burners. It features a white ceramic base and a metal electrode tip.

Symptoms of a bad igniter:

• Burners not lighting
• Igniter sparking erratically

The causes of a bad part can include physical damage or wear and tear over time.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This thermostat regulates oven temperature to restore accurate heating and consistent baking or broiling results. Replace a worn or faulty thermostat to help the oven reach and maintain the set temperature more reliably. What it does:

• Senses oven temperature and cycles the heating element or gas valve to maintain the selected temperature.
• Helps ensure even cooking and consistent bake/broil performance.
• Common symptoms it can resolve: oven not reaching set temperature, temperature running too hot or too cool, or frequent on/off cycling.
• Works as the temperature control component used by the oven's control system.

• Disconnect electrical power to the appliance before beginning work; for gas ranges, shut off the gas supply.
• Handle the part carefully and avoid bending sensing bulbs or terminals.
• Use basic hand tools; refer to the appliance's service manual for routing, connector locations, and calibration steps.

This valve control assembly regulates gas flow for a range or oven, restoring safe ignition and consistent burner performance. Use when burners won't light, flame is inconsistent, or oven fails to heat. What it does:

• Controls and directs gas to the burner/oven valve for ignition and steady flame.
• Helps resolve symptoms like no ignition, weak or uneven flame, or intermittent heating.
• Works with the range/oven ignition system to coordinate valve opening during start-up.
• Replaces a damaged or malfunctioning valve control module to restore normal operation.

• One valve control assembly.

• Disconnect electrical power and shut off the gas supply before beginning work.
• After install, check all connections and test for gas leaks with a soap solution or approved leak detector.

The Igniter Glowbar is an OEM part for GE ovens. It is responsible for igniting the gas to start the burner, ensuring efficient and safe operation of the oven. This component heats up to a high temperature to ignite the gas, enabling the oven to reach and maintain the desired cooking temperature.

Over time, the igniter glowbar can wear out or fail due to repeated heating and cooling cycles, exposure to food spills, or electrical issues. Causes of a bad igniter glowbar include filament breakage, electrical component failure, or contamination from debris.

Symptoms of a bad igniter glowbar include:

• The oven not heating up
• The burner not igniting
• A noticeable delay in ignition
• The igniter not glowing when the oven is turned on

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This bimetal limit thermostat is a safety temperature cutoff that stops heat when an oven or range overheats, helping protect the appliance and prevent further damage. It replaces a failed thermal cutoff that won't reset or maintain safe temperatures. What it does:

• Opens the circuit to the oven heating system when internal temperature exceeds safe limits
• Helps prevent overheating and reduces risk of heat-related component failure
• Common symptom: oven heats inconsistently or will not come up to temperature
• Common symptom: oven elements or burners remain off after an overheat event

• Disconnect power to the appliance before servicing to avoid electrical shock.
• Access typically requires removing the oven back panel or control housing; follow OEM service instructions.
• Replace only with the exact part number; do not attempt to modify or bend the thermostat.

The Blower Motor is an OEM part for GE ranges. Within the oven cavity, it circulates air to help distribute heat evenly for thorough cooking.

Causes of a bad Blower Motor include wear from long term use, residue buildup on fan blades inhibiting air movement, or electrical issues such as loose wiring connections or a burned out motor coil.

Symptoms of a bad Blower Motor are:

• Inconsistent or improper baking and broiling
• Hot and cold spots inside the oven cavity
• Extended cooking times needed for foods

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Pressure Regulator is an OEM component designed specifically for GE gas ranges. Located outside the range near the supply line, this regulator controls incoming gas pressure to safe operation levels.

Symptoms of a faulty regulator include:

• Unstable burner flame heights
• Delayed or inconsistent ignition between burners
• Abnormal operating noises coming from the regulator

Causes usually involve wear of internal springs or diaphragms from years of sustained usage. Exposure to excessive pressure surges could also potentially damage regulator components over time.

This genuine GE regulator is compatible with select Hotpoint and RCA models as well.

This dual water inlet valve controls water flow to the refrigerator's dispenser and ice maker, restoring normal water delivery when the original valve fails. Reliable replacement for disrupted water supply or intermittent dispensing. What it does:

• Directs water to the icemaker and dispenser via two separate inlet ports/solenoids
• Stops water flow when valves fail, causing no water or no ice production
• Can cause continuous water flow or leaks if a valve sticks
• Restores normal dispensing and ice-making when replaced

• Disconnect power and shut off the water supply before starting any repair
• Replace with matching orientation and secure mounting to avoid kinks in supply lines
• Verify connections and test for leaks after restoring power and water
