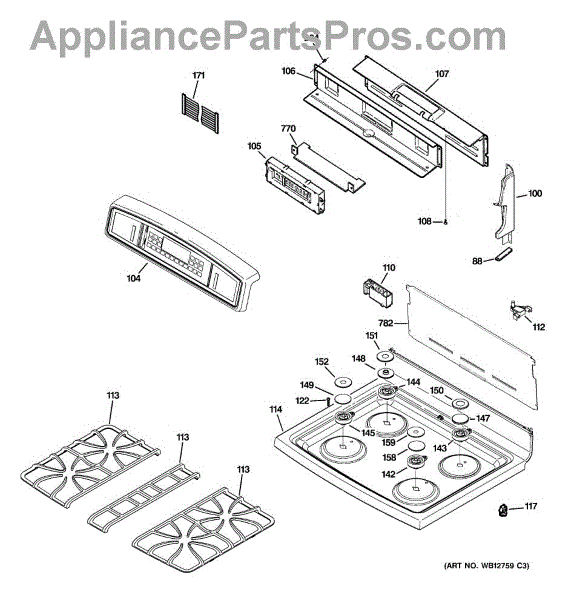

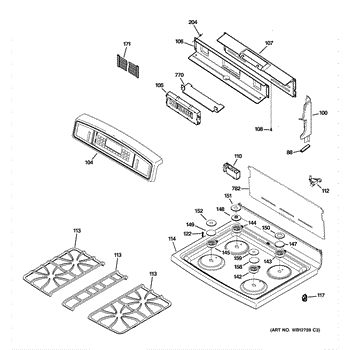

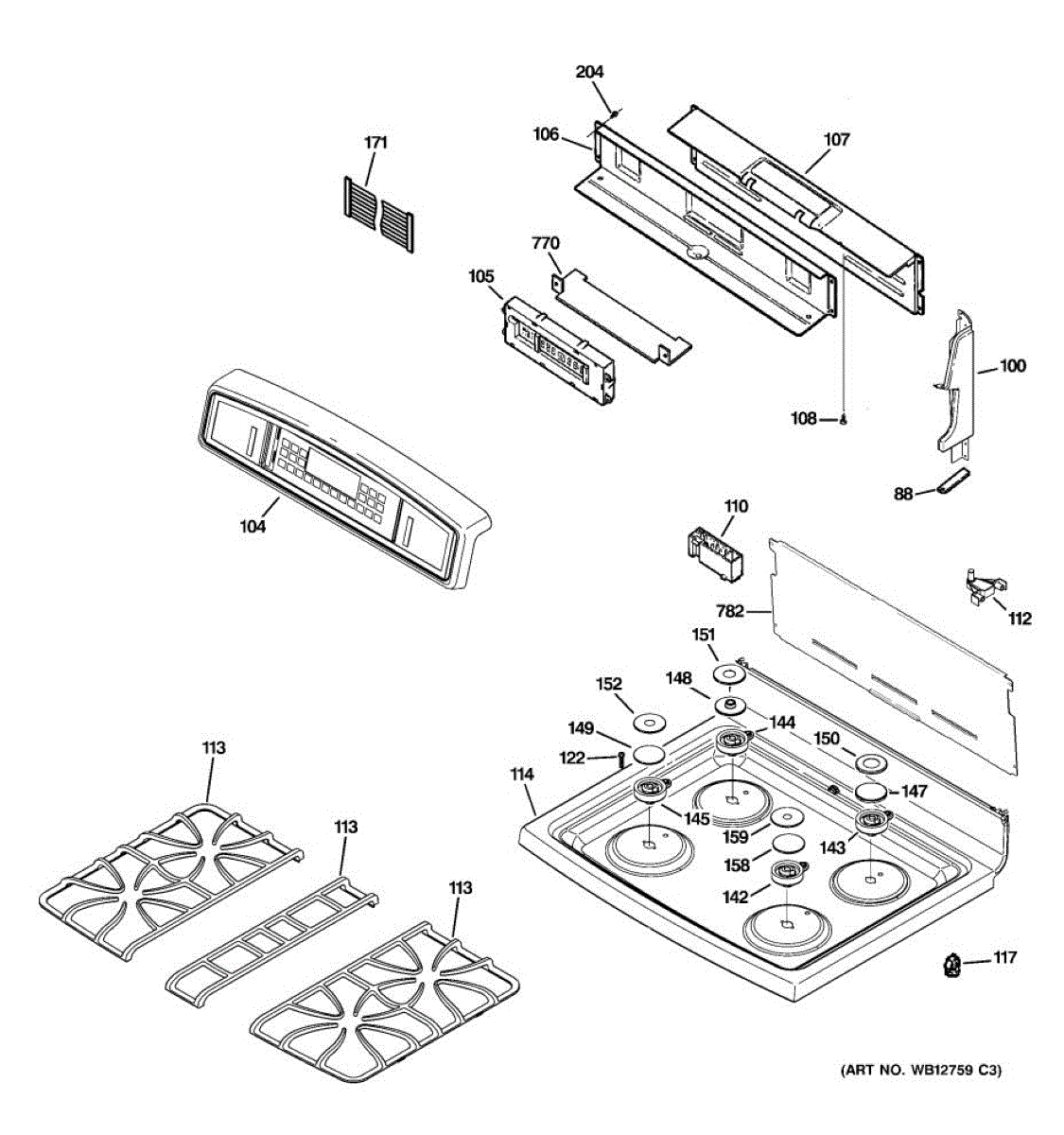

Parts for Ge J2B915BEH1BB: 02 - Control Panel & Cooktop Parts

Color: Black

Color: Black. Left hand side.

Color: Black. Right hand side.

The electronic control assembly is intended for use with ovens. It is the component that shows the time, temperature, or error codes on the front of an oven. The front has information for the user, while the back has many small parts and connects to several components of the oven. It controls the buttons that are used to heat the oven to the correct temperature. If the oven is not heating, will not turn on, or is at the wrong temperature, the electronic control assembly could be damaged.When replacing this component, make sure the oven is unplugged or the circuit breaker is in the off position. Remove the screws from the front bottom of the control assembly and loosen the screws on the back panel. Pull the bottom panel out and up to release. Take a photo of the wiring to easily install the new component. Disconnect the board and take out the mounting screws before replacing the part.Sold as a single component, the electronic control assembly is made to fit ovens and ranges by General Electric. It's a genuine OEM replacement part that has been sourced directly from the manufacturer.

Size: 8 - 18 ab hxw 5/8 s

This mounting screw secures appliance components to the chassis for a tight, rattle-free fit. Replacing a missing, stripped, or corroded fastener helps keep panels, brackets, or burner assemblies properly aligned and secure.

• Fastens designated parts to the appliance frame or mounting points
• Helps maintain proper alignment of panels, trim, brackets, or burner assemblies
• Restores hold when the original screw is worn, rusted, or lost
• Symptoms include loose or wobbly components, rattling/vibration, or visible gaps

• Disconnect power; allow all surfaces to cool. For gas units, also shut off the gas supply.
• Use the correct driver/bit; avoid cross-threading.
• If mating threads or clip/nut are damaged, repair or replace them before installing.
• Tighten until secure; do not overtighten to prevent stripping.

The Spark Module is an OEM replacement part for GE gas ranges. It is responsible for generating electric sparks to ignite the gas burners on the cooktop. The spark module produces consecutive sparks when a surface burner knob is turned on, which ignite the gas mixture and allows the burner flame to ignite safely and consistently.

Causes of a bad spark module can include faulty electrodes, worn internal components that hamper sparking, or damage due to moisture intrusion or power surges over time.

Symptoms of a bad spark module include:

• Burners that will not ignite or only intermittently ignite
• Flashback or burning above the burner head
• The smell of gas when turning burners on

This GE replacement part is also compatible with models from Hotpoint, RCA, and certain Kenmore gas ranges.

Color: Black. Left hand side double grate.

Color: Black. Center

Color: Black. Right hand side double grate.

Color: Black

Approx 4 inches in diameter

Approx 1-1/2 inches in diameter

Approx 2-1/2 inches in diameter

Approx 3 inches in diameter

Approx 2 inches in diameter

Approx 2-3/4 inches in diameter

Approx 3-1/4 inches in diameter

Color: Black. Approx 2 inches in diameter

Color: Black. Approx 2-3/4 inches in diameter

Color: Black. Approx 3-1/2 inches in diameter

Approx 4-1/4 inches in diameter

Color: Black. Approx 4-1/4 inches in diameter

Package of 12

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

This back cover protects the appliance's rear components and wiring, keeping internal parts secure and reducing exposure to dust and debris. It restores the cabinet's finished appearance and helps maintain safe operation. What it does:

• Covers and shields rear-mounted electrical components and connections from dust and accidental contact
• Helps reduce vibration noise and prevents loose parts from rubbing or striking internal components
• Prevents debris and small objects from entering the appliance chassis
• Visible cracks, missing tabs, or warping can allow rattling or expose wiring — replacing the cover restores protection

• One back cover (rear panel) as shown

• Disconnect power (and gas, if applicable) before beginning any work
• Typical installation uses screws or retaining tabs; keep removed fasteners for reassembly
• Be careful of sharp sheet-metal edges; wear gloves and eye protection
