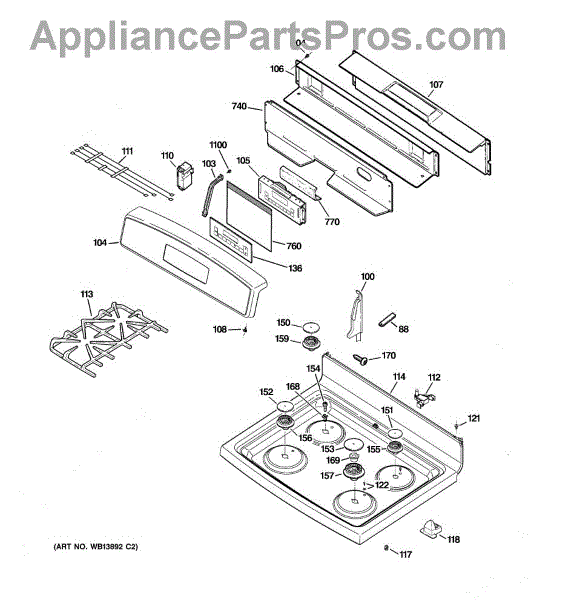

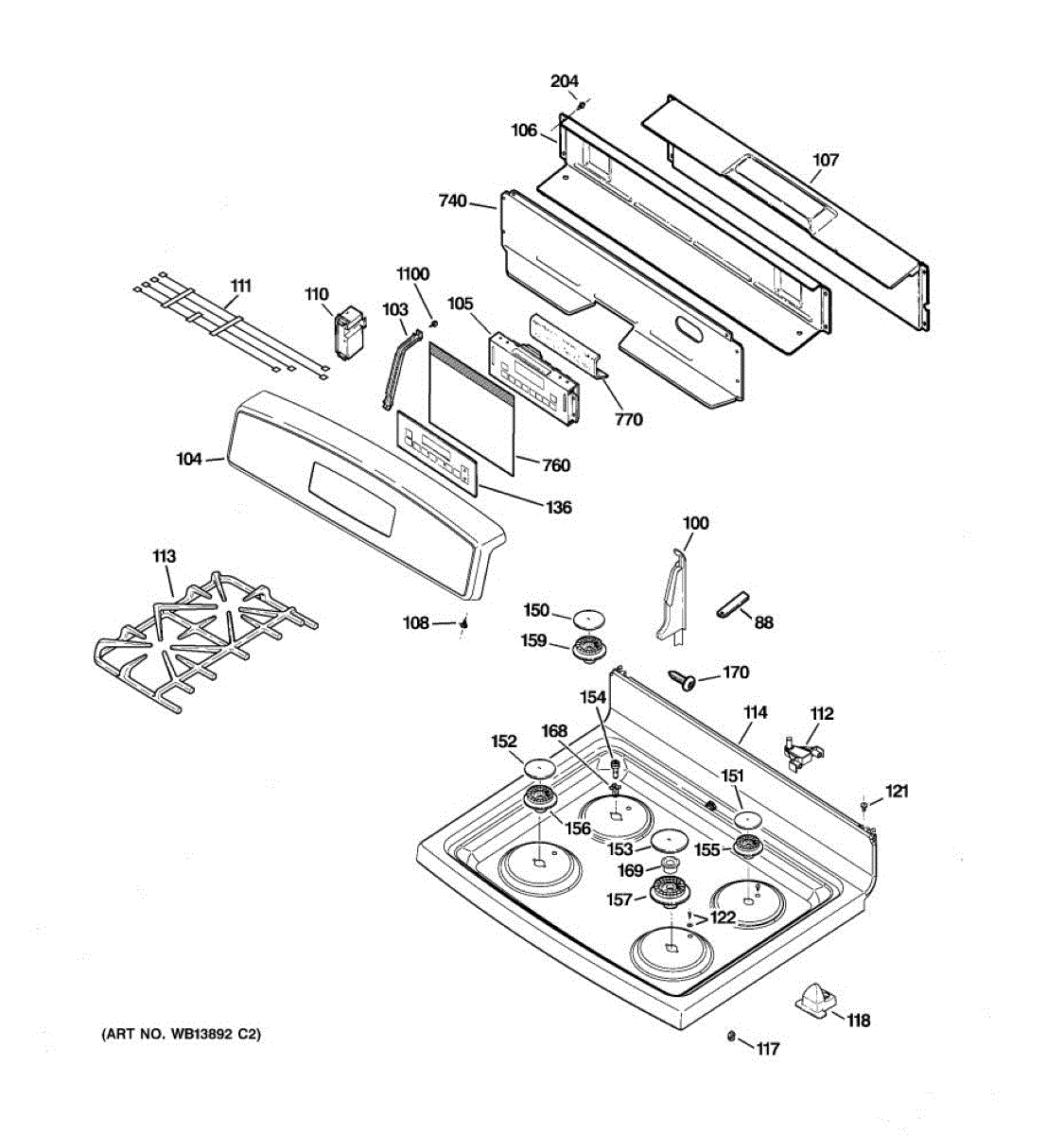

Parts for Ge J2BP85SEL2SS: 02 - Control Panel & Cooktop Parts

Color: Black

This harness module is a factory-style wire harness assembly that routes power and control signals between the appliance control and service components, restoring reliable electrical connections and proper control operation. What it does

• Connects the main control board to heating elements, sensors, igniters or switches so commands and power reach working components
• Restores interrupted circuits caused by damaged or burned wires and faulty connector terminals
• Helps eliminate intermittent operation, unresponsive controls, or parts that fail to receive power
• Can resolve symptoms such as no-heat, burners/oven not responding, or error codes linked to open/shorted harness circuits

• Disconnect power to the appliance before servicing to avoid shock or damage
• Compare the harness to the old part and follow the appliance wiring diagram for correct routing and connector placement
• Inspect connector terminals and mating parts for damage before installation; replace any damaged clips or fasteners
• Secure the harness away from heat and moving parts and verify function before reassembling the appliance

A replacement spark ignition module that delivers timed high-voltage pulses to burner electrodes so gas burners light reliably. Replaces a failed ignition control to restore normal spark operation for cooktops and ranges. What it does

• Sends spark to the burner electrodes so gas ignites when a burner is turned on — use when burners fail to light or need multiple tries.
• Routes spark to the correct burner circuit based on the range's control settings.
• Helps prevent continuous sparking when the burner is off by switching ignition output as commanded.
• Works with existing electrode wires and control harnesses when the original module fails.

• Disconnect electrical power and shut off the gas supply before starting any work.
• Handle electrode wires and connectors gently; avoid crimping or bending electrode tips.
• Verify wiring matches the old module exactly; tag wires if needed to ensure correct reconnection.

This high-voltage spark ignition harness carries the spark module's output to the burner igniters so your gas burners light reliably. Replace a cracked, shorted, or burned harness to restore consistent ignition and reduce misfires or arcing.

• Distributes high-voltage pulses from the spark module to the burner igniters
• Insulated leads help prevent arcing, cross-firing, and shorts to chassis
• Failure symptoms can include no or weak spark on multiple burners, intermittent lighting, or visible burn/arc marks on the wiring
• Useful when the spark module and igniters test good but ignition remains unreliable

• Disconnect power and shut off gas before servicing; high voltage is present during operation
• Note original routing; keep wires away from sharp edges, moving parts, and hot surfaces
• Seat boots/connectors fully on the spark module and igniters; avoid kinking or stretching leads
• After installation, restore power and test spark at each burner before final reassembly

Note: Right Hand Grate - Color: Matte Black

Note: Left Hand Grate - Color: Matte Black

Color: Black

This factory screw secures components on GE cooking appliances. Replacing a lost or stripped fastener helps keep parts tight and aligned for safer, rattle-free operation.

• Fastens brackets, panels, trim, or burner components on a range, cooktop, or wall oven
• Replaces missing, corroded, or stripped hardware
• Helps reduce looseness, vibration, or rattling noises
• Restores proper alignment after service or cleaning

• Disconnect power and shut off gas supply. Allow the appliance to cool completely.
• Match this screw to the original and install in the same location.
• Use the correct driver; hand-tighten and avoid overtightening to prevent stripped threads or cracked parts.
• If mating threads are damaged, repair or replace the affected component before reassembly.

This cooktop mounting screw secures the cooktop to its frame or mounting brackets, keeping the surface stable and properly aligned. Replace stripped, missing, or rusty hardware to eliminate wobble, rattling, or lifted corners.

• Secures the cooktop to the chassis or brackets to prevent movement during use
• Helps maintain a flush, stable installation and proper alignment
• Replacing damaged or missing screws can reduce vibration, rattling, and gaps
• Supports safe, consistent operation of the cooking surface

• Disconnect power at the breaker; for gas models, also shut off the gas supply
• Support the cooktop while loosening/tightening hardware to avoid stressing the top
• Start all screws before tightening; do not overtighten

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It sits atop the gas burner to help distribute the flame evenly for better cooking performance. This cap is crucial for achieving precise temperature control and consistent heating, ensuring that food cooks evenly across the cookware.

Symptoms of a bad Burner Cap Assembly include:

• Uneven flame distribution, leading to uneven cooking or heating.
• Difficulty igniting the burner, or the flame going out unexpectedly.
• Visible signs of wear, such as warping, discoloration, or chipping of the burner cap.

Causes of a bad burner cap can include accumulation of food particles or cleaning products that clog the ports, physical damage from impact or dropping, or general deterioration from regular exposure to high temperatures.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It is designed to sit atop the burner base, helping to distribute the flame evenly across the cooking surface. The cap also serves to protect the burner head from spills and debris, which can clog the gas outlets.

Symptoms of a bad Burner Cap Assembly include:

• Uneven flame distribution, which can cause uneven cooking or take longer to heat food.
• Difficulty lighting the burner, or the flame going out unexpectedly.
• Visible signs of wear like chipping, warping, or discoloration.

Causes of a bad burner cap can include accumulation of spilled foods or cleaning chemicals, which might block the gas flow, and normal wear and tear from high-temperature exposure that can alter the shape or integrity of the cap.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It sits atop the burner head and serves to distribute the flame evenly across the surface, enhancing cooking efficiency and consistency.

Symptoms of a faulty burner cap assembly include:

• Uneven flame distribution or a yellow or orange flame.
• Difficulty igniting the burner.
• Excessive soot or unburned gas smell, indicating incomplete combustion.

The common causes of issues with the burner cap assembly include misalignment, food spillage clogging the ports, or wear and tear from regular use. These can affect the flow of gas and air, leading to inefficient combustion and poor cooking performance.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE cooktops and ranges. It is designed to cover the burner head, ensuring even flame distribution for efficient and effective cooking. The cap also protects the burner head from spills and debris, which can interfere with burner performance and cause clogs.

You should replace the burner cap assembly if it becomes damaged or worn out. Causes of a bad burner cap assembly can include regular exposure to high heat, food residue buildup, or accidental impacts that cause cracks or warping. A compromised burner cap can lead to uneven flames and inefficient cooking.

Symptoms of a bad burner cap assembly include:

• Uneven or yellow flames
• Difficulty igniting the burner
• Visible cracks, chips, or warping in the burner cap
• Poor cooking performance with hotspots on cookware

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Top Burner Spark Electrode is an OEM replacement part for GE brand appliances. Compatible with select GE gas ranges, this spark electrode ensures a reliable ignition for your burners. It features a white ceramic base and a metal electrode tip.

Symptoms of a bad igniter:

• Burners not lighting
• Igniter sparking erratically

The causes of a bad part can include physical damage or wear and tear over time.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Small Surface Burner is an OEM part for GE ranges and cooktops. It provides a consistent heat source for cooking, designed for use with smaller cookware, making it ideal for simmering and precise heating tasks.

You should replace the small surface burner if it becomes damaged or worn out. Causes of a bad surface burner can include regular wear and tear, spills, and exposure to high temperatures. A defective burner can lead to uneven heating or failure to ignite properly.

Symptoms of a bad Small Surface Burner include:

• The burner not igniting or taking a long time to ignite
• Uneven flame distribution
• The burner not producing heat at the expected levels

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Base is an OEM part for GE ranges and cooktops, designed to securely hold the burner and distribute gas evenly for cooking. This part serves as the foundation for the gas burner, ensuring a stable and consistent flame that can be adjusted for precise cooking temperatures.

Causes of a bad Burner Base can include corrosion, clogging from spilled foods or liquids, and general wear and tear over time. A damaged or deteriorated burner base can affect the flame's quality, leading to uneven cooking or, in some cases, posing a safety hazard.

Symptoms of a bad Burner Base include:

• Uneven flame or poor heat distribution
• Difficulty igniting the burner
• A yellow or orange flame instead of blue
• Gas leakage smell when the burner is on

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Vision Burner XL is an OEM part for GE ranges. It is a large burner designed to provide high heat output for tasks that require intense cooking temperatures, such as boiling large pots of water or rapid heating. This burner ensures efficient and powerful cooking performance.

Causes of a bad Vision Burner XL can include wear and tear from frequent use, exposure to high temperatures, or damage due to impact or spills. Electrical issues can also lead to malfunctioning.

Symptoms of a bad Vision Burner XL include:

• The burner not igniting
• Uneven flame or weak flame
• The burner not maintaining a steady flame
• Visible damage or corrosion on the burner

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Medium Surface Burner is an OEM part for GE ranges and cooktops. This burner is essential for a wide range of cooking tasks, from simmering sauces to sautéing vegetables. The medium surface burner ensures even heat distribution and efficient fuel consumption, contributing to the overall cooking performance of your appliance.

Causes of a bad Medium Surface Burner can range from clogged burner ports, which impede gas flow and affect flame consistency, to wear and tear on the igniter or the burner assembly that prevents proper operation.

Symptoms of a malfunctioning Medium Surface Burner include:

• Inconsistent flame size or failure to ignite
• Uneven heating or hot spots on the cookware
• Visible damage or corrosion on the burner itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Electrode Clip is an OEM part for GE gas ranges. This part secures the electrode, which provides the ignition spark that lights the burners.

Causes of a bad Electrode Clip can include corrosion, physical damage from impact or mishandling, or loosening over time due to heat exposure and repeated use.

Symptoms of a bad Electrode Clip include:

• Failure of the burners or oven to ignite
• Intermittent or inconsistent ignition
• Visible damage or deterioration of the clip itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Package of 12

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

This back cover is the rear access panel that protects internal components and wiring and helps maintain proper airflow. It restores a finished exterior and shields parts from dust and damage. What it does:

• Covers and protects rear-mounted components and wiring
• Prevents debris and dust from entering the appliance back area
• Helps maintain proper airflow and enclosure integrity
• Visible cracks, missing fasteners, or exposed wiring are common reasons to replace

• Disconnect power (unplug or switch off breaker) before servicing
• Remove mounting screws to take off the old cover; retain screws if still usable
• Handle edges carefully—panel edges may be sharp
• If you see damaged wiring or other component problems, stop.

Size: 8 - 18 ab hxw 5/8 s
