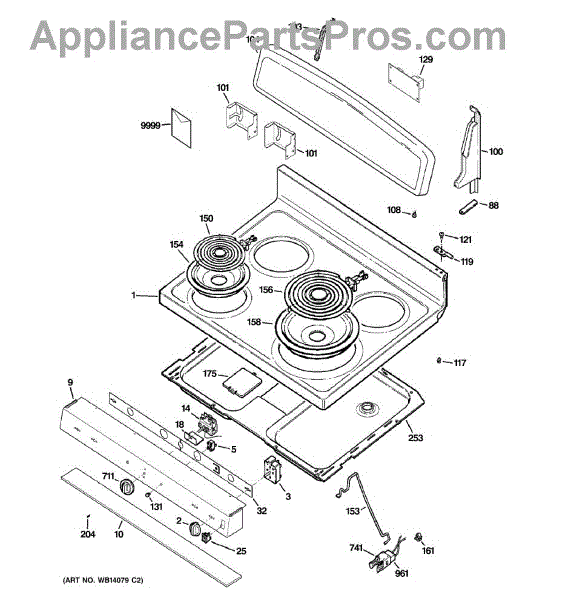

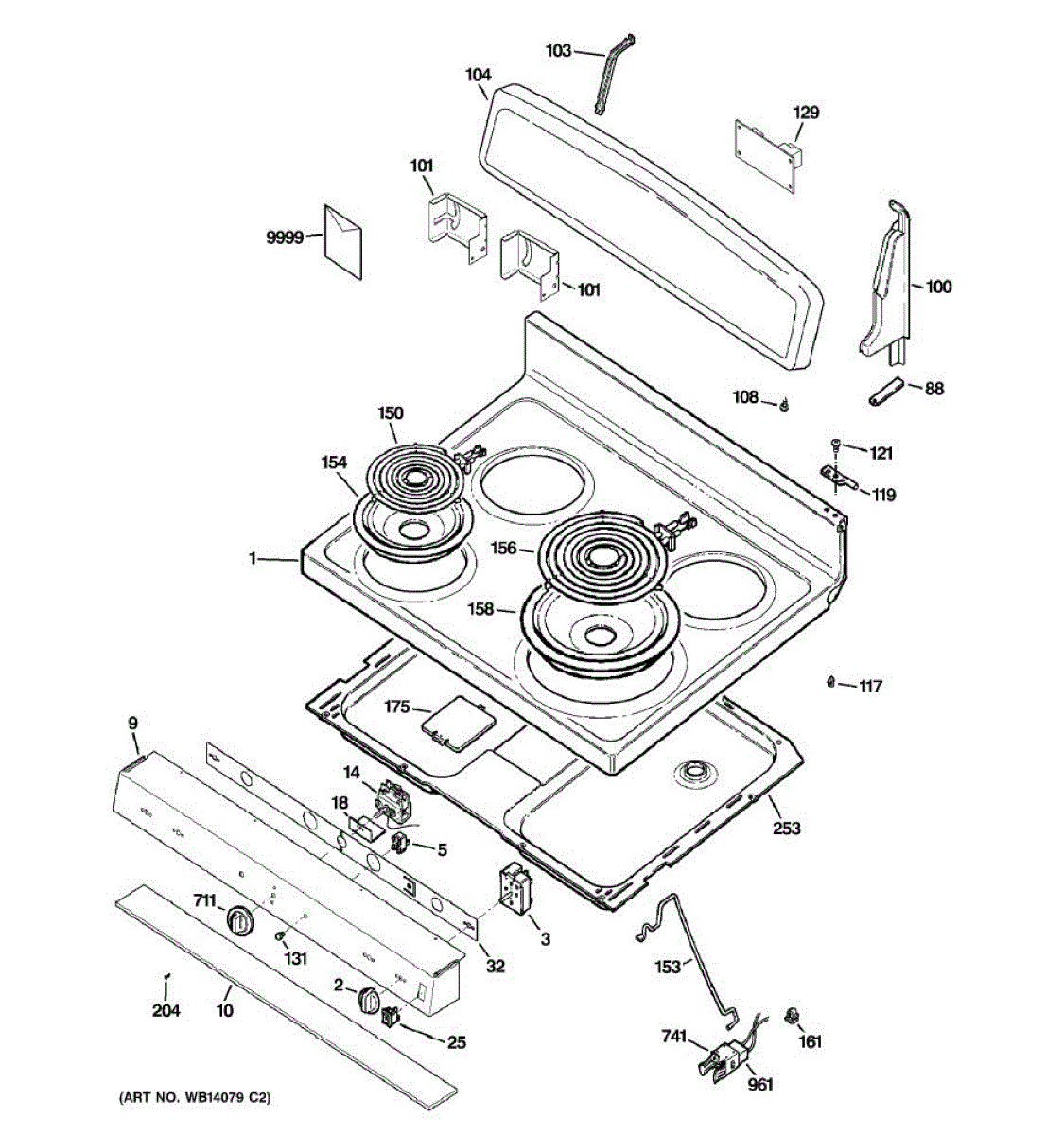

Parts for Ge JBP15DM2BB: 01 - Control Panel & Cooktop Parts

This control knob replaces a worn or broken knob on your range, restoring a solid feel and precise control of settings. It fits onto the control shaft to let you reliably select and adjust cooking settings.

• Attaches to the valve or switch shaft to select and adjust settings
• Restores proper engagement when the original hub is cracked or stripped
• Helps ensure accurate adjustments of flame or element power
• Typical signs you need this part: knob is cracked, loose, slipping, or missing

• Disconnect power and ensure all burners are cool before servicing
• Pull the old knob straight off the stem; avoid prying sideways
• Align the new knob with the stem orientation and press firmly into place; if your model uses a set screw, tighten gently
• Test for smooth operation and correct indexing after installation

This surface element control switch regulates power to a cooktop/range burner. Replacing a failed switch restores smooth, adjustable heat and corrects issues such as a burner stuck on high, not heating, or cycling erratically.

• Regulates power cycling to the surface burner to achieve the selected heat level
• Provides variable low-to-high settings via the control knob
• Typical failure symptoms: burner won't heat, only heats on high, won't turn off, or heat is inconsistent
• Helps restore precise temperature control on the affected burner

• Disconnect power by unplugging the appliance or switching off the circuit breaker
• Pull off the burner knob and open the control panel to access the switch
• Note wire positions and transfer them to the new switch one at a time
• Secure the switch, reassemble the panel/knob, and test all heat settings

This surface element control switch regulates power to an electric cooktop burner in timed cycles so the heat matches your knob setting. Replacing a failed switch restores reliable temperature control and resolves no-heat or stuck-on-high symptoms.

• Regulates the on/off cycling of a single surface element at the selected heat setting (also called an infinite heat switch)
• Restores smooth Low-to-High adjustment of burner temperature
• Common failure signs: burner only heats on high, won't shut off, no heat, or erratic temperature changes
• Useful when the switch shaft is stripped or the internal contacts are worn

• Disconnect power at the breaker before servicing; this is a high-voltage repair
• Remove the control/backsplash panel to access the switch; pull off the knob and mounting hardware
• Transfer wires one at a time from the old switch to the same terminals on the new switch; secure connections
• Reassemble, reinstall the knob, and test the burner through all settings

This pilot lamp is the control-panel indicator light for a cooking appliance. It illuminates when a surface burner or oven circuit is energized, giving a clear visual cue that heat is active. What it does

• Lights to indicate an active surface burner or oven circuit
• Restores proper "heat on" indication on the control panel
• Common failure signs: indicator light does not turn on; intermittent/flickering illumination

• 1 pilot lamp

• Disconnect power at the breaker before servicing
• Access the rear of the control panel/console to reach the lamp
• Note wire positions and transfer them one at a time to the new lamp
• Secure the lamp, reassemble, restore power, and test for proper illumination

Designed for the self-clean cycle, this thermostat monitors oven temperature and opens the circuit if overheating occurs to protect your range. Replace it to restore reliable self-clean performance and safety shutoff when the original thermostat fails. What it does:

• Monitors oven cavity temperature during the Self Clean cycle and opens the circuit if temperatures become excessive
• Protects the appliance by interrupting power to the heating circuit when an over-temperature condition is detected
• If faulty, you may notice Self Clean won't start or ends early, over-temperature error/beep codes, or no heat after a self-clean event
• Dedicated to self-clean safety; it does not regulate everyday baking temperatures

• 1 self-clean thermostat

• Disconnect power at the breaker; for gas models, also shut off the gas supply
• Allow the oven to cool completely—surfaces may remain extremely hot after a self-clean cycle
• Access and mounting vary by model; note wire positions and transfer them one at a time to the new thermostat
• Inspect wiring/terminals for heat damage and replace any burnt connectors before reassembly

This carton cover thermostat senses and controls temperature at the refrigerator/freezer carton cover to help maintain proper cooling function. It replaces a failed or intermittent thermostat to restore correct temperature regulation. What it does:

• Detects temperature near the carton cover and signals the control to start or stop cooling
• Helps prevent over-cooling or under-cooling in the compartment when functioning correctly
• Commonly diagnosed when temperature is inconsistent, compartment is too warm, or cooling cycles irregularly
• Matches the OEM mounting and connector style for direct replacement

• Disconnect power to the appliance before servicing to avoid electrical shock
• Access usually requires removing interior panels or the carton cover; keep fasteners for reassembly
• Handle the thermostat and sensor lead carefully to avoid damage; route wires clear of moving parts

Color: Black

This left-side cooktop bracket secures the cooktop to the range frame, restoring a solid, stable fit and preventing movement or misalignment. Durable stamped metal bracket designed to replace a worn or damaged mounting point. What it does:

• Anchors the left side of the cooktop to the range frame so the cooktop sits flush and stable
• Stops rocking, shifting, or gaps between the cooktop and the range while using the appliance
• Restores proper alignment after impact or corrosion of the original bracket

• One left-side cooktop mounting bracket

• Disconnect power to the appliance before beginning any repair
• Remove the cooktop or control panel per service instructions to access the bracket
• Use basic hand tools; replace only the damaged bracket and retain original fasteners unless corroded
• Tighten fasteners snugly but avoid over-torquing to prevent striping or damage

This trim control is a decorative trim piece that restores the finished look around the appliance control area and helps cover gaps where the control assembly meets the cabinet. It improves appearance and helps reduce dirt buildup. What it does:

• Covers and finishes the edge around the control area for a clean look
• Secures and conceals the control assembly for a factory appearance
• Helps prevent dirt and debris from collecting in the gap around controls
• Commonly replaced when cracked, chipped, warped, or missing

• Disconnect power to the appliance before starting any work.
• Remove any adjacent panels or bezels per the appliance service instructions to access the trim.
• Handle trim carefully to avoid cracking; use appropriate non-marring tools.

This mounting screw secures appliance components to the chassis for a tight, rattle-free fit. Replacing a missing, stripped, or corroded fastener helps keep panels, brackets, or burner assemblies properly aligned and secure.

• Fastens designated parts to the appliance frame or mounting points
• Helps maintain proper alignment of panels, trim, brackets, or burner assemblies
• Restores hold when the original screw is worn, rusted, or lost
• Symptoms include loose or wobbly components, rattling/vibration, or visible gaps

• Disconnect power; allow all surfaces to cool. For gas units, also shut off the gas supply.
• Use the correct driver/bit; avoid cross-threading.
• If mating threads or clip/nut are damaged, repair or replace them before installing.
• Tighten until secure; do not overtighten to prevent stripping.

This pin locator secures a hinge or shaft pin in place to keep linked appliance components aligned and operating smoothly. It's a small replacement part that restores proper positioning where a locating clip or retainer is used. What it does

• Holds a hinge, shaft, or pivot pin in place to prevent lateral movement
• Restores proper alignment of doors, panels, or linked components
• Helps stop rattling, misalignment, or binding caused by a worn or missing locator
• Works as a direct replacement for the same OEM-labeled locating clip/retainer

• One pin locator

• High-level replacement; basic hand tools usually required
• Disconnect power (and water, if applicable) before servicing appliances with electrical components
• Keep track of small parts and orientation for correct reassembly

This hinge pin links the oven door hinge to its mounting point, creating the pivot that lets the door open and close smoothly. Replacing a worn or missing pin can restore steady door movement and a consistent seal.

• Serves as the pivot point for the door hinge
• Helps maintain proper door alignment and closing pressure
• Wear or damage may show as a loose, sagging, or misaligned door
• May help address squeaks, binding, or difficulty latching the door

• Disconnect power; for gas ranges, also shut off the gas supply
• Support or remove the door to access the hinge
• Note hinge orientation; remove the old pin and install the new pin securely
• Inspect the hinge/bracket for wear; lubricate only if specified by the manufacturer

This self-clean timer assembly controls the oven's self-clean cycle and basic timing functions so the range can complete programmed clean cycles reliably. Replace a failed timer to restore correct cycle timing and control response. What it does:

• Selects and times the self-clean cycle and related oven functions.
• Advances or stops the self-clean sequence; a bad timer can prevent the cycle from starting or finishing.
• Restores accurate timing when oven bake/clean settings act erratically or the timer won't advance.
• Works as the mechanical/electrical timing control used by the range's self-clean feature.

• Disconnect power to the appliance before beginning any service to avoid electrical shock.
• Installation typically requires removing the control panel or console; handle internal components and connectors carefully.
• Do not operate the oven with panels off or safety interlocks bypassed.

This indicator light lens covers the control-panel lamp opening, diffusing the light and protecting the hole from debris and contact. Replace a missing or damaged lens to restore a clean, finished look and clear on/off indication.

• Provides a finished cover for the indicator lamp opening on the panel
• Diffuses the light for clearer visibility
• Shields the opening from dust, moisture, and accidental contact
• Common signs to replace: lens is cracked, missing, discolored, or won't stay seated

• Disconnect power at the breaker before servicing
• Access the control panel as required for your model (remove knobs/screws if needed)
• Lens typically snaps in; some models use a rear retainer—transfer any clip or seal
• Align with the lamp and press evenly; do not force or overtighten fasteners

This 6-inch coil surface element restores the small burner on your electric range. It plugs into the burner receptacle to deliver dependable heat for everyday cooking when the original coil is damaged or no longer heating.

• Heats the 6-inch cooktop position by converting electrical energy into heat
• Direct plug-in coil design for the element receptacle; no rewiring when replacing like-for-like
• Common fix for a burner that won't heat, heats unevenly, or works intermittently
• Replaces coils with visible hot spots, blisters, breaks, or corrosion

• Disconnect power at the breaker and allow the surface to cool completely
• Lift the old element straight up and out of the receptacle; remove the drip bowl if present
• Inspect the receptacle and wiring for discoloration or looseness; replace if damaged
• Align and firmly seat the new element's terminals; ensure the coil sits level in the bowl

This support rod props up the lift-up top on your range, providing a secure hold while you clean or service components beneath. Replacing a bent or missing rod restores safe, stable support for the top panel.

• Holds the range top securely in the raised position during cleaning or service
• Helps prevent the top from dropping unexpectedly
• Restores proper alignment if the original rod is bent or worn
• Common symptoms: top won't stay up, rod is missing, bent, or loose

• Disconnect power and shut off the gas supply before servicing
• Support the top while removing/installing the rod to prevent accidental dropping
• Reuse or transfer any retaining hardware/clips from the original part
• Ensure the rod is fully seated in its retainer before lowering the top

The 6-Inch Burner Bowl is an OEM part compatible with GE ranges and cooktops. This component serves as the base for the burner assembly, housing the burner head and providing a stable platform for cooking utensils.

Symptoms of a faulty burner bowl include:

• Cracks, chips, or visible damage to the bowl itself
• Uneven or inefficient heating due to a warped or damaged bowl
• The bowl becoming loose or detached from the cooktop surface

Causes of needing to replace the burner bowl can include physical impact or mishandling, exposure to extreme temperatures or spills, or general wear and tear from extended use.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore range and cooktop models.

Restore reliable heat on your coil-top range with this 8-inch surface coil element assembly. It replaces a burned-out or damaged large burner so pots and pans heat evenly and respond predictably.

• Provides the electric heating surface for the 8-inch burner position
• Common fix for a burner that won't heat or heats intermittently
• Replaces a coil that is broken, blistered, or visibly burned
• Resolve uneven heating or hot spots on the element

• Disconnect power and let the appliance cool completely before servicing.
• Access and procedure vary by model; your product documentation.
• Handle the element carefully; avoid bending the coil or terminals.
• Inspect the burner receptacle and wiring for heat damage; replace if worn or loose.

The 8 Inch Burner Bowl is an OEM part for GE ranges and cooktops. This part sits beneath the heating element to catch spills, drips, and crumbs that fall during cooking. Not only does it facilitate easier cleanup, but it also plays a role in reflecting heat back to the cookware, enhancing cooking efficiency.

Causes of a bad 8-inch burner bowl can include the accumulation of cooked-on spills and debris, rust and corrosion from moisture exposure, as well as warping or physical damage that affects fit and function.

Symptoms of a bad 8 Inch Burner Bowl include:

• Poor fit on the stove, affecting stability of pots and pans
• Difficulty in cleaning due to excessive staining or corrosion
• Reduced heating efficiency if the bowl no longer reflects heat effectively

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This wire clip secures a wiring harness to the appliance cabinet to prevent rubbing, pinching, or loose connections. Replacing a worn or broken clip helps restore proper wire routing and reduces the risk of electrical contact issues. What it does:

• Holds wiring harnesses in place to prevent chafing and stress on connections
• Keeps wires routed away from sharp edges, moving parts, and heat sources
• Helps stop intermittent electrical problems caused by loose or strained wires
• Reduces risk of arcing or shorting from wires rubbing on metal components

• One wire clip

• Always disconnect power (unplug or switch off circuit breaker) before servicing electrical components
• Remove any panels or obstructions to access the damaged clip, then release the harness and snap the replacement clip into the original mounting location
• Verify wires are seated properly in the clip and routed clear of moving or hot parts before restoring power
• If wiring or connectors are damaged, replace or repair those components rather than relying on the clip alone

Package of 12

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

This small retainer secures the surface element receptacle in a range or cooktop so the element plugs in straight and stays seated. Replacing a bent or missing clip helps restore a stable, reliable connection.

• Holds the surface element receptacle firmly to the cooktop or bracket
• Keeps the element plug aligned and fully seated
• Helps prevent arcing, heat damage, and intermittent burner performance from a loose receptacle
• Useful when the element feels wobbly or the receptacle shifts during use

• Disconnect power before servicing
• Lift the cooktop or access panel to reach the receptacle area
• Support the receptacle, release the old clip, and snap the new clip into place
• Ensure the receptacle is secure and aligned before reinstalling the element

The Terminal Block Kit is an OEM replacement part for GE electric ranges. This kit replaces the points of connection delivering power to control circuits and surface coil elements atop the cooktop.

Causes of failure are prolonged heat cycling which slowly breaks down solder joints and insulator coating on terminals conducting power. Liquids spilled can seep into connection areas over time promoting electrical faults.

Symptoms of a faulty terminal block include:

• Inability to ignite or regulate specific burners
• Burners that glow intermittently or fail to respond
• Tripped circuit breakers upon use of problematic zones
• Buzzing or cracking noises from under cooktop areas

This genuine GE kit is also compatible with Hotpoint and RCA electric ranges.

This silicon controlled rectifier (SCR) switches and regulates power to heating elements and motors in compatible appliances, restoring controlled current flow for proper operation. It's a direct-replacement electronic switching component. What it does:

• Acts as a solid-state switch to control AC power to heater or motor circuits
• Helps regulate current during timed or thermostatic cycles
• Common replacement when appliance shows intermittent heating, no heat, or erratic motor control
• Replaces a failed/shorted SCR that can cause blown fuses or control board errors

• One silicon controlled rectifier (single SCR)

• Intended for technicians or experienced DIYers; disconnect power before servicing
• Verify correct SCR orientation and secure the 8-32 screw terminal; avoid overtightening
• Observe ESD precautions and handle the part by non-conductive areas
