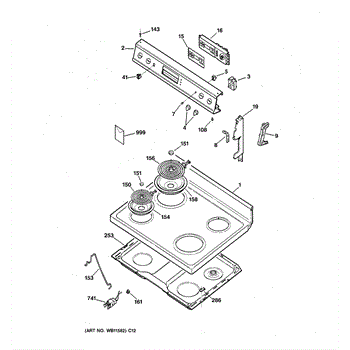

Parts for Ge JBP48WA3: 01 - Control Panel & Cooktop Parts

Color: White

Color: White

The Infinite Heat Switch Kit is an OEM part for GE ranges and cooktops. This kit is essential for controlling the temperature of the burners on your range or cooktop, allowing you to adjust the heat level from low to high.

Causes of damage to the infinite heat switch can include normal wear and tear from frequent use, electrical issues such as short circuits or power surges, and physical damage from cleaning or impact.

Symptoms of a bad Infinite Heat Switch include:

• Burners not heating to the desired temperature, either staying too hot or not getting hot enough.
• The burner not turning on at all, indicating a possible failure in the switch's electrical contacts or circuit.
• Inconsistent cooking temperatures, where the burner cycles on and off too frequently or not often enough, affecting cooking performance.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: White

Color: White

Size: 8-18 BA POR 3/4 SN

Color: White. Mounting screw for end caps.

The 6-Inch Small Surface Element is an OEM part for GE cooktops and ranges. It is designed to provide consistent and reliable heat for cooking on the stovetop. This heating element fits into the designated slot on the cooktop and is used for preparing smaller dishes or for simmering.

You should replace the surface element if it becomes faulty. Causes of a bad surface element can include wear and tear from regular use, electrical issues, or damage from overheating. A malfunctioning surface element can lead to uneven cooking, insufficient heat, or the element not heating up at all.

Symptoms of a bad 6-inch small surface element include:

• The element not heating up or only heating intermittently
• Visible damage such as burn marks or deformation
• Uneven heating or hotspots on cookware
• The element not fitting securely into its slot

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Matching 8-inch surface element - WB30M2; terminal block - WB17X5113

The 6 Inch Burner Bowl is an OEM part for GE ranges and cooktops. This component is positioned beneath the burner element to catch spills and drips that occur during cooking. It helps keep the cooktop clean and maintains efficient heat distribution by reflecting heat back towards the cookware.

You should replace the burner bowl if it becomes stained, rusted, or damaged. Over time, exposure to high heat, food spills, and cleaning chemicals can cause the burner bowl to deteriorate, affecting its appearance and functionality.

Symptoms of a bad burner bowl include:

• Visible stains, rust, or discoloration
• The burner element not fitting securely or wobbling
• Difficulty in cleaning due to stubborn residue or corrosion
• Reduced heat efficiency due to the bowl’s condition

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The 8 Inch Large Surface Element is an OEM part for GE ranges and cooktops. This heating element is used on the cooktop to provide a consistent heat source for cooking. It fits into the designated spot on the stove and connects to the electrical system, allowing users to control the temperature for various cooking needs.

Causes of a bad surface element can include wear and tear from frequent use, electrical malfunctions, or damage from spills and food debris. Overheating or accidental impacts can also impair its functionality.

Symptoms of a bad 8 Inch Large Surface Element include:

• The element not heating up
• Uneven heating or hot spots on the element
• Sparks or electrical noises when the element is in use
• Visible damage or burns on the element

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The 8 Inch Burner Bowl is an OEM part for GE ranges and cooktops. Positioned beneath the burner element, this bowl catches spills and drips that occur during cooking. It helps keep the cooktop clean and ensures efficient heat distribution by reflecting heat back towards the cookware.

Causes of a bad burner bowl can include exposure to high heat, food spills, and cleaning chemicals, which can lead to staining, rusting, or damage over time. A deteriorated burner bowl can affect its appearance and functionality.

Symptoms of a bad burner bowl include:

• Visible stains, rust, or discoloration
• The burner element not fitting securely or wobbling
• Difficulty in cleaning due to stubborn residue or corrosion
• Reduced heat efficiency due to the bowl’s condition

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This wire clip secures a wiring harness to the appliance cabinet to prevent rubbing, pinching, or loose connections. Replacing a worn or broken clip helps restore proper wire routing and reduces the risk of electrical contact issues. What it does:

• Holds wiring harnesses in place to prevent chafing and stress on connections
• Keeps wires routed away from sharp edges, moving parts, and heat sources
• Helps stop intermittent electrical problems caused by loose or strained wires
• Reduces risk of arcing or shorting from wires rubbing on metal components

• One wire clip

• Always disconnect power (unplug or switch off circuit breaker) before servicing electrical components
• Remove any panels or obstructions to access the damaged clip, then release the harness and snap the replacement clip into the original mounting location
• Verify wires are seated properly in the clip and routed clear of moving or hot parts before restoring power
• If wiring or connectors are damaged, replace or repair those components rather than relying on the clip alone

The Element Receptacle and Wire Kit is an OEM part for GE ranges and ovens. It serves as a crucial component in connecting the heating element to the power source, ensuring that electricity can flow to the element for heating.

This kit typically includes a receptacle, wires, and possibly other connectors or hardware needed for installation. Proper connection via this kit is essential for the heating element to function correctly and efficiently.

Symptoms of a bad Element Receptacle and Wire Kit include:

• Heating element not heating properly or at all
• Burn marks or corrosion on the receptacle
• Visible damage or wear on the wires
• Intermittent heating, indicating a loose connection

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.
