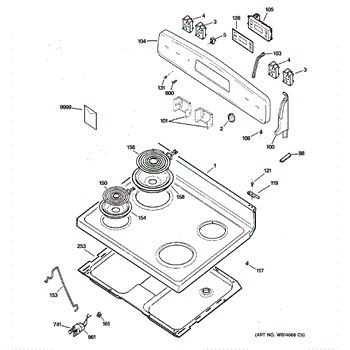

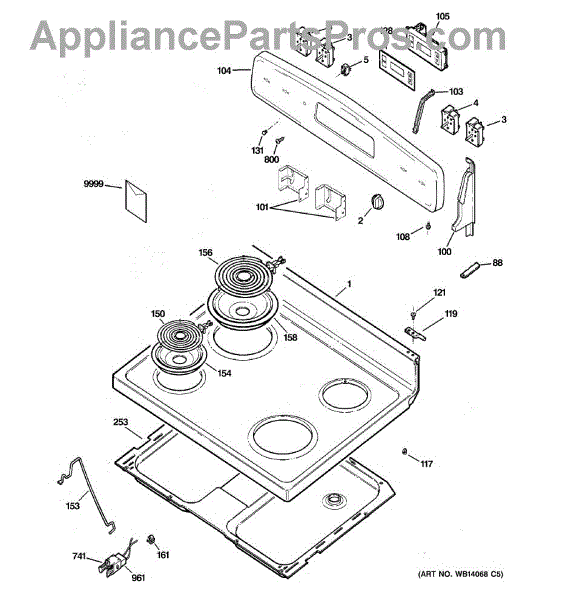

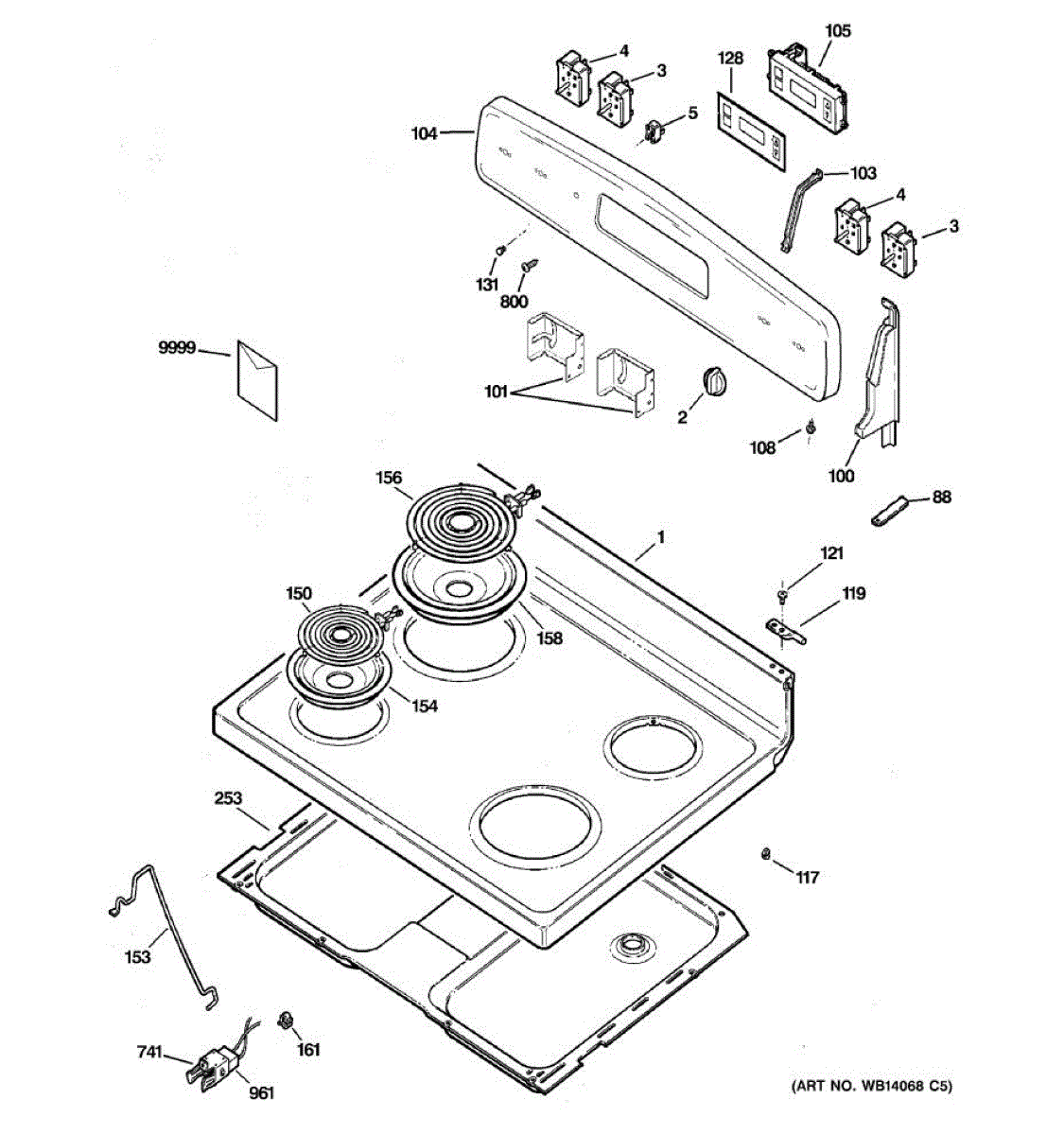

Parts for Ge JBS27DIM1WW: 01 - Control Panel & Cooktop Parts

This main top is the cooktop surface that supports burners and cookware, restoring a flat, stable surface for safe cooking and easy cleanup. It replaces damaged, warped, or rusted tops to improve burner alignment and appliance appearance. What it does:

• Provides the flat surface that holds burners, grates, and cookware in correct position
• Protects internal components from spills, grease, and debris
• Restores proper burner alignment and spacing for even heating
• Improves appearance by replacing scratched, dented, or corroded tops

• Disconnect power to the range; shut off gas supply before servicing gas ranges
• Handle the top carefully to avoid cuts or damage; use two people for heavy or awkward tops
• Remove burner grates, knobs, and any retaining screws or clips per your model's service instructions
• Reinstall all removed components and test burners for proper operation after replacement

Color: White

The Infinite Switch (8") is an OEM replacement part for GE stovetops. It is responsible for controlling the heat output of the burner. The switch allows you to adjust the heat level by turning the knob, regulating the amount of power supplied to the burner. A bad infinite switch can be caused by regular wear and tear, electrical issues, or overheating. It can also become damaged if exposed to moisture.

Symptoms of a bad infinite switch include:

• The burner not heating up
• The burner staying on at the highest heat setting
• The burner not turning off or not responding
• Visible signs of damage

Causes of a bad infinite switch can include normal wear and tear over time, exposure to excessive heat or moisture, or electrical malfunctions.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Range Surface Burner Control Switch is an OEM part for GE ranges. This switch manages the temperature of the surface burners on your range, providing the ability to adjust the heat level. Whether you're simmering sauces or boiling water, the control switch ensures precise temperature management, enhancing your cooking experience.

The causes of a faulty burner control switch often include prolonged use leading to wear on the electrical contacts, exposure to moisture causing short circuits, or physical damage from impact or excessive force when turning the knob.

Symptoms of a bad surface burner control switch:

• The burner not turning on or off
• Inability to adjust the heat level, with the burner staying at one temperature regardless of the knob setting.
• Intermittent burner function

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This pilot lamp is the control-panel indicator light for a cooking appliance. It illuminates when a surface burner or oven circuit is energized, giving a clear visual cue that heat is active. What it does

• Lights to indicate an active surface burner or oven circuit
• Restores proper "heat on" indication on the control panel
• Common failure signs: indicator light does not turn on; intermittent/flickering illumination

• 1 pilot lamp

• Disconnect power at the breaker before servicing
• Access the rear of the control panel/console to reach the lamp
• Note wire positions and transfer them one at a time to the new lamp
• Secure the lamp, reassemble, restore power, and test for proper illumination

This end support secures and aligns the appliance drum/shaft assembly so the tub spins smoothly and quietly. Replacing a worn support restores proper drum position and reduces rubbing or wobbling during operation. What it does:

• Holds the drum/shaft in the correct position at the left front to maintain smooth rotation
• Provides a mounting surface and bearing area that prevents metal-on-metal contact
• Common symptom: loud scraping, grinding or thumping noises during spin
• Common symptom: visible drum wobble, rubbing or uneven rotation

• Disconnect power before any disassembly
• Remove outer panels and drum as needed to access the support; follow your model's service manual for steps
• Keep track of fasteners and note part orientation for correct reassembly
• Inspect adjacent parts for wear and replace if needed

This right-side end support secures and aligns a refrigerator shelf/rail or drawer track so slides operate smoothly and stay in place. Replacing a damaged support restores proper shelf alignment and prevents drawers or bins from sagging. What it does

• Holds the end of a shelf rail or drawer track to keep sliding parts aligned
• Prevents shelves or drawers from sagging, binding, or falling out
• Reduces wobble or uneven movement when loading or sliding shelves/drawers
• Helps restore proper operation after a cracked, broken, or worn end bracket

• Disconnect power before working inside the refrigerator and remove food/items from affected area
• Remove the shelf, drawer, or rail to access the end support; note orientation for reassembly
• Require basic hand tools (screwdriver, nut driver) and light prying to release tabs or fasteners
• Reinstall components and test sliding action; discard damaged parts before reuse

This left-side cooktop bracket secures the cooktop to the range frame, restoring a solid, stable fit and preventing movement or misalignment. Durable stamped metal bracket designed to replace a worn or damaged mounting point. What it does:

• Anchors the left side of the cooktop to the range frame so the cooktop sits flush and stable
• Stops rocking, shifting, or gaps between the cooktop and the range while using the appliance
• Restores proper alignment after impact or corrosion of the original bracket

• One left-side cooktop mounting bracket

• Disconnect power to the appliance before beginning any repair
• Remove the cooktop or control panel per service instructions to access the bracket
• Use basic hand tools; replace only the damaged bracket and retain original fasteners unless corroded
• Tighten fasteners snugly but avoid over-torquing to prevent striping or damage

Color: White. Mounting screw for end caps.

This pin locator secures a hinge or shaft pin in place to keep linked appliance components aligned and operating smoothly. It's a small replacement part that restores proper positioning where a locating clip or retainer is used. What it does

• Holds a hinge, shaft, or pivot pin in place to prevent lateral movement
• Restores proper alignment of doors, panels, or linked components
• Helps stop rattling, misalignment, or binding caused by a worn or missing locator
• Works as a direct replacement for the same OEM-labeled locating clip/retainer

• One pin locator

• High-level replacement; basic hand tools usually required
• Disconnect power (and water, if applicable) before servicing appliances with electrical components
• Keep track of small parts and orientation for correct reassembly

This hinge pin links the oven door hinge to its mounting point, creating the pivot that lets the door open and close smoothly. Replacing a worn or missing pin can restore steady door movement and a consistent seal.

• Serves as the pivot point for the door hinge
• Helps maintain proper door alignment and closing pressure
• Wear or damage may show as a loose, sagging, or misaligned door
• May help address squeaks, binding, or difficulty latching the door

• Disconnect power; for gas ranges, also shut off the gas supply
• Support or remove the door to access the hinge
• Note hinge orientation; remove the old pin and install the new pin securely
• Inspect the hinge/bracket for wear; lubricate only if specified by the manufacturer

This mounting screw secures appliance components to the chassis for a tight, rattle-free fit. Replacing a missing, stripped, or corroded fastener helps keep panels, brackets, or burner assemblies properly aligned and secure.

• Fastens designated parts to the appliance frame or mounting points
• Helps maintain proper alignment of panels, trim, brackets, or burner assemblies
• Restores hold when the original screw is worn, rusted, or lost
• Symptoms include loose or wobbly components, rattling/vibration, or visible gaps

• Disconnect power; allow all surfaces to cool. For gas units, also shut off the gas supply.
• Use the correct driver/bit; avoid cross-threading.
• If mating threads or clip/nut are damaged, repair or replace them before installing.
• Tighten until secure; do not overtighten to prevent stripping.

Color: White

This indicator light lens covers the control-panel lamp opening, diffusing the light and protecting the hole from debris and contact. Replace a missing or damaged lens to restore a clean, finished look and clear on/off indication.

• Provides a finished cover for the indicator lamp opening on the panel
• Diffuses the light for clearer visibility
• Shields the opening from dust, moisture, and accidental contact
• Common signs to replace: lens is cracked, missing, discolored, or won't stay seated

• Disconnect power at the breaker before servicing
• Access the control panel as required for your model (remove knobs/screws if needed)
• Lens typically snaps in; some models use a rear retainer—transfer any clip or seal
• Align with the lamp and press evenly; do not force or overtighten fasteners

This 6-inch coil surface element restores the small burner on your electric range. It plugs into the burner receptacle to deliver dependable heat for everyday cooking when the original coil is damaged or no longer heating.

• Heats the 6-inch cooktop position by converting electrical energy into heat
• Direct plug-in coil design for the element receptacle; no rewiring when replacing like-for-like
• Common fix for a burner that won't heat, heats unevenly, or works intermittently
• Replaces coils with visible hot spots, blisters, breaks, or corrosion

• Disconnect power at the breaker and allow the surface to cool completely
• Lift the old element straight up and out of the receptacle; remove the drip bowl if present
• Inspect the receptacle and wiring for discoloration or looseness; replace if damaged
• Align and firmly seat the new element's terminals; ensure the coil sits level in the bowl

This support rod props up the lift-up top on your range, providing a secure hold while you clean or service components beneath. Replacing a bent or missing rod restores safe, stable support for the top panel.

• Holds the range top securely in the raised position during cleaning or service
• Helps prevent the top from dropping unexpectedly
• Restores proper alignment if the original rod is bent or worn
• Common symptoms: top won't stay up, rod is missing, bent, or loose

• Disconnect power and shut off the gas supply before servicing
• Support the top while removing/installing the rod to prevent accidental dropping
• Reuse or transfer any retaining hardware/clips from the original part
• Ensure the rod is fully seated in its retainer before lowering the top

The 6 Inch Small Burner Bowl is an OEM part for GE stoves and ranges. It is a durable and heat-resistant bowl that sits beneath the heating element of the small burner, providing a stable and level surface for your cookware. The small burner bowl helps distribute heat evenly and protects the cooktop from spills, stains, and other messes. For the matching 8-inch large burner bowl order WB31T10011.

A bad small burner bowl can be caused by regular use, accidental damage, or it may become discolored, warped, or rusted over time.

Symptoms of a bad small burner bowl include:

• Difficulty in cleaning or removing stubborn stains.
• A loose or wobbly heating element.
• Visible damage such as cracks or chips on the bowl.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Restore reliable heat on your coil-top range with this 8-inch surface coil element assembly. It replaces a burned-out or damaged large burner so pots and pans heat evenly and respond predictably.

• Provides the electric heating surface for the 8-inch burner position
• Common fix for a burner that won't heat or heats intermittently
• Replaces a coil that is broken, blistered, or visibly burned
• Resolve uneven heating or hot spots on the element

• Disconnect power and let the appliance cool completely before servicing.
• Access and procedure vary by model; your product documentation.
• Handle the element carefully; avoid bending the coil or terminals.
• Inspect the burner receptacle and wiring for heat damage; replace if worn or loose.

The 8 Inch Large Burner Bowl is an OEM replacement part for GE ranges and cooktops. This component is designed to accommodate the larger burners on the cooking surface, providing a stable and safe platform for pots and pans during cooking.

Symptoms of needing to replace the 8 inch large burner bowl include:

• Cracks, chips, or damage to the bowl's surface
• Warping or deformation due to excessive heat
• Difficulty in properly positioning pots and pans on the burner

Causes of a faulty burner bowl can include normal wear and tear over time, exposure to extreme temperatures or thermal shocks, or physical damage due to impact or mishandling.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore range and cooktop models.

This wire clip secures a wiring harness to the appliance cabinet to prevent rubbing, pinching, or loose connections. Replacing a worn or broken clip helps restore proper wire routing and reduces the risk of electrical contact issues. What it does:

• Holds wiring harnesses in place to prevent chafing and stress on connections
• Keeps wires routed away from sharp edges, moving parts, and heat sources
• Helps stop intermittent electrical problems caused by loose or strained wires
• Reduces risk of arcing or shorting from wires rubbing on metal components

• One wire clip

• Always disconnect power (unplug or switch off circuit breaker) before servicing electrical components
• Remove any panels or obstructions to access the damaged clip, then release the harness and snap the replacement clip into the original mounting location
• Verify wires are seated properly in the clip and routed clear of moving or hot parts before restoring power
• If wiring or connectors are damaged, replace or repair those components rather than relying on the clip alone

This cooktop box houses and protects the cooktop's wiring connections, restoring a safe, code-ready junction point for electrical supply lines. Use this part when the original box is damaged, corroded, or missing fasteners. What it does

• Provides a secure enclosure for cooktop electrical connections and strain relief
• Prevents exposed wiring and reduces risk of shorts or arcing at the connection point
• Restores proper mounting for incoming supply conduit or cable
• Helps correct symptoms like intermittent power, visible damage to the wiring box, or a loose/unstable connection area

• One cooktop junction wiring box

• Disconnect power at the breaker before inspecting or replacing the box
• Replacement typically requires removing the cooktop and transferring wiring into the new box; keep wire routing and grounding intact
• Use only approved screws/fasteners and maintain proper strain relief and grounding per local code

This silicon controlled rectifier (SCR) switches and regulates power to heating elements and motors in compatible appliances, restoring controlled current flow for proper operation. It's a direct-replacement electronic switching component. What it does:

• Acts as a solid-state switch to control AC power to heater or motor circuits
• Helps regulate current during timed or thermostatic cycles
• Common replacement when appliance shows intermittent heating, no heat, or erratic motor control
• Replaces a failed/shorted SCR that can cause blown fuses or control board errors

• One silicon controlled rectifier (single SCR)

• Intended for technicians or experienced DIYers; disconnect power before servicing
• Verify correct SCR orientation and secure the 8-32 screw terminal; avoid overtightening
• Observe ESD precautions and handle the part by non-conductive areas
