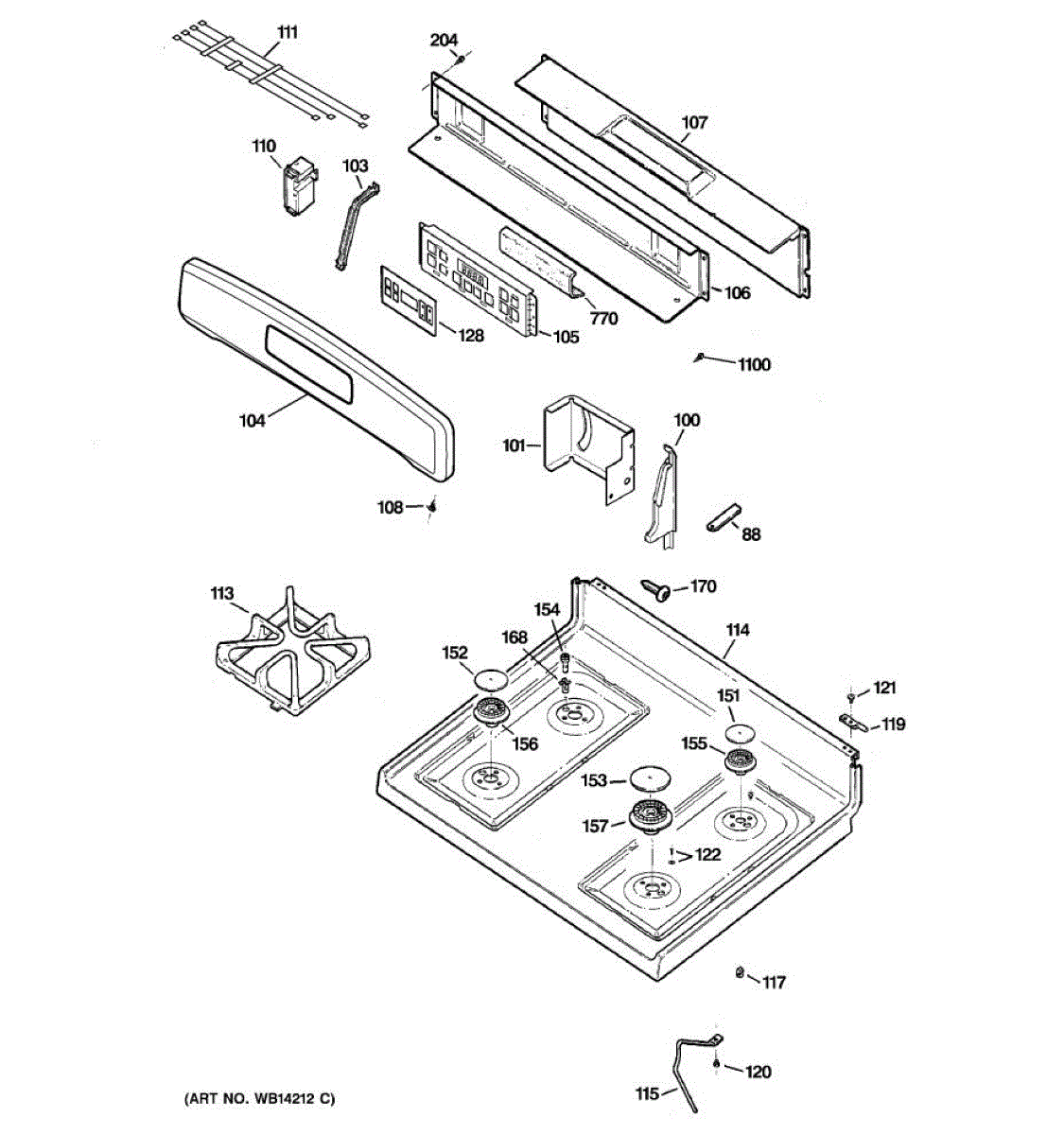

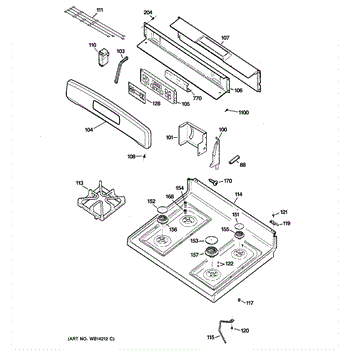

Parts for Ge JGB290DEN3WW: 02 - Control Panel & Cooktop Parts

This end support secures and aligns the appliance drum/shaft assembly so the tub spins smoothly and quietly. Replacing a worn support restores proper drum position and reduces rubbing or wobbling during operation. What it does:

• Holds the drum/shaft in the correct position at the left front to maintain smooth rotation
• Provides a mounting surface and bearing area that prevents metal-on-metal contact
• Common symptom: loud scraping, grinding or thumping noises during spin
• Common symptom: visible drum wobble, rubbing or uneven rotation

• Disconnect power before any disassembly
• Remove outer panels and drum as needed to access the support; follow your model's service manual for steps
• Keep track of fasteners and note part orientation for correct reassembly
• Inspect adjacent parts for wear and replace if needed

End support cap for gas ranges. Installs on the side panel to provide structural support and a finished appearance. Replace if cracked or missing.

This right-side end support secures and aligns a refrigerator shelf/rail or drawer track so slides operate smoothly and stay in place. Replacing a damaged support restores proper shelf alignment and prevents drawers or bins from sagging. What it does

• Holds the end of a shelf rail or drawer track to keep sliding parts aligned
• Prevents shelves or drawers from sagging, binding, or falling out
• Reduces wobble or uneven movement when loading or sliding shelves/drawers
• Helps restore proper operation after a cracked, broken, or worn end bracket

• Disconnect power before working inside the refrigerator and remove food/items from affected area
• Remove the shelf, drawer, or rail to access the end support; note orientation for reassembly
• Require basic hand tools (screwdriver, nut driver) and light prying to release tabs or fasteners
• Reinstall components and test sliding action; discard damaged parts before reuse

Right end support cap for gas ranges. Secures and covers the side panel edge. Replace if cracked, broken, or missing to restore a finished appearance.

Right hand side

Left hand side

Color: White

Replace your worn, cracked, or missing range control panel touch pad. This cosmetic trim piece covers the control area for a finished look.

Fix a non-working oven, blank display, or F7 error code with this electronic oven control board. Restores ignition and temperature control. 20-minute DIY.

Upper back cover panel for gas ranges. Replaces cracked, damaged, or missing housing cover on the rear upper section. Restores appearance and protects.

Replace the lower back cover panel on your gas range. This housing protects internal components and maintains structural integrity when cracked or damaged.

Secures components to your appliance chassis for a rattle-free fit. Replace missing, stripped, or corroded screws to keep panels and brackets aligned.

Burner won't light or no ticking sound from igniters? This spark module generates the spark that ignites gas burners. Moderate DIY repair, 30-45 minutes.

Harness connects spark module to burner igniters on gas ranges. Replace if wires are frayed, cracked, burned, or damaged to restore reliable ignition.

Gray cast iron burner grate for gas ranges. Replaces cracked, broken, or worn grates. Measures 8.5" x 8.5". Sold individually, not as a set.

Burner grate for gas ranges. Holds cookware over burners. Replace if cracked, warped, rusted, or missing. Sold individually, not as a set.

Color: White

Top support plate for gas ranges. Mounts beneath the cooktop surface to provide structural reinforcement. Replace if cracked, bent, or damaged.

Pivot pin that connects the oven door hinge to its mounting bracket. Replace if worn, broken, or missing to restore smooth door operation and alignment.

Screw and washer assembly for securing cooktop and internal range components. Replace if missing, rusted, stripped, or damaged during appliance repair.

Factory screw secures brackets, panels, trim, or burner components on ranges, cooktops, and wall ovens. Replaces missing, stripped, or corroded fasteners.

Cooktop mounting screw secures the cooktop to frame or brackets. Replace if stripped, missing, or rusty to eliminate wobble, rattling, or lifted corners.

Replaces worn, peeling, or faded control panel overlay on your range. Restores clear button labels and icons for a clean, factory-fresh appearance.

Adhesive overlay that labels the control panel buttons on your range. Replace when worn, faded, peeling, or text becomes illegible over time.

Replaces chipped, cracked, or missing burner cap on your gas range cooktop. This grey cap sits atop the burner base to direct and shape the flame properly.

Black burner cap sits on top of your gas range burner head. Replace if cracked, chipped, stained, or missing to restore your cooktop's appearance.

Grey medium burner cap for gas ranges and cooktops, 3 inches in diameter. Replaces chipped, cracked, worn, or missing caps to restore appearance.

Black burner cap sits atop the burner head on gas ranges and cooktops. Replace if cracked, chipped, discolored, or missing to restore appearance.

Grey burner cap for gas range cooktops. Measures 3-1/2 inches diameter. Replace chipped, worn, cracked, or missing burner caps for a complete look.

Black burner cap for gas range cooktops. Replaces cracked, stained, warped, or missing caps. Sits atop burner base for proper flame distribution.

This part is a spark electrode. This is a genuine OEM part made by General Electric and has been sourced directly from the manufacturer. This part is intended to replace a defective or burnt-out spark electrode on multiple different models of ovens and stoves.This spark electrode catches the stream of gas emitted from the burner alight in order to start the stove's flame. Spark electrodes are a common component on newer gas range models. Over time, this part may burn out or become damaged, which will prevent the burner flame from lighting. This part requires proper tools for replacement. Before starting, disconnect the stove completely from both power and gas hookups. Please follow appropriate safety precautions when attempting to repair any appliances. For more accurate information on how and where to install this spark electrode, the appropriate owner's manual and included diagrams should be referred to.As an authentic replacement part, this spark electrode is suitable for use on several different models of gas-powered ovens, stoves, and ranges manufactured by General Electric and Hotpoint. Please note that this is a genuine part made of high-quality, durable materials and is sold individually.

Replacement small surface burner for gas ranges and cooktops. Installs on stovetop to provide heat for smaller pots. Replace if damaged, discolored, or missing.

Replace your cracked, warped, or missing medium surface burner. Ensures even heat distribution for cooking tasks. Installs on gas range cooktops.

Burner base holds and secures the gas burner assembly on your cooktop. Replace if cracked, warped, or corroded to restore proper burner seating.

Secures the ignition electrode on gas range burners. Replace if burners won't spark, igniter clicks continuously, or clip is corroded or loose. Confirm fit with your model number.

Color: White. Mounting screw for end caps.

Mounting screw for range installation and assembly. Replace missing, stripped, or damaged screws to secure panels, brackets, or components properly.

Replacement mounting screw secures panels, brackets, and trim on ranges and cooktops. Install to replace missing, stripped, or rusted fasteners.

Insulation shield that installs behind the range control panel. Protects control board and wiring from oven heat. Replace if cracked, damaged, or missing.

Hex washer head screw for electric ranges. Secures panels, brackets, and internal components. Replace if screw is stripped, missing, or damaged.
