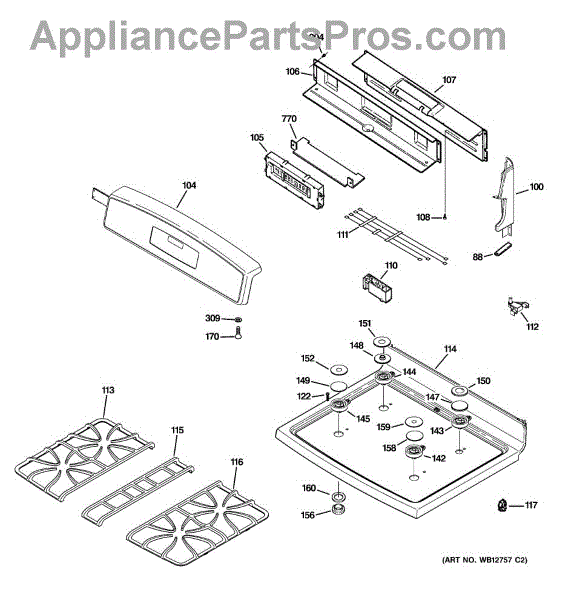

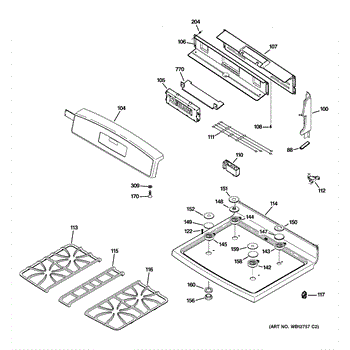

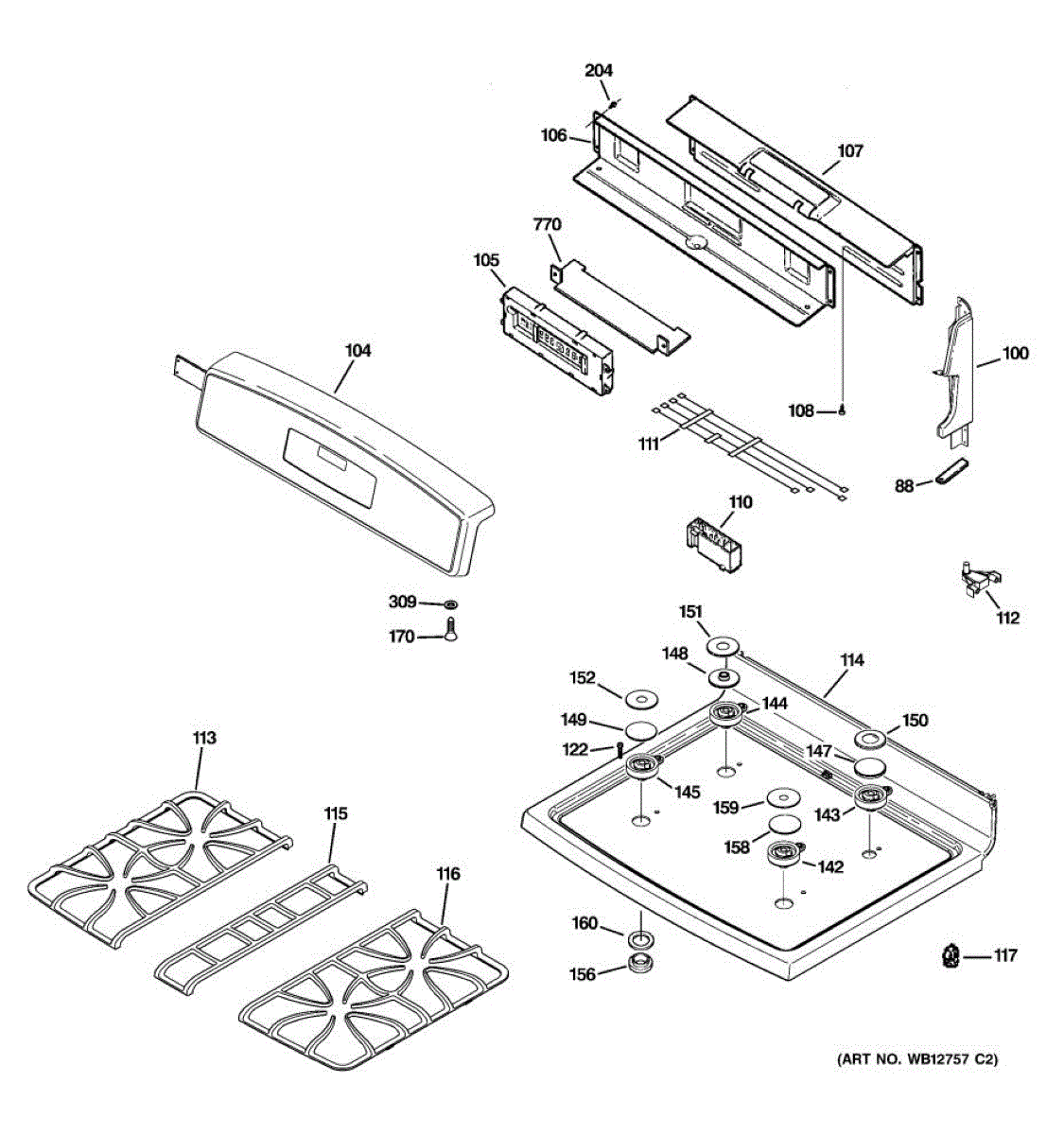

Parts for Ge JGB928SEK1SS: 02 - Control Panel & Cooktop Parts

Color: Black

Color: Black. Left hand side.

Color: Black. Right hand side.

Size: 8 - 18 ab hxw 5/8 s

This mounting screw secures appliance components to the chassis for a tight, rattle-free fit. Replacing a missing, stripped, or corroded fastener helps keep panels, brackets, or burner assemblies properly aligned and secure.

• Fastens designated parts to the appliance frame or mounting points
• Helps maintain proper alignment of panels, trim, brackets, or burner assemblies
• Restores hold when the original screw is worn, rusted, or lost
• Symptoms include loose or wobbly components, rattling/vibration, or visible gaps

• Disconnect power; allow all surfaces to cool. For gas units, also shut off the gas supply.
• Use the correct driver/bit; avoid cross-threading.
• If mating threads or clip/nut are damaged, repair or replace them before installing.
• Tighten until secure; do not overtighten to prevent stripping.

The Spark Module is an OEM replacement part for GE gas ranges. It is responsible for generating electric sparks to ignite the gas burners on the cooktop. The spark module produces consecutive sparks when a surface burner knob is turned on, which ignite the gas mixture and allows the burner flame to ignite safely and consistently.

Causes of a bad spark module can include faulty electrodes, worn internal components that hamper sparking, or damage due to moisture intrusion or power surges over time.

Symptoms of a bad spark module include:

• Burners that will not ignite or only intermittently ignite
• Flashback or burning above the burner head
• The smell of gas when turning burners on

This GE replacement part is also compatible with models from Hotpoint, RCA, and certain Kenmore gas ranges.

Color: Black

Approx 4 inches in diameter

Approx 1-1/2 inches in diameter

Approx 2-1/2 inches in diameter

Approx 3 inches in diameter

Approx 2 inches in diameter

Approx 2-3/4 inches in diameter

Approx 3-1/4 inches in diameter

This left-side burner cap centers and protects the burner head while helping shape the flame for efficient cooking. Durable replacement for worn or damaged caps to restore even heating and safe stovetop performance. What it does:

• Covers and shields the burner head from spills and debris
• Helps distribute and stabilize the burner flame for consistent heat
• Prevents flame distortion that can cause uneven cooking
• Reduces risk of burner clogging by directing spills away from the burner ports

• Turn off the cooktop and allow all components to cool completely before handling
• Remove the old cap (lift straight up) and set the new cap in place, ensuring it seats flat on the burner base
• Clean surrounding burner area of debris before installation for proper seating and flame quality

Approx 4-1/4 inches in diameter

Color: Graphite for Stainless models.

Package of 12

This silicon controlled rectifier (SCR) switches and regulates power to heating elements and motors in compatible appliances, restoring controlled current flow for proper operation. It's a direct-replacement electronic switching component. What it does:

• Acts as a solid-state switch to control AC power to heater or motor circuits
• Helps regulate current during timed or thermostatic cycles
• Common replacement when appliance shows intermittent heating, no heat, or erratic motor control
• Replaces a failed/shorted SCR that can cause blown fuses or control board errors

• One silicon controlled rectifier (single SCR)

• Intended for technicians or experienced DIYers; disconnect power before servicing
• Verify correct SCR orientation and secure the 8-32 screw terminal; avoid overtightening
• Observe ESD precautions and handle the part by non-conductive areas

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

Includes 12 washers.
