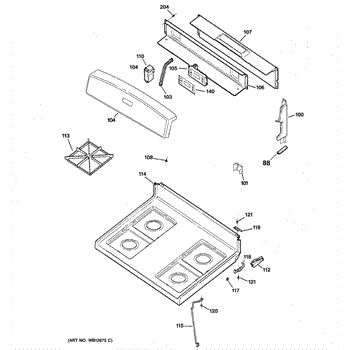

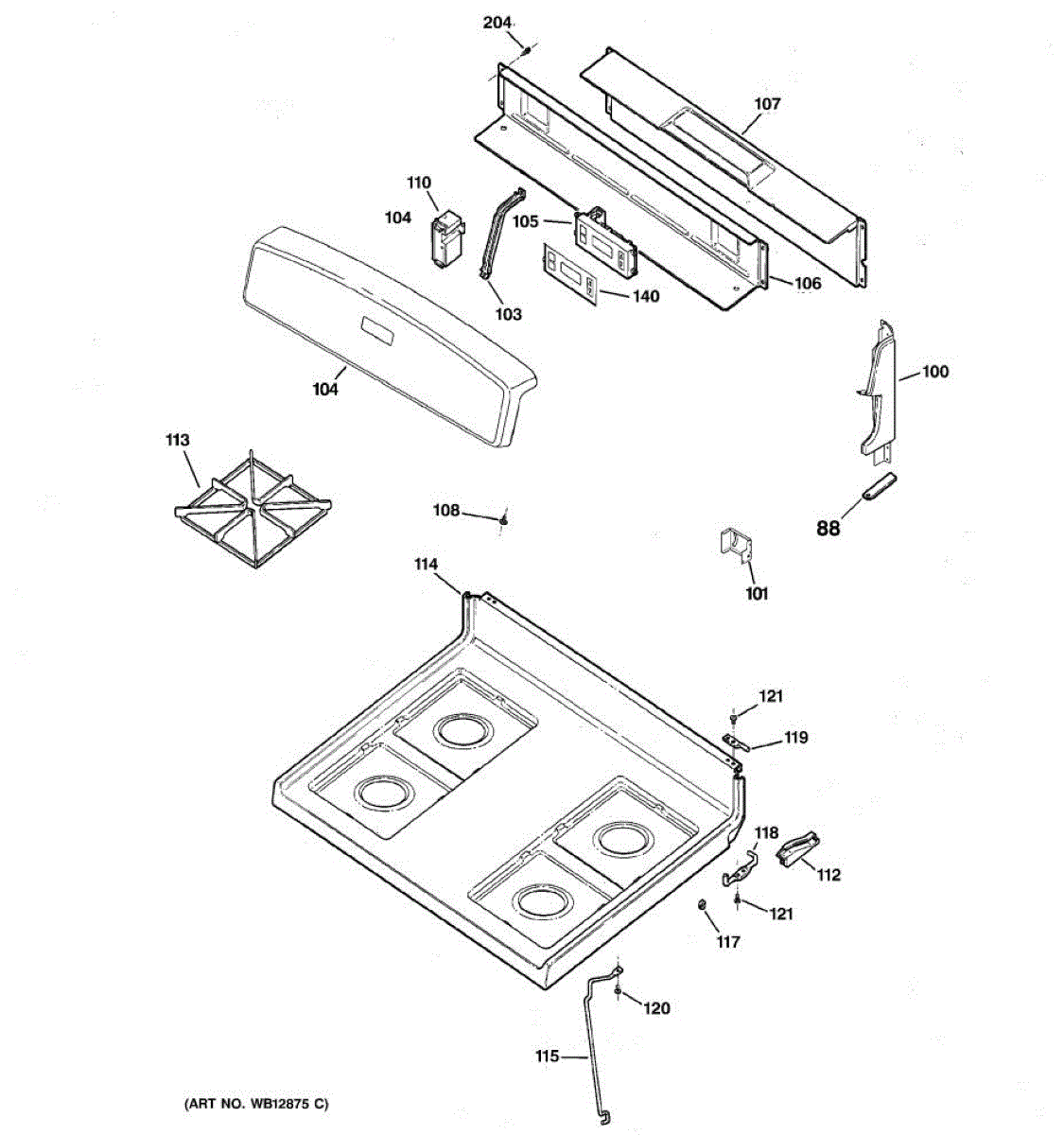

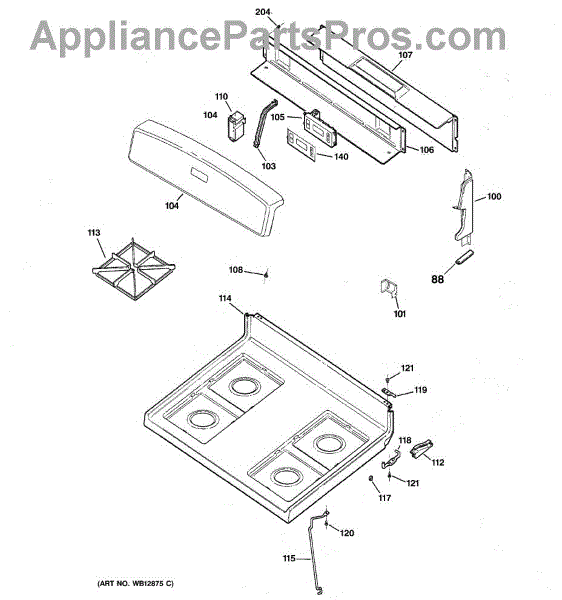

Parts for Ge JGBC20CEH1CC: 02 - Control Panel & Cooktop Parts

Color: Bisque. Right hand side.

Color: Bisque. Left hand side.

Right hand side

Left hand side

The Clock is an OEM part for GE ranges. This control panel displays the time and allows users to set and monitor cooking times and temperatures.

Causes of a bad clock can include electrical malfunctions, power surges, or general wear and tear over time.

Symptoms of a bad clock include:

• The display being blank or unreadable
• Inaccurate time or timer settings
• The oven not starting or shutting off unexpectedly
• Buttons or touchpad not responding properly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Size: 8 - 18 ab hxw 5/8 s

This mounting screw secures appliance components to the chassis for a tight, rattle-free fit. Replacing a missing, stripped, or corroded fastener helps keep panels, brackets, or burner assemblies properly aligned and secure.

• Fastens designated parts to the appliance frame or mounting points
• Helps maintain proper alignment of panels, trim, brackets, or burner assemblies
• Restores hold when the original screw is worn, rusted, or lost
• Symptoms include loose or wobbly components, rattling/vibration, or visible gaps

• Disconnect power; allow all surfaces to cool. For gas units, also shut off the gas supply.
• Use the correct driver/bit; avoid cross-threading.
• If mating threads or clip/nut are damaged, repair or replace them before installing.
• Tighten until secure; do not overtighten to prevent stripping.

This mounting screw secures appliance components to the chassis for a tight, rattle-free fit. Replacing a missing, stripped, or corroded fastener helps keep panels, brackets, or burner assemblies properly aligned and secure.

• Fastens designated parts to the appliance frame or mounting points
• Helps maintain proper alignment of panels, trim, brackets, or burner assemblies
• Restores hold when the original screw is worn, rusted, or lost
• Symptoms include loose or wobbly components, rattling/vibration, or visible gaps

• Disconnect power; allow all surfaces to cool. For gas units, also shut off the gas supply.
• Use the correct driver/bit; avoid cross-threading.
• If mating threads or clip/nut are damaged, repair or replace them before installing.
• Tighten until secure; do not overtighten to prevent stripping.

This spark module generates the high-voltage pulses that ignite the surface burners on your gas range or cooktop. Replacing a weak or failed module restores reliable clicking and ignition on the burners served by this 2-output (2+0) circuit. What it does:

• Generates high-voltage pulses to the surface-burner igniters when a control knob is turned to ignite
• Controls spark for two burners (2+0 configuration)
• Common failure symptoms: no clicking/spark on the affected burners, intermittent/weak spark, or needing a match to light

• 1 spark module

• Disconnect electrical power and shut off the gas supply before servicing
• Access the module (typically beneath the cooktop or behind the control panel) and label/photograph wiring for reference
• Transfer wires one at a time; ensure high-voltage leads are fully seated and the module is properly grounded
• Mount securely, reassemble, restore utilities, and test ignition on both burners

• "2+0" denotes a two-outlet surface-burner spark module; replace with the same configuration as the original

• A failed module typically affects all burners it serves; if only one burner won't spark, inspect that burner's igniter and switch first

This is the right side guide holder. For left side use WB14K2.

This is the left side guide holder. For right side use WB14K1.

Color: Black

This is the right side guide slide.

This is the left side guide slide. For right side use WB14K3.

This hinge pin links the oven door hinge to its mounting point, creating the pivot that lets the door open and close smoothly. Replacing a worn or missing pin can restore steady door movement and a consistent seal.

• Serves as the pivot point for the door hinge
• Helps maintain proper door alignment and closing pressure
• Wear or damage may show as a loose, sagging, or misaligned door
• May help address squeaks, binding, or difficulty latching the door

• Disconnect power; for gas ranges, also shut off the gas supply
• Support or remove the door to access the hinge
• Note hinge orientation; remove the old pin and install the new pin securely
• Inspect the hinge/bracket for wear; lubricate only if specified by the manufacturer

This factory screw secures components on GE cooking appliances. Replacing a lost or stripped fastener helps keep parts tight and aligned for safer, rattle-free operation.

• Fastens brackets, panels, trim, or burner components on a range, cooktop, or wall oven
• Replaces missing, corroded, or stripped hardware
• Helps reduce looseness, vibration, or rattling noises
• Restores proper alignment after service or cleaning

• Disconnect power and shut off gas supply. Allow the appliance to cool completely.
• Match this screw to the original and install in the same location.
• Use the correct driver; hand-tighten and avoid overtightening to prevent stripped threads or cracked parts.
• If mating threads are damaged, repair or replace the affected component before reassembly.

Package of 12

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.
