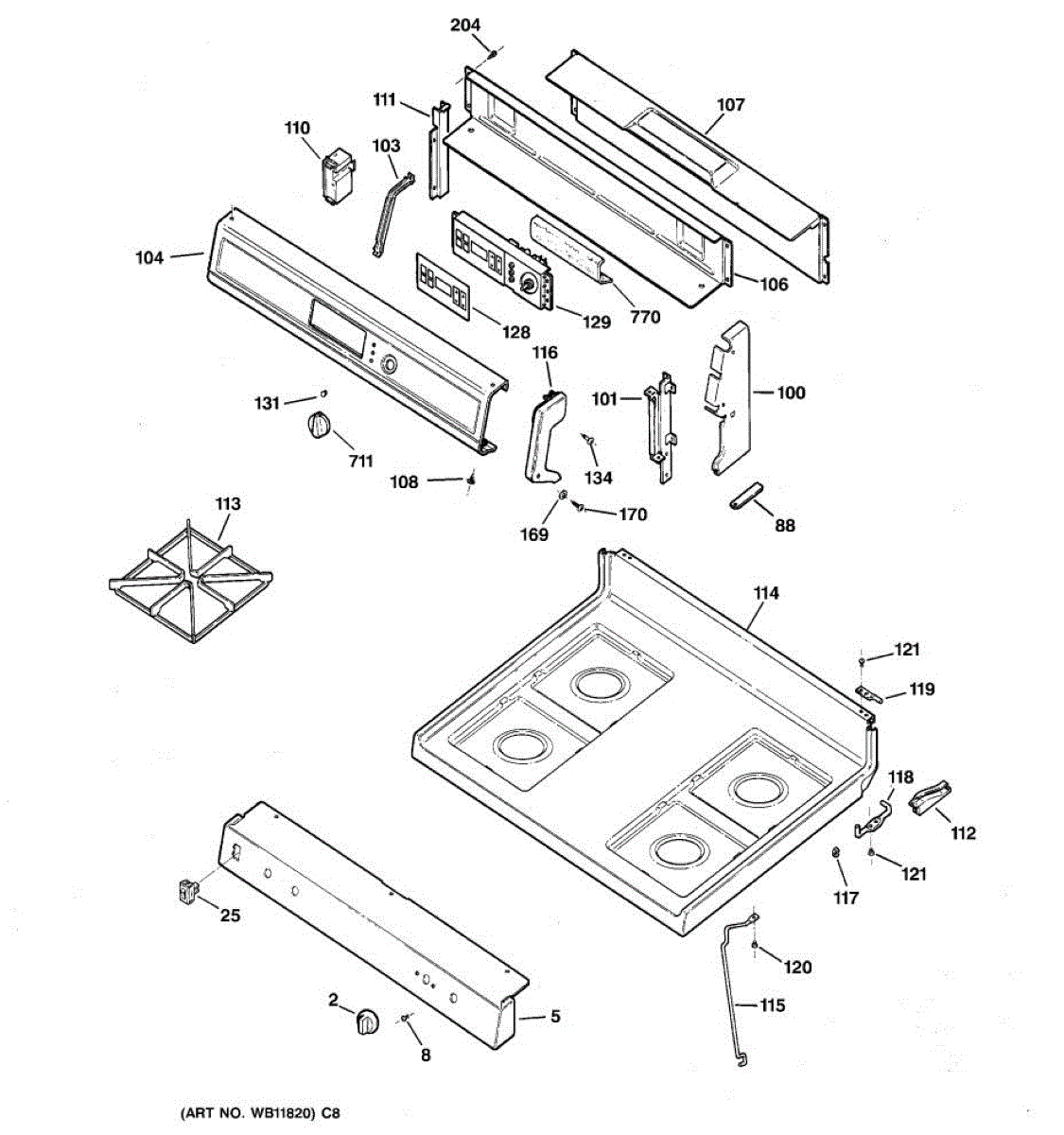

Parts for Ge JGBP24BEA5AD: 02 - Control Panel & Cooktop Parts

Replace a worn or missing knob and restore smooth, precise control of your cooktop. This black top burner control knob mounts on the surface burner valve stem, allowing reliable on/off operation and easy heat adjustment.

• Operates a surface/top burner by turning the control stem to set heat
• Ideal when the original knob is cracked, stripped, loose, hard to turn, or missing
• Restores proper feel and alignment when adjusting the burner
• Black finish matches the original appearance

• Allow the cooktop to cool and disconnect power before servicing
• Pull the old knob straight off the control/valve stem; align the new knob and press straight on
• Do not force—recheck stem orientation if the knob does not seat fully

Size: 8 - 32 inch.

Color: Black

Color: White.

This is the right side end plate. For left side use WB37K15.

This is the left side end plate. For right side use WB37K14.

This mounting screw secures appliance components to the chassis for a tight, rattle-free fit. Replacing a missing, stripped, or corroded fastener helps keep panels, brackets, or burner assemblies properly aligned and secure.

• Fastens designated parts to the appliance frame or mounting points
• Helps maintain proper alignment of panels, trim, brackets, or burner assemblies
• Restores hold when the original screw is worn, rusted, or lost
• Symptoms include loose or wobbly components, rattling/vibration, or visible gaps

• Disconnect power; allow all surfaces to cool. For gas units, also shut off the gas supply.
• Use the correct driver/bit; avoid cross-threading.
• If mating threads or clip/nut are damaged, repair or replace them before installing.
• Tighten until secure; do not overtighten to prevent stripping.

This spark module generates the high-voltage pulses that ignite the surface burners on your gas range or cooktop. Replacing a weak or failed module restores reliable clicking and ignition on the burners served by this 2-output (2+0) circuit. What it does:

• Generates high-voltage pulses to the surface-burner igniters when a control knob is turned to ignite
• Controls spark for two burners (2+0 configuration)
• Common failure symptoms: no clicking/spark on the affected burners, intermittent/weak spark, or needing a match to light

• 1 spark module

• Disconnect electrical power and shut off the gas supply before servicing
• Access the module (typically beneath the cooktop or behind the control panel) and label/photograph wiring for reference
• Transfer wires one at a time; ensure high-voltage leads are fully seated and the module is properly grounded
• Mount securely, reassemble, restore utilities, and test ignition on both burners

• "2+0" denotes a two-outlet surface-burner spark module; replace with the same configuration as the original

• A failed module typically affects all burners it serves; if only one burner won't spark, inspect that burner's igniter and switch first

This is the right side guide holder. For left side use WB14K2.

This is the left side guide holder. For right side use WB14K1.

The Burner Grate is an OEM part for GE ranges. It provides a stable platform for cookware over the burner, ensuring even heating and safety during cooking. The grate is designed to withstand high temperatures and support various sizes of pots and pans. The grate has approximate dimensions of 8 1/2 inches wide by 8 1/2 inches deep.

Causes of a bad burner grate can include wear and tear from regular use, exposure to high heat, or physical damage from heavy cookware. A damaged grate can affect cooking performance and safety.

Symptoms of a bad Burner Grate include:

• Cracks or breaks in the grate
• The grate becoming uneven or wobbling
• Difficulty balancing pots and pans
• Discoloration or corrosion

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: Black. For gray order WB31K10027.

This right-side black end cap finishes and secures the end of a trim, rail or channel to restore proper fit and appearance. It prevents sharp edges and keeps the assembly aligned for reliable operation. What it does:

• Covers and protects the exposed end of a trim, rail or channel to reduce sharp edges and wear
• Helps hold the trim/rail in place so shelves, drawers or doors stay aligned and operate smoothly
• Stops rattling or movement caused by a missing or broken end cap
• Restores OEM appearance where the original end cap is cracked, warped or lost

• One right-side black end cap

• High-level replacement; typically snaps or slides into position without special tools
• Remove power or secure appliance parts as needed before working in the area
• Inspect mating trim/rail for damage and replace if worn to ensure proper fit

This is the right side guide slide.

This is the left side guide slide. For right side use WB14K3.

This hinge pin links the oven door hinge to its mounting point, creating the pivot that lets the door open and close smoothly. Replacing a worn or missing pin can restore steady door movement and a consistent seal.

• Serves as the pivot point for the door hinge
• Helps maintain proper door alignment and closing pressure
• Wear or damage may show as a loose, sagging, or misaligned door
• May help address squeaks, binding, or difficulty latching the door

• Disconnect power; for gas ranges, also shut off the gas supply
• Support or remove the door to access the hinge
• Note hinge orientation; remove the old pin and install the new pin securely
• Inspect the hinge/bracket for wear; lubricate only if specified by the manufacturer

This factory screw secures components on GE cooking appliances. Replacing a lost or stripped fastener helps keep parts tight and aligned for safer, rattle-free operation.

• Fastens brackets, panels, trim, or burner components on a range, cooktop, or wall oven
• Replaces missing, corroded, or stripped hardware
• Helps reduce looseness, vibration, or rattling noises
• Restores proper alignment after service or cleaning

• Disconnect power and shut off gas supply. Allow the appliance to cool completely.
• Match this screw to the original and install in the same location.
• Use the correct driver; hand-tighten and avoid overtightening to prevent stripped threads or cracked parts.
• If mating threads are damaged, repair or replace the affected component before reassembly.

This indicator light lens covers the control-panel lamp opening, diffusing the light and protecting the hole from debris and contact. Replace a missing or damaged lens to restore a clean, finished look and clear on/off indication.

• Provides a finished cover for the indicator lamp opening on the panel
• Diffuses the light for clearer visibility
• Shields the opening from dust, moisture, and accidental contact
• Common signs to replace: lens is cracked, missing, discolored, or won't stay seated

• Disconnect power at the breaker before servicing
• Access the control panel as required for your model (remove knobs/screws if needed)
• Lens typically snaps in; some models use a rear retainer—transfer any clip or seal
• Align with the lamp and press evenly; do not force or overtighten fasteners

Package of 12

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold
