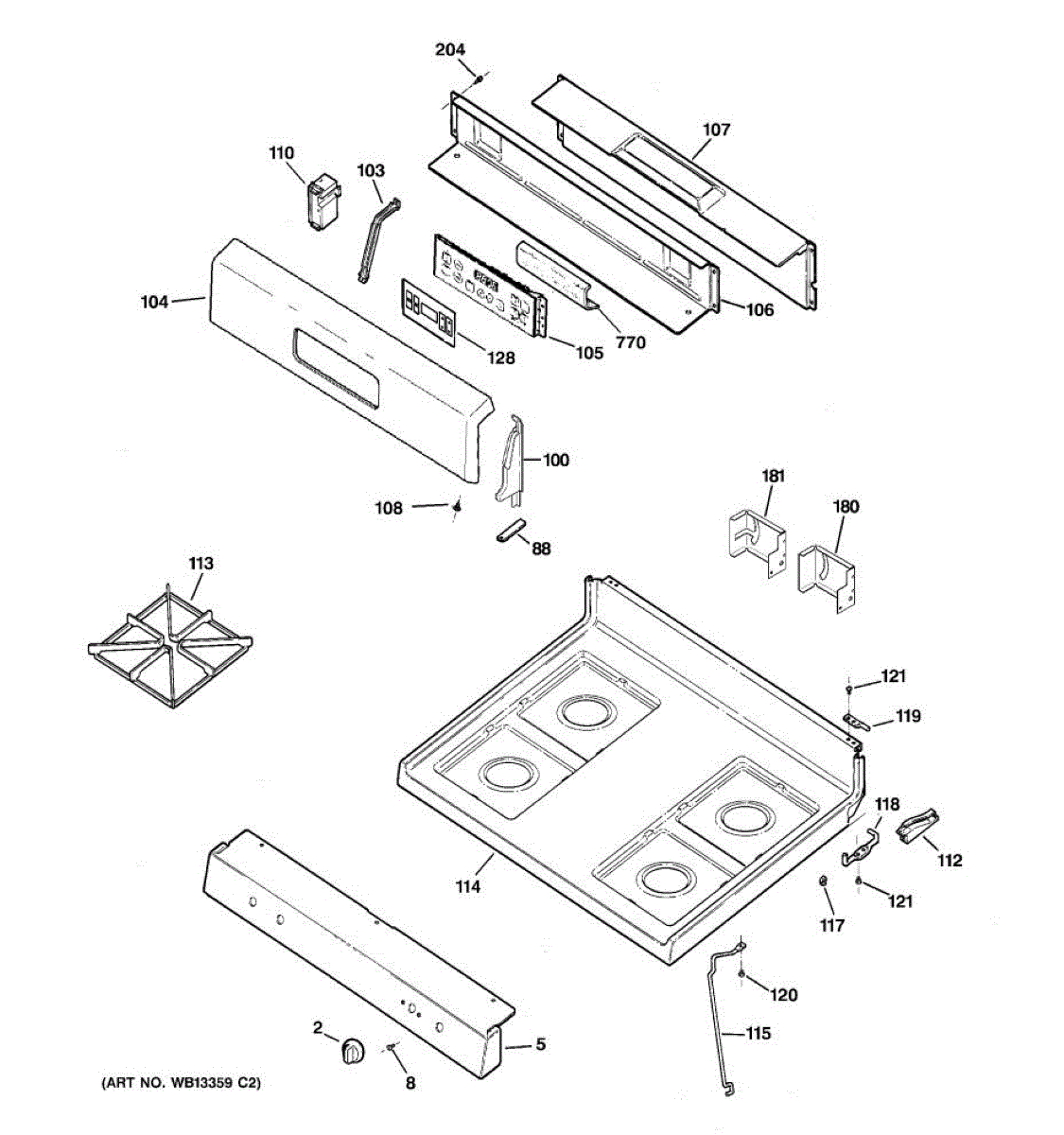

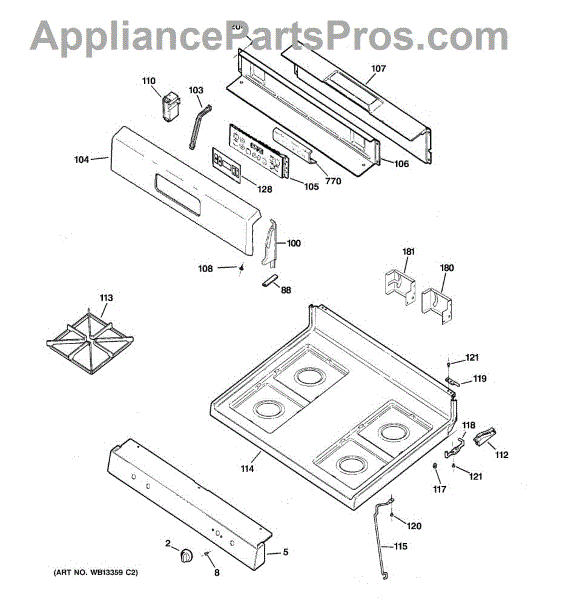

Parts for Ge JGBP24BEH2WH: 02 - Control Panel & Cooktop Parts

Color: Black. Measures about 2 inches in diameter.

Size: 8 - 32 inch.

Color: Black. Left hand side.

Color: Black. Right hand side.

Color: Black

This electronic oven control board manages oven heating functions and the display on gas ranges. Replacing a failed board restores reliable ignition, accurate temperature control, and normal bake/broil operation.

• Regulates oven temperature by reading the sensor and cycling the gas burner through the bake/broil relays
• Drives the clock and function display
• Interprets keypad inputs to select modes and temperatures
• Common failure signs: oven won't heat or maintain temperature, blank or erratic display, unresponsive controls, or recurring fault alerts

• Disconnect power at the breaker and shut off gas before servicing
• Use ESD protection and handle the board by the edges
• Photograph wiring and transfer connectors one at a time; reinstall using existing hardware
• Some models require transferring the original keypad/overlay to the new board

Size: 8 - 18 ab hxw 5/8 s

This mounting screw secures appliance components to the chassis for a tight, rattle-free fit. Replacing a missing, stripped, or corroded fastener helps keep panels, brackets, or burner assemblies properly aligned and secure.

• Fastens designated parts to the appliance frame or mounting points
• Helps maintain proper alignment of panels, trim, brackets, or burner assemblies
• Restores hold when the original screw is worn, rusted, or lost
• Symptoms include loose or wobbly components, rattling/vibration, or visible gaps

• Disconnect power; allow all surfaces to cool. For gas units, also shut off the gas supply.
• Use the correct driver/bit; avoid cross-threading.
• If mating threads or clip/nut are damaged, repair or replace them before installing.
• Tighten until secure; do not overtighten to prevent stripping.

The Ignition Module is an OEM part for GE ranges. This component plays a critical role in controlling oven ignition by generating high-voltage sparks to light the burners. It consistently monitors flame presence and re-ignites burners as needed throughout baking and cooking.

Symptoms of a bad ignition module include:

• Delayed burner ignition or failure to ignite at all
• Unstable or intermittent burner flames
• Repeated false error codes related to ignition

Causes can be short-circuiting or water damage of electronic components over extended use. This can lead to inconsistent spark outputs and faulty flame sensing.

Reliable ignition is essential for safe and trouble-free cooking. This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is the right side guide holder. For left side use WB14K2.

This is the left side guide holder. For right side use WB14K1.

The Burner Grate is an OEM part for GE ranges. It provides a stable platform for cookware over the burner, ensuring even heating and safety during cooking. The grate is designed to withstand high temperatures and support various sizes of pots and pans. The grate has approximate dimensions of 8 1/2 inches wide by 8 1/2 inches deep.

Causes of a bad burner grate can include wear and tear from regular use, exposure to high heat, or physical damage from heavy cookware. A damaged grate can affect cooking performance and safety.

Symptoms of a bad Burner Grate include:

• Cracks or breaks in the grate
• The grate becoming uneven or wobbling
• Difficulty balancing pots and pans
• Discoloration or corrosion

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: Black. For gray order WB31K10027.

This is the main top.

This is the right side guide slide.

This is the left side guide slide. For right side use WB14K3.

This hinge pin links the oven door hinge to its mounting point, creating the pivot that lets the door open and close smoothly. Replacing a worn or missing pin can restore steady door movement and a consistent seal.

• Serves as the pivot point for the door hinge
• Helps maintain proper door alignment and closing pressure
• Wear or damage may show as a loose, sagging, or misaligned door
• May help address squeaks, binding, or difficulty latching the door

• Disconnect power; for gas ranges, also shut off the gas supply
• Support or remove the door to access the hinge
• Note hinge orientation; remove the old pin and install the new pin securely
• Inspect the hinge/bracket for wear; lubricate only if specified by the manufacturer

This factory screw secures components on GE cooking appliances. Replacing a lost or stripped fastener helps keep parts tight and aligned for safer, rattle-free operation.

• Fastens brackets, panels, trim, or burner components on a range, cooktop, or wall oven
• Replaces missing, corroded, or stripped hardware
• Helps reduce looseness, vibration, or rattling noises
• Restores proper alignment after service or cleaning

• Disconnect power and shut off gas supply. Allow the appliance to cool completely.
• Match this screw to the original and install in the same location.
• Use the correct driver; hand-tighten and avoid overtightening to prevent stripped threads or cracked parts.
• If mating threads are damaged, repair or replace the affected component before reassembly.

Right hand side

Left hand side

Package of 12

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

A replacement control insulation piece that helps protect the appliance control assembly from heat and abrasion. Restores the thermal barrier behind the control panel to help prevent heat-related control damage. What it does:

• Shields the control board and wiring from oven/burner heat and radiant heat buildup.
• Helps prevent heat-related failures, melting, or damage to the control assembly.
• Reduces risk of shorting or chafing where wiring passes near the control area.
• Can reduce intermittent control issues that occur when components overheat.

• One control insulation piece

• Always disconnect power to the appliance before servicing to avoid shock or injury.
• Remove the console/control panel to access and replace the insulation.
• Align the insulation carefully; secure any clips or adhesive exactly as OEM design specifies.
• If insulation is brittle, torn, or shows heat damage elsewhere, inspect adjacent components and wiring for damage.
