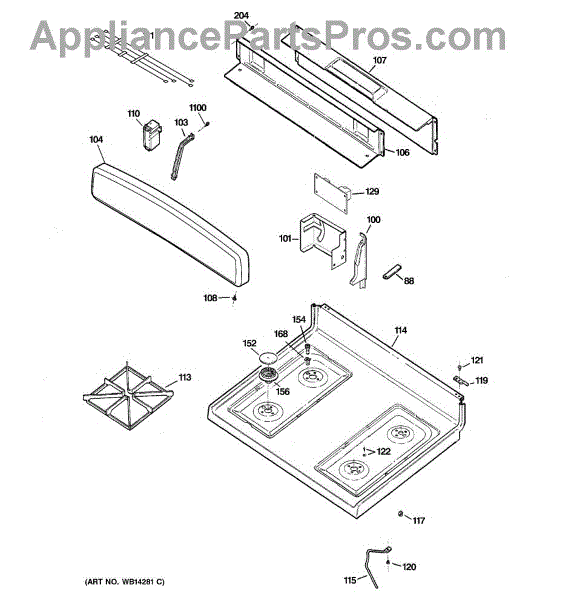

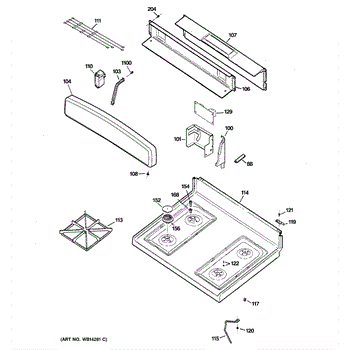

Parts for Ge JGBP27DEM7WW: 02 - Control Panel & Cooktop Parts

This end support secures and aligns the appliance drum/shaft assembly so the tub spins smoothly and quietly. Replacing a worn support restores proper drum position and reduces rubbing or wobbling during operation. What it does:

• Holds the drum/shaft in the correct position at the left front to maintain smooth rotation
• Provides a mounting surface and bearing area that prevents metal-on-metal contact
• Common symptom: loud scraping, grinding or thumping noises during spin
• Common symptom: visible drum wobble, rubbing or uneven rotation

• Disconnect power before any disassembly
• Remove outer panels and drum as needed to access the support; follow your model's service manual for steps
• Keep track of fasteners and note part orientation for correct reassembly
• Inspect adjacent parts for wear and replace if needed

This right-side end support secures and aligns a refrigerator shelf/rail or drawer track so slides operate smoothly and stay in place. Replacing a damaged support restores proper shelf alignment and prevents drawers or bins from sagging. What it does

• Holds the end of a shelf rail or drawer track to keep sliding parts aligned
• Prevents shelves or drawers from sagging, binding, or falling out
• Reduces wobble or uneven movement when loading or sliding shelves/drawers
• Helps restore proper operation after a cracked, broken, or worn end bracket

• Disconnect power before working inside the refrigerator and remove food/items from affected area
• Remove the shelf, drawer, or rail to access the end support; note orientation for reassembly
• Require basic hand tools (screwdriver, nut driver) and light prying to release tabs or fasteners
• Reinstall components and test sliding action; discard damaged parts before reuse

Right hand side

Left hand side

Color: White. Mounting screw for end caps.

This mounting screw secures appliance components to the chassis for a tight, rattle-free fit. Replacing a missing, stripped, or corroded fastener helps keep panels, brackets, or burner assemblies properly aligned and secure.

• Fastens designated parts to the appliance frame or mounting points
• Helps maintain proper alignment of panels, trim, brackets, or burner assemblies
• Restores hold when the original screw is worn, rusted, or lost
• Symptoms include loose or wobbly components, rattling/vibration, or visible gaps

• Disconnect power; allow all surfaces to cool. For gas units, also shut off the gas supply.
• Use the correct driver/bit; avoid cross-threading.
• If mating threads or clip/nut are damaged, repair or replace them before installing.
• Tighten until secure; do not overtighten to prevent stripping.

Spark module service kit replaces the ignition module that creates high-voltage sparks for gas burners, restoring reliable ignition for ranges and cooktops and helping reduce failed or intermittent burner lighting. What it does:

• Generates the high-voltage spark pulses that ignite gas burners; replaces a faulty ignition/spark control.
• Helps address symptoms such as no spark at burners, intermittent sparking, or constant clicking without ignition.
• Routes pulses through the electrode harness to the burner electrodes so burners light consistently.

• Always disconnect electrical power and shut off the gas supply before starting service.
• Remove the appropriate access panel to reach the module; note and label wire routing and connector positions before disconnecting.
• Avoid touching module terminals or electrode tips; handle connectors by the housings to prevent damage.

Color: Gray

This hinge pin links the oven door hinge to its mounting point, creating the pivot that lets the door open and close smoothly. Replacing a worn or missing pin can restore steady door movement and a consistent seal.

• Serves as the pivot point for the door hinge
• Helps maintain proper door alignment and closing pressure
• Wear or damage may show as a loose, sagging, or misaligned door
• May help address squeaks, binding, or difficulty latching the door

• Disconnect power; for gas ranges, also shut off the gas supply
• Support or remove the door to access the hinge
• Note hinge orientation; remove the old pin and install the new pin securely
• Inspect the hinge/bracket for wear; lubricate only if specified by the manufacturer

This factory screw secures components on GE cooking appliances. Replacing a lost or stripped fastener helps keep parts tight and aligned for safer, rattle-free operation.

• Fastens brackets, panels, trim, or burner components on a range, cooktop, or wall oven
• Replaces missing, corroded, or stripped hardware
• Helps reduce looseness, vibration, or rattling noises
• Restores proper alignment after service or cleaning

• Disconnect power and shut off gas supply. Allow the appliance to cool completely.
• Match this screw to the original and install in the same location.
• Use the correct driver; hand-tighten and avoid overtightening to prevent stripped threads or cracked parts.
• If mating threads are damaged, repair or replace the affected component before reassembly.

This factory screw secures components in your appliance for a tight, reliable fit. Replacing a missing or damaged screw helps stop rattles, restore alignment, and keep panels or brackets firmly attached. What it does:

• Acts as a mounting fastener for appliance components such as panels, brackets, or assemblies
• Maintains proper alignment and stability of secured parts
• Helps reduce vibration, rattling, or looseness caused by worn or missing hardware
• Replaces stripped, rusted, or lost screws to restore secure attachment

• One screw

• Disconnect power; shut off gas supply before servicing
• Replace screws one at a time to match length and location
• Start threads by hand to avoid cross-threading; use the correct driver/bit
• Tighten snugly—do not overtighten; inspect mating clip or bracket if threads are damaged

Medium. Color: Grey. It measures about 3 inches in diameter.

The Medium Surface Burner is an OEM part for GE ranges and cooktops. This burner is essential for a wide range of cooking tasks, from simmering sauces to sautéing vegetables. The medium surface burner ensures even heat distribution and efficient fuel consumption, contributing to the overall cooking performance of your appliance.

Causes of a bad Medium Surface Burner can range from clogged burner ports, which impede gas flow and affect flame consistency, to wear and tear on the igniter or the burner assembly that prevents proper operation.

Symptoms of a malfunctioning Medium Surface Burner include:

• Inconsistent flame size or failure to ignite
• Uneven heating or hot spots on the cookware
• Visible damage or corrosion on the burner itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Electrode Clip is an OEM part for GE gas ranges. This part secures the electrode, which provides the ignition spark that lights the burners.

Causes of a bad Electrode Clip can include corrosion, physical damage from impact or mishandling, or loosening over time due to heat exposure and repeated use.

Symptoms of a bad Electrode Clip include:

• Failure of the burners or oven to ignite
• Intermittent or inconsistent ignition
• Visible damage or deterioration of the clip itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Package of 12

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

Size: 8 - 18 ab hxw 5/8 s
