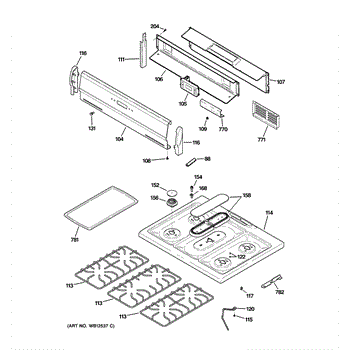

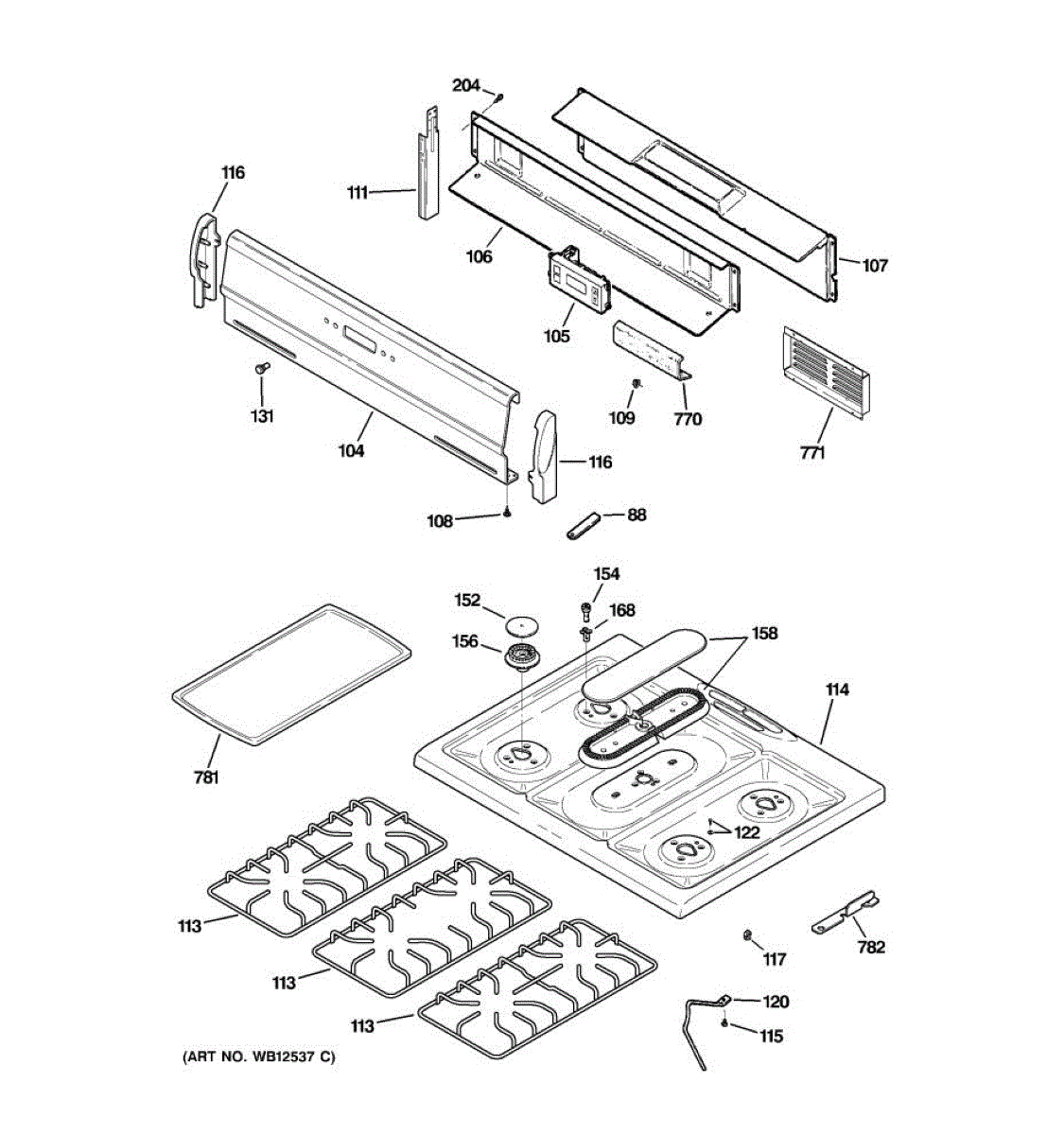

Parts for Ge JGBS10CEF1CC: 02 - Control Panel & Cooktop Parts

The Clock is an OEM part for GE ranges. This control panel displays the time and allows users to set and monitor cooking times and temperatures.

Causes of a bad clock can include electrical malfunctions, power surges, or general wear and tear over time.

Symptoms of a bad clock include:

• The display being blank or unreadable
• Inaccurate time or timer settings
• The oven not starting or shutting off unexpectedly
• Buttons or touchpad not responding properly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This lower back cover is the replacement rear lower panel that protects internal components at the bottom rear of the appliance and restores the unit's finished appearance. It helps keep wiring and components shielded from debris and accidental contact. What it does:

• Covers and protects internal components located at the lower rear of the appliance
• Prevents debris, dust, and small objects from reaching wiring and controls
• Restores the appliance's exterior finish and helps reduce drafts at the rear
• Stops rattling or scraping noises caused by a damaged or missing rear lower panel

• Disconnect power to the appliance before beginning any work
• Access may require removing the oven/range kick plate or rear access panel
• Secure with the original mounting screws; keep fasteners hand-tight and don't overtighten
• Wear work gloves to avoid cuts from sharp sheet-metal edges and follow all safety guidance in the appliance manual

This mounting screw secures appliance components to the chassis for a tight, rattle-free fit. Replacing a missing, stripped, or corroded fastener helps keep panels, brackets, or burner assemblies properly aligned and secure.

• Fastens designated parts to the appliance frame or mounting points
• Helps maintain proper alignment of panels, trim, brackets, or burner assemblies
• Restores hold when the original screw is worn, rusted, or lost
• Symptoms include loose or wobbly components, rattling/vibration, or visible gaps

• Disconnect power; allow all surfaces to cool. For gas units, also shut off the gas supply.
• Use the correct driver/bit; avoid cross-threading.
• If mating threads or clip/nut are damaged, repair or replace them before installing.
• Tighten until secure; do not overtighten to prevent stripping.

Includes 12 speed nuts.

This left end cap is a cosmetic and protective trim piece that restores the appliance's finished look and helps secure adjoining panels. It replaces cracked or broken end caps to reduce gaps and prevent debris entry. What it does:

• Provides a finished mounting edge for panels and trim
• Helps keep internal components protected from dust and debris
• Prevents loose or rattling side trim that can cause noise
• Addresses visible cracks, chips, or missing end-cap pieces

• Disconnect power to the appliance before servicing.
• Typically installs with snap clips or a few screws; verify fastener type for your model.
• Handle plastic trim carefully to avoid scratches or breakage during installation.

This right-side end cap is the OEM replacement trim piece that covers and protects the outer edge of the appliance cabinet, restoring a finished appearance and preventing sharp edges. What it does

• Replaces a cracked, broken or missing right-side end cap to restore the cabinet's finished look
• Covers exposed edges and helps keep grime out of seams and gaps
• Holds trim in alignment to prevent rubbing or catching on adjacent parts
• Common symptoms: visible damage, loose or missing trim, sharp exposed edge, or cosmetic wear

• Disconnect power to the appliance before starting any work to reduce risk of shock or injury
• Basic hand tools are typically all that's needed; remove adjacent trim or fasteners as required
• Align tabs or mounting points and snap or fasten the cap into place; avoid forcing broken tabs
• Inspect mating surfaces and replace the opposite-side cap if both are worn or damaged

This cooktop mounting screw secures the cooktop to its frame or mounting brackets, keeping the surface stable and properly aligned. Replace stripped, missing, or rusty hardware to eliminate wobble, rattling, or lifted corners.

• Secures the cooktop to the chassis or brackets to prevent movement during use
• Helps maintain a flush, stable installation and proper alignment
• Replacing damaged or missing screws can reduce vibration, rattling, and gaps
• Supports safe, consistent operation of the cooking surface

• Disconnect power at the breaker; for gas models, also shut off the gas supply
• Support the cooktop while loosening/tightening hardware to avoid stressing the top
• Start all screws before tightening; do not overtighten

The Burner Cap is an OEM part for GE gas ranges. This component sits on top of the burner head, dispersing the flame evenly for optimal cooking performance and protecting the burner head from spills and debris.

You should replace the burner cap if it becomes damaged or worn out. Causes of a bad burner cap can include exposure to high temperatures, accidental drops or impacts, and buildup of food residues or cleaning chemicals that can erode the surface over time.

Symptoms of a bad burner cap include:

• Uneven flame distribution or yellow flames
• Difficulty in igniting the burner
• Visible cracks, chips, or warping on the cap
• Poor cooking performance due to inconsistent heat

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Electrode

The Medium Surface Burner is an OEM part for GE ranges and cooktops. This burner is essential for a wide range of cooking tasks, from simmering sauces to sautéing vegetables. The medium surface burner ensures even heat distribution and efficient fuel consumption, contributing to the overall cooking performance of your appliance.

Causes of a bad Medium Surface Burner can range from clogged burner ports, which impede gas flow and affect flame consistency, to wear and tear on the igniter or the burner assembly that prevents proper operation.

Symptoms of a malfunctioning Medium Surface Burner include:

• Inconsistent flame size or failure to ignite
• Uneven heating or hot spots on the cookware
• Visible damage or corrosion on the burner itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Electrode Clip is an OEM part for GE gas ranges. This part secures the electrode, which provides the ignition spark that lights the burners.

Causes of a bad Electrode Clip can include corrosion, physical damage from impact or mishandling, or loosening over time due to heat exposure and repeated use.

Symptoms of a bad Electrode Clip include:

• Failure of the burners or oven to ignite
• Intermittent or inconsistent ignition
• Visible damage or deterioration of the clip itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Package of 12

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold
