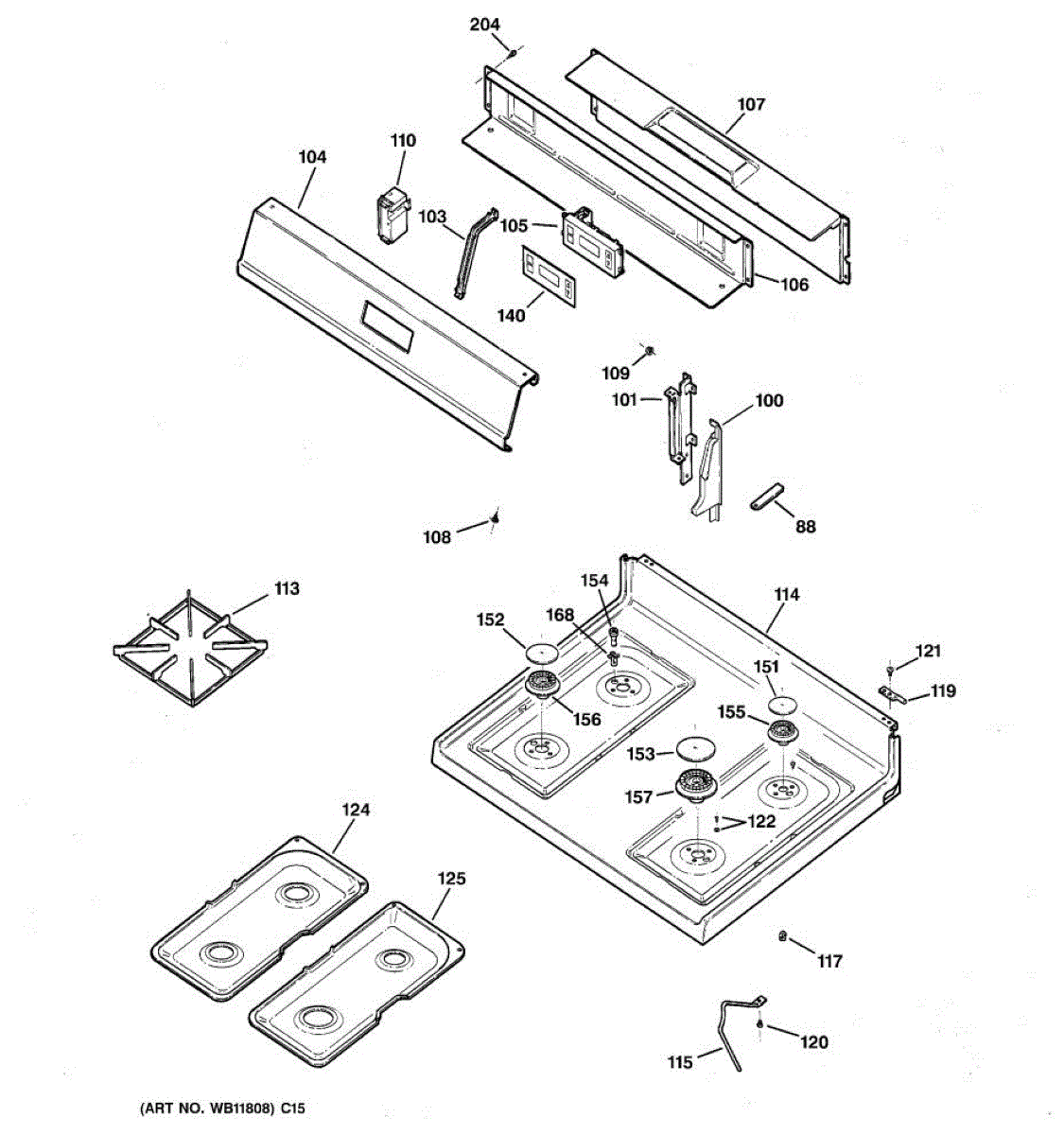

Parts for Ge JGBS23BEH1BB: 02 - Control Panel & Cooktop Parts

Color: Black. Left hand side.

Color: Black. Right hand side.

Right hand side

Left hand side

The Clock is an OEM part for GE ranges. This control panel displays the time and allows users to set and monitor cooking times and temperatures.

Causes of a bad clock can include electrical malfunctions, power surges, or general wear and tear over time.

Symptoms of a bad clock include:

• The display being blank or unreadable
• Inaccurate time or timer settings
• The oven not starting or shutting off unexpectedly
• Buttons or touchpad not responding properly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Size: 8 - 18 ab hxw 5/8 s

This mounting screw secures appliance components to the chassis for a tight, rattle-free fit. Replacing a missing, stripped, or corroded fastener helps keep panels, brackets, or burner assemblies properly aligned and secure.

• Fastens designated parts to the appliance frame or mounting points
• Helps maintain proper alignment of panels, trim, brackets, or burner assemblies
• Restores hold when the original screw is worn, rusted, or lost
• Symptoms include loose or wobbly components, rattling/vibration, or visible gaps

• Disconnect power; allow all surfaces to cool. For gas units, also shut off the gas supply.
• Use the correct driver/bit; avoid cross-threading.
• If mating threads or clip/nut are damaged, repair or replace them before installing.
• Tighten until secure; do not overtighten to prevent stripping.

Includes 12 speed nuts.

This high-voltage spark ignition harness carries the spark module's output to the burner igniters so your gas burners light reliably. Replace a cracked, shorted, or burned harness to restore consistent ignition and reduce misfires or arcing.

• Distributes high-voltage pulses from the spark module to the burner igniters
• Insulated leads help prevent arcing, cross-firing, and shorts to chassis
• Failure symptoms can include no or weak spark on multiple burners, intermittent lighting, or visible burn/arc marks on the wiring
• Useful when the spark module and igniters test good but ignition remains unreliable

• Disconnect power and shut off gas before servicing; high voltage is present during operation
• Note original routing; keep wires away from sharp edges, moving parts, and hot surfaces
• Seat boots/connectors fully on the spark module and igniters; avoid kinking or stretching leads
• After installation, restore power and test spark at each burner before final reassembly

The Spark Module is an OEM replacement part for GE gas ranges. It is responsible for generating electric sparks to ignite the gas burners on the cooktop. The spark module produces consecutive sparks when a surface burner knob is turned on, which ignite the gas mixture and allows the burner flame to ignite safely and consistently.

Causes of a bad spark module can include faulty electrodes, worn internal components that hamper sparking, or damage due to moisture intrusion or power surges over time.

Symptoms of a bad spark module include:

• Burners that will not ignite or only intermittently ignite
• Flashback or burning above the burner head
• The smell of gas when turning burners on

This GE replacement part is also compatible with models from Hotpoint, RCA, and certain Kenmore gas ranges.

The Burner Grate is an OEM part for GE ranges. It provides a stable and durable surface to hold cookware above the burner, ensuring even heat distribution during cooking.

The burner grate should be replaced if it becomes damaged or worn out. Causes of a bad burner grate can include prolonged exposure to high heat, accidental impacts, or the enamel coating wearing off over time.

Symptoms of a bad burner grate include:

• The grate becoming unstable or wobbly
• Visible cracks or chips in the material
• Difficulty in positioning cookware securely
• Uneven cooking due to instability

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This hinge pin links the oven door hinge to its mounting point, creating the pivot that lets the door open and close smoothly. Replacing a worn or missing pin can restore steady door movement and a consistent seal.

• Serves as the pivot point for the door hinge
• Helps maintain proper door alignment and closing pressure
• Wear or damage may show as a loose, sagging, or misaligned door
• May help address squeaks, binding, or difficulty latching the door

• Disconnect power; for gas ranges, also shut off the gas supply
• Support or remove the door to access the hinge
• Note hinge orientation; remove the old pin and install the new pin securely
• Inspect the hinge/bracket for wear; lubricate only if specified by the manufacturer

This factory screw secures components on GE cooking appliances. Replacing a lost or stripped fastener helps keep parts tight and aligned for safer, rattle-free operation.

• Fastens brackets, panels, trim, or burner components on a range, cooktop, or wall oven
• Replaces missing, corroded, or stripped hardware
• Helps reduce looseness, vibration, or rattling noises
• Restores proper alignment after service or cleaning

• Disconnect power and shut off gas supply. Allow the appliance to cool completely.
• Match this screw to the original and install in the same location.
• Use the correct driver; hand-tighten and avoid overtightening to prevent stripped threads or cracked parts.
• If mating threads are damaged, repair or replace the affected component before reassembly.

This cooktop mounting screw secures the cooktop to its frame or mounting brackets, keeping the surface stable and properly aligned. Replace stripped, missing, or rusty hardware to eliminate wobble, rattling, or lifted corners.

• Secures the cooktop to the chassis or brackets to prevent movement during use
• Helps maintain a flush, stable installation and proper alignment
• Replacing damaged or missing screws can reduce vibration, rattling, and gaps
• Supports safe, consistent operation of the cooking surface

• Disconnect power at the breaker; for gas models, also shut off the gas supply
• Support the cooktop while loosening/tightening hardware to avoid stressing the top
• Start all screws before tightening; do not overtighten

The Double Drip Pan is an OEM part for GE ranges. This component is located beneath the burners and is designed to catch spills, drips, and other cooking residues, helping to keep the stove clean and preventing potential damage to the internal components of the range. It features a double design to accommodate two burners simultaneously. This drip pan measures approximately 8 inches wide by 17 inches deep.

You should replace the double drip pan if it becomes damaged, corroded, or excessively dirty to the point where it can no longer be cleaned effectively. Causes of a bad drip pan can include exposure to high heat, spills of acidic or corrosive substances, or general wear and tear over time.

Symptoms of a bad double drip pan include:

• Visible rust or corrosion
• Holes or cracks in the pan
• Persistent residue or buildup that cannot be removed

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Double Drip Pan is an OEM part for GE ranges and stoves. It is specifically designed to sit beneath the burner elements, catching spills, drips, and crumbs that fall during cooking. This not only helps keep your stove clean but also reduces the risk of burn-on residues that can be difficult to remove and may cause smoke or odors during cooking.

Causes of a bad drip pan include accumulation of burnt food particles, rusting due to prolonged exposure to moisture, and physical damage such as warping or cracking.

Symptoms of a bad double drip pan include:

• Persistent stains and residues that are hard to clean
• Rust or corrosion that can transfer to other parts of the stove
• Inefficient heating due to uneven surfaces affecting pan stability

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: Black. Small

The Burner Cap is an OEM part for GE gas ranges. This component sits on top of the burner head, dispersing the flame evenly for optimal cooking performance and protecting the burner head from spills and debris.

You should replace the burner cap if it becomes damaged or worn out. Causes of a bad burner cap can include exposure to high temperatures, accidental drops or impacts, and buildup of food residues or cleaning chemicals that can erode the surface over time.

Symptoms of a bad burner cap include:

• Uneven flame distribution or yellow flames
• Difficulty in igniting the burner
• Visible cracks, chips, or warping on the cap
• Poor cooking performance due to inconsistent heat

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: Black. This large cap measures about 3-1/2 inches in diameter.

The Top Burner Spark Electrode is an OEM replacement part for GE brand appliances. Compatible with select GE gas ranges, this spark electrode ensures a reliable ignition for your burners. It features a white ceramic base and a metal electrode tip.

Symptoms of a bad igniter:

• Burners not lighting
• Igniter sparking erratically

The causes of a bad part can include physical damage or wear and tear over time.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Small Surface Burner is an OEM part for GE ranges and cooktops. It provides a consistent heat source for cooking, designed for use with smaller cookware, making it ideal for simmering and precise heating tasks.

You should replace the small surface burner if it becomes damaged or worn out. Causes of a bad surface burner can include regular wear and tear, spills, and exposure to high temperatures. A defective burner can lead to uneven heating or failure to ignite properly.

Symptoms of a bad Small Surface Burner include:

• The burner not igniting or taking a long time to ignite
• Uneven flame distribution
• The burner not producing heat at the expected levels

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Medium Surface Burner is an OEM part for GE ranges and cooktops. This burner is essential for a wide range of cooking tasks, from simmering sauces to sautéing vegetables. The medium surface burner ensures even heat distribution and efficient fuel consumption, contributing to the overall cooking performance of your appliance.

Causes of a bad Medium Surface Burner can range from clogged burner ports, which impede gas flow and affect flame consistency, to wear and tear on the igniter or the burner assembly that prevents proper operation.

Symptoms of a malfunctioning Medium Surface Burner include:

• Inconsistent flame size or failure to ignite
• Uneven heating or hot spots on the cookware
• Visible damage or corrosion on the burner itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Base is an OEM part for GE ranges and cooktops, designed to securely hold the burner and distribute gas evenly for cooking. This part serves as the foundation for the gas burner, ensuring a stable and consistent flame that can be adjusted for precise cooking temperatures.

Causes of a bad Burner Base can include corrosion, clogging from spilled foods or liquids, and general wear and tear over time. A damaged or deteriorated burner base can affect the flame's quality, leading to uneven cooking or, in some cases, posing a safety hazard.

Symptoms of a bad Burner Base include:

• Uneven flame or poor heat distribution
• Difficulty igniting the burner
• A yellow or orange flame instead of blue
• Gas leakage smell when the burner is on

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Electrode Clip is an OEM part for GE gas ranges. This part secures the electrode, which provides the ignition spark that lights the burners.

Causes of a bad Electrode Clip can include corrosion, physical damage from impact or mishandling, or loosening over time due to heat exposure and repeated use.

Symptoms of a bad Electrode Clip include:

• Failure of the burners or oven to ignite
• Intermittent or inconsistent ignition
• Visible damage or deterioration of the clip itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Package of 12

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold
