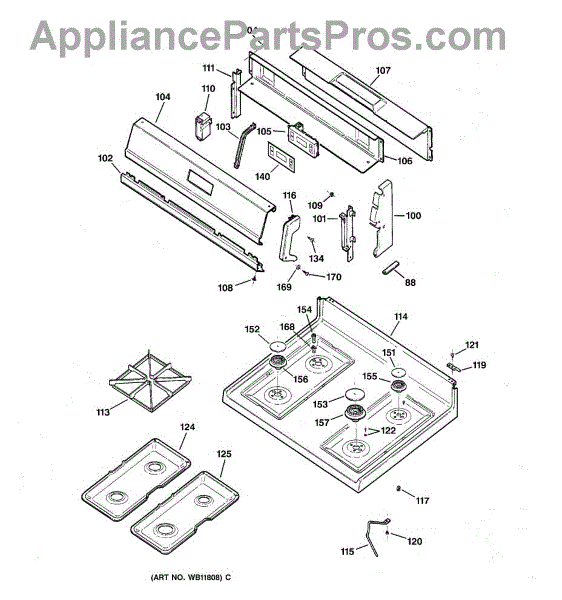

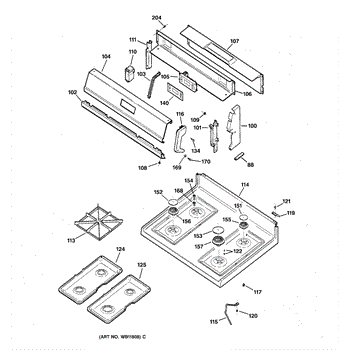

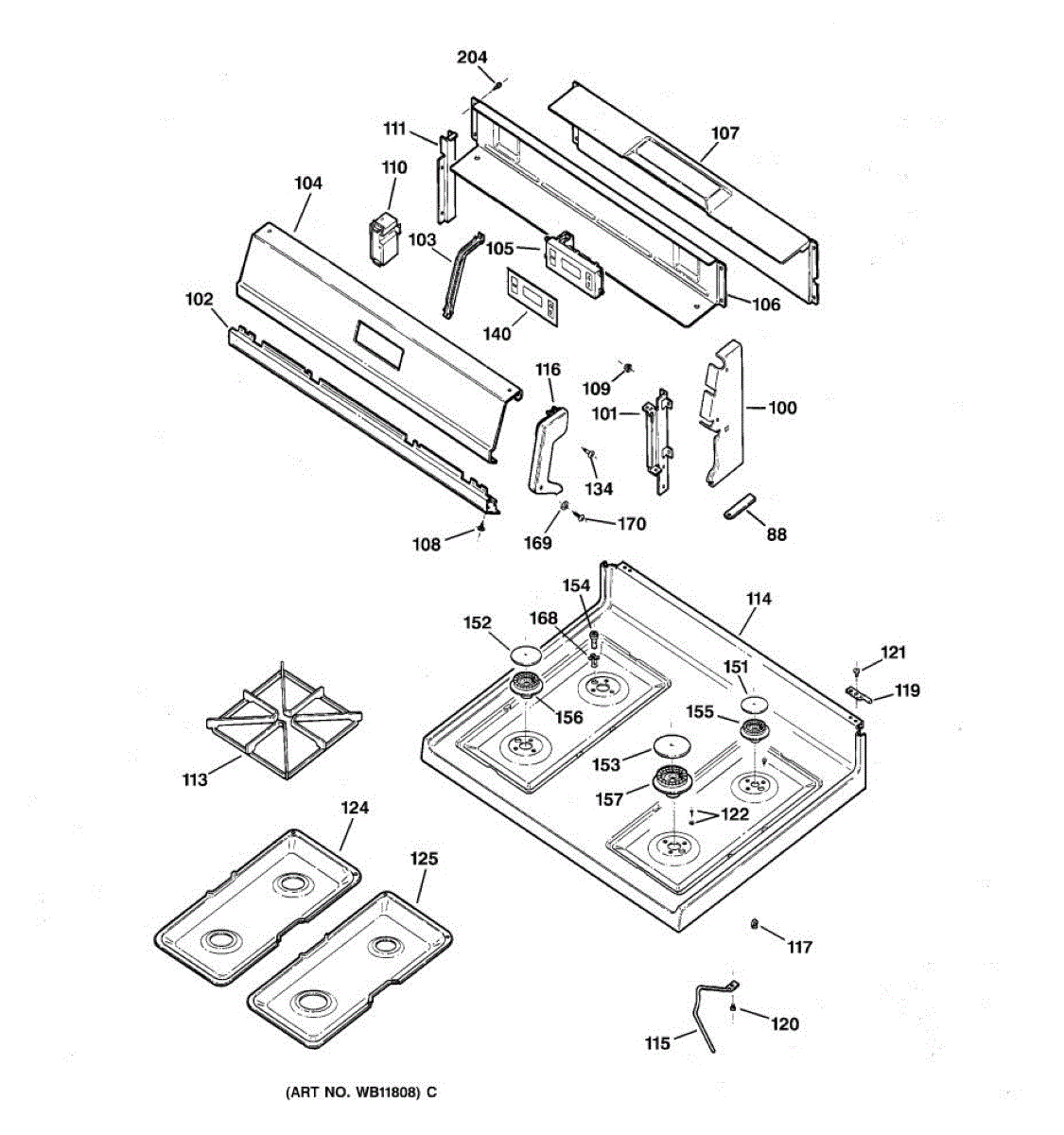

Parts for Ge JGBS23WEA1WW: 02 - Control Panel & Cooktop Parts

Replace worn felt pad gasket to prevent heat loss and reduce noise in your range. Cushions components and ensures proper sealing. Confirm fit with model number.

White plastic endcap that covers the left side of your range. Replace if cracked, discolored, broken, or missing to restore a complete appearance.

White plastic end cover for the right side of your range. Replaces cracked, broken, or discolored endcaps to restore a finished appearance.

Right-hand end plate for electric ranges. Replaces cracked, bent, or corroded exterior panel. Restores proper support and alignment to side components.

Left side end plate for electric ranges. Replaces cracked, broken, or missing end panels that provide structural support and finished appearance.

Color: White.

Range clock or timer not working? This control board restores display and cooking time functions. DIY-friendly with video guide. Fits electric and gas ranges.

Replace the upper back cover on your gas range. This housing panel protects internal components and completes the exterior finish. Order now if cracked or missing.

Color: White. Mounting screw for end caps.

Secures components to your appliance chassis for a rattle-free fit. Replace missing, stripped, or corroded screws to keep panels and brackets aligned.

Includes 12 speed nuts.

Harness connects spark module to burner igniters on gas ranges. Replace if wires are frayed, cracked, burned, or damaged to restore reliable ignition.

The Spark Module is an OEM replacement part for GE gas ranges. It is responsible for generating electric sparks to ignite the gas burners on the cooktop. The spark module produces consecutive sparks when a surface burner knob is turned on, which ignite the gas mixture and allows the burner flame to ignite safely and consistently.

Causes of a bad spark module can include faulty electrodes, worn internal components that hamper sparking, or damage due to moisture intrusion or power surges over time.

Symptoms of a bad spark module include:

• Burners that will not ignite or only intermittently ignite
• Flashback or burning above the burner head
• The smell of gas when turning burners on

This GE replacement part is also compatible with models from Hotpoint, RCA, and certain Kenmore gas ranges.

Protective wire cover for range burner igniter wires. Replaces cracked, broken, or missing covers. Shields wiring from damage inside the range cabinet.

Color: Gray

Top support plate for gas ranges. Mounts beneath the cooktop surface to provide structural reinforcement. Replace if cracked, bent, or damaged.

White plastic end cap that installs on the left side of your range control panel. Replaces cracked, yellowed, broken, or missing trim pieces.

White plastic end cap for the right side of your range. Replaces old, yellowed, cracked, or broken trim pieces. Restores a clean appearance.

Pivot pin that connects the oven door hinge to its mounting bracket. Replace if worn, broken, or missing to restore smooth door operation and alignment.

Cooktop mounting screw secures the cooktop to frame or brackets. Replace if stripped, missing, or rusty to eliminate wobble, rattling, or lifted corners.

This is a replacement 8-18 x 1.5 screw in white finish used to secure appliance panels and components. It restores proper fastening where original screws are missing, stripped, or corroded. What it does:

• Fastens trim, panels, brackets and other appliance parts that use an 8-18 thread
• Helps stop rubbing, rattling or loose panels caused by missing or damaged fasteners
• Restores proper alignment for parts that rely on secure threaded attachment
• Matches original appearance where a white finish is used

• One screw as shown

• Use the correct driver to avoid stripping the head; tighten until snug but do not overtighten
• Verify material and finish match surrounding hardware before installing in visible areas
• Disconnect power and follow appliance safety precautions when accessing internal components
• Replace any damaged mating threads or inserts for a secure fit

Replaces chipped, cracked, or missing burner cap on your gas range cooktop. This grey cap sits atop the burner base to direct and shape the flame properly.

Medium. Color: Grey. It measures about 3 inches in diameter.

Large. Color: Grey. It measures about 3-1/2 inches in diameter.

Electrode

The Medium Surface Burner is an OEM part for GE ranges and cooktops. This burner is essential for a wide range of cooking tasks, from simmering sauces to sautéing vegetables. The medium surface burner ensures even heat distribution and efficient fuel consumption, contributing to the overall cooking performance of your appliance.

Causes of a bad Medium Surface Burner can range from clogged burner ports, which impede gas flow and affect flame consistency, to wear and tear on the igniter or the burner assembly that prevents proper operation.

Symptoms of a malfunctioning Medium Surface Burner include:

• Inconsistent flame size or failure to ignite
• Uneven heating or hot spots on the cookware
• Visible damage or corrosion on the burner itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Secures the ignition electrode on gas range burners. Replace if burners won't spark, igniter clicks continuously, or clip is corroded or loose. Confirm fit with your model number.

Clear washer for range assembly and mounting applications. Replaces worn, cracked, or missing washers in your range. Essential hardware component.

Black mounting screw secures end caps on electric ranges. Replace missing, stripped, or damaged screws to properly fasten decorative end panels.

Package of 12

Replacement mounting screw secures panels, brackets, and trim on ranges and cooktops. Install to replace missing, stripped, or rusted fasteners.
