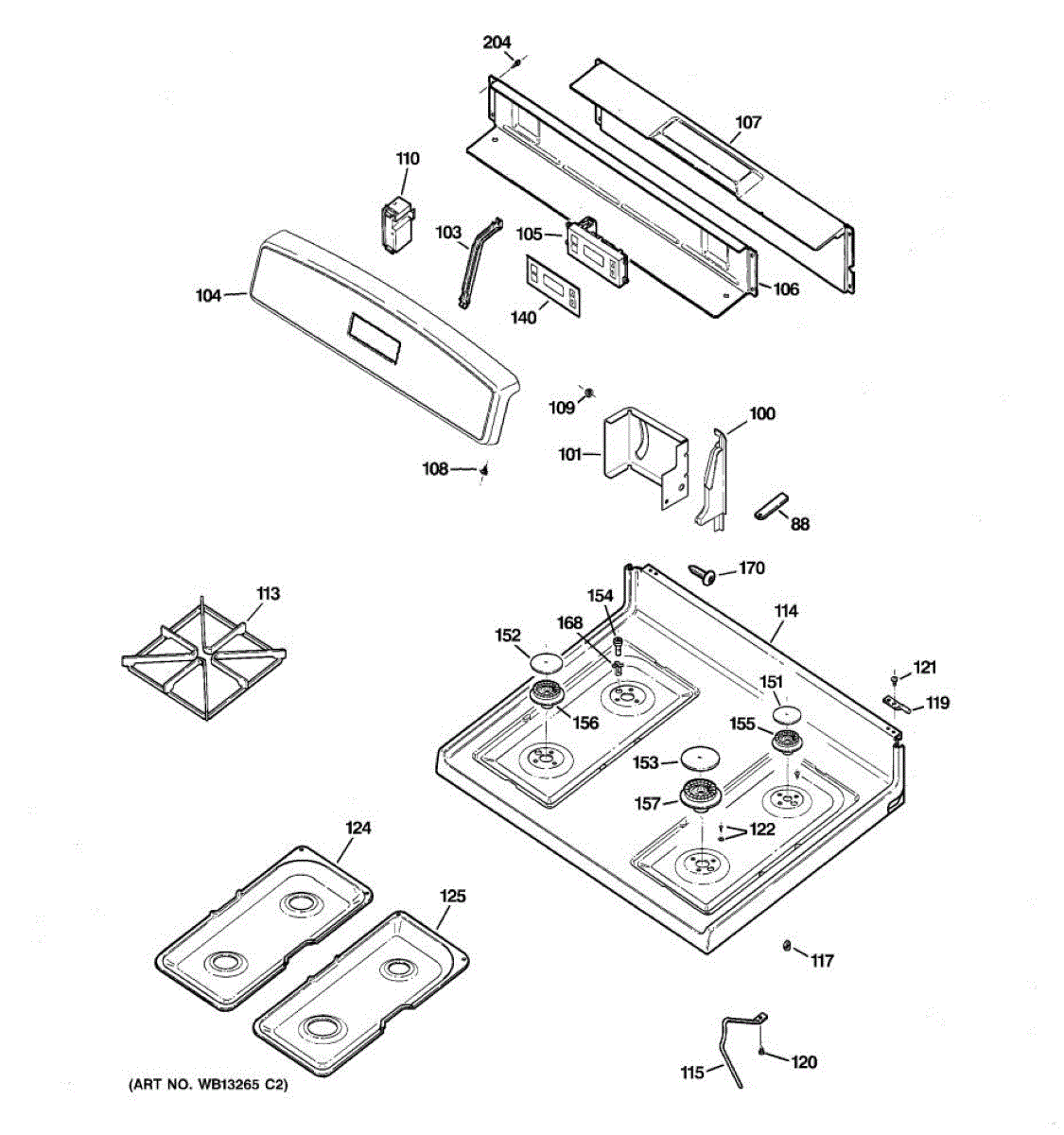

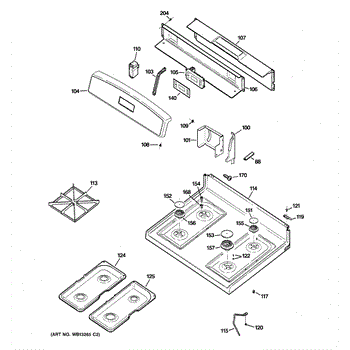

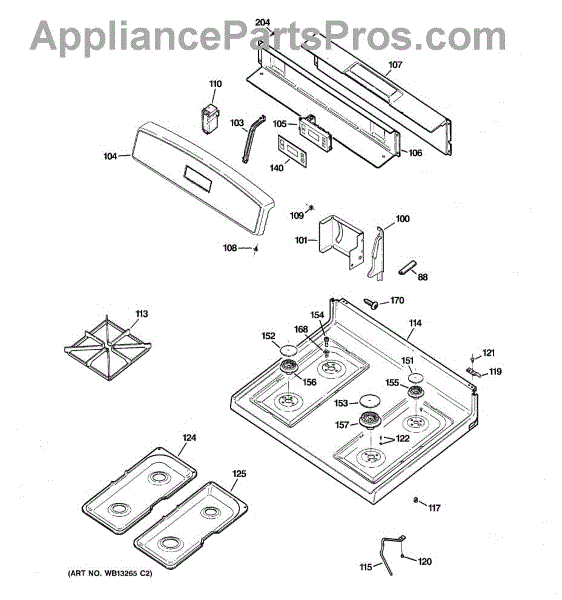

Parts for Ge JGBS24DEK1CC: 02 - Control Panel & Cooktop Parts

Color: Bisque. Right hand side.

Color: Bisque. Left hand side.

Right hand side

Left hand side

Range clock or timer not working? This control board restores display and cooking time functions. DIY-friendly with video guide. Fits electric and gas ranges.

Replace the upper back cover on your gas range. This housing panel protects internal components and completes the exterior finish. Order now if cracked or missing.

Hex washer head screw for electric ranges. Secures panels, brackets, and internal components. Replace if screw is stripped, missing, or damaged.

Secures components to your appliance chassis for a rattle-free fit. Replace missing, stripped, or corroded screws to keep panels and brackets aligned.

Includes 12 speed nuts.

Wire harness assembly for ranges. Routes power and control signals between the control board and heating elements. Replace if wires are damaged or frayed.

Harness connects spark module to burner igniters on gas ranges. Replace if wires are frayed, cracked, burned, or damaged to restore reliable ignition.

No clicking or spark when you turn burner knobs? This spark module sends high-voltage pulses to ignite gas burners. DIYers report 20-minute installs.

The Grate Replacement Kit is an OEM part for GE ranges. This kit includes all necessary grates and supports to fully outfit the main oven cavity. Properly placed grates are important for optimal food placement and heat circulation during baking.

Symptoms of needing a new grate kit include:

• Warped or misshapen grates that no longer lay flat
• Broken welds or detached grate supports
• Missing sections or grates that have completely broken apart

Causes involve the harsh temperatures and food cleanings taking their toll over years of use. Natural wear and cumulative stress weaken metal parts.

Color: Bisque

This authentic GE grate replacement kit restores like-new functionality. The heavy-duty grates and supports promote even baking and easy cleanup. Upgrading with this kit maintains your oven's quality cooking performance.


Color: Biscuit

Top support plate for gas ranges. Mounts beneath the cooktop surface to provide structural reinforcement. Replace if cracked, bent, or damaged.

Pivot pin that connects the oven door hinge to its mounting bracket. Replace if worn, broken, or missing to restore smooth door operation and alignment.

Factory screw secures brackets, panels, trim, or burner components on ranges, cooktops, and wall ovens. Replaces missing, stripped, or corroded fasteners.

Cooktop mounting screw secures the cooktop to frame or brackets. Replace if stripped, missing, or rusty to eliminate wobble, rattling, or lifted corners.

Color: Taupe. Left hand side

Color: Taupe. Right hand side

Small size. Color: Taupe, used for Bisque models. Measures about 2-1/2 inches in diameter.

Medium. Color: Taupe, used for Bisque models. It measures about 3 inches in diameter.

Black burner cap kit for gas cooktops. Replaces cracked, worn, or corroded caps. Restores appearance and protects burner assembly. Includes caps only.

This part is a spark electrode. This is a genuine OEM part made by General Electric and has been sourced directly from the manufacturer. This part is intended to replace a defective or burnt-out spark electrode on multiple different models of ovens and stoves.This spark electrode catches the stream of gas emitted from the burner alight in order to start the stove's flame. Spark electrodes are a common component on newer gas range models. Over time, this part may burn out or become damaged, which will prevent the burner flame from lighting. This part requires proper tools for replacement. Before starting, disconnect the stove completely from both power and gas hookups. Please follow appropriate safety precautions when attempting to repair any appliances. For more accurate information on how and where to install this spark electrode, the appropriate owner's manual and included diagrams should be referred to.As an authentic replacement part, this spark electrode is suitable for use on several different models of gas-powered ovens, stoves, and ranges manufactured by General Electric and Hotpoint. Please note that this is a genuine part made of high-quality, durable materials and is sold individually.

Replacement small surface burner for gas ranges and cooktops. Installs on stovetop to provide heat for smaller pots. Replace if damaged, discolored, or missing.

The Medium Surface Burner is an OEM part for GE ranges and cooktops. This burner is essential for a wide range of cooking tasks, from simmering sauces to sautéing vegetables. The medium surface burner ensures even heat distribution and efficient fuel consumption, contributing to the overall cooking performance of your appliance.

Causes of a bad Medium Surface Burner can range from clogged burner ports, which impede gas flow and affect flame consistency, to wear and tear on the igniter or the burner assembly that prevents proper operation.

Symptoms of a malfunctioning Medium Surface Burner include:

• Inconsistent flame size or failure to ignite
• Uneven heating or hot spots on the cookware
• Visible damage or corrosion on the burner itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Burner base holds and secures the gas burner assembly on your cooktop. Replace if cracked, warped, or corroded to restore proper burner seating.

Secures the ignition electrode on gas range burners. Replace if burners won't spark, igniter clicks continuously, or clip is corroded or loose. Confirm fit with your model number.

Secures components to your appliance chassis for a rattle-free fit. Replace missing, stripped, or corroded screws to keep panels and brackets aligned.

Package of 12

Replacement mounting screw secures panels, brackets, and trim on ranges and cooktops. Install to replace missing, stripped, or rusted fasteners.
