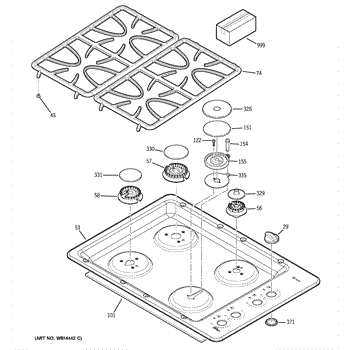

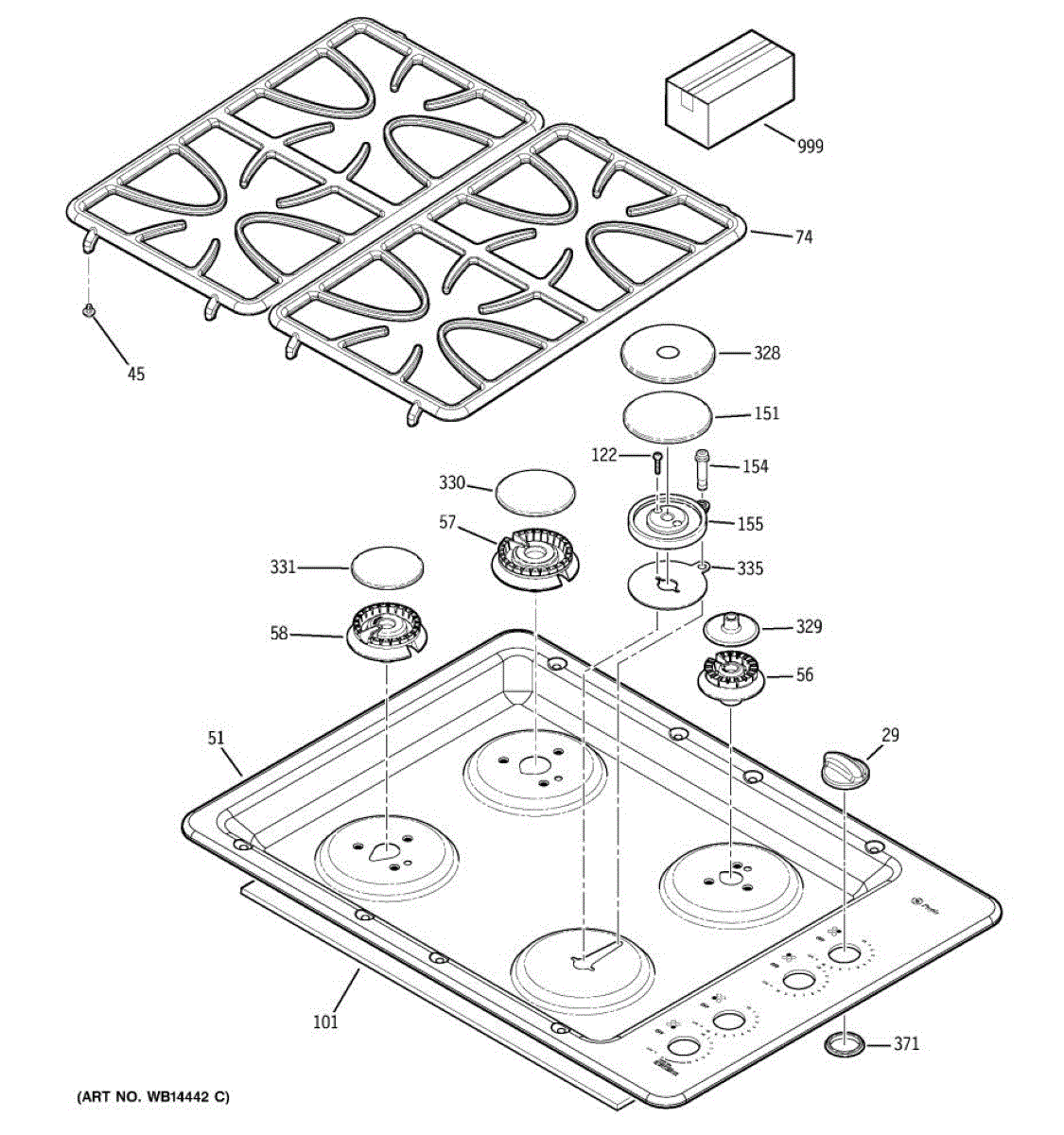

Parts for Ge JGP933CEK2CC: 01 - Control Panel & Cooktop Parts

Color: White

Color: Bisque

Color: Matte Black It measures about 2 inches in diameter.

The General Electric Range Control Knob is an OEM part for GE ranges and cooktops. This knob allows users to control the temperature and intensity of the heating elements on the range.

Symptoms of a failing Range Control Knob include:

• Difficulty in turning the knob or a lack of response when adjusting settings
• The knob becoming loose or detaching from the control panel
• Visible signs of wear such as cracking, fading, or melting
• The knob not aligning properly with the settings, leading to inaccurate temperature control

Causes of a bad control knob often involve frequent use, which can wear out the internal components or damage the attachment point, exposure to heat, or spills that can seep into the knob causing it to stick or degrade.

This knob is also compatible with other General Electric brands that include Hotpoint, RCA, and some Sears/Kenmore models.

The Grate Foot is an OEM part for GE cooking ranges and stovetops. This small but essential component provides stability to the burner grates, preventing them from sliding or wobbling during use. Includes 1 rubber foot that goes on the bottom of stove top grates to protect the stovetop if feet become damaged or lost. Sold individually. Order as needed. If you also need an adhesive, order W10841140.

Symptoms of a bad grate foot include:

• Grates that move or wobble when touched
• Scratches or damage to the stovetop surface beneath the grates
• Unstable cookware positioning, potentially leading to spills or uneven cooking

Causes of damage to the grate foot often include regular wear and tear, heat degradation, or impact from heavy pots and pans being dropped or dragged across the grate.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: White

Color: Bisque

Color: Stainless

Color: Black

The Small Surface Burner is an OEM part for GE ranges and cooktops. It provides a consistent heat source for cooking, designed for use with smaller cookware, making it ideal for simmering and precise heating tasks.

You should replace the small surface burner if it becomes damaged or worn out. Causes of a bad surface burner can include regular wear and tear, spills, and exposure to high temperatures. A defective burner can lead to uneven heating or failure to ignite properly.

Symptoms of a bad Small Surface Burner include:

• The burner not igniting or taking a long time to ignite
• Uneven flame distribution
• The burner not producing heat at the expected levels

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Medium Surface Burner is an OEM part for GE ranges and cooktops. This burner is essential for a wide range of cooking tasks, from simmering sauces to sautéing vegetables. The medium surface burner ensures even heat distribution and efficient fuel consumption, contributing to the overall cooking performance of your appliance.

Causes of a bad Medium Surface Burner can range from clogged burner ports, which impede gas flow and affect flame consistency, to wear and tear on the igniter or the burner assembly that prevents proper operation.

Symptoms of a malfunctioning Medium Surface Burner include:

• Inconsistent flame size or failure to ignite
• Uneven heating or hot spots on the cookware
• Visible damage or corrosion on the burner itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Base is an OEM part for GE ranges and cooktops, designed to securely hold the burner and distribute gas evenly for cooking. This part serves as the foundation for the gas burner, ensuring a stable and consistent flame that can be adjusted for precise cooking temperatures.

Causes of a bad Burner Base can include corrosion, clogging from spilled foods or liquids, and general wear and tear over time. A damaged or deteriorated burner base can affect the flame's quality, leading to uneven cooking or, in some cases, posing a safety hazard.

Symptoms of a bad Burner Base include:

• Uneven flame or poor heat distribution
• Difficulty igniting the burner
• A yellow or orange flame instead of blue
• Gas leakage smell when the burner is on

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This grate assembly replaces a damaged or missing cooktop grate and provides a stable, heat-resistant surface for cookware. It restores proper pan support and helps ensure even heating on gas cooktops. What it does:

• Supports pots and pans over the burner so cookware sits level and stable
• Replaces warped, cracked, or missing grates that cause instability or uneven cooking
• Protects the cooktop surface from direct flame contact and wear
• Matches OEM fit and alignment to keep burner caps and flames properly centered

• One grate assembly

• Allow the cooktop to fully cool and disconnect power/gas per appliance instructions before handling
• Lift out the old grate and set the new grate into position—no special tools typically required
• Check that burner caps are seated and that the grate does not rock or obstruct burner operation

Replacement grate assembly for gas cooktops that restores a stable, level surface for cookware. Replaces damaged or missing grates so burners can heat evenly and cookware sits securely during cooking. What it does:

• Provides a stable support surface for pots and pans over cooktop burners.
• Keeps cookware centered for more consistent heat distribution.
• Replaces cracked, chipped, warped, or missing grates that cause wobbling or instability.
• Helps prevent direct contact between cookware and burner components.

• Allow the cooktop to cool and turn off gas/power before starting any work.
• Lift old grate out and set the new grate into position; some models may require loosening/removing burner caps first.
• Handle enamel-coated or cast parts carefully to avoid chipping; avoid striking or dropping the grate.

This machine screw is an authentic OEM replacement part sourced directly from the manufacturer. It is used in securing the burner head to the gas range top so that it can be used for cooking. If the burner head becomes loose or the screw is missing, it should be replaced. For safety reasons, the burner should not be used until this screw is replaced; the burner head could shift during cooking and lead to a fire. To start, disconnect the gas and power from the stove to prevent accidental ignition of the burner. Make sure the burners are not hot. Remove the burner grate and burner cap from the burner that is missing a screw. Install the new screw in the hole and tighten it with a screwdriver. Put the burner cap and burner grate back on the stove and reconnect the gas and power. Periodic inspection of the burner heads and all associated screws and parts on the stovetop will prevent accidents and keep the stove working correctly. This screw is a silver, metal part that is sold individually. It is designed for use in gas rangetops manufactured by General Electric and Hotpoint.

This igniter lights the gas at a burner. Replacing a worn or cracked igniter restores quick, consistent ignition so your gas range or cooktop lights reliably and heats as expected without repeated tries.

• Provides the ignition source to light burner gas when heat is selected
• Supports consistent flame start-up for reliable cooking performance
• Common symptoms include: burner won't ignite, delayed or intermittent ignition, or needing to light manually
• Visual clues can include a cracked insulator or damaged igniter tip/element

• Disconnect power and shut off gas before servicing; allow the appliance to cool completely
• Access the igniter per your model; note wire routing and mounting before removal
• Transfer any reusable mounting clip/grommet from the old part to the new one
• Handle the igniter carefully and avoid touching the element/tip; ensure secure connections and test ignition before reassembly

The Top Burner Spark Electrode is an OEM replacement part for GE brand appliances. Compatible with select GE gas ranges, this spark electrode ensures a reliable ignition for your burners. It features a white ceramic base and a metal electrode tip.

Symptoms of a bad igniter:

• Burners not lighting
• Igniter sparking erratically

The causes of a bad part can include physical damage or wear and tear over time.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Approx 4 inches in diameter

Color: Grey

Color: Graphite for Stainless models.

Color: Taupe, used for Bisque models.

Color: Black. Approx 4-1/4 inches in diameter

Small size. Color: Taupe, used for Bisque models. Measures about 2-1/2 inches in diameter.

Small. Color: Grey. It measures close to 3 inches in diameter.

Color: Black. Small

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It is designed to sit atop the burner base, helping to distribute the flame evenly across the cooking surface. The cap also serves to protect the burner head from spills and debris, which can clog the gas outlets.

Symptoms of a bad Burner Cap Assembly include:

• Uneven flame distribution, which can cause uneven cooking or take longer to heat food.
• Difficulty lighting the burner, or the flame going out unexpectedly.
• Visible signs of wear like chipping, warping, or discoloration.

Causes of a bad burner cap can include accumulation of spilled foods or cleaning chemicals, which might block the gas flow, and normal wear and tear from high-temperature exposure that can alter the shape or integrity of the cap.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: Black

Large. Color: Grey. It measures about 3-1/2 inches in diameter.

Color: Black. This large cap measures about 3-1/2 inches in diameter.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It sits atop the burner head and serves to distribute the flame evenly across the surface, enhancing cooking efficiency and consistency.

Symptoms of a faulty burner cap assembly include:

• Uneven flame distribution or a yellow or orange flame.
• Difficulty igniting the burner.
• Excessive soot or unburned gas smell, indicating incomplete combustion.

The common causes of issues with the burner cap assembly include misalignment, food spillage clogging the ports, or wear and tear from regular use. These can affect the flow of gas and air, leading to inefficient combustion and poor cooking performance.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Medium. Color: Taupe, used for Bisque models. It measures about 3 inches in diameter.

Medium. Color: Grey. It measures about 3 inches in diameter.

The Burner Cap is an OEM part for GE gas ranges. This component sits on top of the burner head, dispersing the flame evenly for optimal cooking performance and protecting the burner head from spills and debris.

You should replace the burner cap if it becomes damaged or worn out. Causes of a bad burner cap can include exposure to high temperatures, accidental drops or impacts, and buildup of food residues or cleaning chemicals that can erode the surface over time.

Symptoms of a bad burner cap include:

• Uneven flame distribution or yellow flames
• Difficulty in igniting the burner
• Visible cracks, chips, or warping on the cap
• Poor cooking performance due to inconsistent heat

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It sits atop the gas burner to help distribute the flame evenly for better cooking performance. This cap is crucial for achieving precise temperature control and consistent heating, ensuring that food cooks evenly across the cookware.

Symptoms of a bad Burner Cap Assembly include:

• Uneven flame distribution, leading to uneven cooking or heating.
• Difficulty igniting the burner, or the flame going out unexpectedly.
• Visible signs of wear, such as warping, discoloration, or chipping of the burner cap.

Causes of a bad burner cap can include accumulation of food particles or cleaning products that clog the ports, physical damage from impact or dropping, or general deterioration from regular exposure to high temperatures.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Note: The part is approximately 4" in diameter.

This control knob seal fits around the control shaft opening on your range or cooktop to close the gap under the knob. It helps block spills and debris from entering the control area and keeps the console looking clean and finished.

• Forms a barrier between the knob/valve shaft and the control surface
• Helps prevent liquids, crumbs, and grease from seeping into the control cavity
• Restores a tidy appearance; replaces cracked, shrunken, or missing seals
• Typical signs of wear: visible damage, gaps around the knob, or residue appearing beneath the panel after spills

• Disconnect power and, if applicable, shut off gas; allow the appliance to cool
• Pull the knob straight off the shaft and remove the old seal
• Clean the area; seat the new seal flat around the shaft—avoid side pressure on the valve stem
• Reinstall the knob and verify smooth operation and proper seal seating

Replacement burner wire harness that restores the ignition wiring connection for a gas range surface burner, helping re-establish consistent sparking and reliable burner ignition for safe cooking operation. What it does:

• Provides the electrical connections between the burner igniter/spark electrode and the range's ignition module/control.
• Replaces damaged, cut, or frayed wiring that can cause no-spark, intermittent ignition, or continuous clicking at the burner.
• Routes and secures ignition wires to keep connections stable and reduce heat/rub-related failures.
• Helps the ignition system deliver consistent sparks so burners light reliably.

• Disconnect electrical power and shut off the gas supply before beginning any service.
• Compare the new harness to the original; transfer and reconnect terminals one-to-one and secure any routing clips or fasteners.
• Route wires away from hot surfaces and sharp edges; avoid stretching or pinching the harness.
