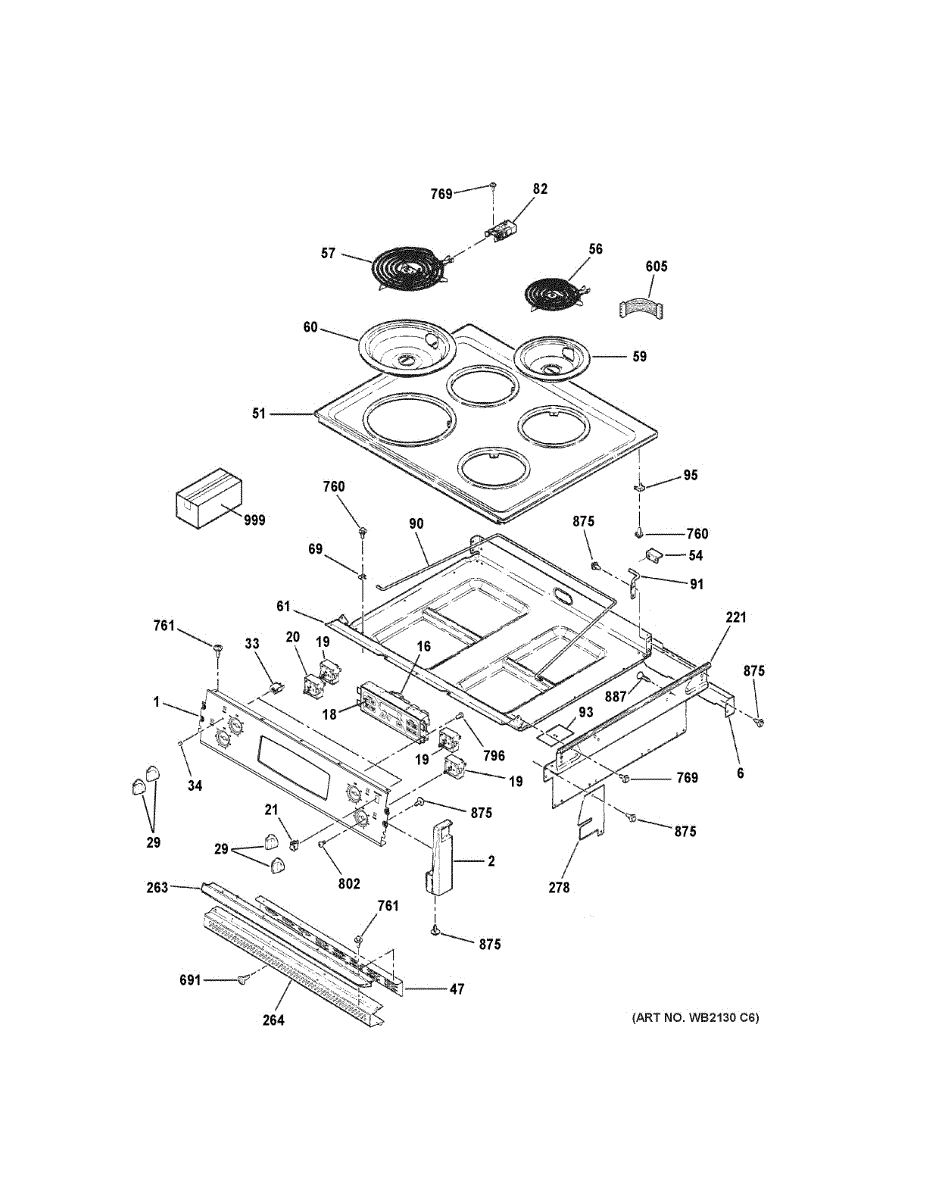

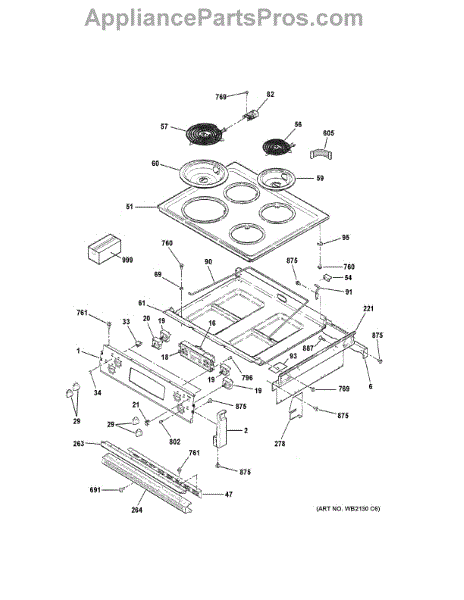

Parts for Ge JM250DF3BB: Control Panel Cooktop Parts

This black plastic endcap installs on the right side of your range. Replace if the original cap is cracked, broken, or missing to restore appearance.

Replace your range's endcap if it's cracked, broken, or missing. This trim piece installs on the control panel or edge to provide a finished look.

Back panel for electric ranges. This housing cover attaches to the rear of the unit. Replace if cracked, damaged, or missing to restore appearance.

Fix unresponsive buttons, broken timer, or non-working oven controls. This control board manages all cooking operations. DIY repair in about 1 hour.

Burner not heating or stuck on? This surface element switch controls power to your cooktop burners. Common repair when heat won't adjust properly.

Burner stuck on high or won't heat? This 8-inch infinite switch controls heat output on electric ranges. Simple 20-30 minute DIY replacement.

This is a black rocker switch used to control a function on compatible ranges/cooktops. Replacing a worn or inoperative switch restores positive on/off control and reliable operation of the connected feature.

• Controls an appliance function (such as a light or igniter circuit) with a single on/off action
• Common failure signs: switch won't stay on, no response when toggled, intermittent operation, or physical damage/discoloration
• Direct-fit replacement designed for the original switch location
• Helps restore safe, predictable control to the appliance

• Disconnect power and, if applicable, shut off gas before servicing
• Access is typically from the control panel; retain orientation of wires and note terminal positions
• Transfer wires one at a time to the new switch to avoid miswiring
• Inspect connectors for heat damage; replace damaged terminals before reassembly

Replace a cracked, broken, or missing control knob on your electric range. Pushes onto the control shaft for reliable heat adjustment and smooth operation.

Range indicator light shows when your oven is heating or in operation. Replace if the light fails to illuminate or stays on constantly. Verify fit with your model.

Indicator light lens covers and diffuses the panel light on your range or oven. Replace when cracked, discolored, or missing to restore visibility.

Safety bracket that secures your range to the wall or floor to prevent tipping. Replace if damaged, bent, or missing during appliance relocation.

The 6" Surface Burner with Sensor is an OEM part for GE ranges. This part provides precise heating for cooking on your range's stovetop. The integrated sensor helps regulate the burner temperature, ensuring even and consistent cooking results.

Common causes of a bad surface burner include electrical issues, wear and tear over time, or damage from excessive heat or spills.

Symptoms of a bad surface burner with sensor include:

• Burner not heating up
• Inconsistent or uneven heating
• Burner temperature not being properly regulated
• Error codes or malfunction indicators on the range display

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is an 8-inch coil-style surface burner element designed for electric ranges equipped with temperature-sensing technology. It plugs directly into the burner receptacle on the cooktop and provides heat for larger pots and pans. Replace this element if the burner no longer heats evenly, fails to turn on, or has visible damage such as pitting, warping, or broken coils.

Replacement 6-inch drip pan installs under small burner element on electric ranges. Replaces cracked, burnt, rusted, or worn bowls. Easy DIY install.

Replace your cracked, rusted, or stained 8-inch range drip pan. Installs under the large burner to catch spills and protect your cooktop surface.

Bottom burn box replaces the lower gas burner housing in compatible gas ovens, securing the burner assembly and helping direct heat for steady cooking while protecting internal oven components from flame and debris. What it does

• Houses and positions the lower burner assembly to ensure proper flame direction and ignition.
• Channels heat across the oven floor for more even cooking.
• Shields internal components from direct flame, food spills and debris.
• Common symptoms it can address: burner won't stay lit, irregular or uneven heating, visible corrosion or physical damage to the burner area.

• Always shut off gas supply and electrical power before inspecting or replacing gas-oven components.
• Inspect surrounding gaskets, mounting hardware and the burner assembly; replace any damaged parts.
• Follow OEM service instructions and safety guidelines specific to your oven model.

Support rod clip secures internal components in your range. Replace if loose, broken, or causing rattling noises. Verify fit with your model number.

Burner not heating or terminal block burned? This electric range terminal block kit restores power to surface elements. Easy 10-15 minute DIY repair.

Replace your damaged or broken range maintop hinge on the right side. This structural part secures the cooktop and needs replacement when cracked or worn.

Replacement main top hinge for electric ranges. Secures and supports the cooktop when lifted for access. Needed when original hinge is cracked or broken.

This trim piece covers the exterior edges of your wall oven or range. Replace yours if it's cracked, broken, or missing to restore a finished look.

Black decorative vent trim that covers the vent opening and restores a finished appearance. Replace if cracked, discolored, or missing to protect components.

This is a replacement black screw used to secure interior or exterior appliance components. It provides a discrete, color-matched fastener to restore proper fit and stop rattles or loose panels. What it does

• Fastens trim, panels, brackets or control components where a small black screw is required
• Restores secure mounting to eliminate vibration, rattling or misaligned parts
• Matches finished appliance surfaces for a clean, unobtrusive look
• Simple hardware replacement for small fastener loss or damage

• One black screw

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver to seat the screw; avoid overtightening to prevent stripping or cracking surrounding material
• Keep track of small fasteners during disassembly and handle with care
• Replace with the exact part number if the original screw is damaged or the thread/length differs

Secures the igniter to the burner assembly in gas ranges and ovens. Replace if stripped, missing, or damaged during igniter replacement or repair.

Replacement screw for securing oven components, panels, and brackets. Restores tight mounting when original screws are missing, stripped, or lost.

These GE screws are a 12-pack of OEM replacement parts responsible for securing and fastening various components and panels in a GE range or oven. These screws are designed with a hexagonal head, which allows for the use of a compatible wrench or socket for tightening. They are commonly used to attach sheet metal panels, brackets, and other parts within the appliance, ensuring that these components remain securely in place during operation.

This part fixes the following symptoms:

• Loose or wobbly parts or panels within the appliance's interior or exterior
• Panels or components falling out of place, creating gaps or exposing internal parts
• Unusual noises or rattling sounds during the appliance's operation

The GE screws can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Replacement mounting screw for securing panels, brackets, and trim on electric ranges and wall ovens. Needed when original fastener is stripped or missing.

Black. 8-18 AB HXW 3/8

This is a replacement #8-18 screw, 0.750 inches long with a nickel finish, used to secure panels and components on compatible appliances. It restores proper fastening and helps eliminate loose or rattling parts. What it does:

• Fastens appliance panels, brackets or small components where a #8-18 x 3/4" screw is required
• Replaces missing or damaged screws that cause loose panels, rattles, or misalignment
• Provides a corrosion-resistant nickel finish for longer-lasting attachment
• Matches OEM thread and length for a secure fit

• One (1) screw as shown

• Use the correct screwdriver or bit to avoid stripping the head
• Power off and unplug the appliance before accessing internal panels
• Replace only with the same size and thread to ensure proper fit; do not overtighten
