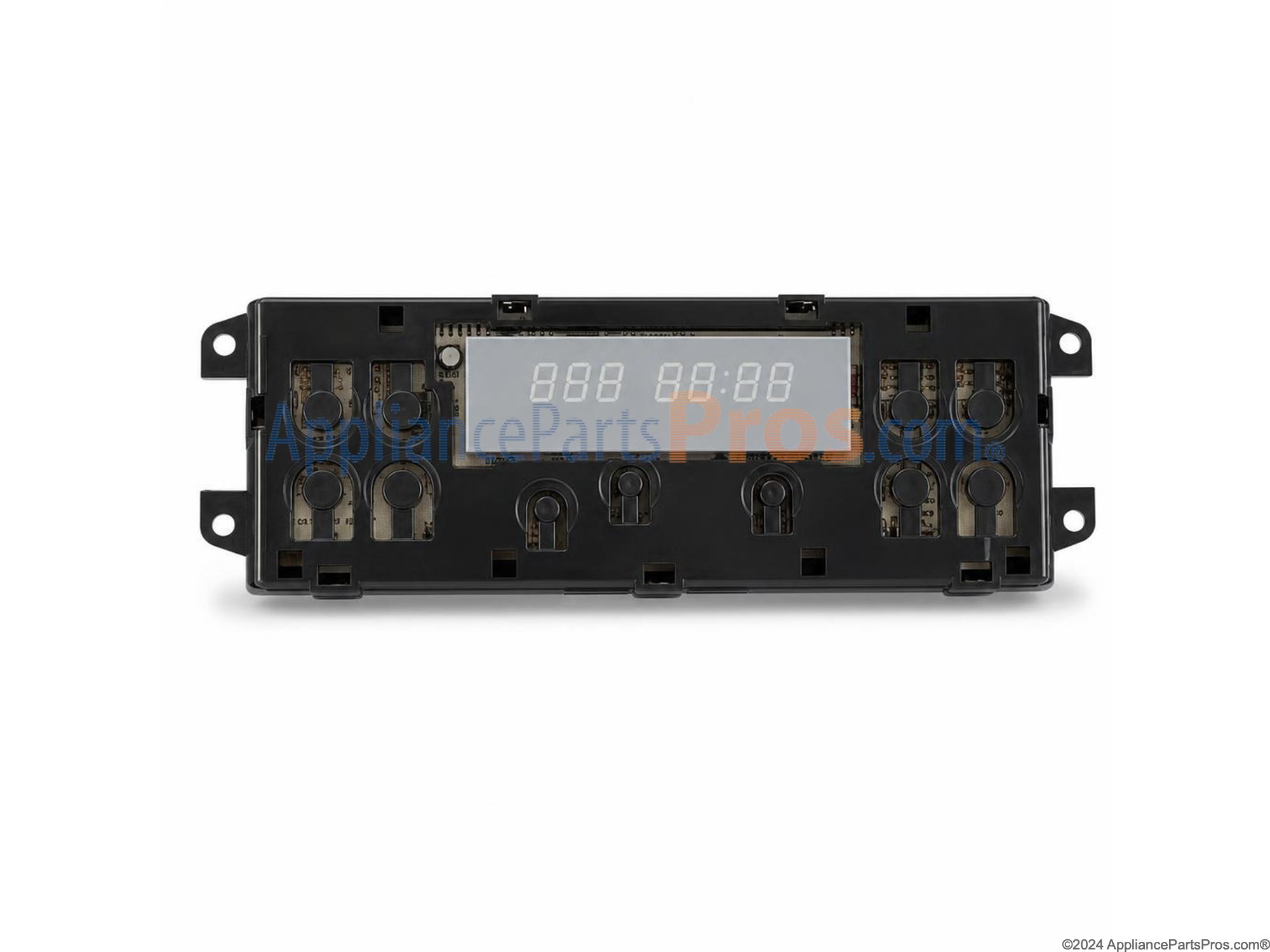

Robert F Waynesboro , VA May 09, 2021 The kitchen timer button was broken. Ordered a new Oven Control unit and an Overlay (ours was punctured in a few places -- old and brittle). Opened the stovetop and removed some screws from the front control panel area. Followed the advice from Appliance Parts Pros' video to take a photo of the locations of all the connections on the old panel before removal -- that was an instrumental step to the success of this project! The whole job took just over an hour. Now the over controls and timers work like new -- because they are! Also, a "magnet on the end of a telescoping stick" tool is an invaluable part of every toolbox. I used it several times to retrieve a dropped screw. Read More... 3 People found this story helpful Do-It-Yourself Rating: Repair Time Estimate: 1-2 hours Tools: Pliers, Screwdrivers
Michael D Mammoth Lakes , CA August 13, 2020 Appliance: Model JMP31W0C2WW Right part just in time Repair time 30mins. Turn circuit off. Remove burners, Remove 6 screws. Pull face-off. Check oven internal breaker (red button) Power unit back on to make sure it's not the breaker. Take picture of the wiring. Remove Old and Put back together. Additional Part of FACE PLATE is recommended. If you rely on fixing your appliances to continue nightly rental revenue flow, you count on shipping speed and accuracy. Appliancepartspros.com has not yet let me down on multiple orders. Thank You!! Read More... Do-It-Yourself Rating: Repair Time Estimate: 15-30 minutes Tools: Pliers, Screwdrivers
Chris B Eugene , OR March 08, 2021 Oven "start" button didn't work. Replaced the oven control. I was able to salvage the faceplate piece, although it was in pretty rough shape so it may have been a good idea to purchase a new one of those as well. Although the control had color-coded dots to match the wires, the wires were faded over time, so I labeled each with a numbered piece of tape, and also numbered the corresponding connection point on the old panel, and then used the old panel as a guide when reconnecting the wires to the new panel. Read More... Do-It-Yourself Rating: Repair Time Estimate: 30-60 minutes Tools: Pliers, Screwdrivers

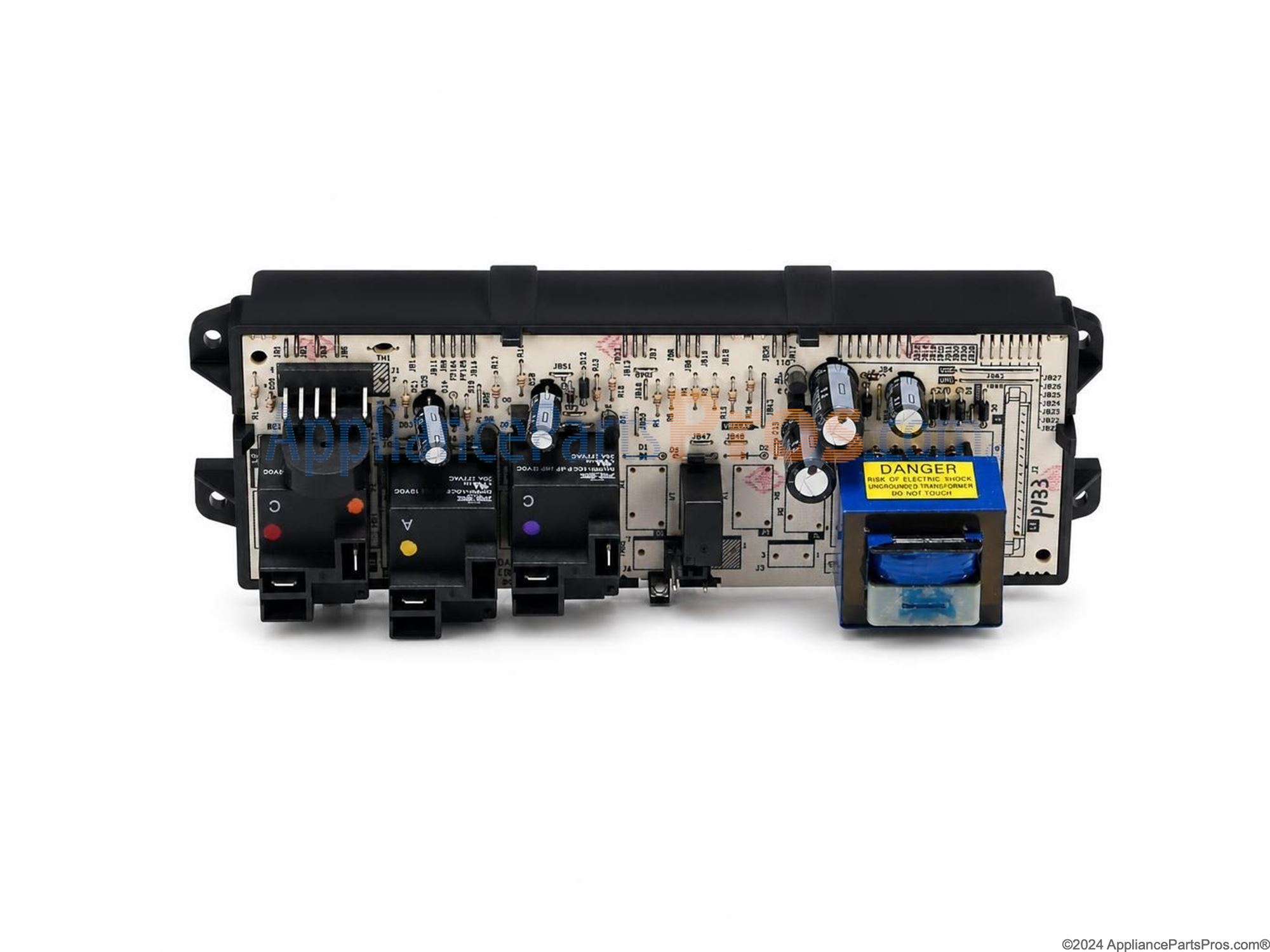

Tim L Inman , SC April 06, 2024 Clock/control didn’t work Replaced the oven control board. Read More... Do-It-Yourself Rating: Repair Time Estimate: 15-30 minutes Tools: Pliers, Screwdrivers, Socket Set
Dale B Louisville , KY April 09, 2024 Oven control fried when baking element shorted out. Replaced the element and oven control. Read More... Do-It-Yourself Rating: Repair Time Estimate: Less than 15 minutes Tools: Nut Drivers, Screwdrivers
