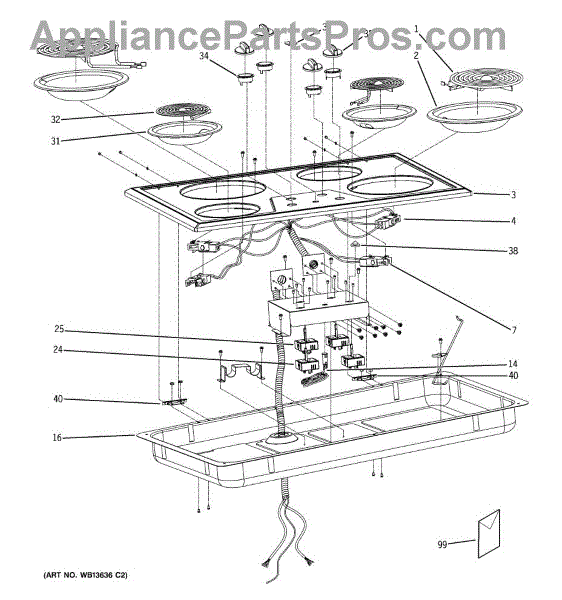

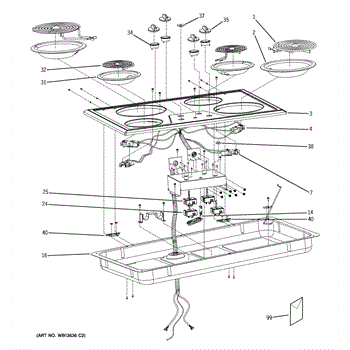

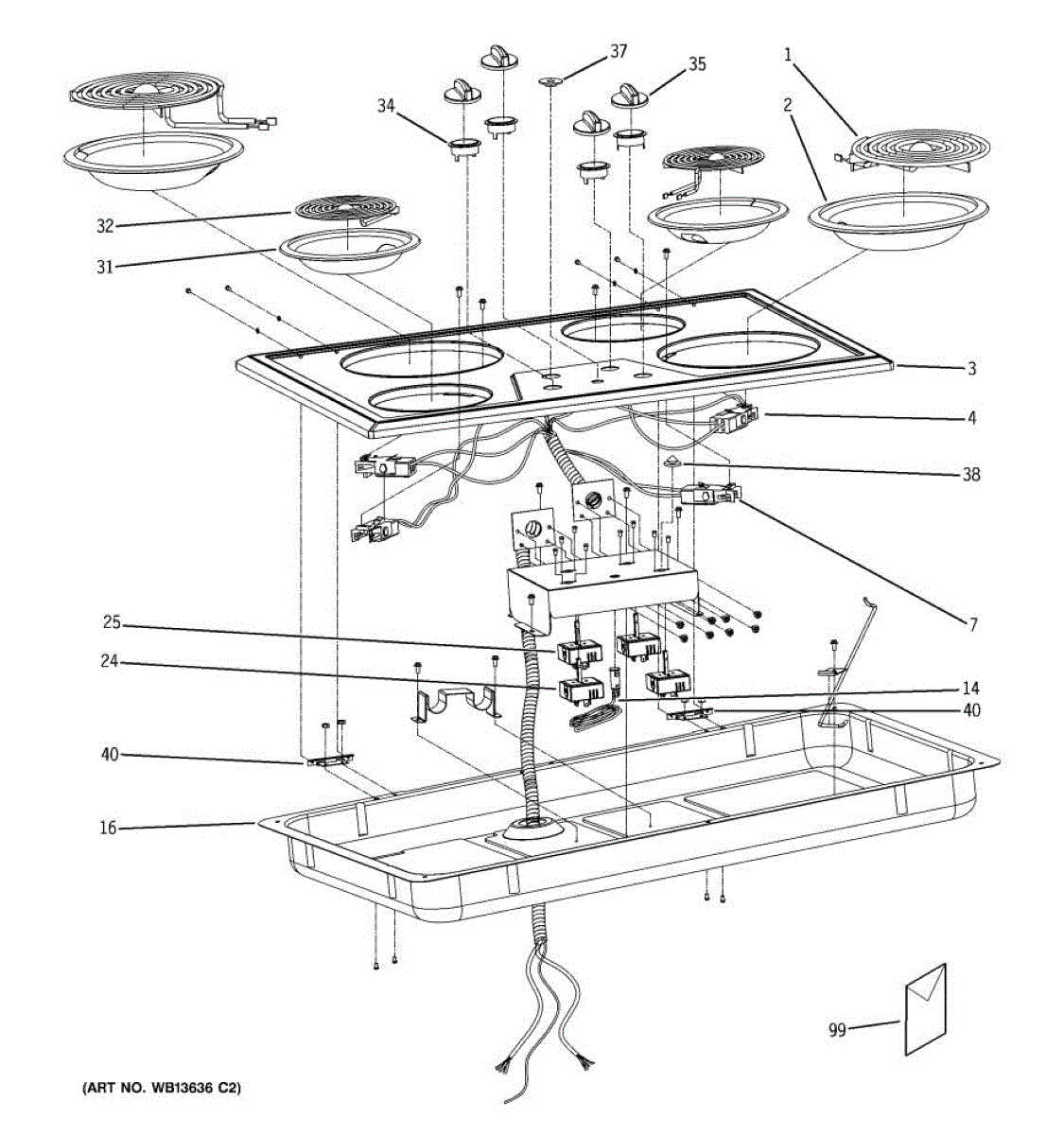

Parts for Ge JP328BK2BB: 01 - Control Panel & Cooktop Parts

The 8 Inch Large Surface Element is an OEM part for GE ranges and cooktops. This heating element is used on the cooktop to provide a consistent heat source for cooking. It fits into the designated spot on the stove and connects to the electrical system, allowing users to control the temperature for various cooking needs.

Causes of a bad surface element can include wear and tear from frequent use, electrical malfunctions, or damage from spills and food debris. Overheating or accidental impacts can also impair its functionality.

Symptoms of a bad 8 Inch Large Surface Element include:

• The element not heating up
• Uneven heating or hot spots on the element
• Sparks or electrical noises when the element is in use
• Visible damage or burns on the element

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The 8 Inch Large Burner Bowl is an OEM replacement part for GE ranges and cooktops. This component is designed to accommodate the larger burners on the cooking surface, providing a stable and safe platform for pots and pans during cooking.

Symptoms of needing to replace the 8 inch large burner bowl include:

• Cracks, chips, or damage to the bowl's surface
• Warping or deformation due to excessive heat
• Difficulty in properly positioning pots and pans on the burner

Causes of a faulty burner bowl can include normal wear and tear over time, exposure to extreme temperatures or thermal shocks, or physical damage due to impact or mishandling.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore range and cooktop models.

This replacement main top is the outer cooktop surface for a 30" range, restoring a clean, finished appearance and proper support for burners and controls. Ideal when the top is dented, rusted, or cosmetically damaged. What it does:

• Replaces the oven/range outer top panel to cover and protect internal components
• Restores a flat, stable surface for burner elements and grates
• Helps stop drafts, heat loss, and debris entry from a damaged top
• Improves appliance appearance when the original top is scratched, dented, or corroded

• One main top (30" white) as shown

• Disconnect power (and gas if applicable) before starting any work
• Remove burner grates, elements, and control knobs as needed to access mounting screws
• Keep fasteners and touch-up paint for cosmetic match on replacement

Control-panel indicator light that signals power or heating status on select ranges and ovens. Replaces a failed or cracked panel lamp to restore visible status feedback from the appliance. What it does:

• Illuminates to show power, element or status indications on the appliance control panel.
• Replaces a burnt-out or dim indicator so you can see when functions are active.
• Common symptoms this part fixes: no indicator light, flickering/dim illumination, or a cracked/ cloudy lens.
• Matches the original panel lamp form and mounting for a direct replacement.

• Disconnect power to the appliance (unplug or shut off the breaker) before beginning any service.
• Allow surfaces to cool completely before removing the control panel or handling the lamp.
• Follow the appliance disassembly steps in the service manual; avoid forcing connectors or wiring.

The Infinite Switch is an OEM part for GE electric ranges. It regulates precise temperature settings for the bake and surface elements.  This is specifically for 6" inch elements.

Symptoms of a bad infinite switch include:

• Wide variations in cooking temperatures
• Failure to attain or maintain desired heat levels
• Non-working or faulty temperature selector dial

Causes can involve degraded metal contacts, worn internal components, or damaged wiring connections after extended use.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore electric range models.

The Infinite Switch is an OEM part for GE ranges and cooktops, this part controls the temperature of the surface burners. This switch allows for precise adjustments of the heat level, providing infinite control between low and high settings. By turning the dial, users can select the desired temperature, enabling the switch to regulate the power supplied to the burner.

Causes of these issues can stem from electrical problems within the switch, such as worn contacts or internal short circuits. Physical damage to the switch or aging components can also lead to malfunctioning.

Symptoms of a bad Infinite Switch include:

• Burners not heating to the set level, or not heating at all
• The burner temperature cannot be adjusted
• Unpredictable temperature fluctuations

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The 6 Inch Small Burner Bowl is an OEM part for GE stoves and ranges. It is a durable and heat-resistant bowl that sits beneath the heating element of the small burner, providing a stable and level surface for your cookware. The small burner bowl helps distribute heat evenly and protects the cooktop from spills, stains, and other messes. For the matching 8-inch large burner bowl order WB31T10011.

A bad small burner bowl can be caused by regular use, accidental damage, or it may become discolored, warped, or rusted over time.

Symptoms of a bad small burner bowl include:

• Difficulty in cleaning or removing stubborn stains.
• A loose or wobbly heating element.
• Visible damage such as cracks or chips on the bowl.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The 6-Inch Small Surface Element is an OEM part for GE cooktops and ranges. It is designed to provide consistent and reliable heat for cooking on the stovetop. This heating element fits into the designated slot on the cooktop and is used for preparing smaller dishes or for simmering.

You should replace the surface element if it becomes faulty. Causes of a bad surface element can include wear and tear from regular use, electrical issues, or damage from overheating. A malfunctioning surface element can lead to uneven cooking, insufficient heat, or the element not heating up at all.

Symptoms of a bad 6-inch small surface element include:

• The element not heating up or only heating intermittently
• Visible damage such as burn marks or deformation
• Uneven heating or hotspots on cookware
• The element not fitting securely into its slot

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Matching 8-inch surface element - WB30M2; terminal block - WB17X5113

Color: black. Measures about 2 inches in diameter.

This surface burner infinite control knob restores smooth on/off and heat-level selection for your range or cooktop. Replace a broken or missing knob to securely turn the burner and adjust temperature with the original look and fit.

• Couples to the surface-burner infinite switch shaft to control power and heat level
• Replaces cracked, stripped, wobbly, or missing knobs that won't turn the switch or adjust heat
• Restores positive, precise turning feel for everyday cooking control

• Disconnect power at the breaker and allow all surfaces to cool
• Pull the old knob straight off the control shaft
• Align the new knob with the shaft and press straight on until fully seated
• Rotate through Off to High to confirm proper engagement

This indicator light cover is the protective lens for the status light on a range or cooktop. It shields the opening and diffuses the light so on/hot indications stay visible while helping keep dust and moisture out.

• Protects the indicator opening and retains the light assembly in the control panel
• Diffuses the light for clear on/hot visibility
• Restores a finished look and helps keep debris and moisture out of the panel
• Replace if the lens is cracked, discolored, loose, or missing

• Disconnect power to the appliance before servicing
• Access the control panel, release the old cover's retaining tabs, and remove
• Seat the new cover fully so tabs engage; transfer any clip/gasket from the original if present
• Restore power and verify the indicator light is clearly visible and the cover is secure

The Inner Gasket is an OEM replacement part for GE ovens and ranges. It serves as a seal between the oven door and the main body, helping to maintain proper temperature control by preventing heat loss during operation. This ensures consistent cooking results and efficient energy use.

A faulty inner gasket can be caused by wear and tear over time, exposure to high temperatures, or damage from cleaning agents or utensils. These factors may lead to a compromised seal, reducing the oven's ability to retain heat effectively.

Symptoms of a bad inner gasket include:

• Heat escaping from the oven during use
• Uneven cooking or baking results
• Increased energy usage
• Visible cracks or tears in the gasket

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
