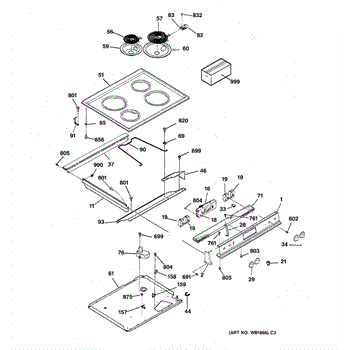

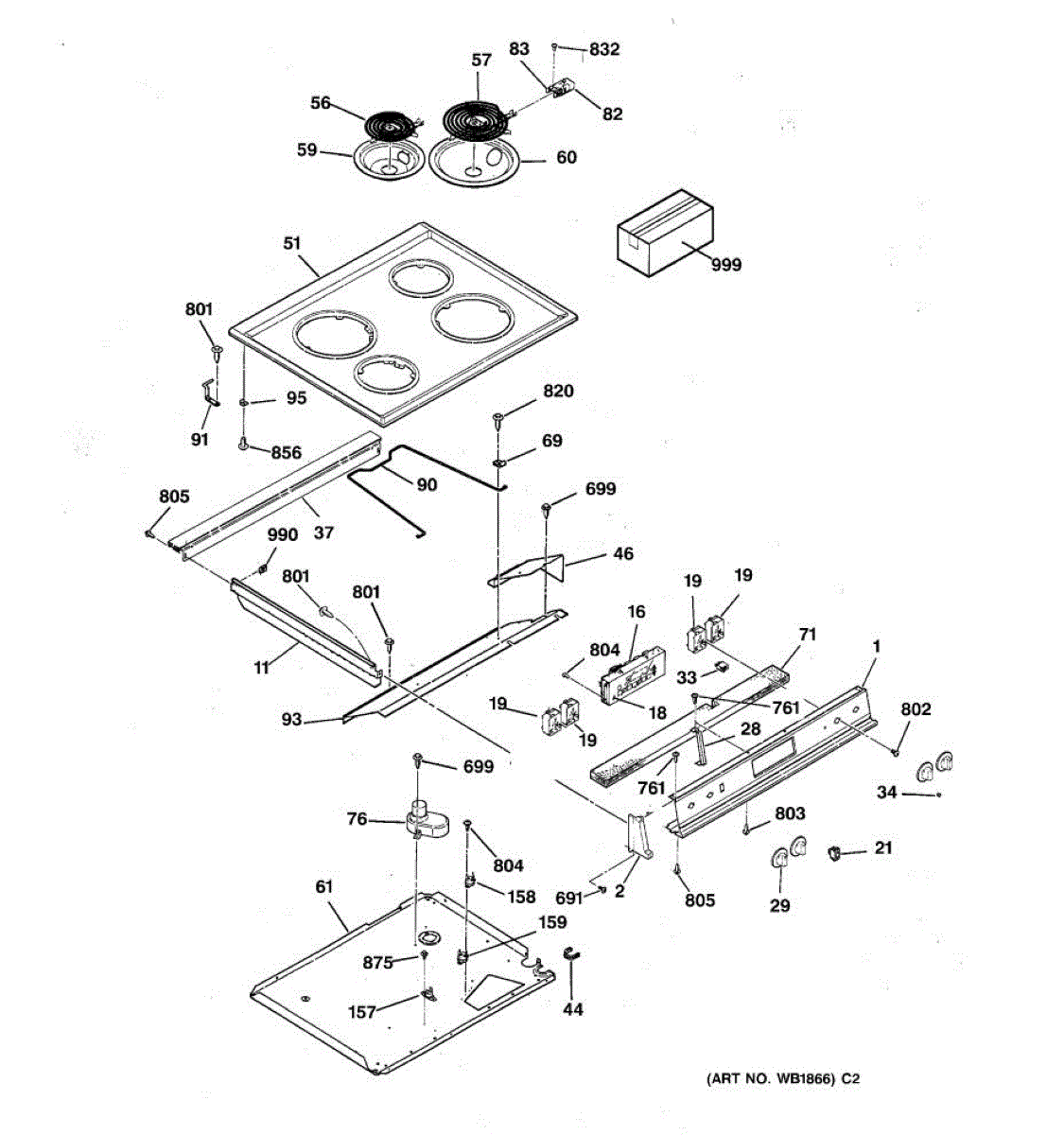

Parts for Ge JSP28GV1BB: 01 - Control Panel & Cooktop Parts

6" element switch

The Infinite Switch is an OEM replacement part for GE ranges. This switch controls the operation of the large heating elements on the cooktop. The element switch is responsible for regulating power delivery to the various heating elements based on temperature and function settings. It allows for precise heating control to maintain optimal cooking temperatures. Over time, element switches can wear down from repeated use and heat exposure.

Causes of a bad switch include burned-out or loose internal connections, damaged terminals, or defects in the electronic components.

Symptoms of a bad element switch include:

• Inability to turn elements on or off
• Elements not heating properly or unexpectedly shutting off
• Inconsistent or fluctuating oven or surface temperatures
• Electronic display or control issues

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: Black

This replacement knob fits the surface element control on your range or cooktop. It restores a secure grip and clear pointer so you can smoothly turn the control from Off to the desired heat level.

• Engages the infinite switch shaft to turn a surface element on/off and adjust heat
• Provides a clear indicator for temperature/setting selection
• Helps resolve issues like a cracked, stripped, loose, wobbly, or missing knob
• Refreshes the appliance's appearance with a matching black finish

• Disconnect power and allow all elements to cool before servicing.
• Pull the old knob straight off the control shaft.
• Align the new knob with the shaft and press straight on until fully seated; verify the pointer is at Off.
• If the knob doesn't seat easily, check the shaft for burrs/debris—don't force or twist.

A light indicator is installed on ranges and wall ovens as a safety feature. The purpose of the light indicator is to tell the user when the appliance is in operation. When the unit is heating up or running, the light indicator will illuminate. A replacement part is necessary if the component is no longer functioning.A visual inspection will determine if the light indicator is working. Turn the oven on, and if the light doesn't glow, it's broken. Replacing the light indicator is a quick and easy process. Unplug the range from its power source before starting. An adjustable wrench or nut driver is required to make the replacement. The light indicator is located inside the cover plate of the appliance.This light indicator is an authentic OEM replacement part. It is sold as an individual unit. It comes sourced directly from the manufacturer. The light indicator is made of durable, high-quality materials. The component is compatible with several models of ranges. It fits into products produced by General Electric, RCA, and Hotpoint.

This part is the lens for a small appliance light on select GE cooking products. It covers and diffuses the lamp, protecting the opening and restoring a clean, finished appearance so status illumination is easy to see.

• Covers and diffuses a panel/indicator light so it's visible without glare
• Helps shield the lamp cavity from grease, moisture, and debris
• Restores proper appearance if the original lens is cracked, missing, or discolored
• Common symptoms: missing or broken lens, cloudy/yellowed lens, exposed indicator lamp

• Disconnect power to the appliance before servicing
• Access the lens from the rear of the panel or mounting area; release retaining tabs or hardware
• Seat the new lens fully and align any tabs before securing
• Restore power and verify the indicator light shines through clearly

The 6-Inch Small Surface Element is an OEM part for GE cooktops and ranges. It is designed to provide consistent and reliable heat for cooking on the stovetop. This heating element fits into the designated slot on the cooktop and is used for preparing smaller dishes or for simmering.

You should replace the surface element if it becomes faulty. Causes of a bad surface element can include wear and tear from regular use, electrical issues, or damage from overheating. A malfunctioning surface element can lead to uneven cooking, insufficient heat, or the element not heating up at all.

Symptoms of a bad 6-inch small surface element include:

• The element not heating up or only heating intermittently
• Visible damage such as burn marks or deformation
• Uneven heating or hotspots on cookware
• The element not fitting securely into its slot

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Matching 8-inch surface element - WB30M2; terminal block - WB17X5113

The 8 Inch Large Surface Element is an OEM part for GE ranges and cooktops. This heating element is used on the cooktop to provide a consistent heat source for cooking. It fits into the designated spot on the stove and connects to the electrical system, allowing users to control the temperature for various cooking needs.

Causes of a bad surface element can include wear and tear from frequent use, electrical malfunctions, or damage from spills and food debris. Overheating or accidental impacts can also impair its functionality.

Symptoms of a bad 8 Inch Large Surface Element include:

• The element not heating up
• Uneven heating or hot spots on the element
• Sparks or electrical noises when the element is in use
• Visible damage or burns on the element

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The 6 Inch Burner Bowl is an OEM part for GE electric ranges and stovetops. Designed to fit beneath the 6-inch electric coil elements, this burner bowl serves as a catchment for spills, drips, and crumbs that occur during cooking. Not only does it help keep the cooktop area clean, but it also reflects heat back to the cookware, improving cooking efficiency.

Causes for replacement often include accumulated spills and high heat exposure over time, leading to aesthetic wear and tear or functional degradation.

Symptoms of a bad 6 Inch Burner Bowl include:

• Rusting or corrosion that can affect the reflectivity and heat distribution
• Deep scratches or dents that may harbor bacteria and debris
• Discoloration or stubborn stains that can't be removed, affecting the appearance of your cooktop

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The 8 Inch Burner Bowl is an OEM part for GE ranges and cooktops. Designed to fit beneath the burner element, this part reflects heat back onto the cookware for efficient cooking and catches spills and drips to keep the cooktop clean. Made from durable materials, the burner bowl is easy to remove and clean.

Causes of a bad burner bowl include excessive heat exposure leading to discoloration or warping, accumulation of spills and debris that can corrode or damage the bowl, and physical damage such as dents or cracks.

Symptoms of a bad 8 Inch Burner Bowl include:

• Noticeable discoloration or warping from heat exposure.
• Rust or corrosion caused by accumulated moisture and debris.
• Difficulty fitting the bowl properly due to physical damage.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Porcelain. Color: black. It measures about 10 inches in diameter at its widest point at the top.

The Range Terminal Block Kit is an OEM replacement part for GE electric ranges. It contains screw terminals that connect internal wiring throughout the range. The terminal block facilitates safe and reliable power transfer between critical components such as the control panel, heating elements, timers, and temperature sensors.

Causes of a faulty terminal block can include normal wear over time loosening wire connections, water exposure leading to corrosion, or physical damage from force or impact.

Symptoms of a bad terminal block include:

• Intermittent or complete failure of bake, broil, or surface heating elements
• Fault codes or error messages related to electrical malfunctions
• Loose, frayed, or broken wire connections inside the range
• Components like the control panel or timers not operating correctly

This OEM GE part also fits Hotpoint, RCA, and Kenmore electric ranges.

Lower back

This is a replacement trim screw used to secure exterior trim pieces and panels on compatible appliances. It restores proper fit and prevents loose or rattling trim for a finished appearance. What it does:

• Secures appliance trim, bezels, and small panels to the cabinet or frame
• Stops trim from shifting, vibrating, or falling loose during operation
• Matches the original size and finish for a discreet, finished look
• Used where a 10-16 thread size and 3/4" length are specified

• Use the correct screwdriver or bit to avoid stripping the head
• Do not overtighten; snug until trim is secure to prevent thread damage
• For appliances with electrical or gas connections, disconnect power or gas supply before servicing
• If screws are corroded or stripped, replace matching mating hardware as needed

ST10-16 X 7/16"

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

ST10-16 X 7/16"

ST10-16 X 7/16"

This replacement screw secures appliance panels and components to restore proper fit and prevent rattling or movement. Use it to replace a missing or stripped fastener for a snug, durable connection. What it does:

• Secures trim, panels, brackets, or internal components in place
• Restores proper alignment and reduces vibration or noise
• Replaces missing, worn, or damaged screws that cause loose parts
• Compatible with the original mounting point and fastening method

• Turn off power and unplug the appliance before starting any repair
• Use the correct driver to avoid stripping the head; match thread engagement fully
• If threads are damaged, inspect the mating part and replace or repair as needed

Package of 12

Nickel

The Igniter Mounting Screw is an OEM replacement part for GE ovens and ranges. This screw secures the igniter to the burner assembly, ensuring it remains firmly in place for consistent and reliable ignition. Its precise fit and durable design help maintain the stability and functionality of the igniter.

Over time, mounting screws can become corroded, stripped, or lost during repairs or maintenance. A missing or damaged screw may result in a loose igniter, affecting the appliance's ability to ignite properly.

Symptoms of a bad or missing igniter mounting screw include:

• The igniter becoming loose or misaligned

• Difficulty securing the igniter during installation or repair
• The burner fails to ignite reliably or consistently
• Increased noise or movement of the igniter during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Black. 8-18 AB HXW 3/8

This flat washer (.250 inch inner diameter x .812 inch outer diameter) is a simple replacement part that helps distribute load from a fastener and protects mating surfaces for reliable appliance operation. What it does:

• Provides a stable bearing surface for screws, bolts or studs to reduce wear on parts
• Helps distribute clamping force to prevent pull-through or deformation of softer materials
• Reduces vibration and movement at the joint when installed correctly
• Missing or damaged washers can lead to loose fasteners, increased vibration or component misalignment

• Disconnect power and water before servicing the appliance
• Replace like-for-like: inner/outer diameters and thickness match the original washer
• Inspect mating hardware and surfaces for damage; replace corroded or deformed fasteners as needed
• Tighten fasteners evenly and avoid over-torquing to prevent washer or component damage
