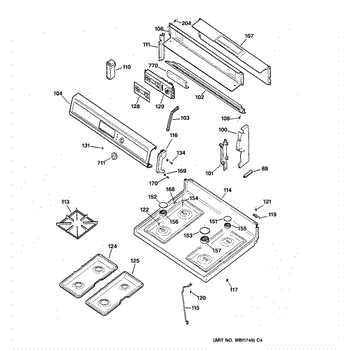

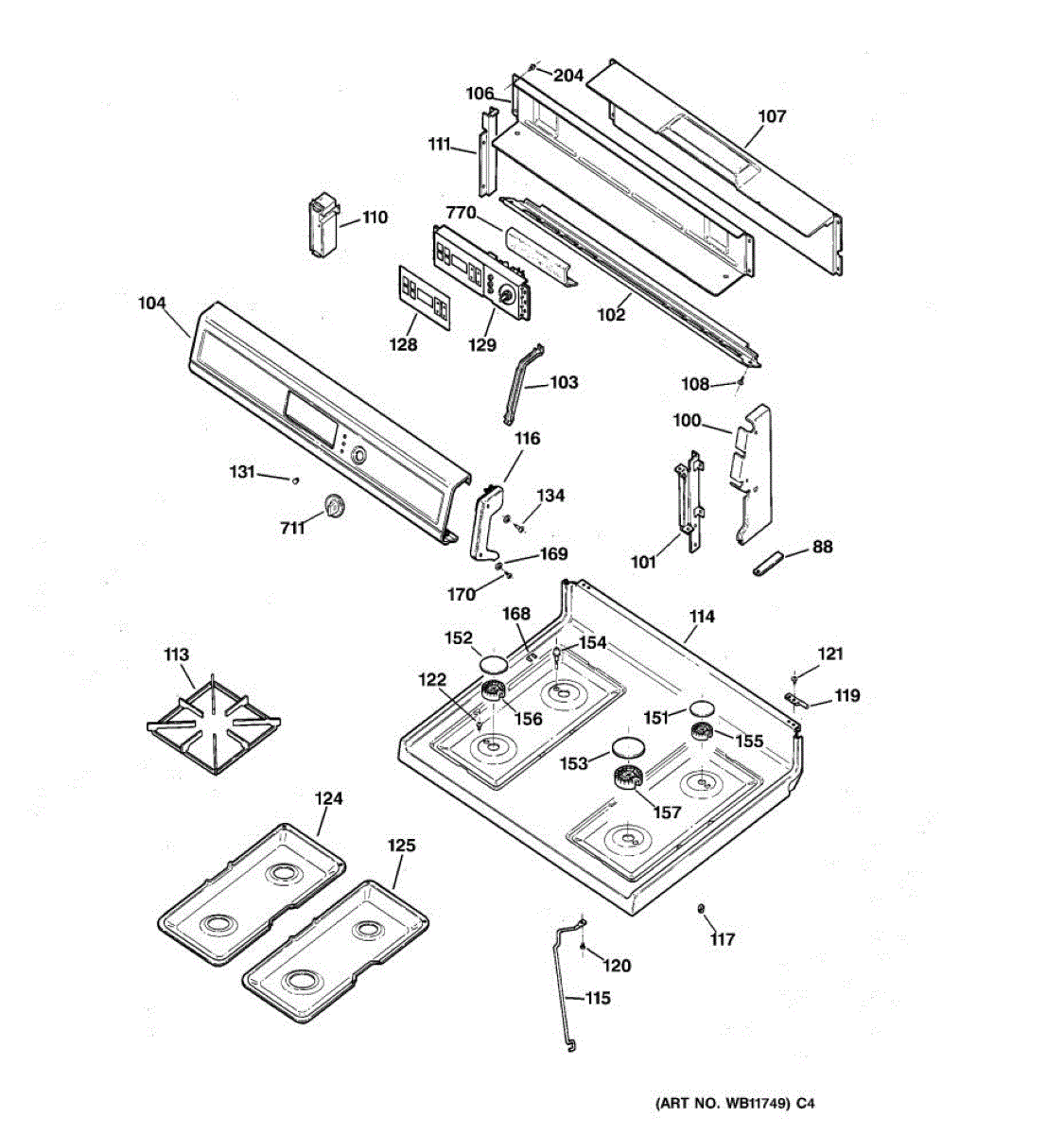

Parts for Ge LGB356WEA1WW: 02 - Control Panel & Cooktop Parts

Replace worn felt pad gasket to prevent heat loss and reduce noise in your range. Cushions components and ensures proper sealing. Confirm fit with model number.

White left-side end cap cover for range control panels. Replaces cracked, broken, or missing endcaps. Installs at the left edge of the console.

Right-hand end plate for electric ranges. Replaces cracked, bent, or corroded exterior panel. Restores proper support and alignment to side components.

Left side end plate for electric ranges. Replaces cracked, broken, or missing end panels that provide structural support and finished appearance.

Replace the upper back cover on your gas range. This housing panel protects internal components and completes the exterior finish. Order now if cracked or missing.

Secures components to your appliance chassis for a rattle-free fit. Replace missing, stripped, or corroded screws to keep panels and brackets aligned.

The Spark Module is an OEM replacement part for GE gas ranges. It is responsible for generating electric sparks to ignite the gas burners on the cooktop. The spark module produces consecutive sparks when a surface burner knob is turned on, which ignite the gas mixture and allows the burner flame to ignite safely and consistently.

Causes of a bad spark module can include faulty electrodes, worn internal components that hamper sparking, or damage due to moisture intrusion or power surges over time.

Symptoms of a bad spark module include:

• Burners that will not ignite or only intermittently ignite
• Flashback or burning above the burner head
• The smell of gas when turning burners on

This GE replacement part is also compatible with models from Hotpoint, RCA, and certain Kenmore gas ranges.

Protective wire cover for range burner igniter wires. Replaces cracked, broken, or missing covers. Shields wiring from damage inside the range cabinet.

Color: Gray. It measures about 8-1/2 inches wide by 9 inches deep.

Top support plate for gas ranges. Mounts beneath the cooktop surface to provide structural reinforcement. Replace if cracked, bent, or damaged.

Pivot pin that connects the oven door hinge to its mounting bracket. Replace if worn, broken, or missing to restore smooth door operation and alignment.

Factory screw secures brackets, panels, trim, or burner components on ranges, cooktops, and wall ovens. Replaces missing, stripped, or corroded fasteners.

Single fastening screw for range components. Replaces missing, stripped, or damaged screws that secure panels, brackets, and trim pieces in place.

Fix oven that won't heat to correct temperature or won't turn on. This control board regulates heating cycles. Moderate DIY install, 1-2 hours.

Covers the control panel lamp opening to diffuse light and protect from debris. Replace if broken, cracked, or missing to restore clear indicator visibility.

This is a replacement 8-18 x 1.5 screw in white finish used to secure appliance panels and components. It restores proper fastening where original screws are missing, stripped, or corroded. What it does:

• Fastens trim, panels, brackets and other appliance parts that use an 8-18 thread
• Helps stop rubbing, rattling or loose panels caused by missing or damaged fasteners
• Restores proper alignment for parts that rely on secure threaded attachment
• Matches original appearance where a white finish is used

• One screw as shown

• Use the correct driver to avoid stripping the head; tighten until snug but do not overtighten
• Verify material and finish match surrounding hardware before installing in visible areas
• Disconnect power and follow appliance safety precautions when accessing internal components
• Replace any damaged mating threads or inserts for a secure fit

Fix burners that won't light or click continuously. This igniter electrode sparks to light gas burners. Easy 5-10 minute repair with a screwdriver.

This small metal clip secures the surface burner spark electrode to its bracket or burner base, holding the tip at the proper gap for reliable ignition. Replace a missing, bent, or corroded clip to help restore consistent sparking.

• Holds the surface burner spark electrode firmly in position near the burner head
• Maintains correct alignment and gap so the igniter can spark to the burner
• Can help with delayed ignition, intermittent sparking, or a burner that won't light
• Typical signs include a loose/wobbly electrode, visible damage, or a missing clip

What's included: 1 mounting clip Install notes:

• Disconnect power and shut off gas before servicing
• Lift the cooktop or remove burner components to access the electrode; note clip orientation
• Transfer the electrode into the new clip and seat the clip securely in its bracket or base
• Avoid stressing the electrode's ceramic insulator; verify the tip is aimed at the burner rim and test ignition

Clear washer for range assembly and mounting applications. Replaces worn, cracked, or missing washers in your range. Essential hardware component.

Color: White. Mounting screw for end caps.

Package of 12

Replacement mounting screw secures panels, brackets, and trim on ranges and cooktops. Install to replace missing, stripped, or rusted fasteners.
