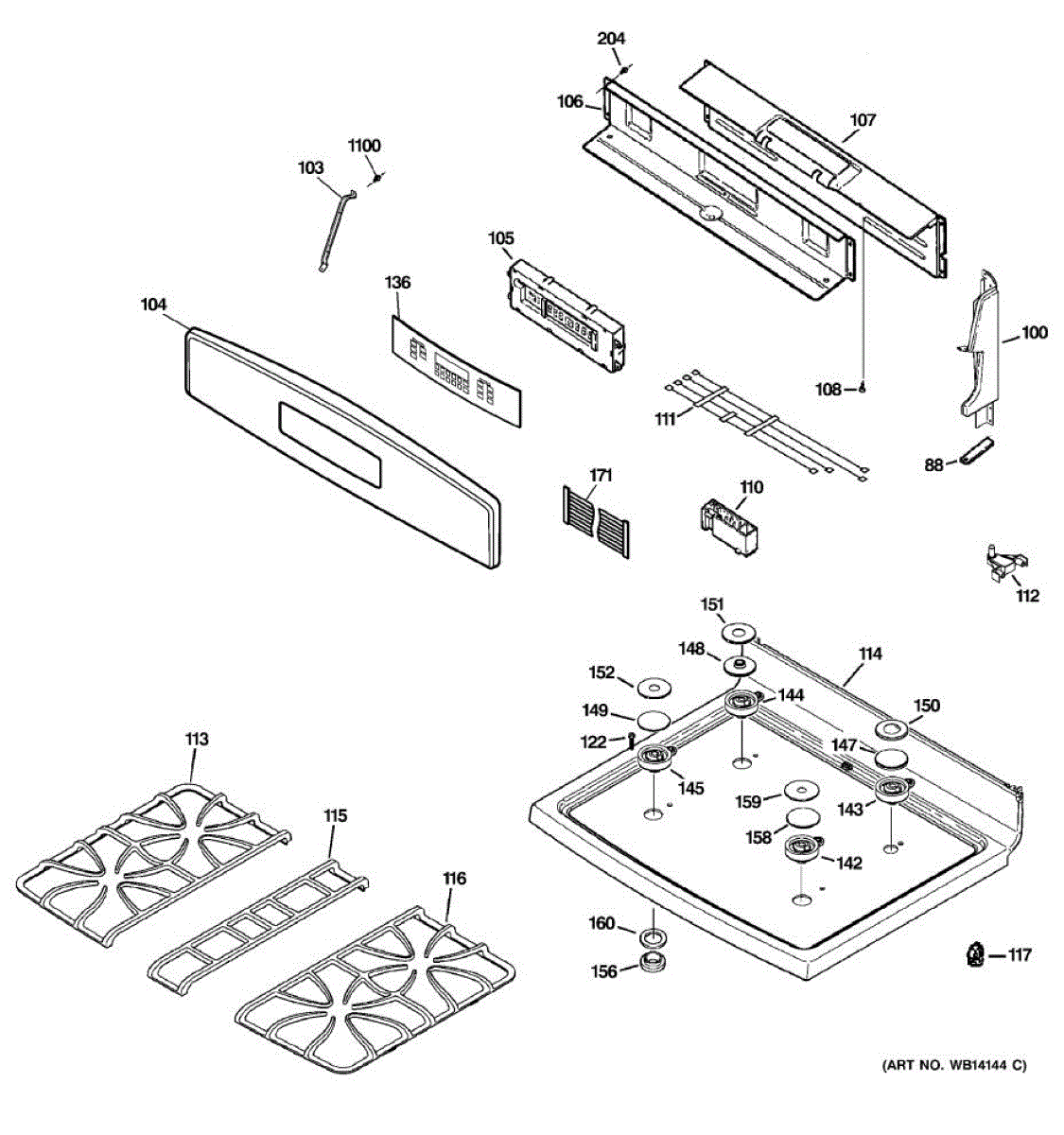

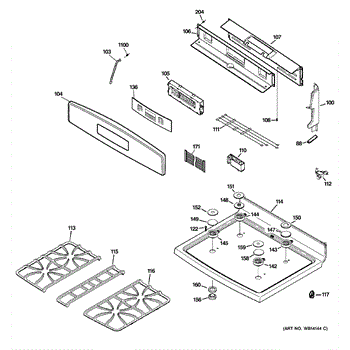

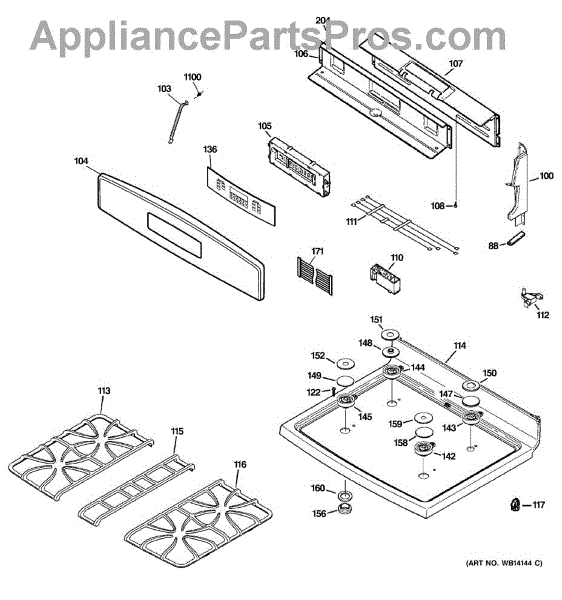

Parts for Ge PGB928SEM2SS: 02 - Control Panel & Cooktop Parts

Color: Black

This control trim is the replacement decorative bezel that fits around the appliance control area to restore a finished appearance and cover mounting hardware. It helps keep the control area looking clean and undamaged. What it does

• Replaces cracked, dented or missing control bezel trim to restore the appliance's exterior finish
• Covers control hardware and gaps to improve appearance and reduce dirt buildup
• Provides a snug fit around the control assembly so adjacent panels line up correctly
• Compatible with the original control mounting locations to maintain proper panel alignment

• One control trim piece as shown

• Disconnect power to the appliance before performing any service
• Remove nearby knobs and fasteners as needed; trim typically snaps or screws into place
• Handle trim carefully to avoid scratching the finish during installation

This mounting screw secures appliance components to the chassis for a tight, rattle-free fit. Replacing a missing, stripped, or corroded fastener helps keep panels, brackets, or burner assemblies properly aligned and secure.

• Fastens designated parts to the appliance frame or mounting points
• Helps maintain proper alignment of panels, trim, brackets, or burner assemblies
• Restores hold when the original screw is worn, rusted, or lost
• Symptoms include loose or wobbly components, rattling/vibration, or visible gaps

• Disconnect power; allow all surfaces to cool. For gas units, also shut off the gas supply.
• Use the correct driver/bit; avoid cross-threading.
• If mating threads or clip/nut are damaged, repair or replace them before installing.
• Tighten until secure; do not overtighten to prevent stripping.

Spark plug modules are a part required in the operation of ranges. The spark that comes from the spark module ignites a low-pressure flow of gas to the pilot light. It stays lit until the control in the oven's thermostat is off. With use, because of accidental damage, or as a result of misuse, the spark plug module may wear out or stop functioning correctly. If that happens, it will require a replacement.The spark plug module should emit a white spark between the metal edge of the burner and the igniter pin. If there is no spark or if the spark is yellow in color, the part is likely not working correctly. The repair of the spark plug module is simple. Unplug the range from the power supply before starting the replacement.This spark plug module is a genuine OEM replacement part. It is sourced directly from the manufacturer. The spark plug module is made of durable, high-quality materials. The replacement part is sold as an individual unit. The piece is compatible with different range models. It can be installed in appliances that were manufactured by brands including General Electric, Hotpoint, and RCA.

This high-voltage spark ignition harness carries the spark module's output to the burner igniters so your gas burners light reliably. Replace a cracked, shorted, or burned harness to restore consistent ignition and reduce misfires or arcing.

• Distributes high-voltage pulses from the spark module to the burner igniters
• Insulated leads help prevent arcing, cross-firing, and shorts to chassis
• Failure symptoms can include no or weak spark on multiple burners, intermittent lighting, or visible burn/arc marks on the wiring
• Useful when the spark module and igniters test good but ignition remains unreliable

• Disconnect power and shut off gas before servicing; high voltage is present during operation
• Note original routing; keep wires away from sharp edges, moving parts, and hot surfaces
• Seat boots/connectors fully on the spark module and igniters; avoid kinking or stretching leads
• After installation, restore power and test spark at each burner before final reassembly

Color: Black

Approx 4 inches in diameter

Approx 1-1/2 inches in diameter

Approx 2-1/2 inches in diameter

Approx 3 inches in diameter

Approx 2 inches in diameter

Approx 2-3/4 inches in diameter

Approx 3-1/4 inches in diameter

This left-side burner cap centers and protects the burner head while helping shape the flame for efficient cooking. Durable replacement for worn or damaged caps to restore even heating and safe stovetop performance. What it does:

• Covers and shields the burner head from spills and debris
• Helps distribute and stabilize the burner flame for consistent heat
• Prevents flame distortion that can cause uneven cooking
• Reduces risk of burner clogging by directing spills away from the burner ports

• Turn off the cooktop and allow all components to cool completely before handling
• Remove the old cap (lift straight up) and set the new cap in place, ensuring it seats flat on the burner base
• Clean surrounding burner area of debris before installation for proper seating and flame quality

Approx 4-1/4 inches in diameter

Color: Graphite for Stainless models.

Package of 12

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

Size: 8 - 18 ab hxw 5/8 s
