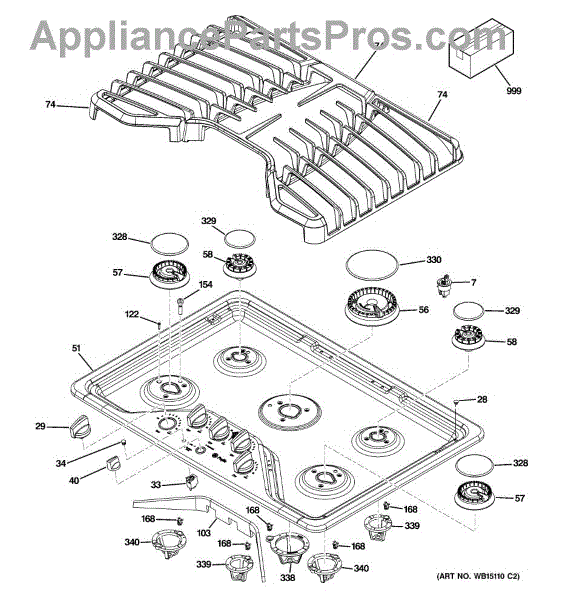

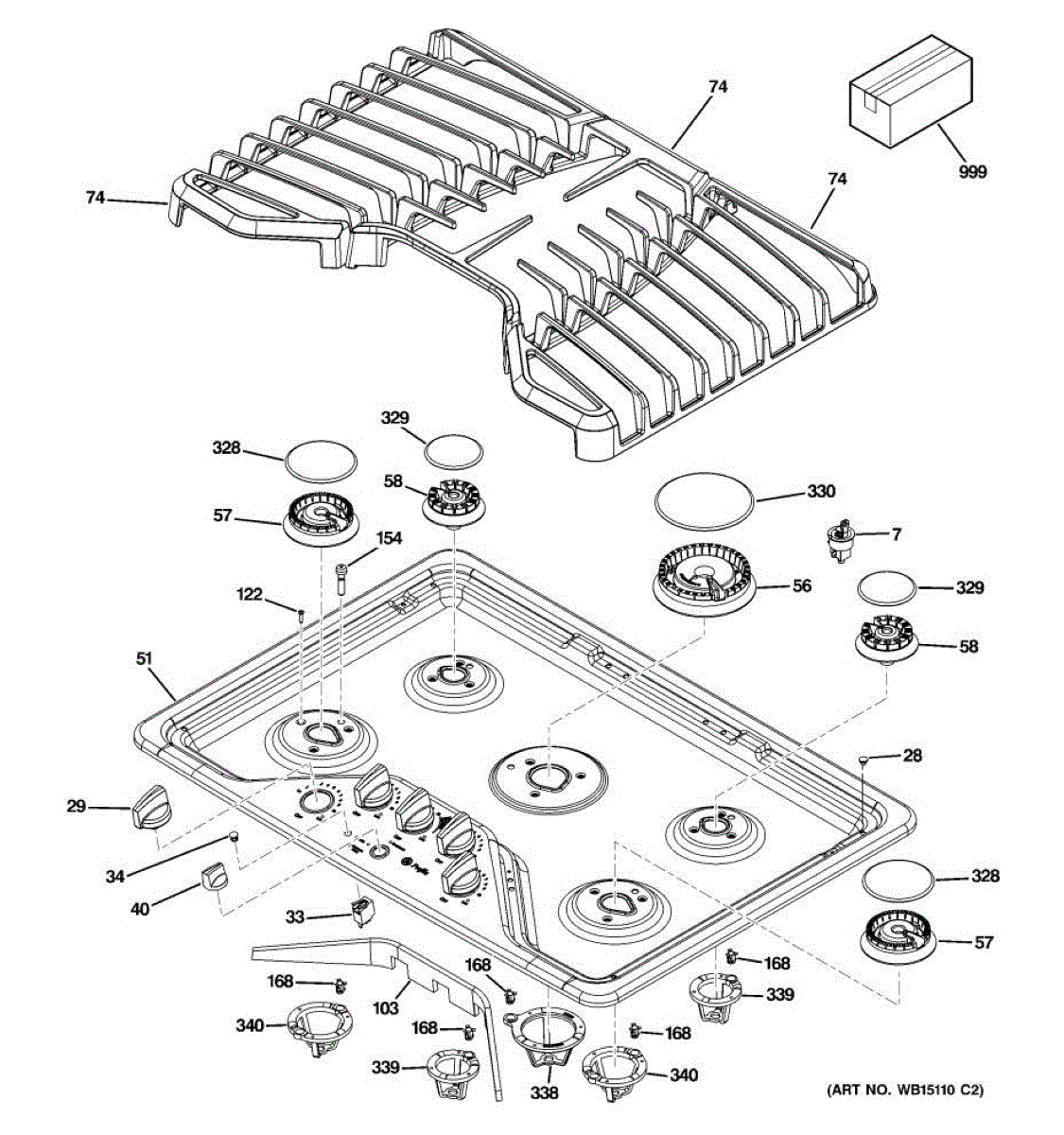

Parts for Ge PGP953DET1WW: 01 - Control Panel & Cooktop Parts

The Bumper is an OEM part for GE ranges. These small bumpers are designed to fit onto the underside of the burner grates, providing cushioning and stability. They help prevent the grates from scratching the cooktop surface and reduce noise and vibration during cooking.

Causes of bad burner grate bumpers can include continuous exposure to high temperatures, wear and tear from regular use, and physical damage from moving or cleaning the grates.

Symptoms of a bad burner grate bumper include:

• Burner grates wobbling or not sitting level
• Increased noise or vibration during cooking
• Scratches or marks on the cooktop surface
• Missing or visibly damaged bumpers

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Pilot Indicator Light is an OEM part for GE ranges. It indicates whether an element on the range is active and hot, providing a safety feature that alerts users to potentially dangerous heat levels.

Common causes of a bad pilot indicator light include electrical failures, wear and tear from frequent use, or physical damage to the light or its housing. A malfunctioning indicator light can lead to difficulty in determining whether the appliance is on, which could pose safety risks.

Symptoms of a bad pilot indicator light include:

• The light fails to illuminate when an element is turned on.
• The light remains on, indicating an element is hot when it is not.
• Flickering or erratic behavior of the indicator light.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This indicator light lens covers the control-panel lamp opening, diffusing the light and protecting the hole from debris and contact. Replace a missing or damaged lens to restore a clean, finished look and clear on/off indication.

• Provides a finished cover for the indicator lamp opening on the panel
• Diffuses the light for clearer visibility
• Shields the opening from dust, moisture, and accidental contact
• Common signs to replace: lens is cracked, missing, discolored, or won't stay seated

• Disconnect power at the breaker before servicing
• Access the control panel as required for your model (remove knobs/screws if needed)
• Lens typically snaps in; some models use a rear retainer—transfer any clip or seal
• Align with the lamp and press evenly; do not force or overtighten fasteners

The Vision Burner XL is an OEM part for GE ranges. It is a large burner designed to provide high heat output for tasks that require intense cooking temperatures, such as boiling large pots of water or rapid heating. This burner ensures efficient and powerful cooking performance.

Causes of a bad Vision Burner XL can include wear and tear from frequent use, exposure to high temperatures, or damage due to impact or spills. Electrical issues can also lead to malfunctioning.

Symptoms of a bad Vision Burner XL include:

• The burner not igniting
• Uneven flame or weak flame
• The burner not maintaining a steady flame
• Visible damage or corrosion on the burner

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Medium Surface Burner is an OEM part for GE ranges and cooktops. This burner is essential for a wide range of cooking tasks, from simmering sauces to sautéing vegetables. The medium surface burner ensures even heat distribution and efficient fuel consumption, contributing to the overall cooking performance of your appliance.

Causes of a bad Medium Surface Burner can range from clogged burner ports, which impede gas flow and affect flame consistency, to wear and tear on the igniter or the burner assembly that prevents proper operation.

Symptoms of a malfunctioning Medium Surface Burner include:

• Inconsistent flame size or failure to ignite
• Uneven heating or hot spots on the cookware
• Visible damage or corrosion on the burner itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Small Surface Burner is an OEM part for GE ranges and cooktops. It provides a consistent heat source for cooking, designed for use with smaller cookware, making it ideal for simmering and precise heating tasks.

You should replace the small surface burner if it becomes damaged or worn out. Causes of a bad surface burner can include regular wear and tear, spills, and exposure to high temperatures. A defective burner can lead to uneven heating or failure to ignite properly.

Symptoms of a bad Small Surface Burner include:

• The burner not igniting or taking a long time to ignite
• Uneven flame distribution
• The burner not producing heat at the expected levels

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This right-side 30-inch porcelain cooktop grate replaces a damaged or missing grate to restore a stable, level surface for cookware on the range. It matches OEM fit and finish for proper alignment and support. What it does:

• Provides a secure surface to hold pots and pans on the right-side burner area
• Restores proper spacing and stability if the original grate is cracked, chipped, or warped
• Helps prevent cookware from rocking or sliding during use
• Maintains correct clearance above burners for safe cooking performance

• Allow the range and burners to cool completely before removing or installing the grate
• Lift the old grate off; porcelain-coated grates typically drop into place—no special tools required
• Handle carefully to avoid chipping the porcelain finish; avoid striking edges against hard surfaces
• Do not use if porcelain coating is flaking or metal is severely corroded

This left-side 30-inch cooktop grate supports cookware over the burner and restores a stable, even cooking surface on gas ranges. Durable porcelain-coated cast iron replaces damaged or missing grates for safer, more consistent cooking. What it does:

• Supports pots and pans above the burner for even heating and stable cooking
• Replaces chipped, cracked, or warped grates that cause wobbling or uneven cookware contact
• Maintains proper burner clearance for efficient flame pattern and heat distribution
• Matches the original left-side grate location and shape for correct fit and function

• Allow cooktop to fully cool and turn off gas/electric supply before handling
• Lift out the old grate and place the replacement grate in the same orientation; no tools typically required
• Handle porcelain-coated surfaces gently to avoid chipping; avoid abrasive cleaners
• Verify burner caps are seated correctly after installation and test burners for proper operation

This center grate is the middle cooking grate for a 30-inch cooktop, providing stable support for pots and pans and restoring proper alignment and heat distribution for the cooking surface. Durable cast-iron construction for everyday use. What it does:

• Replaces a broken, warped or missing center cooktop grate to restore even support for cookware
• Helps maintain correct burner-to-pot positioning for consistent heating
• Prevents cookware from rocking or sliding on the cooktop surface
• Restores the cooktop's finished appearance when the center grate is damaged or chipped

• Ensure cooktop is completely cool and gas or electrical supply is turned off before handling
• Lift old grate straight up to remove; set replacement grate into position so it seats securely on the cooktop rests
• Use mild soap and a non-abrasive pad for cleaning; avoid harsh chemicals that can damage the finish
• Inspect surrounding porcelain or burner parts for damage and re-seat all grates evenly to prevent rocking

The Top Burner Spark Electrode is an OEM replacement part for GE brand appliances. Compatible with select GE gas ranges, this spark electrode ensures a reliable ignition for your burners. It features a white ceramic base and a metal electrode tip.

Symptoms of a bad igniter:

• Burners not lighting
• Igniter sparking erratically

The causes of a bad part can include physical damage or wear and tear over time.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Electrode Clip is an OEM part for GE gas ranges. This part secures the electrode, which provides the ignition spark that lights the burners.

Causes of a bad Electrode Clip can include corrosion, physical damage from impact or mishandling, or loosening over time due to heat exposure and repeated use.

Symptoms of a bad Electrode Clip include:

• Failure of the burners or oven to ignite
• Intermittent or inconsistent ignition
• Visible damage or deterioration of the clip itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE cooktops and ranges. It is designed to cover the burner head, ensuring even flame distribution for efficient and effective cooking. The cap also protects the burner head from spills and debris, which can interfere with burner performance and cause clogs.

You should replace the burner cap assembly if it becomes damaged or worn out. Causes of a bad burner cap assembly can include regular exposure to high heat, food residue buildup, or accidental impacts that cause cracks or warping. A compromised burner cap can lead to uneven flames and inefficient cooking.

Symptoms of a bad burner cap assembly include:

• Uneven or yellow flames
• Difficulty igniting the burner
• Visible cracks, chips, or warping in the burner cap
• Poor cooking performance with hotspots on cookware

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It is designed to sit atop the burner base, helping to distribute the flame evenly across the cooking surface. The cap also serves to protect the burner head from spills and debris, which can clog the gas outlets.

Symptoms of a bad Burner Cap Assembly include:

• Uneven flame distribution, which can cause uneven cooking or take longer to heat food.
• Difficulty lighting the burner, or the flame going out unexpectedly.
• Visible signs of wear like chipping, warping, or discoloration.

Causes of a bad burner cap can include accumulation of spilled foods or cleaning chemicals, which might block the gas flow, and normal wear and tear from high-temperature exposure that can alter the shape or integrity of the cap.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It sits atop the gas burner to help distribute the flame evenly for better cooking performance. This cap is crucial for achieving precise temperature control and consistent heating, ensuring that food cooks evenly across the cookware.

Symptoms of a bad Burner Cap Assembly include:

• Uneven flame distribution, leading to uneven cooking or heating.
• Difficulty igniting the burner, or the flame going out unexpectedly.
• Visible signs of wear, such as warping, discoloration, or chipping of the burner cap.

Causes of a bad burner cap can include accumulation of food particles or cleaning products that clog the ports, physical damage from impact or dropping, or general deterioration from regular exposure to high temperatures.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This Range Cooktop Bracket secures the main top to the appliance frame for a tight, stable fit. Replacing a bent or missing bracket can correct a loose, misaligned, or rattling cooktop and help it sit flush.

• Secures the main cooktop to the chassis to prevent lifting or shifting during use
• Helps maintain proper alignment and a flush fit with surrounding trim
• Common symptoms include a loose or uneven cooktop, rattling, or visible gaps
• Useful when the original hold-down bracket is bent, missing, or damaged

• Disconnect power; for gas ranges, shut off the gas supply before servicing.
• Support the cooktop while replacing the bracket; beware of sharp edges.
• Reuse manufacturer-specified fasteners where applicable and tighten securely without overtightening.

This small cooktop bracket secures designated components beneath the cooktop surface, keeping them properly positioned and stable. Replace a damaged or missing bracket to restore alignment and reduce movement or rattling during use.

• Provides mounting support for specific under-top components, per model design
• Helps maintain proper alignment and stability of cooktop parts
• Replace when visibly bent, cracked, or corroded

• Disconnect power; for gas models, also shut off gas and allow the unit to cool
• Remove surface components as required (grates/caps/heads for gas; elements/panels for electric) to access under the top
• Lift or remove the cooktop as directed in your model's service information and secure the new bracket with existing hardware
• Reassemble, verify alignment, and for gas units check for leaks if any gas connections were disturbed

This circuit board mounting bracket secures an electronic board or module inside the appliance. It prevents movement, vibration damage, and wiring interference so the component stays correctly positioned for reliable operation.

• Mounts and supports a small circuit board or module within the chassis
• Maintains proper spacing and alignment to reduce chafing or electrical short risks
• Replace if bent, cracked, or missing tabs, or if it no longer holds the board securely
• Common signs include a loose/rattling board, visible bracket damage, or intermittent operation when the panel is bumped

• Disconnect power at the breaker; shut off gas supply if applicable
• Remove the necessary access panel(s) to reach the board and bracket; note orientation and wiring
• Transfer the board/module to the new bracket and reinstall using existing hardware
• Watch for sharp metal edges; route wires to avoid pinching and verify clearances before restoring power
