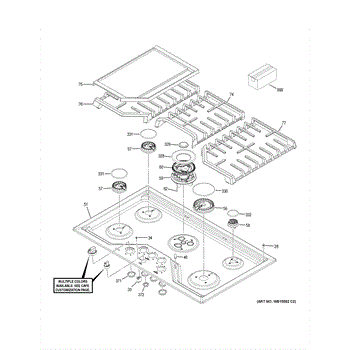

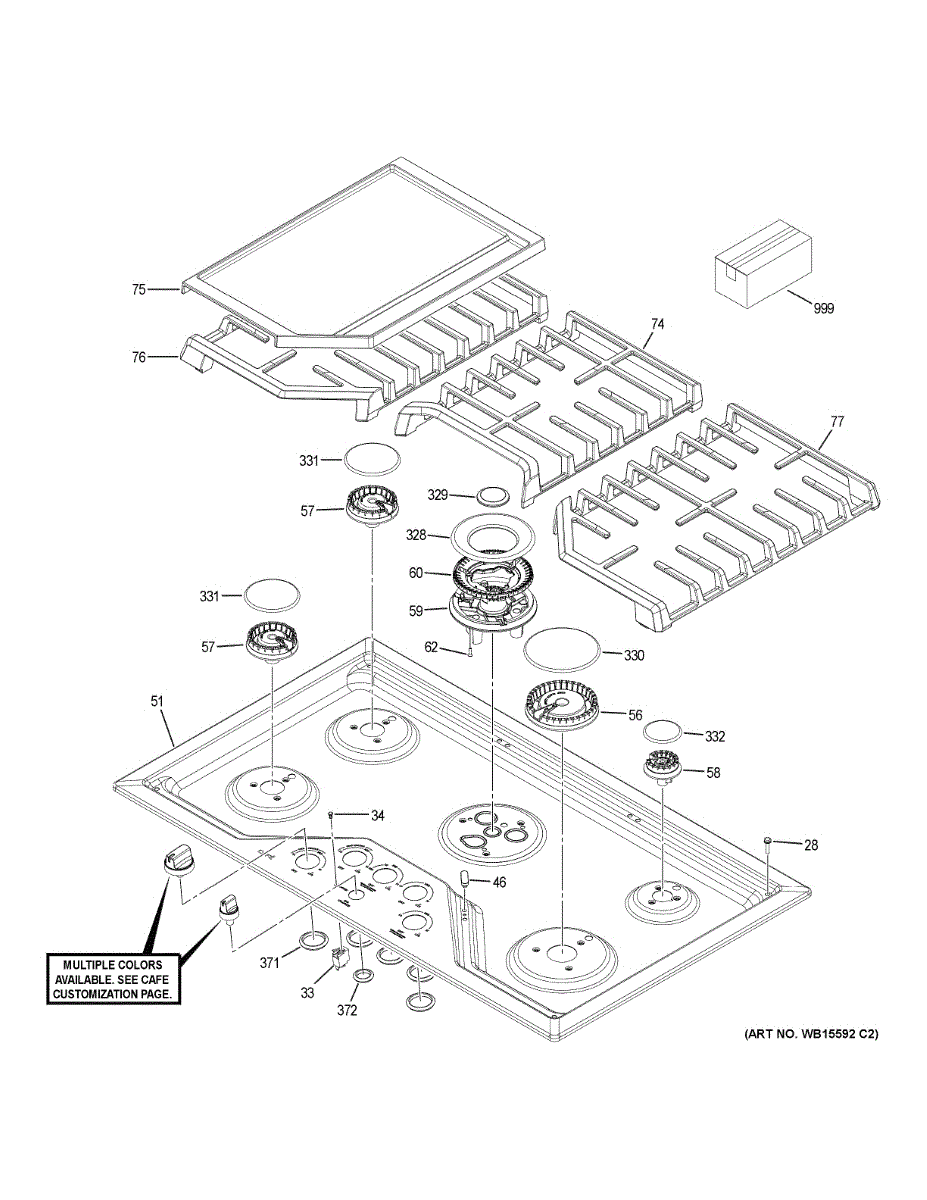

Parts for Ge CGP95362M1S2: Control Panel & Cooktop Parts

The Range Surface Burner Grate Bumper is an OEM replacement part for GE ranges. The bumper protects the burner grate from scratching or denting the cooktop surface below when lowered into position.

Symptoms of a damaged or missing bumper include:

• Scuff marks or abrasions on the cooktop under the burner grate area
• Noise or rubbing sensations when operating burners
• Loose or detached fit of the burner grate on the range surface

Causes stem from regular use of the burner grates over many cooking cycles. Natural wear and repeated contact with surfaces can degrade bumpers over time.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore ranges and cooktops.

This pilot indicator light mounts in the control panel and illuminates to show when a surface element or another heating circuit is powered. Replace a burned-out or stuck-on light to restore a clear, reliable power-on warning.

• Lights when the corresponding heating circuit is energized
• Alerts users that heating components are active
• Common symptoms: light does not turn on, stays on constantly, flickers, or is very dim
• Shows physical damage to the lens or terminals when failed

• Disconnect power at the breaker before servicing
• Remove the backguard or control panel cover to access the indicator light from behind
• Note wire positions; move connectors to the new light one at a time and secure the light in the panel
• Restore power and test operation before reassembly

The Light Lens is an OEM replacement part for GE gas cooktops. It is a small yet important part that covers and protects the indicator light bulb in your cooktop so that the light bulb remains protected from grease, spills, and other potential hazards.

Symptoms of a faulty light lens include:

• Dim or inadequate lighting in the cooking area
• Difficulty in seeing or monitoring your cooking
• Exposure of the light bulb to grease or spills

A bad light lens can occur due to accidental damage or wear and tear over time. If you notice cracks, discoloration, or any other signs of damage on the lens, it may be time to replace the old or damaged light lens with this genuine OEM part.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


The Bridge Bumper is an OEM part for GE electric cooktops. It is a protective bumper located at the bridge that connects the front control panel area to the cooking surface. The bumper acts as a safeguard, cushioning any potential impact to the underside of the control panel.

Causes of a bad bridge bumper include normal wear and tear, exposure to heat or moisture during cooking, or tears from impact.

Symptoms of a bad bridge bumper include:

• Visible damage or deterioration of the bumper material
• Exposure of raw edges that were previously covered
• Increased risk of scratches or damage to the control panel surface

This GE replacement part is also compatible with some Hotpoint, General Electric, and Kenmore electric cooktop models. Protect your appliance with this genuine OEM bridge bumper to safeguard the control panel from accidental impact.


This is a 36" stainless maintop assembly for select gas/slide-in ranges — the finished cooktop surface that supports burners and grates and restores a clean, flush appearance. Replaces a dented, rusted, or warped top. What it does

• Provides the finished cooktop surface and mounting area for burners, burner bowls, and grates.
• Restores proper fit and alignment when the factory top is dented, bent, or corroded.
• Helps prevent heat and spill damage to underlying components by providing the correct barrier and contour.
• Returns the range to a safe, even cooking surface and improves appearance.

• One 36" stainless maintop assembly (single piece as listed)

• Disconnect power and gas supply before starting any repair.
• Remove burner grates, burner caps, and any control panel trim as needed to access mounting fasteners.
• Larger maintops may require two people to lift and position safely.
• Do not force or bend the part during installation.

The Range Burner is an OEM replacement part for GE ranges. It is responsible for safely producing gas flames to heat the range surface. Whether baking, broiling, or simmering, the range burner must provide precise flame control and heat distribution.

Causes of a bad range burner can include cracked or rusted burner heads that improperly direct the flame, clogged or restricted gas ports that disrupt fuel flow or wear to ignition components that affect lighting.

Symptoms of a bad range burner include:

• Irregular or uneven heating of the range surface
• Difficulty controlling burner flame heights
• Burners that will not light or stay lit
• Singed, scorched, or burnt foods
• Gas leaks around burners

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Medium Burner is an OEM part for GE ranges and cooktops. This medium-sized burner part provides a balanced heat source for cooking. The medium burner is often used for everyday cooking tasks, offering a versatile option for boiling, sautéing, and simmering.

Causes of damage or malfunction in a burner can stem from regular use, spills and buildup of cooking materials that clog the burner ports, or corrosion over time affecting the burner's efficiency.

Symptoms of a bad medium burner include:

• Inability to achieve a consistent flame
• The burner not lighting at all
• An irregular flame pattern or color (e.g., yellow flames instead of blue)

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner, Small V2 is an OEM part for GE ranges and cooktops. This part provides a controlled and efficient flame for cooking, specifically tailored for applications requiring a smaller, more precise heat source. Perfect for simmering sauces, melting chocolate, or any cooking task that necessitates a gentle heat, this burner ensures consistent performance and reliability.

Causes of deterioration can include clogging from food spills or cleaning products, wear and tear from regular use, and corrosion or damage to the burner assembly itself.

Symptoms of a bad Burner, Small V2 include:

• The burner fails to light or has an uneven flame.
• Reduced heat output, affecting cooking times and food quality.
• The presence of a yellow or orange flame, indicating incomplete combustion.
• Noisy operation or popping sounds when ignited.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Base Burner is an OEM part for GE gas range and cooktops. It securely holds the burner assembly in place on the cooktop.

Symptoms of a faulty base burner include:

• Loose or wobbly burners that could tip or shift during cooking
• Difficulty cleaning accumulated debris from recessed areas
• Potential gas or electric exposed connection hazards

Causes involve worn or cracked mounting brackets after years of use, missing or stripped retention screws, and impact damage to supports.

This OEM part is compatible with Hotpoint and RCA electric range brands as well.

The Surface Burner is an OEM part for GE gas ranges. As the critical surface heat is delivered through, it is exposed to extreme temperature variations during cooking.

Symptoms of a bad surface burner include:

• Deteriorated or cracked porcelain-enamel exterior
• Warped or misshapen burner base that no longer sits flat
• Cookware that rocks or is unstable when placed on the burner

Causes can be normal wear over many heating and cooling cycles or damage from the continuous use of larger pots that put undue stress on the burner head.

Replacing with this OEM GE part restores a stable, level cooking surface. It is compatible with Hotpoint, RCA, and Kenmore ranges as well as preventing future repairs from minor issues. Install yours today for reliable stove-top performance.


This factory fastener secures internal components or panels in your appliance. Replacing a missing or stripped screw restores a snug fit, helps prevent vibration or rattling, and keeps assemblies aligned for proper operation.

• Secures brackets, panels, or internal components to the frame
• Replaces missing, rusted, or stripped hardware
• Helps reduce rattling, vibration, or loose-fit issues
• Maintains proper alignment and fit of assemblies

• Disconnect power before servicing
• Use the correct driver to avoid stripping the screw head
• Install in the original location; match thread and length to the original
• Tighten until snug; do not overtighten, especially into plastic or thin metal

A replacement black cooktop grate that supports pots and pans and restores a stable cooking surface. Designed to fit securely on the cooktop so cookware sits level for safer, more consistent heating. What it does:

• Supports cookware above the burner for safe, stable cooking
• Helps distribute weight and minimizes direct contact with the cooktop surface
• Prevents cookware from wobbling or sliding during use
• Can hide cosmetic damage to an otherwise functional cooktop area

• Allow the cooktop to cool completely and shut off all power/gas before handling or replacing the grate
• Remove old grate(s) by lifting straight up; set new grate into place so it seats securely on the cooktop supports
• Handle with care to avoid chipping or scratching any enamel or porcelain finishes

This black cooktop grate replaces a damaged or missing grate to restore stable, even support for cookware on gas ranges. It helps prevent wobbling and keeps pots and pans properly positioned over burners for consistent cooking. What it does:

• Provides a stable surface to support cookware over the burner
• Restores proper burner-to-pot alignment for even heating
• Replaces cracked, warped or missing grates that cause wobbling
• Helps protect the cooktop surface from direct contact with cookware

• Allow the cooktop to be fully cool and gas to be off before handling
• This grate installs by setting it into position—no special tools required
• Clean with mild detergent and soft cloth; avoid harsh abrasives that can damage finish
• If burners do not align after installation, remove and reseat the grate to ensure proper fit

This black replacement cooktop grate provides a stable platform for cookware over gas burners, restoring safe, even support and protecting the cooktop surface. Durable finish helps maintain appearance through normal use. What it does:

• Supports pots and pans above gas burners for safe, even cooking.
• Replaces warped, cracked, or chipped grates that cause instability or uneven cookware contact.
• Helps prevent direct contact with burner parts and protects the cooktop surface.
• Fits into existing grate mounting points—no modification required.

• Ensure all burners are off and the cooktop is cool before installing.
• Lift out the old grate and set the replacement grate into the existing support locations; no tools typically required.
• Clean with mild detergent and non-abrasive sponge; avoid harsh abrasives that can damage the finish.

The Burner Cap is an OEM replacement part for GE gas cooktops. This one is the outer part of the burner cap that sits over the inner burner head and flames on a gas cooktop burner. The cap helps protect the inner burner parts while also directing and controlling the burner flame.

Symptoms of a faulty burner cap include:

• Uneven or weak flame
• Gas leakage around the burner heads
• Difficulty in adjusting the flame intensity

A bad outer cap can occur due to wear and tear, accidental damage, or exposure to high temperatures. If you notice signs of damage, such as cracks, discoloration, or a loose fit, it may be time to replace the outer cap. Replacing this part can help improve burner performance and flame if the old cap is damaged or corroded.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


The burner cap is an OEM component specifically designed for GE wall ovens and ranges. The inner burner cap is responsible for evenly distributing heat across the burner surface while protecting the burner element underneath.

Causes of a bad burner cap can include damage from scratches or cracks that occur over time from regular use and cleaning. The burner cap material may also deteriorate due to exposure to high heat.

Symptoms of a bad burner cap include:

• Uneven or inconsistent burner performance
• Hot spots on the burner surface
• Damage or cracking visible on the cap
• Difficulty cleaning residue or spills from the burner area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE cooktops and ranges. It is designed to cover the burner head, ensuring even flame distribution for efficient and effective cooking. The cap also protects the burner head from spills and debris, which can interfere with burner performance and cause clogs.

You should replace the burner cap assembly if it becomes damaged or worn out. Causes of a bad burner cap assembly can include regular exposure to high heat, food residue buildup, or accidental impacts that cause cracks or warping. A compromised burner cap can lead to uneven flames and inefficient cooking.

Symptoms of a bad burner cap assembly include:

• Uneven or yellow flames
• Difficulty igniting the burner
• Visible cracks, chips, or warping in the burner cap
• Poor cooking performance with hotspots on cookware

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It sits atop the gas burner to help distribute the flame evenly for better cooking performance. This cap is crucial for achieving precise temperature control and consistent heating, ensuring that food cooks evenly across the cookware.

Symptoms of a bad Burner Cap Assembly include:

• Uneven flame distribution, leading to uneven cooking or heating.
• Difficulty igniting the burner, or the flame going out unexpectedly.
• Visible signs of wear, such as warping, discoloration, or chipping of the burner cap.

Causes of a bad burner cap can include accumulation of food particles or cleaning products that clog the ports, physical damage from impact or dropping, or general deterioration from regular exposure to high temperatures.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap is an OEM part for GE ranges. It covers the burner head, helping to distribute the flame evenly for optimal cooking performance and protecting the burner head from spills and debris.

Common causes of a bad burner cap include exposure to high heat, which can cause warping or discoloration, physical damage from dropping or mishandling, and buildup of food residue that can degrade the material over time.

Symptoms of a bad burner cap include:

• Uneven or weak flame
• Difficulty in lighting the burner
• Visible cracks, chips, or discoloration on the cap
• Burner not performing efficiently

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This control knob seal fits around the control shaft opening on your range or cooktop to close the gap under the knob. It helps block spills and debris from entering the control area and keeps the console looking clean and finished.

• Forms a barrier between the knob/valve shaft and the control surface
• Helps prevent liquids, crumbs, and grease from seeping into the control cavity
• Restores a tidy appearance; replaces cracked, shrunken, or missing seals
• Typical signs of wear: visible damage, gaps around the knob, or residue appearing beneath the panel after spills

• Disconnect power and, if applicable, shut off gas; allow the appliance to cool
• Pull the knob straight off the shaft and remove the old seal
• Clean the area; seat the new seal flat around the shaft—avoid side pressure on the valve stem
• Reinstall the knob and verify smooth operation and proper seal seating
