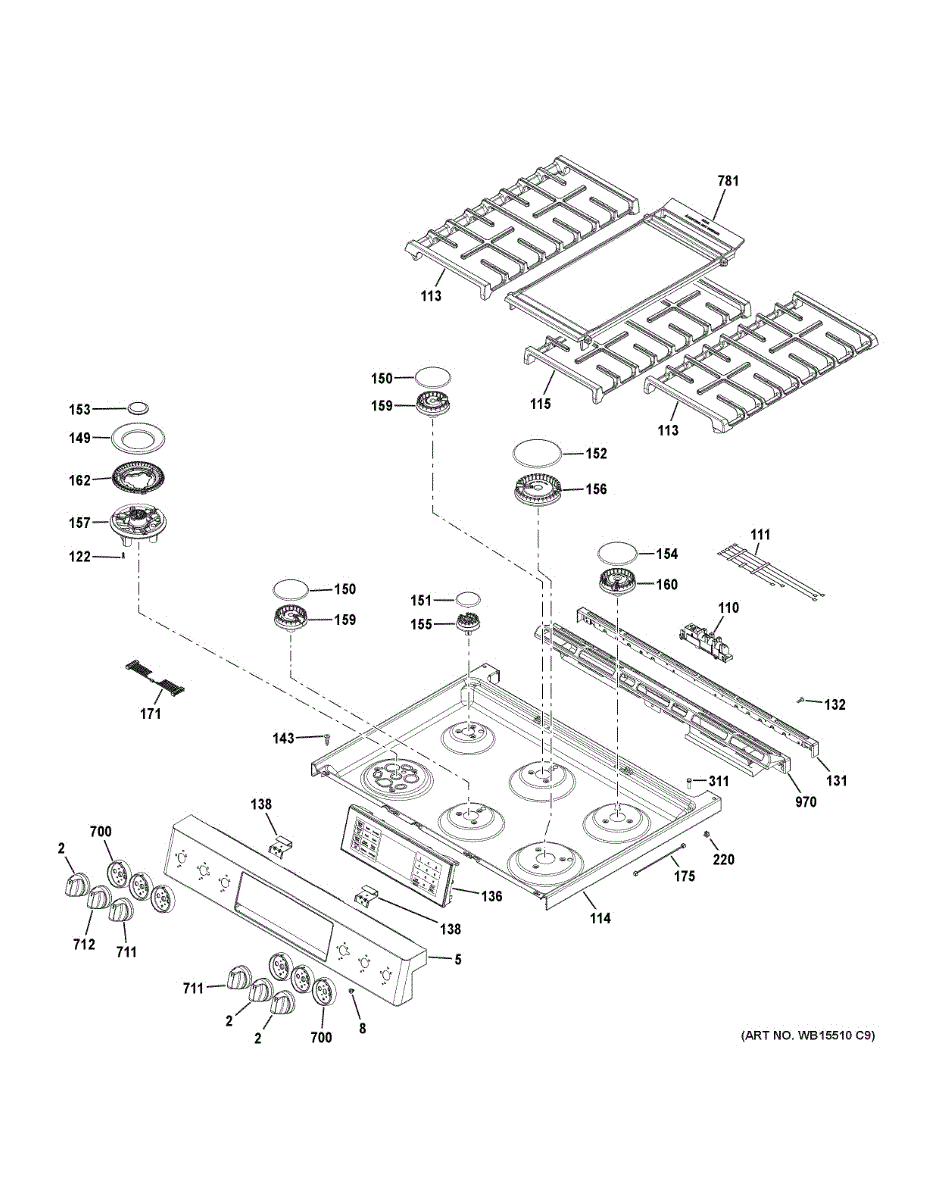

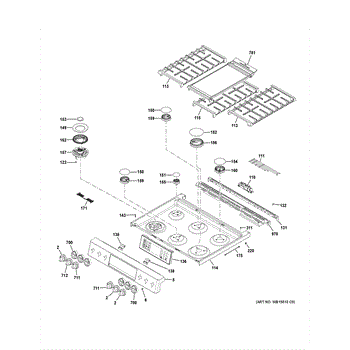

Parts for Ge CGS995SEL2SS: Control Panel & Cooktop Parts

The Ss Cntrl Knob is an OEM replacement part for stainless steel GE ranges. Each individual knob operates the corresponding burner, allowing for precise temperature and heat level selections.

Causes of a bad knob can include normal wear and tear from frequent use over the years. The interactive mechanisms inside may become loose or damaged. Residue buildup on the shaft or button area could inhibit smooth rotation.

Symptoms of a bad Ss Cntrl Knob include:

• External cracks, breaks or deformities in the knob material
• Looseness, wobbling or detachment from the range surface
• Inability to select desired temperature or burner settings

This OEM GE replacement knob is also compatible with Hotpoint, RCA, and some Kenmore models.

Size: 8 - 32 inch.

The GE spark module kit is an OEM replacement part for GE stoves and ranges. It generates the spark needed to ignite the gas burners. The kit includes the spark module and associated wiring harness. When the burner control knob is turned to the "ignite" position, the spark module receives a signal and activates. It then produces an electrical spark that ignites the gas as it flows from the burner orifice, allowing the burner to light.

Over time, spark modules can fail due to electrical issues, wear and tear from frequent use, or exposure to moisture. A malfunctioning spark module can disrupt the ignition process, making it difficult to light the burners.

Symptoms of a bad spark module include:

• Burners not igniting
• No clicking sound when turning the burner knob
• Intermittent sparking
• Only some burners igniting

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This igniter electrodes and harness assembly routes high-voltage spark to the oven/burner for reliable gas ignition. Replacing a damaged assembly restores proper spark delivery and helps the range light consistently. What it does:

• Delivers the high-voltage spark from the ignition module to the electrode for burner ignition
• Replaces cracked or fouled electrodes and worn wiring that can prevent ignition
• Commonly used to address clicking without ignition, weak or no spark, or intermittent lighting
• Ensures correct electrode positioning and wiring continuity required for safe ignition

• Disconnect power and shut off gas supply before servicing
• Handle ceramic electrodes carefully to avoid chipping or contamination
• Verify proper electrode-to-burner gap and secure all wiring connections per service instructions

The Grate Asm is an OEM component specifically designed for GE gas ranges. This grate sits over the cooktop burners as well as the mounting hardware to securely install them. It distributes heat evenly while protecting the burners from spills, burns or other potential damage from cookware.

Symptoms of a bad grate assembly include:

• Grates that are warped, cracked, or discolored from heat
• Loose, wobbly, or improperly positioned grates over burners
• Missing hardware or components that prevent the secure mounting of the grates
• Inability to move cookware smoothly across the surfaces

Causes of failure can include breaks or cracks formed from heavy pots/pans, deterioration of mounting hardware over years of use, or damage incurred during cleaning.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Central Grate is an OEM part for GE gas ranges. This central grate sits directly above the burner in the center of the range, providing an additional cooking surface. With a flat and smooth surface, it supports various sizes and types of cooking pots and pans over the middle burner.

Causes of a bad central grate can include general wear and tear over time. The continuous exposure to high heat can slowly degrade steel fasteners and welds. Accidental impacts from cookware being placed on the grate can also damage it.

Symptoms of a bad central grate include:

• Warping or sagging of the grate plate from high heat
• Cracks or broken welds from years of use
• Loose fasteners or mounting points that cause instability
• Large scratches or pits that trap food debris

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This factory fastener secures internal components or panels in your appliance. Replacing a missing or stripped screw restores a snug fit, helps prevent vibration or rattling, and keeps assemblies aligned for proper operation.

• Secures brackets, panels, or internal components to the frame
• Replaces missing, rusted, or stripped hardware
• Helps reduce rattling, vibration, or loose-fit issues
• Maintains proper alignment and fit of assemblies

• Disconnect power before servicing
• Use the correct driver to avoid stripping the screw head
• Install in the original location; match thread and length to the original
• Tighten until snug; do not overtighten, especially into plastic or thin metal

This is a stainless-steel machine screw used to secure components in appliances. Its #8-18 thread and 3/8" length provide a reliable, corrosion-resistant fastening where a short machine screw is required. What it does:

• Fastens panels, brackets, or small assemblies with a #8-18 threaded hole
• Resists rust and corrosion in humid appliance compartments
• Provides a short, secure hold where space is limited
• Compatible with standard #2 Phillips or compatible driver bit for installation

• Power off and unplug the appliance before servicing
• Use the correct driver to avoid stripping the head
• Do not overtighten; stop when snug to avoid thread or component damage
• If replacing multiple fasteners, reuse only the same size and type

This is the glass and touch control board assembly for front-range electronic controls, providing the user interface and touch-sensitive switches for bake, broil, timer and display functions. Replaces a cracked or unresponsive control glass and board. What it does:

• Serves as the touch-sensitive control surface and houses the control electronics for range functions
• Restores responsive touch buttons, numeric/display input and visual status indicators
• Commonly replaces assemblies when the glass is cracked, buttons are unresponsive, or display segments fail
• Works with the existing wiring harness and mounting points to fit into the range control console

• One complete range glass and touch board assembly

• Disconnect power at the breaker before servicing to avoid shock or damage
• Handle glass carefully to avoid breakage and sharp edges; use gloves and eye protection
• Verify connector alignment and seating; do not force connectors—match keyed housings

This mounting bracket secures internal components or panels to the appliance frame, restoring proper alignment and stability. It's a simple replacement that helps stop rattling and keeps parts held in place during normal use. What it does:

• Provides a solid attachment point for interior panels, assemblies, or trim
• Prevents loosening, vibration, and noise caused by a missing or broken bracket
• Helps maintain correct alignment of nearby components for reliable operation
• Works as a direct-fit OEM replacement when the original bracket is damaged or worn

• One mounting bracket

• Disconnect power and water before starting any repair
• Support panels or assemblies while removing fasteners to avoid drops or damage
• Use appropriate hand tools; avoid overtightening fasteners to prevent stripping
• Refer to the parts diagram for correct placement and fastener locations

The Burner Cap is an OEM replacement part for GE gas cooktops. This one is the outer part of the burner cap that sits over the inner burner head and flames on a gas cooktop burner. The cap helps protect the inner burner parts while also directing and controlling the burner flame.

Symptoms of a faulty burner cap include:

• Uneven or weak flame
• Gas leakage around the burner heads
• Difficulty in adjusting the flame intensity

A bad outer cap can occur due to wear and tear, accidental damage, or exposure to high temperatures. If you notice signs of damage, such as cracks, discoloration, or a loose fit, it may be time to replace the outer cap. Replacing this part can help improve burner performance and flame if the old cap is damaged or corroded.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It sits atop the gas burner to help distribute the flame evenly for better cooking performance. This cap is crucial for achieving precise temperature control and consistent heating, ensuring that food cooks evenly across the cookware.

Symptoms of a bad Burner Cap Assembly include:

• Uneven flame distribution, leading to uneven cooking or heating.
• Difficulty igniting the burner, or the flame going out unexpectedly.
• Visible signs of wear, such as warping, discoloration, or chipping of the burner cap.

Causes of a bad burner cap can include accumulation of food particles or cleaning products that clog the ports, physical damage from impact or dropping, or general deterioration from regular exposure to high temperatures.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap is an OEM part for GE ranges. It covers the burner head, helping to distribute the flame evenly for optimal cooking performance and protecting the burner head from spills and debris.

Common causes of a bad burner cap include exposure to high heat, which can cause warping or discoloration, physical damage from dropping or mishandling, and buildup of food residue that can degrade the material over time.

Symptoms of a bad burner cap include:

• Uneven or weak flame
• Difficulty in lighting the burner
• Visible cracks, chips, or discoloration on the cap
• Burner not performing efficiently

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE cooktops and ranges. It is designed to cover the burner head, ensuring even flame distribution for efficient and effective cooking. The cap also protects the burner head from spills and debris, which can interfere with burner performance and cause clogs.

You should replace the burner cap assembly if it becomes damaged or worn out. Causes of a bad burner cap assembly can include regular exposure to high heat, food residue buildup, or accidental impacts that cause cracks or warping. A compromised burner cap can lead to uneven flames and inefficient cooking.

Symptoms of a bad burner cap assembly include:

• Uneven or yellow flames
• Difficulty igniting the burner
• Visible cracks, chips, or warping in the burner cap
• Poor cooking performance with hotspots on cookware

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The burner cap is an OEM component specifically designed for GE wall ovens and ranges. The inner burner cap is responsible for evenly distributing heat across the burner surface while protecting the burner element underneath.

Causes of a bad burner cap can include damage from scratches or cracks that occur over time from regular use and cleaning. The burner cap material may also deteriorate due to exposure to high heat.

Symptoms of a bad burner cap include:

• Uneven or inconsistent burner performance
• Hot spots on the burner surface
• Damage or cracking visible on the cap
• Difficulty cleaning residue or spills from the burner area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It sits atop the burner head and serves to distribute the flame evenly across the surface, enhancing cooking efficiency and consistency.

Symptoms of a faulty burner cap assembly include:

• Uneven flame distribution or a yellow or orange flame.
• Difficulty igniting the burner.
• Excessive soot or unburned gas smell, indicating incomplete combustion.

The common causes of issues with the burner cap assembly include misalignment, food spillage clogging the ports, or wear and tear from regular use. These can affect the flow of gas and air, leading to inefficient combustion and poor cooking performance.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner, Small V2 is an OEM part for GE ranges and cooktops. This part provides a controlled and efficient flame for cooking, specifically tailored for applications requiring a smaller, more precise heat source. Perfect for simmering sauces, melting chocolate, or any cooking task that necessitates a gentle heat, this burner ensures consistent performance and reliability.

Causes of deterioration can include clogging from food spills or cleaning products, wear and tear from regular use, and corrosion or damage to the burner assembly itself.

Symptoms of a bad Burner, Small V2 include:

• The burner fails to light or has an uneven flame.
• Reduced heat output, affecting cooking times and food quality.
• The presence of a yellow or orange flame, indicating incomplete combustion.
• Noisy operation or popping sounds when ignited.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Range Burner is an OEM replacement part for GE ranges. It is responsible for safely producing gas flames to heat the range surface. Whether baking, broiling, or simmering, the range burner must provide precise flame control and heat distribution.

Causes of a bad range burner can include cracked or rusted burner heads that improperly direct the flame, clogged or restricted gas ports that disrupt fuel flow or wear to ignition components that affect lighting.

Symptoms of a bad range burner include:

• Irregular or uneven heating of the range surface
• Difficulty controlling burner flame heights
• Burners that will not light or stay lit
• Singed, scorched, or burnt foods
• Gas leaks around burners

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Medium Burner is an OEM part for GE ranges and cooktops. This medium-sized burner part provides a balanced heat source for cooking. The medium burner is often used for everyday cooking tasks, offering a versatile option for boiling, sautéing, and simmering.

Causes of damage or malfunction in a burner can stem from regular use, spills and buildup of cooking materials that clog the burner ports, or corrosion over time affecting the burner's efficiency.

Symptoms of a bad medium burner include:

• Inability to achieve a consistent flame
• The burner not lighting at all
• An irregular flame pattern or color (e.g., yellow flames instead of blue)

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner, Large V2 is an OEM part for GE gas ranges. It is designed to provide a consistent and even flame for cooking, ensuring efficient heat distribution for large pots and pans.

Causes of a bad burner can include clogging from food spills, wear and tear from frequent use, or damage from cleaning processes. A malfunctioning burner can lead to uneven cooking and reduced heating efficiency.

Symptoms of a bad burner include:

• Uneven or weak flame
• Burner not igniting properly
• Sputtering or inconsistent flame
• Visible damage or clogging on the burner surface

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Surface Burner is an OEM part for GE gas ranges. As the critical surface heat is delivered through, it is exposed to extreme temperature variations during cooking.

Symptoms of a bad surface burner include:

• Deteriorated or cracked porcelain-enamel exterior
• Warped or misshapen burner base that no longer sits flat
• Cookware that rocks or is unstable when placed on the burner

Causes can be normal wear over many heating and cooling cycles or damage from the continuous use of larger pots that put undue stress on the burner head.

Replacing with this OEM GE part restores a stable, level cooking surface. It is compatible with Hotpoint, RCA, and Kenmore ranges as well as preventing future repairs from minor issues. Install yours today for reliable stove-top performance.


This grounding harness connects an appliance's metal chassis to earth ground, restoring a safe electrical return path and helping prevent shocks or arcing. Use when the original ground wiring is damaged or corroded. What it does:

• Provides the grounded connection between the appliance chassis and house ground
• Helps prevent electrical shock and reduces risk of arcing at metal parts
• Restores proper grounding after damage, corrosion, or failed wiring inspections
• Supports safe operation of controls and component grounding points

• Disconnect power to the appliance at the breaker before starting any work
• Inspect mounting points and terminals; replace any damaged clips or fasteners
• Route wire clear of heating elements and moving parts; secure with manufacturer clips

This stainless steel griddle control knob restores smooth, accurate control of your range's griddle. Replace a cracked, worn, or missing knob to regain proper grip, alignment, and a clean factory look.

• Attaches to the griddle control shaft to select and adjust heat
• Direct replacement when the original is cracked, stripped, loose, or missing
• Helps the pointer align correctly with OFF and temperature settings
• Common symptoms: knob spins without turning the stem, falls off, or has damaged finish

• Disconnect power and shut off gas before servicing
• Ensure the control is in the OFF position and the surface is cool
• Pull the old knob straight off the stem; align the new knob with the stem and press firmly until fully seated
• Verify smooth operation and correct OFF alignment before use

This stainless-steel finish surface burner control knob replaces a worn, cracked, or missing knob so you can reliably turn burners on/off and set heat levels again while keeping a factory look.

• Attaches to the burner valve stem to control on/off and heat output
• Replaces knobs that are cracked, stripped, loose, melted, or missing
• Restores smooth rotation and clear alignment with setting marks
• Stainless finish matches the original appearance

• Turn all controls to OFF and allow the surface to cool
• Pull the old knob straight off the valve shaft; do not pry on the stem
• Align the flat side/D-shape of the shaft and press the new knob on until fully seated
• Verify proper operation through all settings
