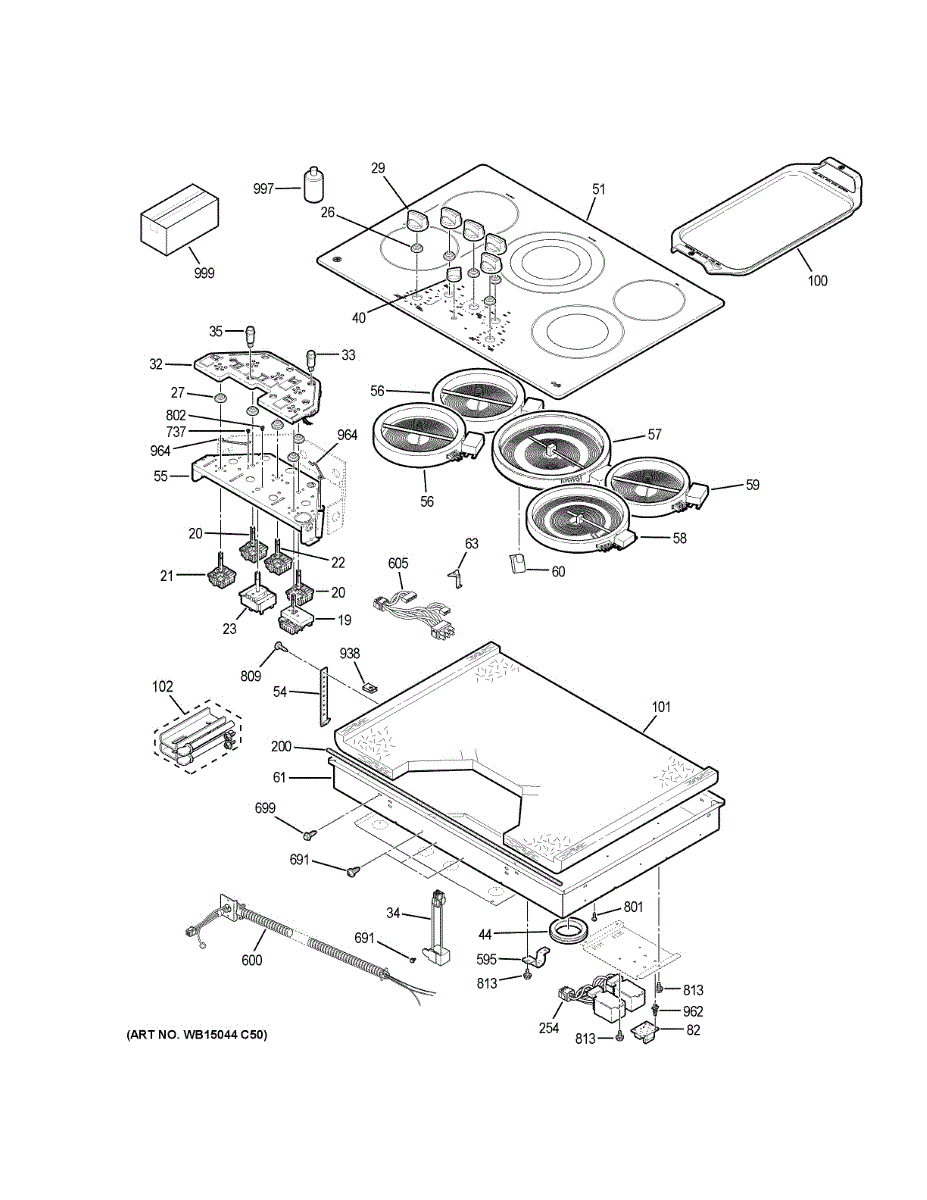

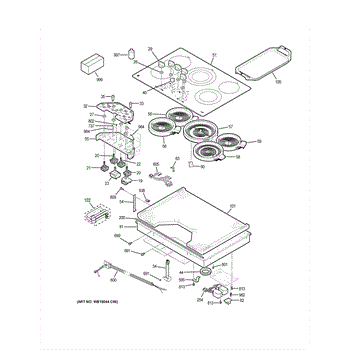

Parts for Ge CP9530SJ2SS: Control Panel & Cooktop Parts

This infinite control switch regulates heat for a range's surface burner, restoring adjustable burner power for consistent cooking. It replaces a worn or faulty control to help burners respond correctly to knob settings. What it does:

• Controls variable power to a surface burner element so you can set low-to-high heat
• Commonly replaces switches that cause burners to stay off, not heat, or only work at one setting
• Restores click-free, smooth adjustment between temperature levels
• Works with mechanical knob assemblies to translate user input into element output

• Disconnect power to the range before beginning any service to avoid electrical shock
• Verify correct switch orientation and terminal connections match the original before installing
• Use basic hand tools; handle terminals carefully to prevent bending or damage

The Switch Infinite Control is an OEM part for GE electric cooktops. It regulates temperature settings for the various cooktop surface heating elements.

Causes of a bad infinite control switch can include worn or damaged internal contacts, broken wires, or faulty temperature controls over time.

Symptoms of a bad infinite control switch include:

• Inaccurate or unstable surface heating
• Failure to reach or maintain desired temperature settings
• Non-responsive or erratic dial/knob operations

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore electric cooktop models.

This infinite control switch regulates heat levels for a surface burner on an electric range, restoring variable temperature control for routine cooking. Replaces a worn or faulty rotary control to recover smooth element adjustment. What it does:

• Controls variable power to a surface cooking element so burners can be set between low and high
• Operates with a rotary knob
• Used when burner heat is erratic, stuck at one setting, or will not turn off/on properly

• One infinite control switch (single unit)

• Disconnect power at the breaker or unplug the range before beginning service
• Access typically requires removing the back panel or cooktop; follow your model's service instructions
• Match terminal locations and wiring exactly; replace only with the correct OEM-approved switch

This indicator light replaces a failed pilot light on a range or cooktop. Mounted in the control area, it illuminates to show when a burner or function is on, restoring clear visual status and everyday safety.

• Lights when the associated heating element or oven function is active
• Provides a visible "on" cue to help prevent accidental contact
• Common symptoms: won't light, flickers/intermittent, or stays on when controls are off
• Restores proper visual feedback when the original light has failed

• Disconnect power at the breaker or unplug the appliance before servicing
• Access the rear of the control panel; remove back cover/trim as needed
• Note wire positions and transfer them to the new light one at a time
• Seat the light securely and reuse existing mounting hardware; ensure wires are not pinched

A replacement selector knob that restores tactile control of your appliance's front panel. Easy to install, this control knob lets you rotate and select settings smoothly so controls respond accurately. What it does:

• Replaces a worn, cracked or stripped selector knob so the control shaft turns properly
• Provides a secure grip for selecting cooktop, oven or control panel settings
• Eliminates slipping or loose rotation that prevents accurate setting selection
• Restores the original look and feel of the control panel

• Always disconnect power to the appliance before servicing controls
• Pull off the old knob straight from the control shaft; align and push the new knob onto the shaft until seated
• Do not force the knob; if it does not fit smoothly, check shaft shape and orientation
• If the control shaft is damaged or the new knob still slips, the control or switch may need replacement

This hold-down bracket secures a designated component inside your appliance, keeping it firmly anchored during use. Replace a bent, broken, or missing bracket to stop movement and rattling and restore proper alignment and a stable, factory fit. What it does:

• Anchors the specified part to the appliance frame/cabinet to prevent shifting
• Reduces vibration and rattling noises during operation
• Helps maintain correct alignment and spacing for reliable performance
• Replace if the bracket is bent, cracked, corroded, or missing

• 1 hold-down bracket

• Disconnect electrical power; for gas appliances, also shut off the gas supply
• Note the original orientation and screw locations before removal (a quick photo helps)
• Reuse existing mounting hardware unless your model specifies new fasteners
• Do not overtighten; verify the secured component is aligned and stable before restoring power

The 6" Radiant Element In is an OEM replacement part for GE electric ranges. This element provides reliable and even heating across the cooktop surface to heat pans consistently.

Causes of a failing element can include wear from extended everyday use, buildup of carbon residue on the coils inhibiting heat transfer, or physical damage such as cracks in coils.

Symptoms of a bad element include:

• Slow or incomplete heating of cookware placed above the element
• Temperature inconsistencies causing hot/cold spots on the cooktop
• The element making a loud popping or cracking noise when in use

This OEM GE replacement part is also compatible with Hotpoint, RCA, and select Kenmore electric ranges.

This bake element is the oven heating element that produces consistent radiant heat for baking and roasting. It restores proper oven temps so cookware heats evenly and recipes finish correctly. What it does:

• Heats the oven cavity during bake cycles to cook and brown food
• Restores lost or reduced heating when the original element has failed
• Works with the oven's bake cycle and thermostat to maintain set temperature

• One oven bake element

• Disconnect power to the range at the breaker before starting work
• Element typically mounts with two screws and plugs into a terminal; handle terminals carefully
• Wear gloves; the element and oven interior can be sharp

This dual Haliant oven heating element restores the oven's primary heat source for baking and broiling so food cooks evenly. It replaces a worn or failed element to help return normal oven heating performance. What it does:

• Heats the oven cavity for bake and broil cycles as the primary heating element.
• Conducts electricity and converts it to heat when the oven calls for temperature rise.
• Common signs of failure: oven won't reach set temperature, long preheat times, uneven cooking, or no heat on bake/broil.
• Works with the oven's control/relay to deliver consistent heating when functioning properly.

• Disconnect power at the circuit breaker before starting any repair and ensure the oven is cold.
• Handle the element carefully to avoid bending or damaging connections; wear gloves and eye protection.
• Inspect terminal connections and mounting points for corrosion or damage; tighten terminals to manufacturer torque if applicable.

The Range Radiant Element is an OEM replacement part for GE ranges. This 5.5-inch element is situated beneath the glass surface of the electric stovetop. It's designed for tasks that require less surface area but still need quick and even heating, such as simmering sauces or cooking smaller portions of food.

Causes for a malfunctioning Range Radiant Element can include electrical issues like faulty wiring or connections, physical damage from spills or heavy cookware, or wear and tear from regular use.

Symptoms of a bad Range Radiant Element include:

• The element failing to heat up or heating unevenly
• Visible damage such as cracks or burns on the element
• Difficulty in maintaining a consistent temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Radiant Element Spring is an OEM part for GE electric ranges. This spring supports the radiant element coil and provides the necessary tension to allow the coil to glow red-hot during the cooking process.

Causes of a bad spring can include fatigue from repeated heating and cooling cycles, damage due to impact or mishandling, or corrosion over extended use.

Symptoms of a bad radiant element spring include:

• Radiant element coil sagging or not sitting flush
• Element coil not heating properly or heating unevenly
• Excessive heat and energy use from a misaligned coil
• Element mounting brackets becoming loose over time

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This bottom burn box is the oven cavity component that directs and contains the gas burner flame, protecting the oven floor and helping maintain consistent heat for proper cooking performance. What it does

• Channels burner flame and heat across the oven floor for more even heating
• Shields the oven bottom from drips, spills and debris that can cause smoking or flare-ups
• Helps prevent direct flame contact with oven floor and components, reducing hot spots
• Replaces damaged, rusted or warped burn boxes that can cause burner instability or odors

• One bottom burn box (single)

• Turn off gas supply and power to the range before servicing; follow all local codes
• Inspect mounting tabs and nearby gaskets; replace any damaged parts for a proper fit
• Handle sharp or corroded edges carefully and verify correct alignment before restoring gas/power

This is a replacement flat griddle plate designed to restore a smooth, even cooking surface on compatible GE ranges. It provides a durable, easy-to-clean place for pancakes, bacon and other griddle-style cooking. What it does

• Replaces a warped, cracked or damaged cooktop griddle to restore even heat contact
• Provides a flat, non-porous surface that helps prevent food from falling into the cooktop
• Helps eliminate hot or cold spots caused by a damaged griddle
• Designed for direct cooktop use — suitable for pancakes, eggs, sandwiches and similar foods

• One replacement griddle plate

• Disconnect power to the range and allow the appliance to cool completely before installing
• Remove the existing griddle and set the replacement into the cooktop recess; verify it sits flush and stable
• Use only manufacturer-recommended cleaning methods; avoid abrasive cleaners that can damage the finish

This insulation sheet provides thermal barrier protection for the appliance, helping stabilize internal temperatures and reduce heat transfer to surrounding panels. It restores original insulating performance to improve efficiency and temperature control. What it does:

• Replaces worn or damaged insulation that allows excess heat transfer
• Helps maintain consistent internal temperature for proper operation
• Reduces heat felt on exterior cabinet surfaces
• Can help prevent heat-related damage to nearby components

• One insulation sheet

• Disconnect power (and water if applicable) before beginning service
• Access may require removing outer panels or liners; keep fasteners organized
• Wear gloves and eye protection—edges may be sharp and insulation fibers can irritate skin
• Follow the appliance service manual for model-specific removal and reinstallation steps

This installation kit supplies the manufacturer-specified hardware needed to properly install or secure the related appliance component. Use it to replace lost or damaged mounting pieces so the unit sits secure, aligned, and safe.

• Provides the correct fasteners and small parts for a proper installation
• Restores secure mounting if original hardware is missing, stripped, or corroded
• Helps eliminate looseness, vibration, or rattling caused by inadequate mounting
• Useful when reinstalling after service or relocating the appliance

• Disconnect electrical power before starting; shut off gas supply if applicable.
• Support the appliance/component during installation to prevent injury or damage.
• Follow your model's installation instructions; arrange and tighten hardware as directed.
• After installation, verify clearances, alignment, and secure mounting before use.

The Foam Tape is an OEM part for GE gas ranges. It serves as a sealant, ensuring a proper fit and preventing the escape of heat and gases from the range. This tape helps maintain the efficiency of the range by providing an airtight seal around various components.

Causes of a bad Foam Tape can include wear and tear over time, exposure to high temperatures, or physical damage during cleaning or maintenance. When the foam tape degrades, it can compromise the range's performance and safety.

Symptoms of a bad Foam Tape include:

• Heat escaping from the range
• Gas odors near the appliance
• Visible wear or gaps in the seal
• Decreased cooking efficiency

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This 8-32 x 3/4 Phillips screw secures panels and components in many household appliances. It replaces stripped or missing machine screws to restore proper fit and appliance stability. What it does:

• Fastens metal or plastic appliance panels and brackets using an 8-32 thread
• Replaces worn, rusted, or missing screws that cause loose panels or rattling
• Provides a reliable threaded connection for internal components
• Standard 3/4" length suits common cabinet and mounting applications

• Use the correct screwdriver (Phillips) and avoid over-torquing to prevent stripping
• Disconnect power to the appliance and remove plugs or batteries as needed before working
• If screw is rusted or seized, apply penetrating lubricant and proceed carefully

This factory screw secures components on GE cooking appliances. Replacing a lost or stripped fastener helps keep parts tight and aligned for safer, rattle-free operation.

• Fastens brackets, panels, trim, or burner components on a range, cooktop, or wall oven
• Replaces missing, corroded, or stripped hardware
• Helps reduce looseness, vibration, or rattling noises
• Restores proper alignment after service or cleaning

• Disconnect power and shut off gas supply. Allow the appliance to cool completely.
• Match this screw to the original and install in the same location.
• Use the correct driver; hand-tighten and avoid overtightening to prevent stripped threads or cracked parts.
• If mating threads are damaged, repair or replace the affected component before reassembly.

Replacement fastener used to secure appliance components. If a screw is missing or damaged, panels and brackets can loosen or rattle. Installing a new screw restores a tight fit and helps keep parts properly aligned.

• Fastens panels, brackets, or internal components as designed for the model
• Replaces missing, stripped, or corroded hardware
• Helps reduce vibration/rattling and restores proper fit
• Maintains alignment and a secure assembly after service

• Disconnect power; shut off gas if applicable before servicing
• Support components while removing/installing fasteners
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace all required screws in a location for even clamping and proper fit
