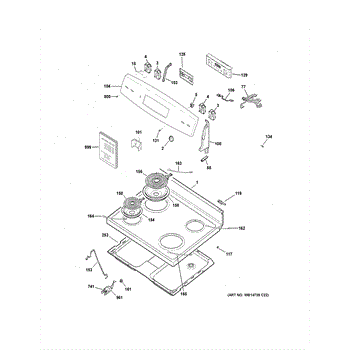

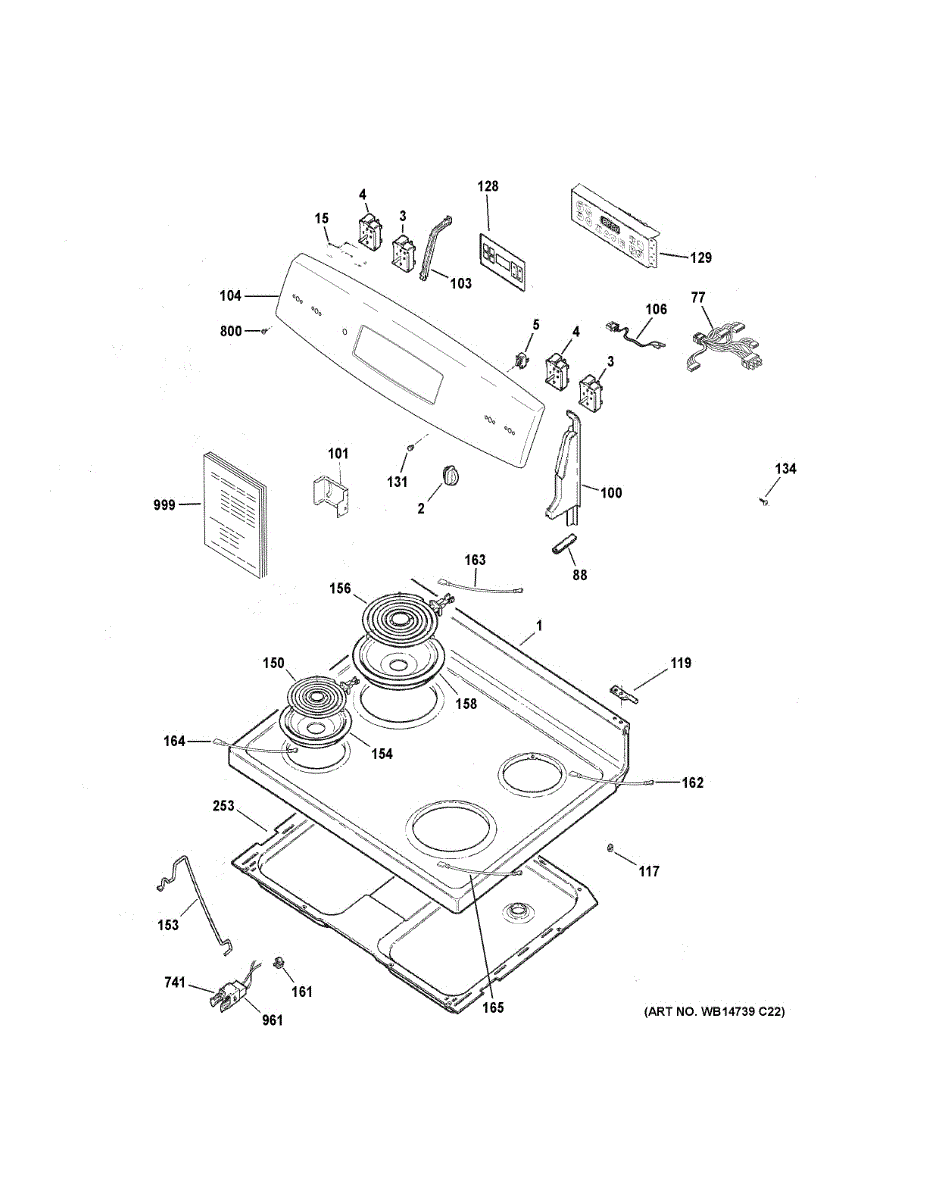

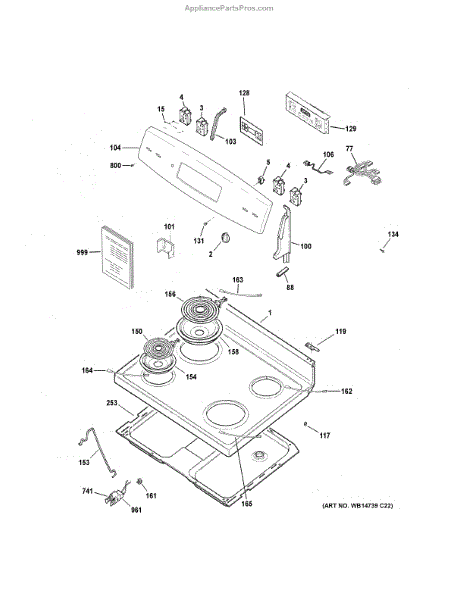

Parts for Ge JB256DM2CC: Control Panel & Cooktop Parts

Metal main top panel for electric ranges. Replaces cracked, damaged, or worn cooktop surfaces. Installs as the primary cooking surface covering burners.

Indicator light that illuminates when burners or oven are active. Replace if it stays on constantly or fails to light. Verify fit with your model number.

The Main Harness is an OEM part for GE gas ranges. It serves as the primary conductor between range components and control interfaces.

Symptoms of a bad main harness include:

• Burners resisting adjustment or faulty temperature controls
• Igniters/lights failing to illuminate or heat elements inactive
• Entire range failing to power on or intermittently operating

Causes involve damage from excessive heat, wire insulation degradation over time, or loose terminals compromising connections.

This OEM GE part is also compatible with Hotpoint and RCA gas range models.

Replacement control bracket for electric and gas ranges. Secures and supports the control panel assembly. Order a new bracket if yours is cracked or broken.

This pin locator secures a hinge or shaft pin in place to keep linked appliance components aligned and operating smoothly. It's a small replacement part that restores proper positioning where a locating clip or retainer is used. What it does

• Holds a hinge, shaft, or pivot pin in place to prevent lateral movement
• Restores proper alignment of doors, panels, or linked components
• Helps stop rattling, misalignment, or binding caused by a worn or missing locator
• Works as a direct replacement for the same OEM-labeled locating clip/retainer

• One pin locator

• High-level replacement; basic hand tools usually required
• Disconnect power (and water, if applicable) before servicing appliances with electrical components
• Keep track of small parts and orientation for correct reassembly

Pivot pin that connects the oven door hinge to its mounting bracket. Replace if worn, broken, or missing to restore smooth door operation and alignment.

Fix F2 error codes, dead oven display, or overheating issues. This oven control board manages temperature and cooking modes. DIY-friendly repair.

Covers the control panel lamp opening to diffuse light and protect from debris. Replace if broken, cracked, or missing to restore clear indicator visibility.

Secures components to your appliance chassis for a rattle-free fit. Replace missing, stripped, or corroded screws to keep panels and brackets aligned.

The 6" Surface Burner with Sensor is an OEM part for GE ranges. This part provides precise heating for cooking on your range's stovetop. The integrated sensor helps regulate the burner temperature, ensuring even and consistent cooking results.

Support rod that props up the lift-up top on your range. Holds the top panel securely in the raised position for cleaning or servicing. Replace if bent or missing.

Chrome drip bowl installs beneath 6-inch coil burners on electric ranges. Catches spills and drips during cooking. Replace when rusted, worn, or stained.

This 8-inch drip bowl sits beneath the surface coil on your range to catch spills and support the element. Replacing a rusted or stained bowl refreshes the cooktop and helps the coil sit level for reliable heating.

• Collects drips and boilovers u

This 8-inch drip bowl installs under your range burner to catch grease and spills. Replace if yours is rusted, cracked, warped, or heavily stained.

Fix burners that won't heat or have intermittent power with this surface unit wiring harness kit. Connects heating elements to range controls.

Fix burners that won't heat or have intermittent power with this surface unit wiring harness kit. Connects heating elements to range controls.

Houses and protects cooktop wiring connections. Replace when the original box is damaged, corroded, or missing fasteners for safe electrical connections.

Burner won't seat properly or wobbles? This receptacle clip secures the surface element connection for stable, reliable heat. Simple DIY fix.

Replacement mounting screw that secures the thermostat assembly to your range cabinet. Replace if stripped, missing, or damaged during repair work.

Burner not heating or terminal block burned? This electric range terminal block kit restores power to surface elements. Easy 10-15 minute DIY repair.
