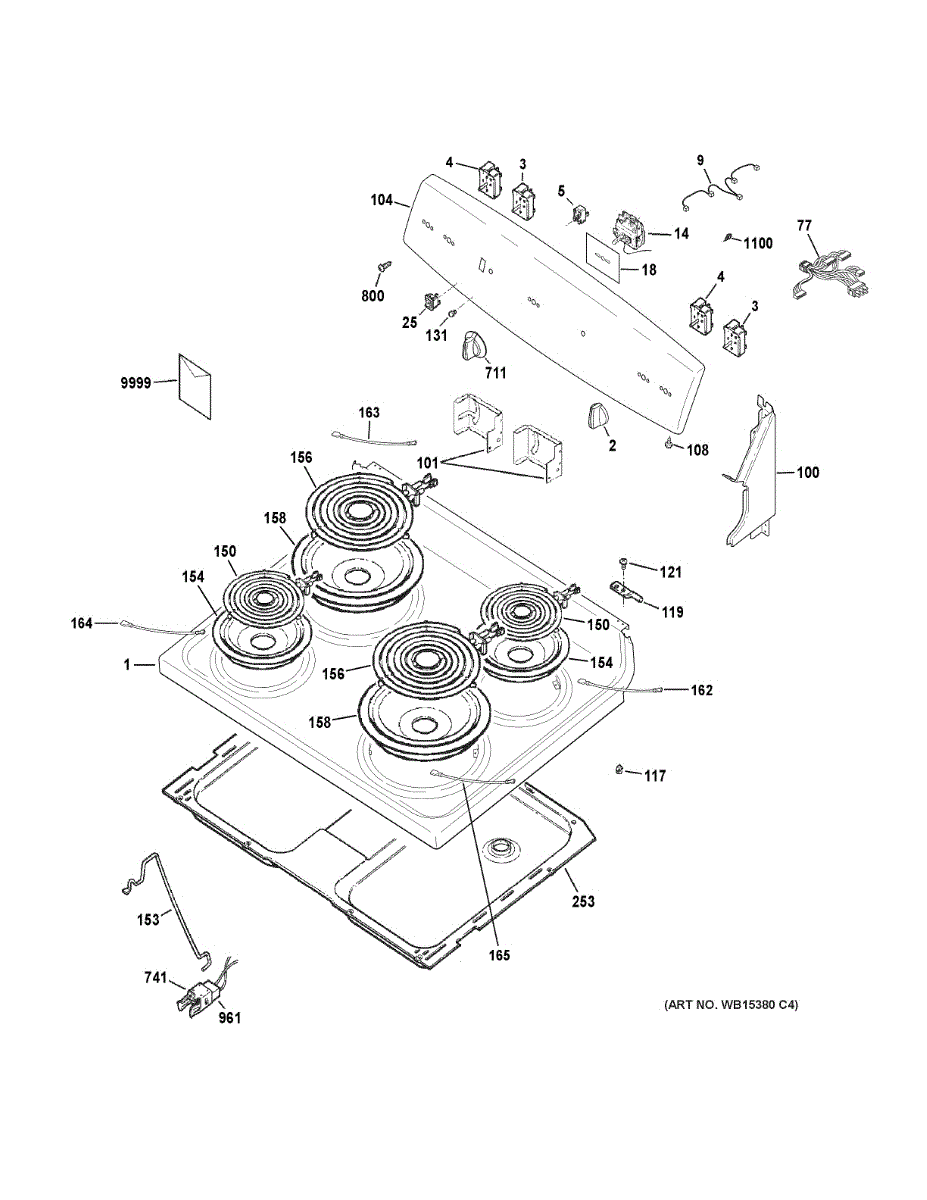

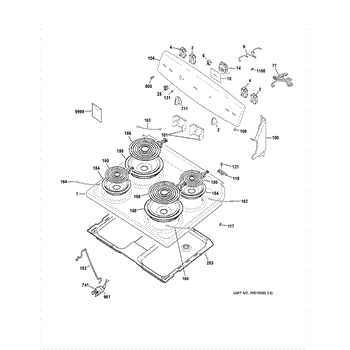

Parts for Ge JBS160DM1BB: Control Panel & Cooktop Parts

This replacement range top restores the flat surface that supports burners and cookware, renewing appearance and providing a stable cooking platform. Fits compatible GE ranges and helps keep the cooktop area sealed and serviceable. What it does:

• Provides the cooktop surface that supports burners, grates, and cookware
• Replaces a warped, dented, corroded, or cosmetically damaged top
• Helps maintain proper alignment of burner assemblies and trim
• Can prevent debris from falling into the range interior around burners

• One range top

• Disconnect power and gas supply before beginning service
• Remove burner grates, burner caps and assemblies as required to access mounting fasteners
• Handle carefully to avoid scratching the finished surface; use two people for larger tops

The Knob Valve is an OEM part compatible with GE ranges. Precisely machined brass components regulate propane or natural gas flow through each control valve.

Causes of failure are often normal wear on precision valve internals restricting fuel intake over thousands of adjustment cycles. Cracks or contaminant buildup can occur from prolonged use.

Symptoms include:

• Burners failing to ignite consistently or at all
• Inability to adjust/maintain proper flame height or temperature
• Fuel leaks discernible by smell around knob shafts

This GE replacement returns full functionality to fuel delivery. Compatible with select Hotpoint and RCA appliances as well, it prevents future repair costs.

The Infinite Switch (8") is an OEM replacement part for GE stovetops. It is responsible for controlling the heat output of the burner. The switch allows you to adjust the heat level by turning the knob, regulating the amount of power supplied to the burner. A bad infinite switch can be caused by regular wear and tear, electrical issues, or overheating. It can also become damaged if exposed to moisture.

Symptoms of a bad infinite switch include:

• The burner not heating up
• The burner staying on at the highest heat setting
• The burner not turning off or not responding
• Visible signs of damage

Causes of a bad infinite switch can include normal wear and tear over time, exposure to excessive heat or moisture, or electrical malfunctions.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Surface Element Switch is an OEM part for GE ranges and cooktops. It controls the heating of the surface elements by regulating the power level supplied to them. This switch allows you to adjust the heat intensity for precise cooking, ensuring that each dish is cooked to perfection.

Causes of a bad surface element switch can include electrical faults such as short circuits, wear and tear from frequent use, or mechanical failure within the switch mechanism.

Symptoms of a bad Surface Element Switch include:

• Burners not heating up or heating unevenly
• Burners remaining at a fixed temperature regardless of the setting
• The inability to control the heat level of the burner
• Sparking or electrical arcing from the switch area

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This pilot lamp is the control-panel indicator light for a cooking appliance. It illuminates when a surface burner or oven circuit is energized, giving a clear visual cue that heat is active. What it does

• Lights to indicate an active surface burner or oven circuit
• Restores proper "heat on" indication on the control panel
• Common failure signs: indicator light does not turn on; intermittent/flickering illumination

• 1 pilot lamp

• Disconnect power at the breaker before servicing
• Access the rear of the control panel/console to reach the lamp
• Note wire positions and transfer them one at a time to the new lamp
• Secure the lamp, reassemble, restore power, and test for proper illumination

The Electric Thermostat is an OEM replacement part for GE ovens. This component is responsible for monitoring and regulating the temperature inside the oven. When you set a desired temperature, the electric thermostat ensures the oven heats to that specific temperature and maintains it throughout the cooking process.

Causes for a malfunctioning Electric Thermostat can include electrical issues, such as faulty wiring or connections, calibration problems, or wear and tear from regular use.

Symptoms of a bad Electric Thermostat include:

• Oven not reaching the set temperature
• Overheating or under-heating of the oven
• Inconsistent temperature fluctuations during cooking
• Error messages related to temperature or heating

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

A sealed rocker switch that replaces a worn or failed control switch to restore reliable on/off or selector operation. Designed to keep contacts protected from moisture and debris for consistent performance. What it does:

• Provides a user-facing rocker control to open/close electrical circuits for the appliance function.
• Replaces switches that cause intermittent operation, no response, or stuck on/off conditions.
• Sealed design helps protect internal contacts from moisture, spills, and dirt that can cause failures.
• Matches the OEM form and mounting for a direct-fit replacement when the original switch is damaged.

• Disconnect power or unplug the appliance before starting any repair.
• Note or photograph wire locations before removing connectors to ensure correct reinstallation.
• Basic hand tools (screwdriver, pliers) are typically required; avoid forcing wiring or terminals.

This main wiring harness routes power and signals between the range/oven control and internal components to restore reliable electrical connections and proper appliance operation. Designed to replace a worn or damaged factory harness. What it does:

• Transfers power and control signals between the console/control board and oven/range components
• Restores connections to heating elements, igniters, sensors, and switches
• Stops intermittent or lost power to burners or the oven control caused by frayed or broken wires
• Helps eliminate erratic control behavior tied to damaged or corroded harness connectors

• Disconnect all power (unplug or shut off breaker) before beginning any repair
• Verify exact connector orientation and routing before disconnecting original harness to avoid misrouting
• Use care with fragile connector terminals; replace if pins are damaged

This genuine replacement screw secures panels, trim and small components on compatible appliances to restore proper fit and prevent rattling or gaps. Use it when a missing or damaged fastener causes loose or misaligned parts. What it does:

• Fastens panels, bezels, trim pieces and small assemblies to the appliance frame
• Restores secure fit to eliminate rattling, vibration noise or loose trim
• Replaces stripped, rusted or missing screws that prevent proper alignment

• Disconnect power to the appliance before servicing to avoid electrical hazard
• Use the correct screwdriver or driver bit to prevent stripping the head
• Tighten securely but avoid over-torquing; excessive force can strip threads or crack plastics
• Keep removed fasteners organized to ensure correct reassembly

This hinge pin links the oven door hinge to its mounting point, creating the pivot that lets the door open and close smoothly. Replacing a worn or missing pin can restore steady door movement and a consistent seal.

• Serves as the pivot point for the door hinge
• Helps maintain proper door alignment and closing pressure
• Wear or damage may show as a loose, sagging, or misaligned door
• May help address squeaks, binding, or difficulty latching the door

• Disconnect power; for gas ranges, also shut off the gas supply
• Support or remove the door to access the hinge
• Note hinge orientation; remove the old pin and install the new pin securely
• Inspect the hinge/bracket for wear; lubricate only if specified by the manufacturer

Package of 12

This indicator light lens covers the control-panel lamp opening, diffusing the light and protecting the hole from debris and contact. Replace a missing or damaged lens to restore a clean, finished look and clear on/off indication.

• Provides a finished cover for the indicator lamp opening on the panel
• Diffuses the light for clearer visibility
• Shields the opening from dust, moisture, and accidental contact
• Common signs to replace: lens is cracked, missing, discolored, or won't stay seated

• Disconnect power at the breaker before servicing
• Access the control panel as required for your model (remove knobs/screws if needed)
• Lens typically snaps in; some models use a rear retainer—transfer any clip or seal
• Align with the lamp and press evenly; do not force or overtighten fasteners

The 6" Surface Burner with Sensor is an OEM part for GE ranges. This part provides precise heating for cooking on your range's stovetop. The integrated sensor helps regulate the burner temperature, ensuring even and consistent cooking results.

Common causes of a bad surface burner include electrical issues, wear and tear over time, or damage from excessive heat or spills.

Symptoms of a bad surface burner with sensor include:

• Burner not heating up
• Inconsistent or uneven heating
• Burner temperature not being properly regulated
• Error codes or malfunction indicators on the range display

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This support rod props up the lift-up top on your range, providing a secure hold while you clean or service components beneath. Replacing a bent or missing rod restores safe, stable support for the top panel.

• Holds the range top securely in the raised position during cleaning or service
• Helps prevent the top from dropping unexpectedly
• Restores proper alignment if the original rod is bent or worn
• Common symptoms: top won't stay up, rod is missing, bent, or loose

• Disconnect power and shut off the gas supply before servicing
• Support the top while removing/installing the rod to prevent accidental dropping
• Reuse or transfer any retaining hardware/clips from the original part
• Ensure the rod is fully seated in its retainer before lowering the top

The 6-Inch Burner Bowl is an OEM part compatible with GE ranges and cooktops. This component serves as the base for the burner assembly, housing the burner head and providing a stable platform for cooking utensils.

Symptoms of a faulty burner bowl include:

• Cracks, chips, or visible damage to the bowl itself
• Uneven or inefficient heating due to a warped or damaged bowl
• The bowl becoming loose or detached from the cooktop surface

Causes of needing to replace the burner bowl can include physical impact or mishandling, exposure to extreme temperatures or spills, or general wear and tear from extended use.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore range and cooktop models.

This 8-inch drip bowl sits beneath the surface coil on your range to catch spills and support the element. Replacing a rusted or stained bowl refreshes the cooktop and helps the coil sit level for reliable heating.

• Collects drips and boilovers under the 8-inch surface coil
• Positions and supports the element over the receptacle
• Helps keep the cooktop cleaner and easier to maintain
• Common signs to replace: heavy staining, rust/corrosion, warping, holes, or the element not sitting level

• Disconnect power and allow the cooktop to cool completely
• Lift the coil element slightly, then pull straight out of the receptacle
• Remove the old bowl, align the notch/orientation of the new bowl, and seat it flat
• Reinsert the coil element terminals fully into the receptacle and verify it sits level

The 8 Inch Burner Bowl is an OEM part for GE ranges and cooktops. This part sits beneath the heating element to catch spills, drips, and crumbs that fall during cooking. Not only does it facilitate easier cleanup, but it also plays a role in reflecting heat back to the cookware, enhancing cooking efficiency.

Causes of a bad 8-inch burner bowl can include the accumulation of cooked-on spills and debris, rust and corrosion from moisture exposure, as well as warping or physical damage that affects fit and function.

Symptoms of a bad 8 Inch Burner Bowl include:

• Poor fit on the stove, affecting stability of pots and pans
• Difficulty in cleaning due to excessive staining or corrosion
• Reduced heating efficiency if the bowl no longer reflects heat effectively

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This cooktop box houses and protects the cooktop's wiring connections, restoring a safe, code-ready junction point for electrical supply lines. Use this part when the original box is damaged, corroded, or missing fasteners. What it does

• Provides a secure enclosure for cooktop electrical connections and strain relief
• Prevents exposed wiring and reduces risk of shorts or arcing at the connection point
• Restores proper mounting for incoming supply conduit or cable
• Helps correct symptoms like intermittent power, visible damage to the wiring box, or a loose/unstable connection area

• One cooktop junction wiring box

• Disconnect power at the breaker before inspecting or replacing the box
• Replacement typically requires removing the cooktop and transferring wiring into the new box; keep wire routing and grounding intact
• Use only approved screws/fasteners and maintain proper strain relief and grounding per local code

Knob thermostat assembly that replaces the temperature-control knob and thermostat interface so you can accurately set and maintain oven or range temperatures. Restores reliable, responsive temperature adjustments. What it does:

• Provides the user-control knob and thermostat interface for selecting oven/range heat settings.
• Engages the temperature control mechanism to help maintain set cooking temperatures.
• Commonly used when the knob is cracked, loose, or fails to turn when adjusting temperature.
• Resolves symptoms like uneven cooking, inability to change temperature, or unresponsive knob control.

• One knob thermostat assembly.

• Disconnect power (and gas if applicable) before beginning any repair.
• Remove the range/oven control panel or access cover to reach the shaft; align the assembly on the control shaft and secure per OEM orientation.
• Restore power and test the control through its settings.

This silicon controlled rectifier (SCR) switches and regulates power to heating elements and motors in compatible appliances, restoring controlled current flow for proper operation. It's a direct-replacement electronic switching component. What it does:

• Acts as a solid-state switch to control AC power to heater or motor circuits
• Helps regulate current during timed or thermostatic cycles
• Common replacement when appliance shows intermittent heating, no heat, or erratic motor control
• Replaces a failed/shorted SCR that can cause blown fuses or control board errors

• One silicon controlled rectifier (single SCR)

• Intended for technicians or experienced DIYers; disconnect power before servicing
• Verify correct SCR orientation and secure the 8-32 screw terminal; avoid overtightening
• Observe ESD precautions and handle the part by non-conductive areas

The Terminal Block Kit is an OEM replacement part for GE electric ranges. This kit replaces the points of connection delivering power to control circuits and surface coil elements atop the cooktop.

Causes of failure are prolonged heat cycling which slowly breaks down solder joints and insulator coating on terminals conducting power. Liquids spilled can seep into connection areas over time promoting electrical faults.

Symptoms of a faulty terminal block include:

• Inability to ignite or regulate specific burners
• Burners that glow intermittently or fail to respond
• Tripped circuit breakers upon use of problematic zones
• Buzzing or cracking noises from under cooktop areas

This genuine GE kit is also compatible with Hotpoint and RCA electric ranges.
