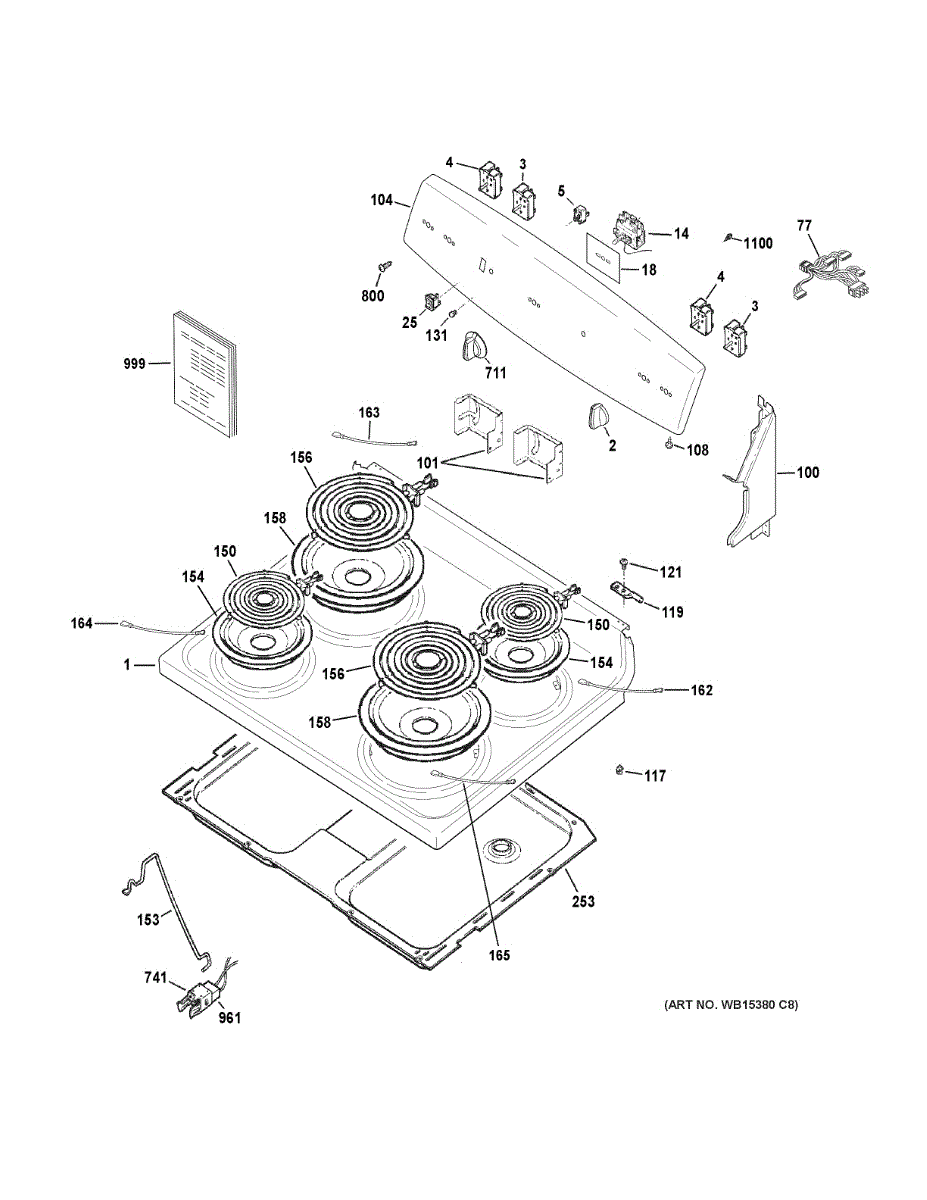

Parts for Ge JBS160DM3CC: Control Panel & Cooktop Parts

This pilot lamp is the control-panel indicator light for a cooking appliance. It illuminates when a surface burner or oven circuit is energized, giving a clear visual cue that heat is active. What it does

• Lights to indicate an active surface burner or oven circuit
• Restores proper "heat on" indication on the control panel
• Common failure signs: indicator light does not turn on; intermittent/flickering illumination

• 1 pilot lamp

• Disconnect power at the breaker before servicing
• Access the rear of the control panel/console to reach the lamp
• Note wire positions and transfer them one at a time to the new lamp
• Secure the lamp, reassemble, restore power, and test for proper illumination

The Electric Thermostat is an OEM replacement part for GE ovens. This component is responsible for monitoring and regulating the temperature inside the oven. When you set a desired temperature, the electric thermostat ensures the oven heats to that specific temperature and maintains it throughout the cooking process.

Causes for a malfunctioning Electric Thermostat can include electrical issues, such as faulty wiring or connections, calibration problems, or wear and tear from regular use.

Symptoms of a bad Electric Thermostat include:

• Oven not reaching the set temperature
• Overheating or under-heating of the oven
• Inconsistent temperature fluctuations during cooking
• Error messages related to temperature or heating

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This carton cover thermostat senses temperature in the refrigerator carton/cover area and signals the appliance control system so temperature-related components operate correctly. It helps maintain proper temperature response for defrost and ice-related functions. What it does

• Detects temperature at the carton/cover location and provides an electrical signal to the control system.
• Helps ensure timely activation/deactivation of temperature-dependent systems (defrost, ice-making components).
• Commonly replaced when temperature-related functions are inconsistent or intermittent.
• Can restore normal cycling when a failed thermostat causes improper temperature readings.

• One carton cover thermostat.

• Disconnect power to the appliance before beginning work to avoid electrical shock.
• Verify exact wiring and terminal locations against the appliance service sheet; confirm continuity before and after replacement.
• Replace only with correct OEM-designated thermostat and secure in the original clip or mounting location.

This genuine replacement screw secures panels, trim and small components on compatible appliances to restore proper fit and prevent rattling or gaps. Use it when a missing or damaged fastener causes loose or misaligned parts. What it does:

• Fastens panels, bezels, trim pieces and small assemblies to the appliance frame
• Restores secure fit to eliminate rattling, vibration noise or loose trim
• Replaces stripped, rusted or missing screws that prevent proper alignment

• Disconnect power to the appliance before servicing to avoid electrical hazard
• Use the correct screwdriver or driver bit to prevent stripping the head
• Tighten securely but avoid over-torquing; excessive force can strip threads or crack plastics
• Keep removed fasteners organized to ensure correct reassembly

This pin locator secures a hinge or shaft pin in place to keep linked appliance components aligned and operating smoothly. It's a small replacement part that restores proper positioning where a locating clip or retainer is used. What it does

• Holds a hinge, shaft, or pivot pin in place to prevent lateral movement
• Restores proper alignment of doors, panels, or linked components
• Helps stop rattling, misalignment, or binding caused by a worn or missing locator
• Works as a direct replacement for the same OEM-labeled locating clip/retainer

• One pin locator

• High-level replacement; basic hand tools usually required
• Disconnect power (and water, if applicable) before servicing appliances with electrical components
• Keep track of small parts and orientation for correct reassembly

This hinge pin links the oven door hinge to its mounting point, creating the pivot that lets the door open and close smoothly. Replacing a worn or missing pin can restore steady door movement and a consistent seal.

• Serves as the pivot point for the door hinge
• Helps maintain proper door alignment and closing pressure
• Wear or damage may show as a loose, sagging, or misaligned door
• May help address squeaks, binding, or difficulty latching the door

• Disconnect power; for gas ranges, also shut off the gas supply
• Support or remove the door to access the hinge
• Note hinge orientation; remove the old pin and install the new pin securely
• Inspect the hinge/bracket for wear; lubricate only if specified by the manufacturer

This indicator light lens covers the control-panel lamp opening, diffusing the light and protecting the hole from debris and contact. Replace a missing or damaged lens to restore a clean, finished look and clear on/off indication.

• Provides a finished cover for the indicator lamp opening on the panel
• Diffuses the light for clearer visibility
• Shields the opening from dust, moisture, and accidental contact
• Common signs to replace: lens is cracked, missing, discolored, or won't stay seated

• Disconnect power at the breaker before servicing
• Access the control panel as required for your model (remove knobs/screws if needed)
• Lens typically snaps in; some models use a rear retainer—transfer any clip or seal
• Align with the lamp and press evenly; do not force or overtighten fasteners

The 6" Surface Burner with Sensor is an OEM part for GE ranges. This part provides precise heating for cooking on your range's stovetop. The integrated sensor helps regulate the burner temperature, ensuring even and consistent cooking results.

Common causes of a bad surface burner include electrical issues, wear and tear over time, or damage from excessive heat or spills.

Symptoms of a bad surface burner with sensor include:

• Burner not heating up
• Inconsistent or uneven heating
• Burner temperature not being properly regulated
• Error codes or malfunction indicators on the range display

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This support rod props up the lift-up top on your range, providing a secure hold while you clean or service components beneath. Replacing a bent or missing rod restores safe, stable support for the top panel.

• Holds the range top securely in the raised position during cleaning or service
• Helps prevent the top from dropping unexpectedly
• Restores proper alignment if the original rod is bent or worn
• Common symptoms: top won't stay up, rod is missing, bent, or loose

• Disconnect power and shut off the gas supply before servicing
• Support the top while removing/installing the rod to prevent accidental dropping
• Reuse or transfer any retaining hardware/clips from the original part
• Ensure the rod is fully seated in its retainer before lowering the top

The 6" Burner Bowl is an OEM part for GE cooktops and ranges. It is designed to sit beneath the heating element, catching spills and drips that occur during cooking. This helps to keep the cooktop clean and ensures that the heating element functions properly by preventing food debris from interfering with its operation.

Over time, burner bowls can become discolored, warped, or corroded due to exposure to high heat and spills. Additionally, frequent cleaning or scraping can cause scratches and other damage, which may compromise their ability to effectively catch spills and support the heating element.

Symptoms of a bad burner bowl include:

• Discoloration or charring
• Warping or misalignment with the heating element
• Difficulty in fitting the bowl securely in place
• Residue buildup that is difficult to clean

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Notes:

• For the matching 8” drip pan, order WB31K10266.
• Surface elements:
• 6": WB30M1;  8"WB30M2.
• Element terminal block: WB17X5113.

This 8-inch drip bowl sits beneath the surface coil on your range to catch spills and support the element. Replacing a rusted or stained bowl refreshes the cooktop and helps the coil sit level for reliable heating.

• Collects drips and boilovers under the 8-inch surface coil
• Positions and supports the element over the receptacle
• Helps keep the cooktop cleaner and easier to maintain
• Common signs to replace: heavy staining, rust/corrosion, warping, holes, or the element not sitting level

• Disconnect power and allow the cooktop to cool completely
• Lift the coil element slightly, then pull straight out of the receptacle
• Remove the old bowl, align the notch/orientation of the new bowl, and seat it flat
• Reinsert the coil element terminals fully into the receptacle and verify it sits level

The 8" Burner Bowl is an OEM replacement part for GE ranges and cooktops. It is responsible for safely collecting and containing grease and cooking liquids below the burner.

Causes can include damage or deformation from repeated high heat exposure over time.

Symptoms of a bad drip pan include:

• Grease or liquids leaking outside of the drip pan area
• Warping or bending that prevents proper placement below the burner
• Inability to fully trap and contain grease and cooking residue
• Accelerated buildup or residue that impacts burner performance

This genuine GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This cooktop box houses and protects the cooktop's wiring connections, restoring a safe, code-ready junction point for electrical supply lines. Use this part when the original box is damaged, corroded, or missing fasteners. What it does

• Provides a secure enclosure for cooktop electrical connections and strain relief
• Prevents exposed wiring and reduces risk of shorts or arcing at the connection point
• Restores proper mounting for incoming supply conduit or cable
• Helps correct symptoms like intermittent power, visible damage to the wiring box, or a loose/unstable connection area

• One cooktop junction wiring box

• Disconnect power at the breaker before inspecting or replacing the box
• Replacement typically requires removing the cooktop and transferring wiring into the new box; keep wire routing and grounding intact
• Use only approved screws/fasteners and maintain proper strain relief and grounding per local code

This knob thermostat assembly replaces a worn or damaged temperature-control knob and shaft to restore secure knob operation and reliable temperature selection on compatible ranges and ovens. Simple swap can fix loose, broken, or non-engaging knobs. What it does:

• Provides the user interface knob and thermostat shaft for selecting oven/range temperature.
• Restores proper engagement when a knob is slipping, loose, cracked, or won't turn.
• Helps recover normal temperature selection when the control does not respond to knob input.
• Replaces assemblies that are visibly broken, melted, or otherwise damaged.

• One knob thermostat assembly.

• Disconnect power to the appliance before starting any repair.
• Basic hand tools are usually required; remove the control panel or console to access the thermostat shaft.
• Align the shaft and press the knob assembly onto the shaft until fully seated; verify smooth rotation and secure fit.

This small retainer secures the surface element receptacle in a range or cooktop so the element plugs in straight and stays seated. Replacing a bent or missing clip helps restore a stable, reliable connection.

• Holds the surface element receptacle firmly to the cooktop or bracket
• Keeps the element plug aligned and fully seated
• Helps prevent arcing, heat damage, and intermittent burner performance from a loose receptacle
• Useful when the element feels wobbly or the receptacle shifts during use

• Disconnect power before servicing
• Lift the cooktop or access panel to reach the receptacle area
• Support the receptacle, release the old clip, and snap the new clip into place
• Ensure the receptacle is secure and aligned before reinstalling the element

The Terminal Block Kit is an OEM replacement part for GE electric ranges. This kit replaces the points of connection delivering power to control circuits and surface coil elements atop the cooktop.

Causes of failure are prolonged heat cycling which slowly breaks down solder joints and insulator coating on terminals conducting power. Liquids spilled can seep into connection areas over time promoting electrical faults.

Symptoms of a faulty terminal block include:

• Inability to ignite or regulate specific burners
• Burners that glow intermittently or fail to respond
• Tripped circuit breakers upon use of problematic zones
• Buzzing or cracking noises from under cooktop areas

This genuine GE kit is also compatible with Hotpoint and RCA electric ranges.

This mounting screw secures appliance components to the chassis for a tight, rattle-free fit. Replacing a missing, stripped, or corroded fastener helps keep panels, brackets, or burner assemblies properly aligned and secure.

• Fastens designated parts to the appliance frame or mounting points
• Helps maintain proper alignment of panels, trim, brackets, or burner assemblies
• Restores hold when the original screw is worn, rusted, or lost
• Symptoms include loose or wobbly components, rattling/vibration, or visible gaps

• Disconnect power; allow all surfaces to cool. For gas units, also shut off the gas supply.
• Use the correct driver/bit; avoid cross-threading.
• If mating threads or clip/nut are damaged, repair or replace them before installing.
• Tighten until secure; do not overtighten to prevent stripping.
