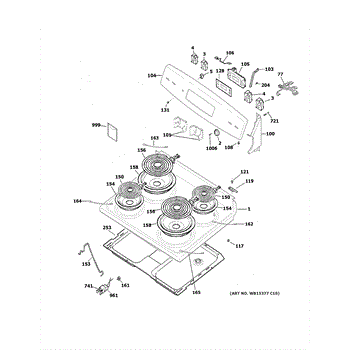

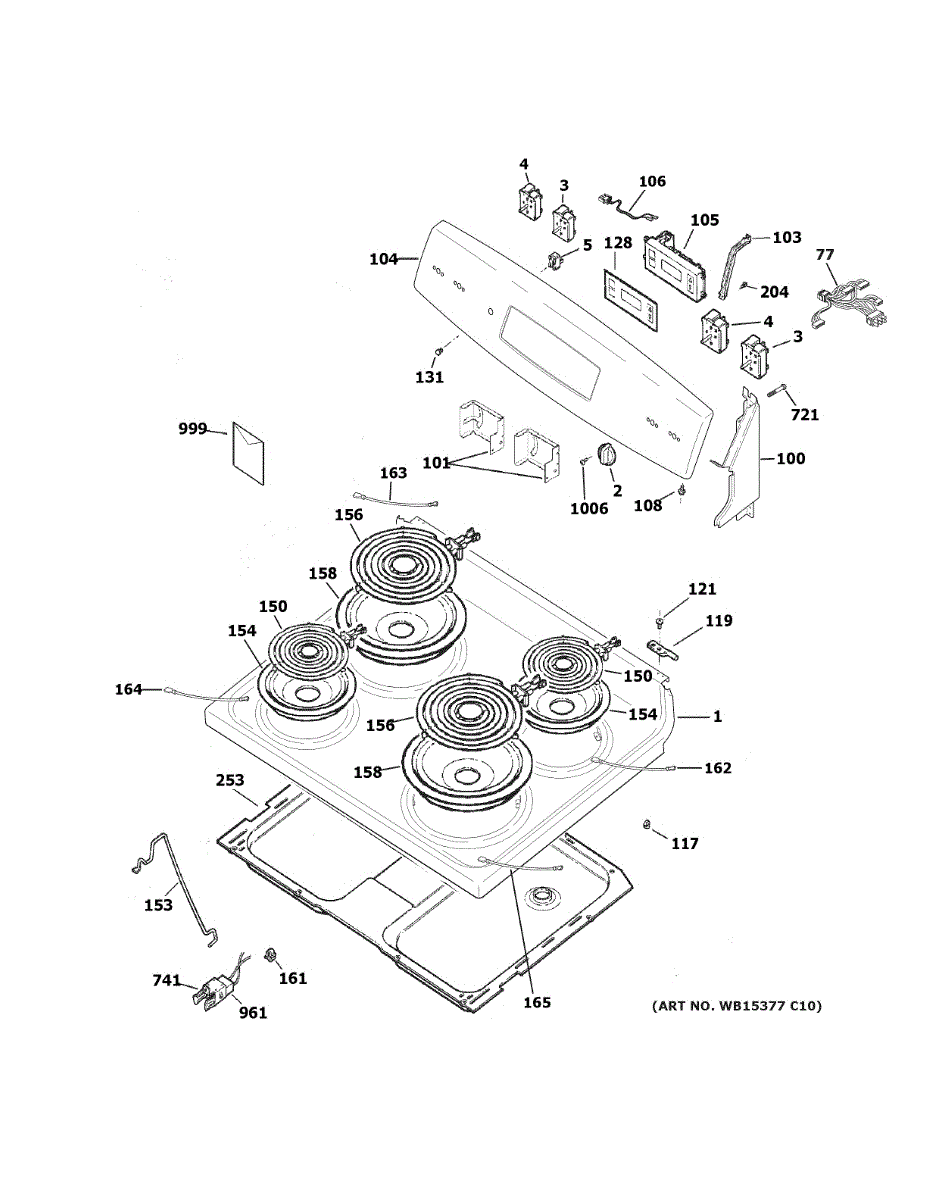

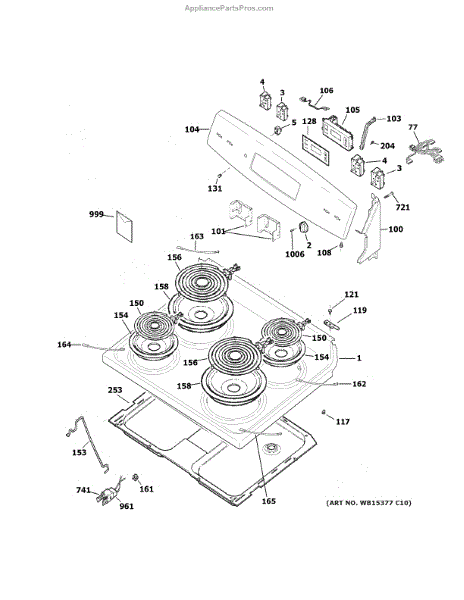

Parts for Ge JBS360RR1SS: Control Panel & Cooktop Parts

Replace your range cooktop surface when cracked, warped, or damaged. Restores the flat cooking platform and seals the burner area. Confirm fit with your model.

Replace a cracked, broken, or loose range valve control knob. This knob installs on the control panel to adjust burner settings. Restores functionality.

Indicator light that illuminates when burners or oven are active. Replace if it stays on constantly or fails to light. Verify fit with your model number.

The Main Harness is an OEM part for GE gas ranges. It serves as the primary conductor between range components and control interfaces.

Symptoms of a bad main harness include:

• Burners resisting adjustment or faulty temperature controls
• Igniters/lights failing to illuminate or heat elements inactive
• Entire range failing to power on or intermittently operating

Causes involve damage from excessive heat, wire insulation degradation over time, or loose terminals compromising connections.

This OEM GE part is also compatible with Hotpoint and RCA gas range models.

Provides structural support at the end of your range. Replace this support piece if the original is cracked, broken, or missing to restore stability.

Structural support bracket that secures the end of your range. Replaces cracked, broken, or missing end supports to restore stability and proper alignment.

Replacement control bracket for electric and gas ranges. Secures and supports the control panel assembly. Order a new bracket if yours is cracked or broken.

Decorative trim piece surrounding the control panel and knobs on your range. Replace if cracked, discolored, warped, or damaged to restore appearance.

Fix F2 error codes, dead oven display, or overheating issues. This oven control board manages temperature and cooking modes. DIY-friendly repair.

This pin locator secures a hinge or shaft pin in place to keep linked appliance components aligned and operating smoothly. It's a small replacement part that restores proper positioning where a locating clip or retainer is used. What it does

• Holds a hinge, shaft, or pivot pin in place to prevent lateral movement
• Restores proper alignment of doors, panels, or linked components
• Helps stop rattling, misalignment, or binding caused by a worn or missing locator
• Works as a direct replacement for the same OEM-labeled locating clip/retainer

• One pin locator

• High-level replacement; basic hand tools usually required
• Disconnect power (and water, if applicable) before servicing appliances with electrical components
• Keep track of small parts and orientation for correct reassembly

Pivot pin that connects the oven door hinge to its mounting bracket. Replace if worn, broken, or missing to restore smooth door operation and alignment.

Cosmetic overlay that covers the control panel on electric ranges. Replace if cracked, peeling, faded, or damaged from normal wear and handling.

Covers the control panel lamp opening to diffuse light and protect from debris. Replace if broken, cracked, or missing to restore clear indicator visibility.

The 6" Surface Burner with Sensor is an OEM part for GE ranges. This part provides precise heating for cooking on your range's stovetop. The integrated sensor helps regulate the burner temperature, ensuring even and consistent cooking results.

Common causes of a bad surface burner include electrical issues, wear and tear over time, or damage from excessive heat or spills.

Symptoms of a bad surface burner with sensor include:

• Burner not heating up
• Inconsistent or uneven heating
• Burner temperature not being properly regulated
• Error codes or malfunction indicators on the range display

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Support rod that props up the lift-up top on your range. Holds the top panel securely in the raised position for cleaning or servicing. Replace if bent or missing.

This 8-inch drip bowl sits beneath the surface coil on your range to catch spills and support the element. Replacing a rusted or stained bowl refreshes the cooktop and helps the coil sit level for reliable heating.

• Collects drips and boilovers under the 8-inch surface coil
• Positions and supports the element over the receptacle
• Helps keep the cooktop cleaner and easier to maintain
• Common signs to replace: heavy staining, rust/corrosion, warping, holes, or the element not sitting level

• Disconnect power and allow the cooktop to cool completely
• Lift the coil element slightly, then pull straight out of the receptacle
• Remove the old bowl, align the notch/orientation of the new bowl, and seat it flat
• Reinsert the coil element terminals fully into the receptacle and verify it sits level

Fix burners that won't heat or have intermittent power with this surface unit wiring harness kit. Connects heating elements to range controls.

Fix burners that won't heat or have intermittent power with this surface unit wiring harness kit. Connects heating elements to range controls.

Replacement mounting screw secures panels, brackets, and trim on ranges and cooktops. Install to replace missing, stripped, or rusted fasteners.

Houses and protects cooktop wiring connections. Replace when the original box is damaged, corroded, or missing fasteners for safe electrical connections.

Burner won't seat properly or wobbles? This receptacle clip secures the surface element connection for stable, reliable heat. Simple DIY fix.

Burner not heating or terminal block burned? This electric range terminal block kit restores power to surface elements. Easy 10-15 minute DIY repair.
