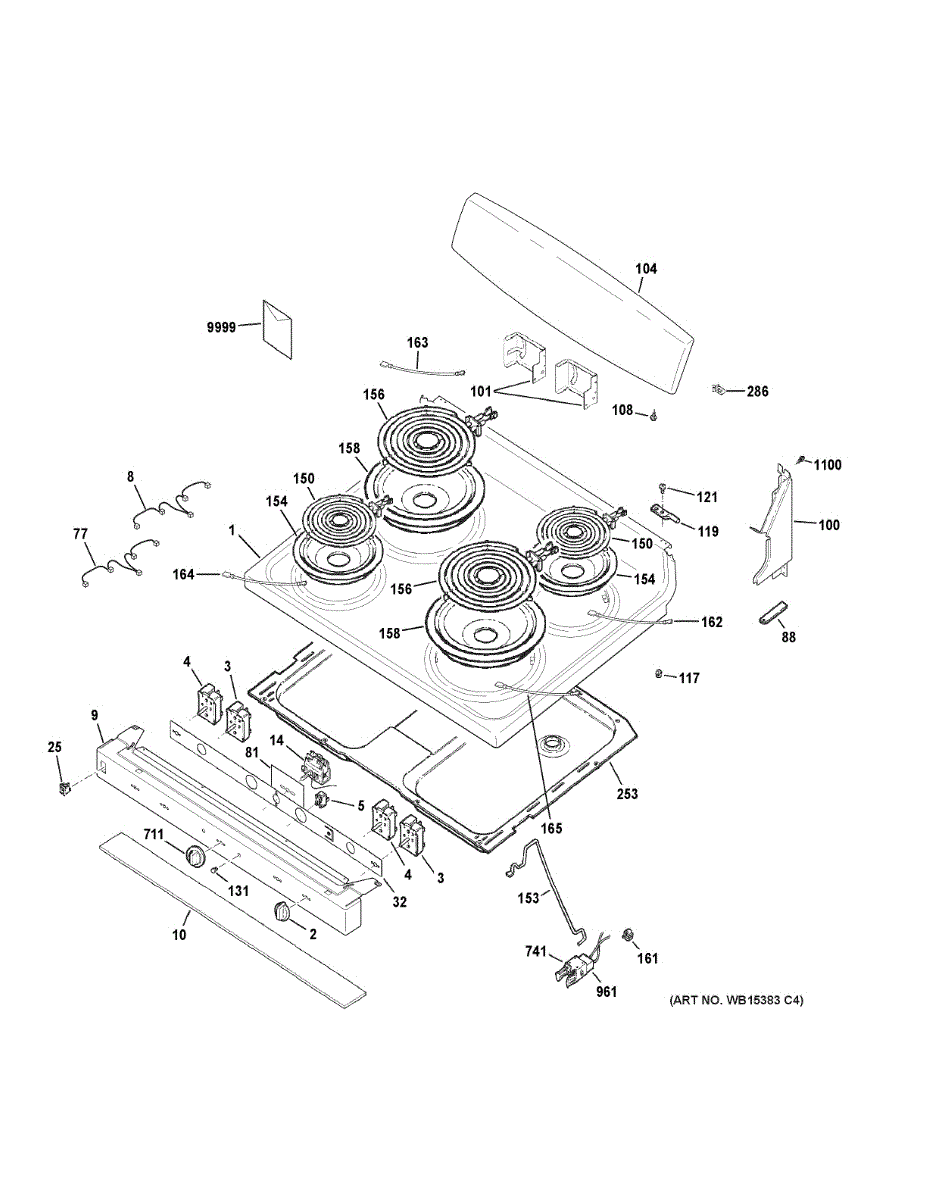

Parts for Ge JBS460DM2WW: Control Panel & Cooktop Parts

Replace a damaged main top with this factory replacement upper surface panel. It supports the surface burner components and provides a stable, easy-to-clean cooking surface so burners sit level and your range looks and works right.

• Forms the cooking surface and provides mounting points for surface components
• Keeps burners and grates properly aligned for consistent heating
• Helps contain minor spills for easier cleanup
• Replace if dented, warped, heavily chipped, rusted, or if burners/grates no longer sit level

• Disconnect power; shut off gas supply if applicable before servicing
• Remove surface components per your model (grates/burner parts or elements/trim), keeping hardware organized
• Remove retaining screws/clips and transfer any reusable parts or gaskets to the new top
• Reassemble and test; if gas, check all connections for leaks with a soapy-water solution

This replacement control knob fits the surface burner valve on many ranges and cooktops. It restores smooth on/off operation and flame adjustment when the original knob is cracked, stripped, wobbly, or missing.

• Press-fits onto the valve stem to turn the surface burner on/off and set flame level
• Replaces knobs that are cracked, stripped (spins or slips), loose, melted, or missing
• Helps restore accurate feel and alignment so settings match the dial
• Common signs: knob rotates without engaging the valve or does not stay seated

• Ensure all burners are off and the appliance is cool before servicing
• Pull the old knob straight off the valve stem; do not pry against the control panel
• Align the new knob with the stem flats/notch and press firmly until fully seated
• If the knob won't seat, inspect the stem for debris or damage before reattempting

This infinite switch controls power to a range or cooktop surface element, allowing smooth heat adjustment from low to high. Replacing a failed switch restores reliable burner temperature control and consistent day-to-day cooking performance.

• Regulates on/off cycling of the surface element to set and maintain heat level
• Failure can cause the burner to only heat on high, not heat at all, or not turn off
• Worn shaft or contacts can make the knob feel loose or hard to turn

• Disconnect power at the breaker or unplug the appliance; let the cooktop cool completely
• Pull off the control knob and remove the panel/console to access the switch
• Note terminal markings and transfer wires one at a time to the new switch (take a photo for reference)
• Mount the switch, reassemble the panel and knob, restore power, and test the element

This surface element control switch regulates power to an electric cooktop burner in timed cycles so the heat matches your knob setting. Replacing a failed switch restores reliable temperature control and resolves no-heat or stuck-on-high symptoms.

• Regulates the on/off cycling of a single surface element at the selected heat setting (also called an infinite heat switch)
• Restores smooth Low-to-High adjustment of burner temperature
• Common failure signs: burner only heats on high, won't shut off, no heat, or erratic temperature changes
• Useful when the switch shaft is stripped or the internal contacts are worn

• Disconnect power at the breaker before servicing; this is a high-voltage repair
• Remove the control/backsplash panel to access the switch; pull off the knob and mounting hardware
• Transfer wires one at a time from the old switch to the same terminals on the new switch; secure connections
• Reassemble, reinstall the knob, and test the burner through all settings

This pilot indicator light mounts in the control panel and illuminates to show when a surface element or another heating circuit is powered. Replace a burned-out or stuck-on light to restore a clear, reliable power-on warning.

• Lights when the corresponding heating circuit is energized
• Alerts users that heating components are active
• Common symptoms: light does not turn on, stays on constantly, flickers, or is very dim
• Shows physical damage to the lens or terminals when failed

• Disconnect power at the breaker before servicing
• Remove the backguard or control panel cover to access the indicator light from behind
• Note wire positions; move connectors to the new light one at a time and secure the light in the panel
• Restore power and test operation before reassembly

This lamp pilot harness is the factory-style wiring assembly that powers the pilot/light indicator on the control panel. It delivers a direct, plug-ready connection to restore a working pilot lamp and clear visual status. What it does:

• Provides the electrical connection between the control board and the pilot/lamp assembly
• Restores a non-lit or intermittent pilot/lamp indicator caused by a damaged or missing harness
• Maintains proper connector alignment to help prevent loose or shorted wiring
• Matches OEM routing and connector types for a reliable fit

• Disconnect power (unplug or shut off breaker) before servicing to avoid shock
• Route and secure the harness away from heat sources and moving parts

The Electric Thermostat is an OEM replacement part for GE ovens. This component is responsible for monitoring and regulating the temperature inside the oven. When you set a desired temperature, the electric thermostat ensures the oven heats to that specific temperature and maintains it throughout the cooking process.

Causes for a malfunctioning Electric Thermostat can include electrical issues, such as faulty wiring or connections, calibration problems, or wear and tear from regular use.

Symptoms of a bad Electric Thermostat include:

• Oven not reaching the set temperature
• Overheating or under-heating of the oven
• Inconsistent temperature fluctuations during cooking
• Error messages related to temperature or heating

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

A sealed rocker switch that replaces a failed control rocker on appliance panels to restore reliable on/off switching. Designed for direct-fit replacement of the original sealed rocker switch to help stop intermittent or non-working controls. What it does

• Provides user on/off control for the corresponding circuit or function on the appliance control panel.
• Sealed design helps resist moisture and grease common around cooking surfaces.
• Replaces worn, cracked, or unresponsive rocker mechanisms that cause inconsistent operation.
• Can resolve symptoms such as a switch that does not click, fails to make contact, or works only intermittently.

• One sealed rocker switch.

• Disconnect power to the appliance before beginning any repair to avoid shock hazard.
• Access usually requires removing the control panel or overlay—retain all screws and fasteners for reassembly.
• Match switch orientation and wiring connections exactly; note wire locations or take a photo before removal.
• Test function after reassembly and restore power only when panels and fasteners are securely replaced.

This end support secures and aligns the dryer drum so it turns smoothly and reduces wear. It replaces a worn or broken support to restore proper drum rotation and quiet operation. What it does:

• Supports the drum edge and maintains proper drum alignment during rotation
• Helps reduce rubbing, scraping, wobble, and abnormal noise from a loose drum
• Prevents uneven wear on the drum and neighboring components
• Works with rollers/bearings and rear support to keep the drum turning smoothly

• Disconnect power (and gas supply if applicable) before beginning any repairs
• Access typically requires removal of the dryer front or bulkhead; follow your model-specific service manual
• Inspect adjacent rollers, bearings, and mounting hardware; replace any worn parts to prevent repeat failures
• Use hand tools and avoid forcing components; secure fasteners to OEM torque specs when available

This end support holds and aligns the dryer drum shaft, helping the drum spin smoothly and quietly. Replace a worn end support to reduce squeaks, wobbling, or drum misalignment for safer, more reliable operation. What it does:

• Supports the drum shaft at the rear of the dryer to keep the drum centered and rotating evenly
• Maintains proper drum-to-drum seal and clearance to prevent rubbing and excess wear
• Helps reduce noise and vibration caused by a loose or damaged rear support
• Works with the drum bearing/shaft assembly to preserve smooth drum rotation

• One end support

• Disconnect power before starting work to avoid electrical shock
• Inspect surrounding drum bearings, rollers, and seals; replace any worn components for best results
• Moderate mechanical skill required; follow OEM disassembly steps and torque recommendations
• Use proper alignment during reassembly to prevent premature wear

This hinge pin links the oven door hinge to its mounting point, creating the pivot that lets the door open and close smoothly. Replacing a worn or missing pin can restore steady door movement and a consistent seal.

• Serves as the pivot point for the door hinge
• Helps maintain proper door alignment and closing pressure
• Wear or damage may show as a loose, sagging, or misaligned door
• May help address squeaks, binding, or difficulty latching the door

• Disconnect power; for gas ranges, also shut off the gas supply
• Support or remove the door to access the hinge
• Note hinge orientation; remove the old pin and install the new pin securely
• Inspect the hinge/bracket for wear; lubricate only if specified by the manufacturer

This replacement indicator light lens covers the lamp opening on the control panel, protecting the opening while keeping the ON indicator easy to see. Replacing a cracked or missing lens restores visibility and a finished look.

• Covers and protects the indicator lamp opening in the panel
• Diffuses light so the appliance's ON status is easy to see
• Helps keep dust, grease, and moisture out of the control area
• Common signs to replace: lens cracked, missing, cloudy/discolored, or won't stay seated

• Disconnect power by unplugging the appliance or switching off the circuit breaker
• Access the panel area; release the old lens tabs or retainer from the back side and remove
• Align and press the new lens fully into the opening until it sits flush
• Restore power and verify the indicator illuminates correctly

The 6" Surface Burner with Sensor is an OEM part for GE ranges. This part provides precise heating for cooking on your range's stovetop. The integrated sensor helps regulate the burner temperature, ensuring even and consistent cooking results.

Common causes of a bad surface burner include electrical issues, wear and tear over time, or damage from excessive heat or spills.

Symptoms of a bad surface burner with sensor include:

• Burner not heating up
• Inconsistent or uneven heating
• Burner temperature not being properly regulated
• Error codes or malfunction indicators on the range display

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This support rod props up the lift-up top on your range, providing a secure hold while you clean or service components beneath. Replacing a bent or missing rod restores safe, stable support for the top panel.

• Holds the range top securely in the raised position during cleaning or service
• Helps prevent the top from dropping unexpectedly
• Restores proper alignment if the original rod is bent or worn
• Common symptoms: top won't stay up, rod is missing, bent, or loose

• Disconnect power and shut off the gas supply before servicing
• Support the top while removing/installing the rod to prevent accidental dropping
• Reuse or transfer any retaining hardware/clips from the original part
• Ensure the rod is fully seated in its retainer before lowering the top

The 6" Burner Bowl is an OEM part for GE cooktops and ranges. It is designed to sit beneath the heating element, catching spills and drips that occur during cooking. This helps to keep the cooktop clean and ensures that the heating element functions properly by preventing food debris from interfering with its operation.

Over time, burner bowls can become discolored, warped, or corroded due to exposure to high heat and spills. Additionally, frequent cleaning or scraping can cause scratches and other damage, which may compromise their ability to effectively catch spills and support the heating element.

Symptoms of a bad burner bowl include:

• Discoloration or charring
• Warping or misalignment with the heating element
• Difficulty in fitting the bowl securely in place
• Residue buildup that is difficult to clean

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Notes:

• For the matching 8” drip pan, order WB31K10266.
• Surface elements:
• 6": WB30M1;  8"WB30M2.
• Element terminal block: WB17X5113.

This 8-inch drip bowl sits beneath the surface coil on your range to catch spills and support the element. Replacing a rusted or stained bowl refreshes the cooktop and helps the coil sit level for reliable heating.

• Collects drips and boilovers under the 8-inch surface coil
• Positions and supports the element over the receptacle
• Helps keep the cooktop cleaner and easier to maintain
• Common signs to replace: heavy staining, rust/corrosion, warping, holes, or the element not sitting level

• Disconnect power and allow the cooktop to cool completely
• Lift the coil element slightly, then pull straight out of the receptacle
• Remove the old bowl, align the notch/orientation of the new bowl, and seat it flat
• Reinsert the coil element terminals fully into the receptacle and verify it sits level

The 8" Burner Bowl is an OEM replacement part for GE ranges and cooktops. It is responsible for safely collecting and containing grease and cooking liquids below the burner.

Causes can include damage or deformation from repeated high heat exposure over time.

Symptoms of a bad drip pan include:

• Grease or liquids leaking outside of the drip pan area
• Warping or bending that prevents proper placement below the burner
• Inability to fully trap and contain grease and cooking residue
• Accelerated buildup or residue that impacts burner performance

This genuine GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This wire harness connects a stove's surface heating element to the cooktop wiring, restoring reliable power routing to the surface unit. Replacing a damaged harness helps resolve intermittent heating and safety issues. What it does:

• Routes electrical power between the surface burner and the cooktop wiring for proper heating
• Fixes symptoms like burners that don't heat, have intermittent power, or short out when the harness is damaged
• Replaces frayed, melted, or burned wiring that can cause arcing or poor connections
• Ensures terminals line up for secure spade/plug connections and stable operation

• One surface unit wire harness

• Disconnect all power at the breaker or unplug the appliance before starting
• Inspect terminals and connectors; replace if corroded or damaged to ensure a solid connection
• Route and secure the harness away from hot parts and sharp edges to prevent future damage

This cooktop box houses and protects the cooktop's wiring connections, restoring a safe, code-ready junction point for electrical supply lines. Use this part when the original box is damaged, corroded, or missing fasteners. What it does

• Provides a secure enclosure for cooktop electrical connections and strain relief
• Prevents exposed wiring and reduces risk of shorts or arcing at the connection point
• Restores proper mounting for incoming supply conduit or cable
• Helps correct symptoms like intermittent power, visible damage to the wiring box, or a loose/unstable connection area

• One cooktop junction wiring box

• Disconnect power at the breaker before inspecting or replacing the box
• Replacement typically requires removing the cooktop and transferring wiring into the new box; keep wire routing and grounding intact
• Use only approved screws/fasteners and maintain proper strain relief and grounding per local code

This thermostat knob assembly replaces a worn or missing control knob so you can reliably set temperature and turn the thermostat on/off. It restores a secure grip and clean, finished look to your control panel.

• Attaches to the thermostat shaft to let you select temperature and operate the control
• Replaces cracked, stripped, loose, or missing knobs
• Helps when the knob spins freely without engaging or won't stay on the stem
• Restores positive, precise-feeling rotation

• For safety, disconnect power (and shut off gas if applicable) before servicing
• Pull the old knob straight off the thermostat stem; align the new knob with the keyed shaft and press on by hand until fully seated
• Do not force; if it won't seat, inspect the stem for damage
• After installation, verify smooth operation and that the control turns fully to Off

This small retainer secures the surface element receptacle in a range or cooktop so the element plugs in straight and stays seated. Replacing a bent or missing clip helps restore a stable, reliable connection.

• Holds the surface element receptacle firmly to the cooktop or bracket
• Keeps the element plug aligned and fully seated
• Helps prevent arcing, heat damage, and intermittent burner performance from a loose receptacle
• Useful when the element feels wobbly or the receptacle shifts during use

• Disconnect power before servicing
• Lift the cooktop or access panel to reach the receptacle area
• Support the receptacle, release the old clip, and snap the new clip into place
• Ensure the receptacle is secure and aligned before reinstalling the element

The Terminal Block Kit is an OEM replacement part for GE electric ranges. This kit replaces the points of connection delivering power to control circuits and surface coil elements atop the cooktop.

Causes of failure are prolonged heat cycling which slowly breaks down solder joints and insulator coating on terminals conducting power. Liquids spilled can seep into connection areas over time promoting electrical faults.

Symptoms of a faulty terminal block include:

• Inability to ignite or regulate specific burners
• Burners that glow intermittently or fail to respond
• Tripped circuit breakers upon use of problematic zones
• Buzzing or cracking noises from under cooktop areas

This genuine GE kit is also compatible with Hotpoint and RCA electric ranges.
