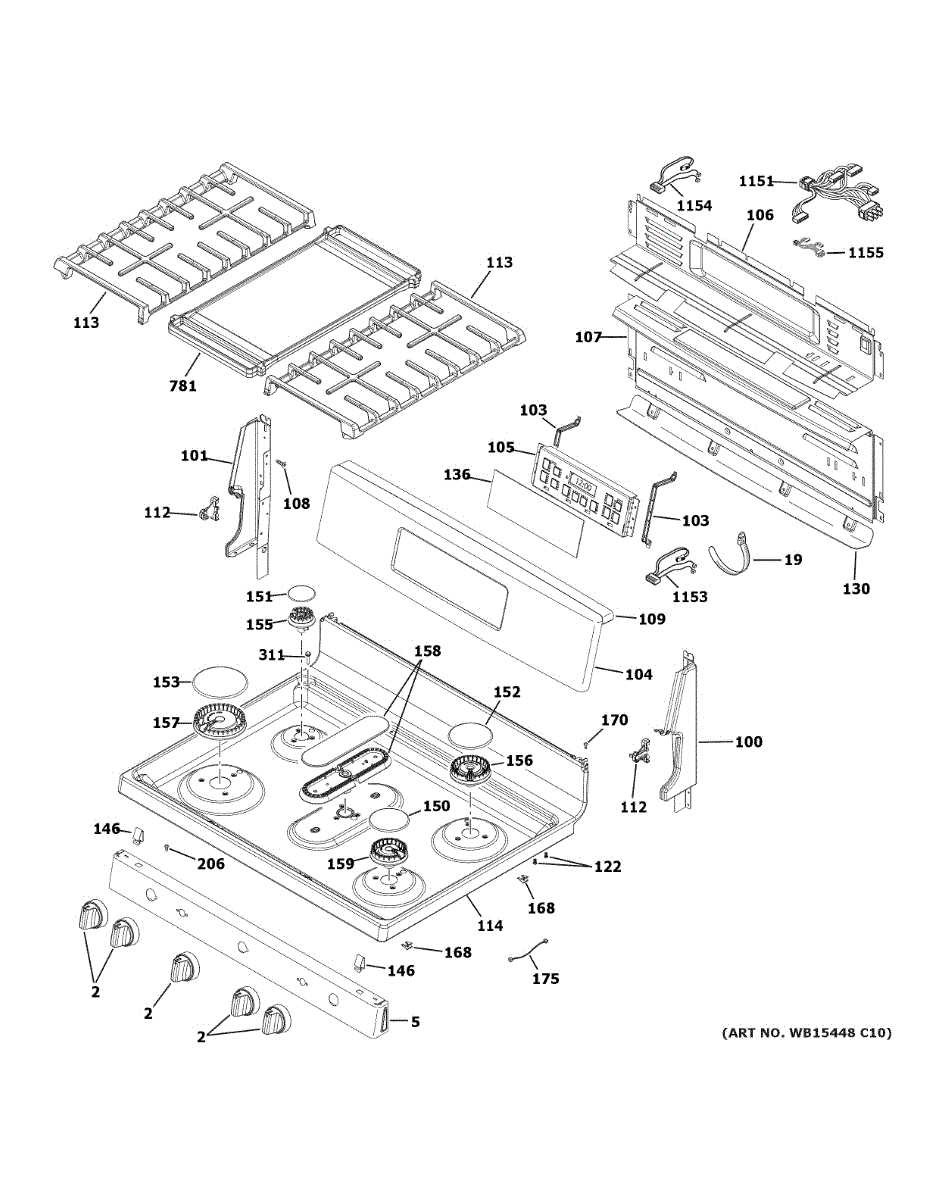

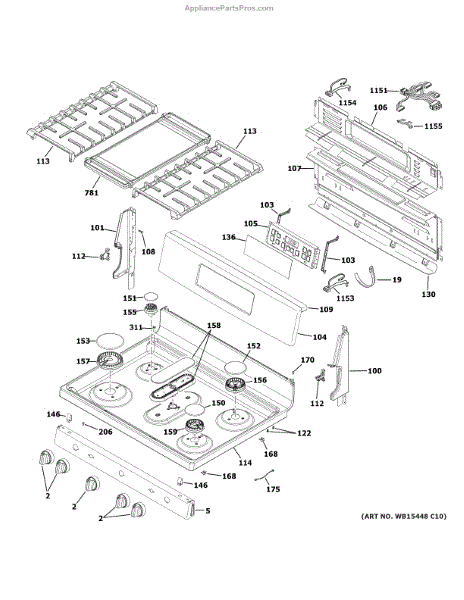

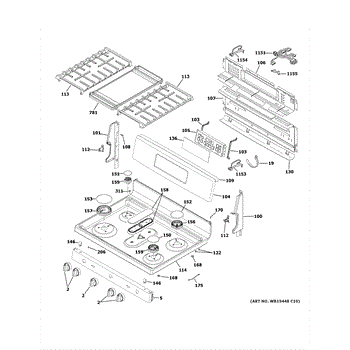

Parts for Ge JGB660YP1FS: Control Panel & Cooktop Parts

The Range Knob is an OEM part for GE ranges and ovens. It is used to control the temperature and settings of the stove's burners or oven functions, providing an interface for selecting heat levels and cooking modes.

Causes of a bad range knob can include physical damage from impact, melting due to exposure to high temperatures, or wear and tear from frequent use. Over time, these issues can affect the knob's functionality and accuracy.

Symptoms of a bad range knob include:

• Difficulty turning the knob
• Knob slipping or not staying in place
• Cracks or breaks in the knob
• Inaccurate temperature or setting adjustments

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This wire tie secures and organizes wiring inside the appliance to help prevent chafing and loose connections. Its 7-7/8 inch length is suited for bundling harnesses and routing cables away from heat and moving parts. What it does:

• Fastens and groups wires or small hoses to keep them neatly routed
• Helps prevent wire chafing, abrasion, and contact with sharp edges
• Reduces the chance of intermittent connections from loose wiring
• Keeps wiring away from moving components to reduce noise and wear

• Disconnect power before servicing the appliance
• Position wiring as needed, insert tie and tighten; avoid over-tightening
• Trim excess tie length flush and secure cut end away from wires
• Replace any damaged wiring insulation and verify routing before restoring power

This RC19 electronic control is the user interface and control board that manages oven functions and timing. A flashed unit arrives pre-programmed to match the oven's control settings to restore normal operation. What it does:

• Replaces a failed RC19 control to restore oven cycle selection, temperature control and timed bake/broil functions
• Can resolve symptoms like no display, unresponsive touchpads/keys, or oven not starting when other parts test good
• Controls relays and communicates with sensors to maintain set temperatures and cycle timing
• Pre-flashed to the required configuration to avoid on-site programming for compatible models

• Disconnect power to the appliance before starting; verify power is off with a meter
• Handle the board carefully to avoid static discharge; use ESD precautions if possible
• Installation may require removing the oven console and wiring harness; keep track of wire locations or photos

The GE Grate Assembly is an OEM part compatible with GE ranges. It provides the cooking surface for stovetop elements and grills.

Symptoms of a bad grate assembly include:

• Hot or cold spots are felt across the surface when heating
• Foods sticking or burning more easily during cooking
• Grate bars no longer laying flush and evenly across the stovetop
• Rusting, scaling, cracks, or other signs of wear in the metal

Causes of a bad grate assembly can be normal wear over many years of use. Exposure to moisture during cleaning or accidental impacts may also lead to damage.

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This rangetop and bracket assembly secures the cooktop to the range and keeps the top aligned for safe, stable cooking. Replaces a worn or damaged support assembly to reduce wobble and restore proper fit and function. What it does:

• Supports and stabilizes the cooktop surface and rangetop components
• Maintains correct alignment between the cooktop and range frame
• Prevents rattling, shifting, or gaps caused by a damaged bracket or warped top
• Restores safe, even seating of burners and cooktop parts

• Disconnect power and turn off gas supply before servicing
• Handle sheet metal carefully to avoid cuts; use gloves and eye protection
• Basic hand tools are typically required; follow the range's service manual for steps

This factory fastener secures internal components or panels in your appliance. Replacing a missing or stripped screw restores a snug fit, helps prevent vibration or rattling, and keeps assemblies aligned for proper operation.

• Secures brackets, panels, or internal components to the frame
• Replaces missing, rusted, or stripped hardware
• Helps reduce rattling, vibration, or loose-fit issues
• Maintains proper alignment and fit of assemblies

• Disconnect power before servicing
• Use the correct driver to avoid stripping the screw head
• Install in the original location; match thread and length to the original
• Tighten until snug; do not overtighten, especially into plastic or thin metal

This backguard eyebrow is the top trim piece that finishes the range's control panel area, restoring appearance and protecting the backguard edge from spills and heat. It provides a clean factory look for worn or damaged trim. What it does:

• Covers and protects the upper edge of the range backguard and control area
• Restores a finished appearance when the original trim is dented, scratched, or missing
• Helps reduce buildup of grease at the top of the control panel
• Matches OEM fit and mounting points for a direct replacement

• One backguard eyebrow trim piece

• Remove power to the appliance before beginning service
• Basic hand tools typically required; handle trim carefully to avoid scratching finish
• Follow OEM instructions for proper alignment and secure mounting

This decorative door overlay in Dark Dorian Gray restores the appliance's exterior finish and covers scratches or chips for a like-new look. It replaces a worn or damaged decorative panel to keep the appliance visually matching the rest of the kitchen. What it does:

• Restores the exterior appearance when the original door finish is scratched, chipped, or faded.
• Provides a color-matched decorative surface to maintain a coordinated look.
• Covers cosmetic damage without replacing the entire door assembly.
• Helps preserve resale value by improving appliance aesthetics.

• Follow the manufacturer's service instructions and use the correct fasteners or adhesive specified for your model.
• Remove food and secure loose items before working on the appliance; handle the overlay carefully to avoid scratching.
• If the overlay attaches near seals or hinges, check alignment after installation to ensure proper door closing.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It sits atop the gas burner to help distribute the flame evenly for better cooking performance. This cap is crucial for achieving precise temperature control and consistent heating, ensuring that food cooks evenly across the cookware.

Symptoms of a bad Burner Cap Assembly include:

• Uneven flame distribution, leading to uneven cooking or heating.
• Difficulty igniting the burner, or the flame going out unexpectedly.
• Visible signs of wear, such as warping, discoloration, or chipping of the burner cap.

Causes of a bad burner cap can include accumulation of food particles or cleaning products that clog the ports, physical damage from impact or dropping, or general deterioration from regular exposure to high temperatures.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap is an OEM part for GE ranges. It covers the burner head, helping to distribute the flame evenly for optimal cooking performance and protecting the burner head from spills and debris.

Common causes of a bad burner cap include exposure to high heat, which can cause warping or discoloration, physical damage from dropping or mishandling, and buildup of food residue that can degrade the material over time.

Symptoms of a bad burner cap include:

• Uneven or weak flame
• Difficulty in lighting the burner
• Visible cracks, chips, or discoloration on the cap
• Burner not performing efficiently

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It sits atop the burner head and serves to distribute the flame evenly across the surface, enhancing cooking efficiency and consistency.

Symptoms of a faulty burner cap assembly include:

• Uneven flame distribution or a yellow or orange flame.
• Difficulty igniting the burner.
• Excessive soot or unburned gas smell, indicating incomplete combustion.

The common causes of issues with the burner cap assembly include misalignment, food spillage clogging the ports, or wear and tear from regular use. These can affect the flow of gas and air, leading to inefficient combustion and poor cooking performance.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE cooktops and ranges. It is designed to cover the burner head, ensuring even flame distribution for efficient and effective cooking. The cap also protects the burner head from spills and debris, which can interfere with burner performance and cause clogs.

You should replace the burner cap assembly if it becomes damaged or worn out. Causes of a bad burner cap assembly can include regular exposure to high heat, food residue buildup, or accidental impacts that cause cracks or warping. A compromised burner cap can lead to uneven flames and inefficient cooking.

Symptoms of a bad burner cap assembly include:

• Uneven or yellow flames
• Difficulty igniting the burner
• Visible cracks, chips, or warping in the burner cap
• Poor cooking performance with hotspots on cookware

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner, Small V2 is an OEM part for GE ranges and cooktops. This part provides a controlled and efficient flame for cooking, specifically tailored for applications requiring a smaller, more precise heat source. Perfect for simmering sauces, melting chocolate, or any cooking task that necessitates a gentle heat, this burner ensures consistent performance and reliability.

Causes of deterioration can include clogging from food spills or cleaning products, wear and tear from regular use, and corrosion or damage to the burner assembly itself.

Symptoms of a bad Burner, Small V2 include:

• The burner fails to light or has an uneven flame.
• Reduced heat output, affecting cooking times and food quality.
• The presence of a yellow or orange flame, indicating incomplete combustion.
• Noisy operation or popping sounds when ignited.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner, Large V2 is an OEM part for GE gas ranges. It is designed to provide a consistent and even flame for cooking, ensuring efficient heat distribution for large pots and pans.

Causes of a bad burner can include clogging from food spills, wear and tear from frequent use, or damage from cleaning processes. A malfunctioning burner can lead to uneven cooking and reduced heating efficiency.

Symptoms of a bad burner include:

• Uneven or weak flame
• Burner not igniting properly
• Sputtering or inconsistent flame
• Visible damage or clogging on the burner surface

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Range Burner is an OEM replacement part for GE ranges. It is responsible for safely producing gas flames to heat the range surface. Whether baking, broiling, or simmering, the range burner must provide precise flame control and heat distribution.

Causes of a bad range burner can include cracked or rusted burner heads that improperly direct the flame, clogged or restricted gas ports that disrupt fuel flow or wear to ignition components that affect lighting.

Symptoms of a bad range burner include:

• Irregular or uneven heating of the range surface
• Difficulty controlling burner flame heights
• Burners that will not light or stay lit
• Singed, scorched, or burnt foods
• Gas leaks around burners

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Oval Burner Assembly is an OEM part for GE ranges. This part provides an even heat distribution across the cooktop, facilitating efficient cooking with its distinctive oval shape.

Common causes of a bad burner assembly include normal wear and tear, clogging due to food debris, or damage from overheating or impact.

Symptoms of a bad Oval Burner Assembly include:

• Inconsistent flame or uneven heating
• Burner not igniting or maintaining a flame
• Visible damage or deformities on the burner
• Unusual odors or gas leaks when the burner is in use

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Medium Burner is an OEM part for GE ranges and cooktops. This medium-sized burner part provides a balanced heat source for cooking. The medium burner is often used for everyday cooking tasks, offering a versatile option for boiling, sautéing, and simmering.

Causes of damage or malfunction in a burner can stem from regular use, spills and buildup of cooking materials that clog the burner ports, or corrosion over time affecting the burner's efficiency.

Symptoms of a bad medium burner include:

• Inability to achieve a consistent flame
• The burner not lighting at all
• An irregular flame pattern or color (e.g., yellow flames instead of blue)

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Clip Igniter is an OEM replacement part for GE ranges.

This GE OEM replacement is also compatible with some Hotpoint, Sears Kenmore, and RCA models.

A replacement ground harness that restores the appliance's chassis grounding connection to help ensure safe electrical operation. Installs quickly to replace a damaged or corroded ground lead and reduce risk of arcing. What it does

• Provides the dedicated chassis ground connection between appliance wiring and the cabinet
• Restores proper grounding when original harness is broken, frayed, corroded, or detached
• Helps prevent intermittent power issues, arcing, or nuisance tripping caused by poor ground continuity
• Used wherever a short ground lead or bonded connector is required for safety

• One ground harness as shown

• Disconnect power (unplug or shut off circuit breaker) before starting any repair
• Verify correct grounding point on the cabinet and secure the harness with the original screw or fastener
• Match connectors and routing to the original harness; avoid touching energized terminals during installation

This genuine replacement screw secures panels, trim and small components on compatible appliances to restore proper fit and prevent rattling or gaps. Use it when a missing or damaged fastener causes loose or misaligned parts. What it does:

• Fastens panels, bezels, trim pieces and small assemblies to the appliance frame
• Restores secure fit to eliminate rattling, vibration noise or loose trim
• Replaces stripped, rusted or missing screws that prevent proper alignment

• Disconnect power to the appliance before servicing to avoid electrical hazard
• Use the correct screwdriver or driver bit to prevent stripping the head
• Tighten securely but avoid over-torquing; excessive force can strip threads or crack plastics
• Keep removed fasteners organized to ensure correct reassembly

The Range Surface Burner Grate Bumper is an OEM replacement part for GE ranges. The bumper protects the burner grate from scratching or denting the cooktop surface below when lowered into position.

Symptoms of a damaged or missing bumper include:

• Scuff marks or abrasions on the cooktop under the burner grate area
• Noise or rubbing sensations when operating burners
• Loose or detached fit of the burner grate on the range surface

Causes stem from regular use of the burner grates over many cooking cycles. Natural wear and repeated contact with surfaces can degrade bumpers over time.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore ranges and cooktops.

This is the flat griddle plate that sits over the center burners on compatible cooktops/ranges. It provides an even cooking surface for pancakes, sandwiches, and more, and replaces a worn or missing griddle so heat is distributed properly.

• Creates a level, flat surface over the center burners for even heating
• Helps improve cooking results when the original griddle is warped, worn, or damaged
• Can reduce sticking and uneven browning compared to a deteriorated plate
• Restores intended fit and stability on the cooktop when the original no longer seats correctly

• Let the appliance cool completely and shut off gas/electric supply before handling
• Lift off existing center grate/griddle once cool; position the new griddle so it seats securely on the designated supports
• Ensure the griddle is stable and clear of burner flames before use
• Season/condition and clean per your range's Use & Care to maintain performance

This master wiring harness routes power and signals between the appliance's control components and electrical devices, restoring reliable electrical connections and proper operation. It replaces a damaged or corroded factory harness to help resolve intermittent power, control, or component failures. What it does:

• Carries power and signal connections between the control board and major electrical components
• Replaces burned, brittle, or frayed wiring that can cause intermittent operation or component failures
• Restores secure connector fits to prevent arcing or lost circuits
• Helps address symptoms such as no power to components, erratic control behavior, or visible wiring damage

• Always disconnect power (unplug or switch off breaker) before starting service
• Match connectors and routing to the original harness; avoid pinching or sharp bends
• Inspect mating connectors and terminals; replace if corroded or damaged
