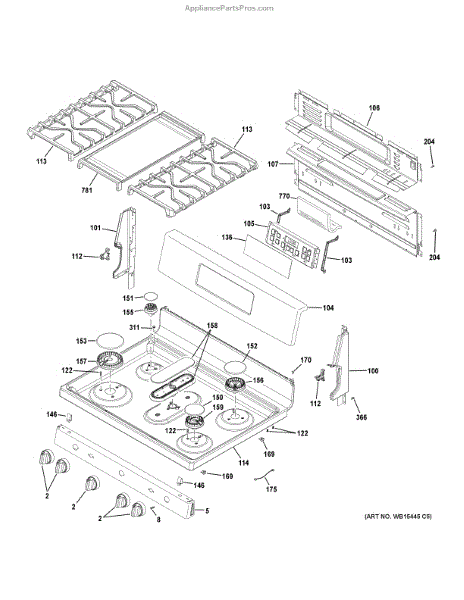

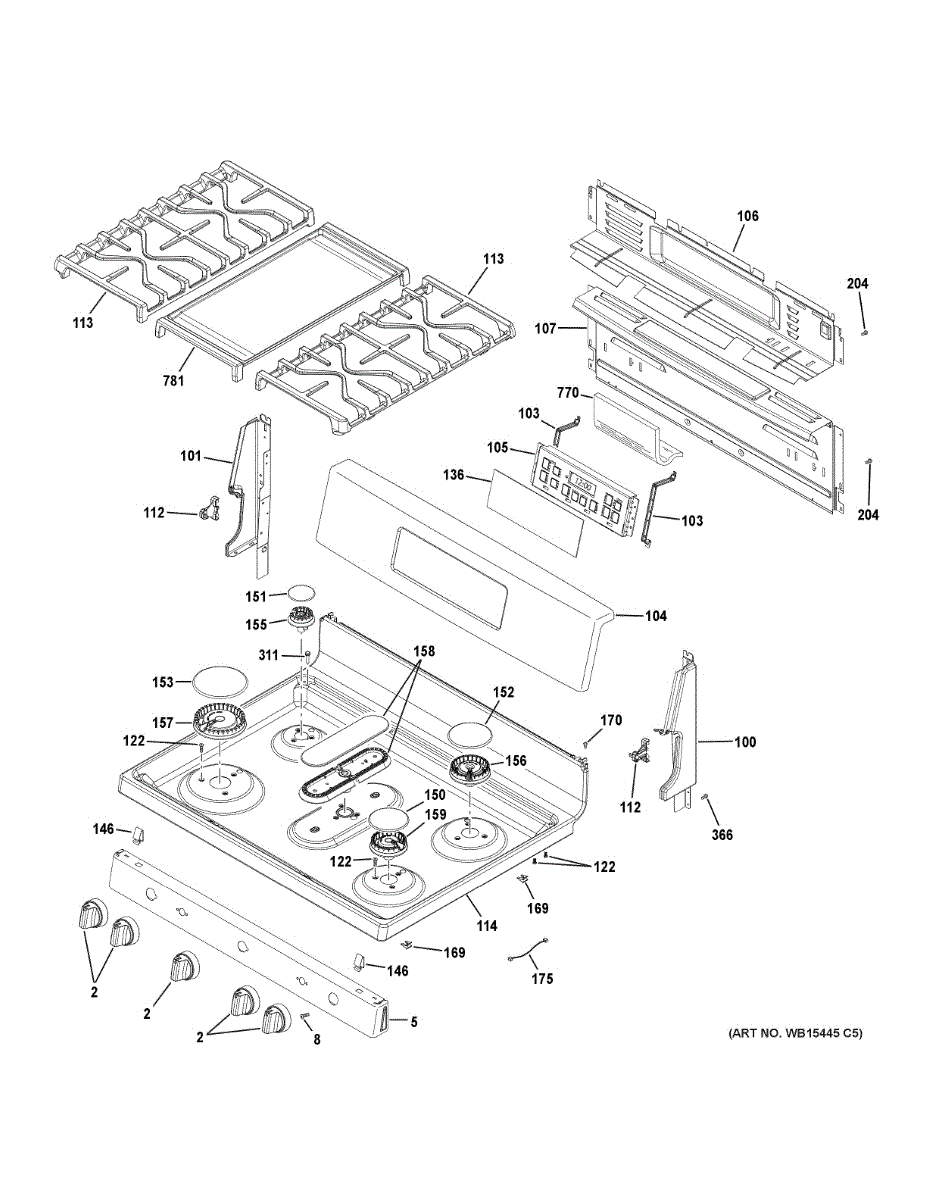

Parts for Ge JGB700DEJ3WW: Control Panel & Cooktop Parts

The Knob Assembly is an OEM replacement part for GE ranges. This knob assembly contains the control knobs used to adjust oven temperature, select cooking functions, and control other appliance settings.

Causes of a bad knob assembly can include broken, loose, or missing individual knobs that no longer allow accurate selection of settings. Overuse may cause cracking or wearing of knobs over time.

Symptoms of a bad knob assembly include:

• Inability to adjust the temperature as desired
• Knobs falling off or going missing
• Controls becoming unresponsive or incorrectly registering settings

This OEM GE part is also compatible with some Hotpoint, Monogram, and select Kenmore models.

This is a replacement 8-18 x 5/16 machine screw used to secure appliance panels and components. It restores proper fastener fit so parts stay mounted and operate safely. What it does:

• Fastens panels, brackets, and small components where an 8-18 x 5/16 screw is specified
• Prevents loose parts, rattling, and misalignment caused by missing or worn screws
• Provides the correct thread size and length for reliable reattachment
• Works wherever the OEM calls for this specific 8-18 x 5/16 screw

• Turn off and unplug the appliance before starting any repair
• Use the correct screwdriver or driver bit to avoid stripping the head
• Do not overtighten; snug until secure to prevent damage to threads or mounting surfaces
• If replacing multiple fasteners, use matching screws to maintain proper fit and function

This control bracket secures the appliance control assembly or console in place, keeping the control board and user interface stable for reliable operation and proper button/knob alignment. What it does:

• Mounts and supports the control board or console to the cabinet or frame
• Prevents the control assembly from shifting, vibrating, or rubbing against other components
• Helps maintain proper button/knob alignment and electrical connection stability
• Can cause a loose or misaligned control panel or intermittent button response when damaged or missing

• One control mounting bracket

• Disconnect power to the appliance before starting any repair
• Handle control board and wiring with care to avoid ESD or connector damage
• Use the original fasteners or recommended replacements and torque evenly

This electronic oven control board replaces a faulty control to restore oven functions and user interface. It manages bake/broil functions and the oven's display/input responses so the range operates correctly. What it does:

• Controls oven heating cycles (bake, broil, timers) through the appliance's user interface
• Manages display and keypad/touch inputs; can resolve unresponsive or blank controls
• Regulates oven temperature signals to heating elements or igniter circuits
• Helps stop erratic cycling or incorrect temperature behavior when the original board fails

• One oven control board

• Turn power to the appliance OFF at the breaker before starting any work
• Handle the control board carefully to avoid static damage; use a grounded strap if available
• Some disassembly of the control panel and removal of mounting screws/connectors is required

The GE Grate Assembly is an OEM part compatible with GE ranges. It provides the cooking surface for stovetop elements and grills.

Symptoms of a bad grate assembly include:

• Hot or cold spots are felt across the surface when heating
• Foods sticking or burning more easily during cooking
• Grate bars no longer laying flush and evenly across the stovetop
• Rusting, scaling, cracks, or other signs of wear in the metal

Causes of a bad grate assembly can be normal wear over many years of use. Exposure to moisture during cleaning or accidental impacts may also lead to damage.

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This rangetop bracket assembly secures the cooktop to the range frame so the cooktop sits level and stable. It's a direct-replacement mounting bracket designed to restore proper support and alignment for the rangetop. What it does

• Secures the rangetop to the range frame so the cooktop remains stable and flush
• Prevents movement that can cause burner misalignment or gaps between the cooktop and range
• Restores correct alignment after collisions, wear, or damaged brackets
• Works as a structural mounting piece used during rangetop installation or reassembly

• Disconnect power (and gas, if applicable) before starting any repair.
• Handle sharp edges and heavy components carefully; use gloves and eye protection.
• Follow the range's service manual for disassembly/reassembly steps and torque specs.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It sits atop the gas burner to help distribute the flame evenly for better cooking performance. This cap is crucial for achieving precise temperature control and consistent heating, ensuring that food cooks evenly across the cookware.

Symptoms of a bad Burner Cap Assembly include:

• Uneven flame distribution, leading to uneven cooking or heating.
• Difficulty igniting the burner, or the flame going out unexpectedly.
• Visible signs of wear, such as warping, discoloration, or chipping of the burner cap.

Causes of a bad burner cap can include accumulation of food particles or cleaning products that clog the ports, physical damage from impact or dropping, or general deterioration from regular exposure to high temperatures.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap is an OEM part for GE ranges. It covers the burner head, helping to distribute the flame evenly for optimal cooking performance and protecting the burner head from spills and debris.

Common causes of a bad burner cap include exposure to high heat, which can cause warping or discoloration, physical damage from dropping or mishandling, and buildup of food residue that can degrade the material over time.

Symptoms of a bad burner cap include:

• Uneven or weak flame
• Difficulty in lighting the burner
• Visible cracks, chips, or discoloration on the cap
• Burner not performing efficiently

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE gas ranges and cooktops. It sits atop the burner head and serves to distribute the flame evenly across the surface, enhancing cooking efficiency and consistency.

Symptoms of a faulty burner cap assembly include:

• Uneven flame distribution or a yellow or orange flame.
• Difficulty igniting the burner.
• Excessive soot or unburned gas smell, indicating incomplete combustion.

The common causes of issues with the burner cap assembly include misalignment, food spillage clogging the ports, or wear and tear from regular use. These can affect the flow of gas and air, leading to inefficient combustion and poor cooking performance.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner Cap Assembly is an OEM part for GE cooktops and ranges. It is designed to cover the burner head, ensuring even flame distribution for efficient and effective cooking. The cap also protects the burner head from spills and debris, which can interfere with burner performance and cause clogs.

You should replace the burner cap assembly if it becomes damaged or worn out. Causes of a bad burner cap assembly can include regular exposure to high heat, food residue buildup, or accidental impacts that cause cracks or warping. A compromised burner cap can lead to uneven flames and inefficient cooking.

Symptoms of a bad burner cap assembly include:

• Uneven or yellow flames
• Difficulty igniting the burner
• Visible cracks, chips, or warping in the burner cap
• Poor cooking performance with hotspots on cookware

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner, Small V2 is an OEM part for GE ranges and cooktops. This part provides a controlled and efficient flame for cooking, specifically tailored for applications requiring a smaller, more precise heat source. Perfect for simmering sauces, melting chocolate, or any cooking task that necessitates a gentle heat, this burner ensures consistent performance and reliability.

Causes of deterioration can include clogging from food spills or cleaning products, wear and tear from regular use, and corrosion or damage to the burner assembly itself.

Symptoms of a bad Burner, Small V2 include:

• The burner fails to light or has an uneven flame.
• Reduced heat output, affecting cooking times and food quality.
• The presence of a yellow or orange flame, indicating incomplete combustion.
• Noisy operation or popping sounds when ignited.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Burner, Large V2 is an OEM part for GE gas ranges. It is designed to provide a consistent and even flame for cooking, ensuring efficient heat distribution for large pots and pans.

Causes of a bad burner can include clogging from food spills, wear and tear from frequent use, or damage from cleaning processes. A malfunctioning burner can lead to uneven cooking and reduced heating efficiency.

Symptoms of a bad burner include:

• Uneven or weak flame
• Burner not igniting properly
• Sputtering or inconsistent flame
• Visible damage or clogging on the burner surface

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Range Burner is an OEM replacement part for GE ranges. It is responsible for safely producing gas flames to heat the range surface. Whether baking, broiling, or simmering, the range burner must provide precise flame control and heat distribution.

Causes of a bad range burner can include cracked or rusted burner heads that improperly direct the flame, clogged or restricted gas ports that disrupt fuel flow or wear to ignition components that affect lighting.

Symptoms of a bad range burner include:

• Irregular or uneven heating of the range surface
• Difficulty controlling burner flame heights
• Burners that will not light or stay lit
• Singed, scorched, or burnt foods
• Gas leaks around burners

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Oval Burner Assembly is an OEM part for GE ranges. This part provides an even heat distribution across the cooktop, facilitating efficient cooking with its distinctive oval shape.

Common causes of a bad burner assembly include normal wear and tear, clogging due to food debris, or damage from overheating or impact.

Symptoms of a bad Oval Burner Assembly include:

• Inconsistent flame or uneven heating
• Burner not igniting or maintaining a flame
• Visible damage or deformities on the burner
• Unusual odors or gas leaks when the burner is in use

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Medium Burner is an OEM part for GE ranges and cooktops. This medium-sized burner part provides a balanced heat source for cooking. The medium burner is often used for everyday cooking tasks, offering a versatile option for boiling, sautéing, and simmering.

Causes of damage or malfunction in a burner can stem from regular use, spills and buildup of cooking materials that clog the burner ports, or corrosion over time affecting the burner's efficiency.

Symptoms of a bad medium burner include:

• Inability to achieve a consistent flame
• The burner not lighting at all
• An irregular flame pattern or color (e.g., yellow flames instead of blue)

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Clip Igniter is an OEM replacement part for GE ranges.

This GE OEM replacement is also compatible with some Hotpoint, Sears Kenmore, and RCA models.

Color: White. Mounting screw for end caps.

A replacement ground harness that restores the appliance's chassis grounding connection to help ensure safe electrical operation. Installs quickly to replace a damaged or corroded ground lead and reduce risk of arcing. What it does

• Provides the dedicated chassis ground connection between appliance wiring and the cabinet
• Restores proper grounding when original harness is broken, frayed, corroded, or detached
• Helps prevent intermittent power issues, arcing, or nuisance tripping caused by poor ground continuity
• Used wherever a short ground lead or bonded connector is required for safety

• One ground harness as shown

• Disconnect power (unplug or shut off circuit breaker) before starting any repair
• Verify correct grounding point on the cabinet and secure the harness with the original screw or fastener
• Match connectors and routing to the original harness; avoid touching energized terminals during installation

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

This is the flat griddle plate that sits over the center burners on compatible cooktops/ranges. It provides an even cooking surface for pancakes, sandwiches, and more, and replaces a worn or missing griddle so heat is distributed properly.

• Creates a level, flat surface over the center burners for even heating
• Helps improve cooking results when the original griddle is warped, worn, or damaged
• Can reduce sticking and uneven browning compared to a deteriorated plate
• Restores intended fit and stability on the cooktop when the original no longer seats correctly

• Let the appliance cool completely and shut off gas/electric supply before handling
• Lift off existing center grate/griddle once cool; position the new griddle so it seats securely on the designated supports
• Ensure the griddle is stable and clear of burner flames before use
• Season/condition and clean per your range's Use & Care to maintain performance
